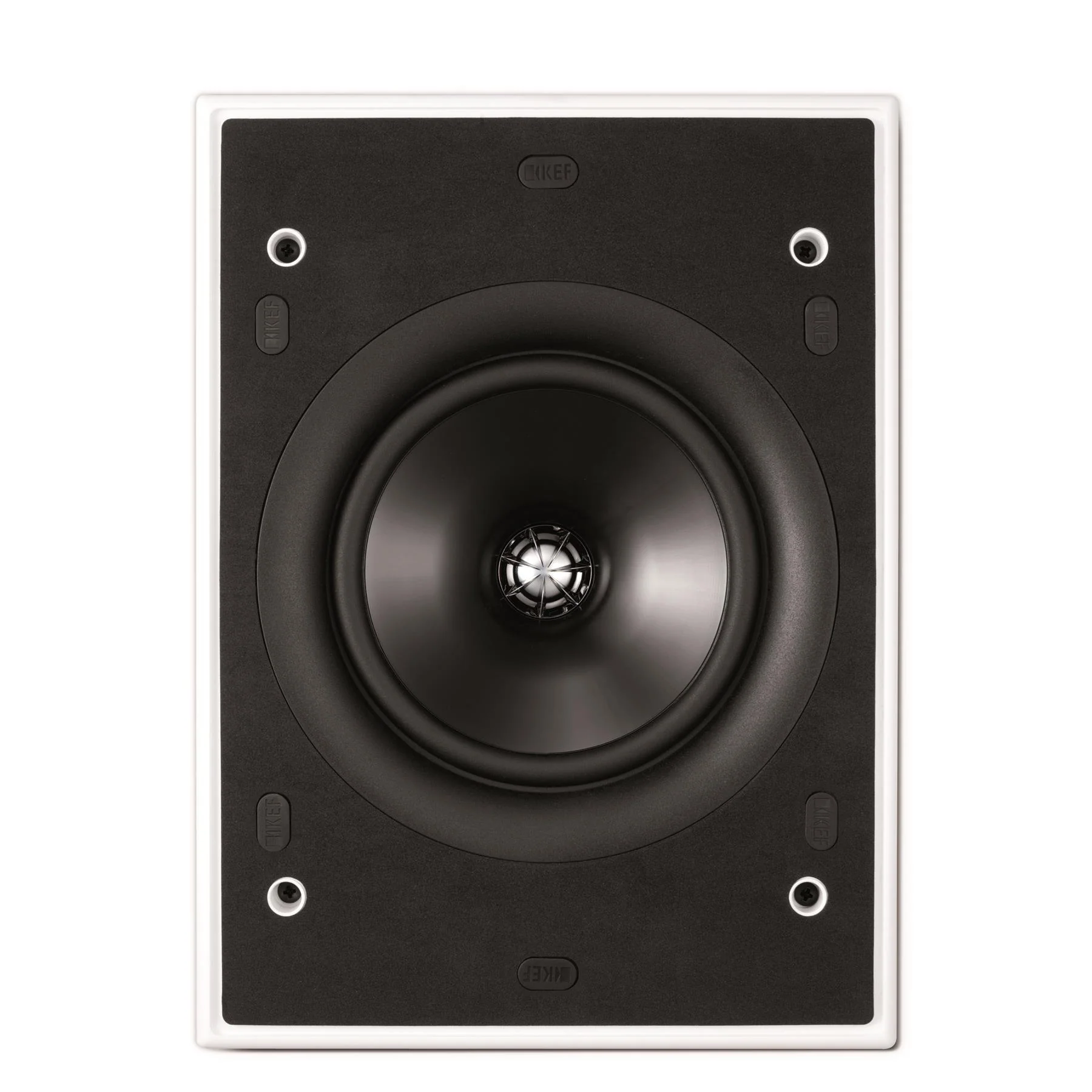

KEF Ci160QL Ci-Q Series In-Wall Speaker
KEF Ci160QL Ci-Q Series In-Wall Speaker | Premium High Performance | Uni-Q® Technology
Upgrade your audio experience with the KEF Ci160QL from the Ci-Q Series. Designed for seamless integration into your wall or ceiling, this rectangular loudspeaker features KEF's patented Uni-Q driver array for exceptional sound dispersion and coverage.
KEF Ci160QL Key Features:
- Uni-Q® Technology: Patented driver array places tweeter in the acoustic center of the woofer, ensuring wide dispersion and consistent sound characteristics throughout the space.
- Tangerine Waveguide: Enhances dispersion for up to 125 degrees of coverage, delivering smooth and consistent audio.
- Weather Resistant: Constructed with UV-protected components, ideal for premium commercial venues like luxury hotels and restaurants.
- Ultra-Thin Bezel (UTB): Sleek design with a thin bezel for a premium aesthetic appearance.
- Magnetic Grille: Secure and easy installation with a paintable grille to match any décor.
- IP64 Certification: Officially tested for resistance to splashing water, ensuring durability in harsh environments.
KEF Ci160QL Specifications:
- Nominal Impedance: 8 Ohm
- Sensitivity: 89dB (2.83V/1m)
- Crossover Frequencies: 3.0kHz
- Frequency Response: 38Hz - 34kHz (±6dB) open backed
- Drive Units: LF: 160mm (6.5in.), HF: 19mm (0.75in.) Uni-Q
- Recommended Amplifier Power: 10 - 125W
- Product External Dimension: 303 x 223 x 97.5 mm (11.93 x 8.78 x 3.84 in.)
- Cut-Out Dimensions: 274 x 194 mm (10.79 x 7.64 in.)
- Mounting Thickness: Ceiling Thickness (Maximum): 30mm (1.19 in.), Ceiling Thickness (Minimum): 3mm (0.12 in.)
- Mounting Depth From Surface: 91mm (3.58in.)
- Optional Rough In Frame: RIF160L
- Optional Rear Enclosure: RNC160L
- Net Weight: 2.05kg (4.51lbs.)
Elevate your audio experience with the KEF Ci160QL in-wall speaker, designed for premium sound quality and effortless installation.
KEF Ci160QL Downloads
KEF Ci160QL Manual
KEF Ci160QL Specification Sheet
KEF Ci160QL Cutout Template
KEF Ci Minimum Cabinet Volume Chart
KEF Architectural Brochure
KEF Architectural Selection And Setup Guide
KEF Architectural Accessory Reference Guide
KEF Architectural Speaker Group Specification Sheet
Original: $499.99
-65%$499.99
$175.00More Images
