KEF Ci160ES Ci-E Series In-Wall Speaker - Pair

KEF Ci160ES Ci-E Series In-Wall Speaker - Pair

KEF Ci160ES from the Ci-E Series. Designed with the same precision and quality as all KEF architectural offerings, these speakers boast the renowned Uni-Q driver technology, ensuring immersive sound throughout your space. Discreetly integrated into your walls, they deliver exceptional audio without compromising on aesthetics.

KEF Ci160ES Key Features:

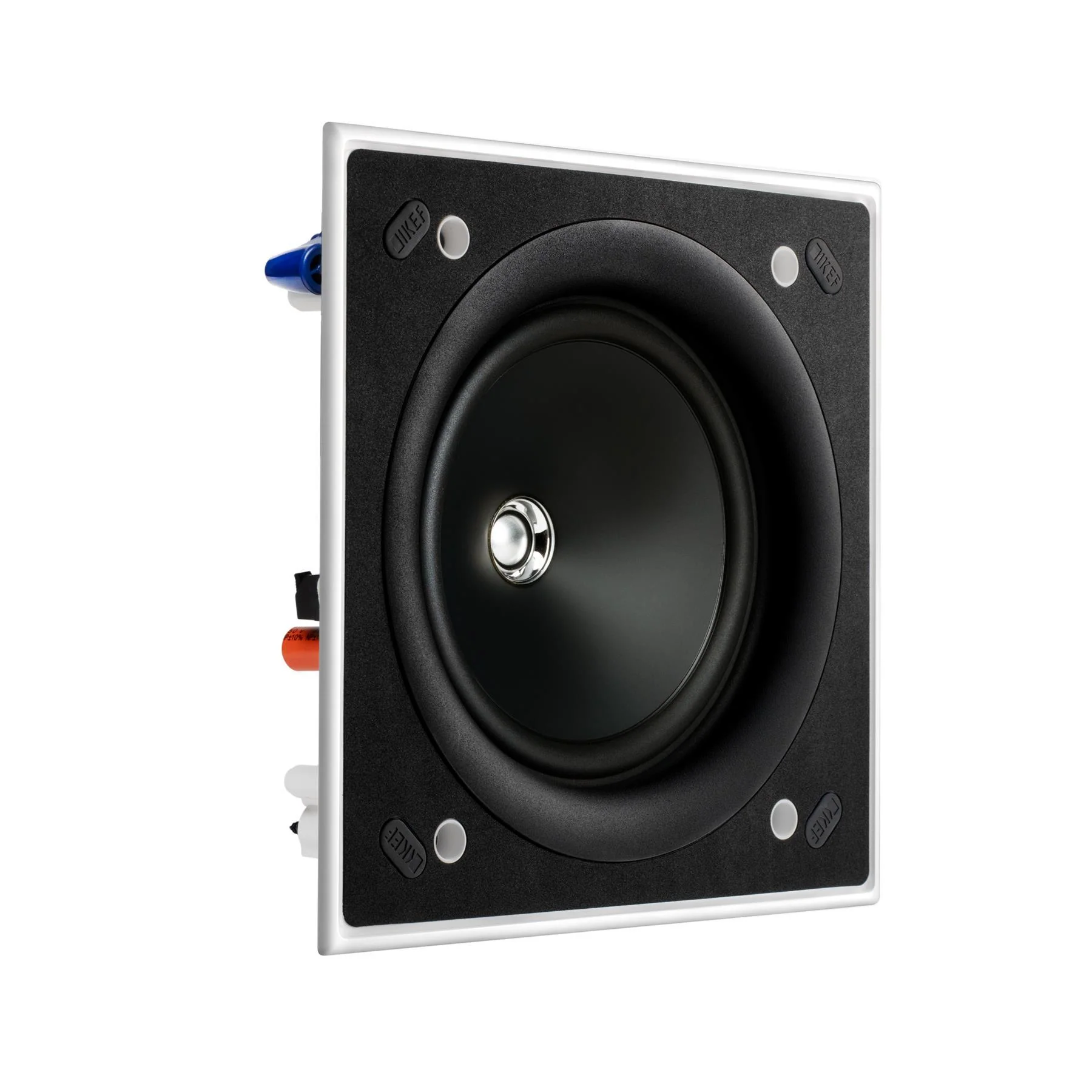

• KEF Uni-Q Technology: Enjoy wide dispersion and consistent sound quality from anywhere in the room, thanks to the tweeter's placement at the acoustic center of the woofer.
• Weather Resistant: With UV protection and a durable construction, these speakers are built to withstand harsh environments, making them suitable for various applications including bathrooms and kitchens.

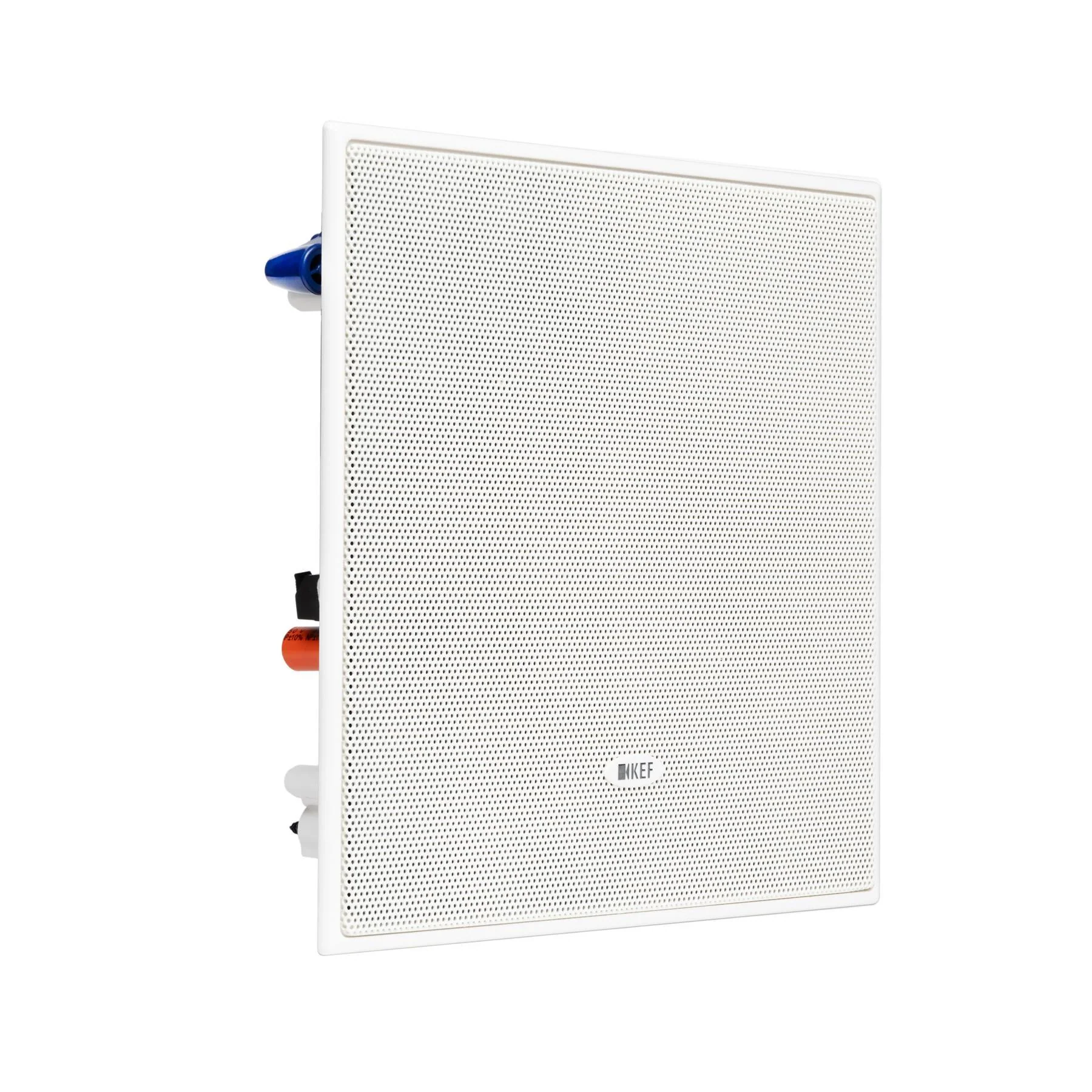

• Magnetic Grille: Easily attachable and paintable grille for seamless integration with any decor.
• Universal Cut-Out: Simplified installation with consistent diameter openings across KEF's 160mm in-ceiling square speaker range.
• IP64 Certification: Officially tested and certified to withstand splashing water, ensuring long-lasting performance.

KEF Ci160ES Specifications:

• Nominal Impedance: 8 Ohms
• Sensitivity: 89dB (2.83V/1m)
• Frequency Response: 52Hz - 20kHz (+/-6dB)
• Frequency Range: 46Hz - 45kHz (-10dB)
• Nominal Coverage: 110°
• Max SPL (dB): 104dB
• Crossover Frequencies: 2.8kHz
• Drive Units: LF: 160mm (6.5in.) Uni-Q, HF: 16mm (0.6in.)
• Recommended Amplifier Power: 10 - 100W
• Recommended High-Pass Filter (Hz): 50Hz
• Product External Dimensions: 223 x 223 x 88.7mm (8.78 x 8.78 x 3.49in.)
• Cut-Out Dimensions: 194 x 194 mm (7.64 x 7.64 in.)
• Mounting Depth From Surface: 85.2mm (3.35in.)
• Optional Rough In Frame: RIF160S
• Optional Rear Enclosure: RNC160S
• Net Weight: 1.4kg (3.1lbs)
• Ideal Rear Volume (L): 35L
• Minimum Rear Volume (L): 20L
• Certification: IP64

Enhance Your Space with KEF Ci160ES: Transform your living space, hotel, or convention center with the seamless integration and exceptional sound quality of KEF's Ci-E Series speakers. Enjoy superior audio performance without sacrificing style.
