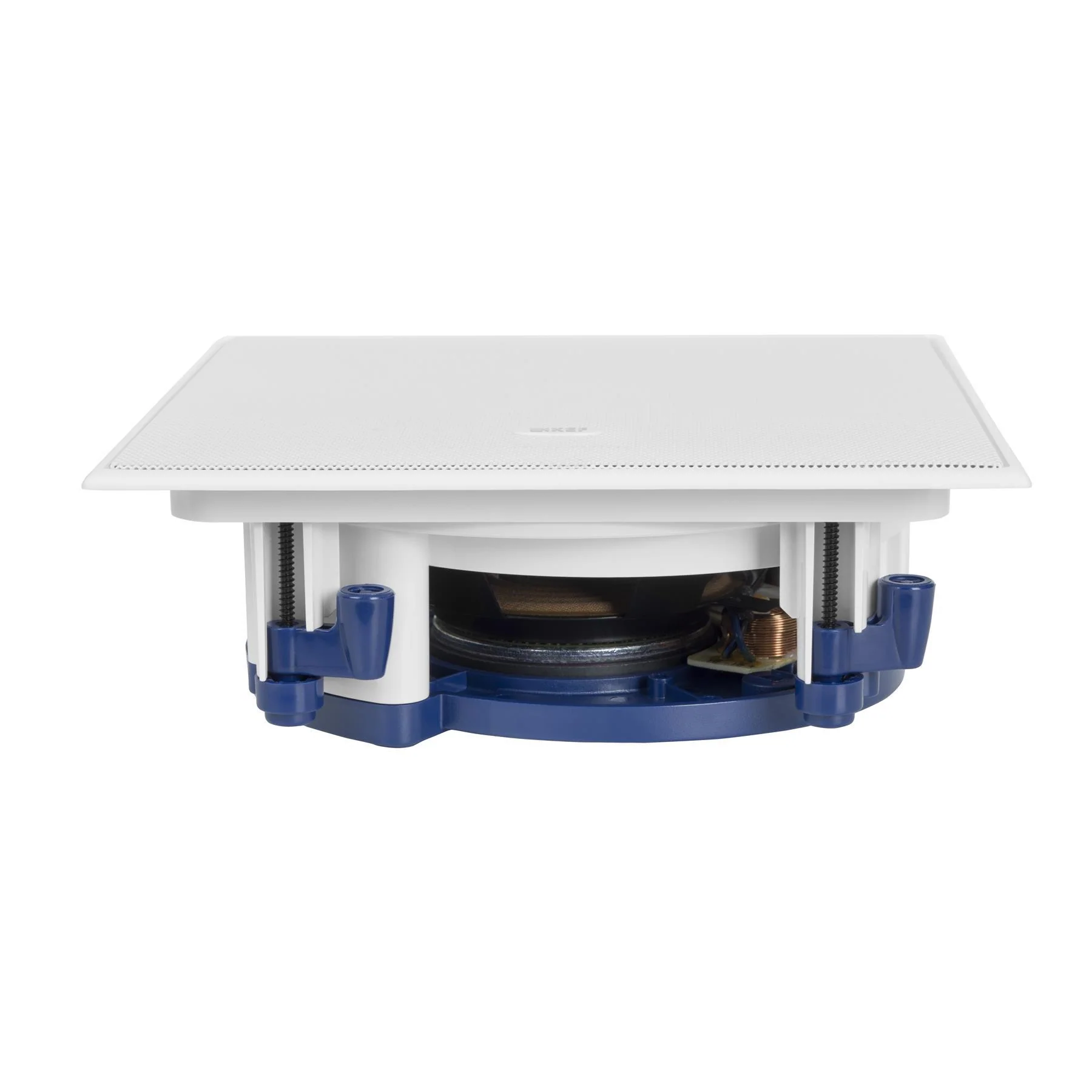

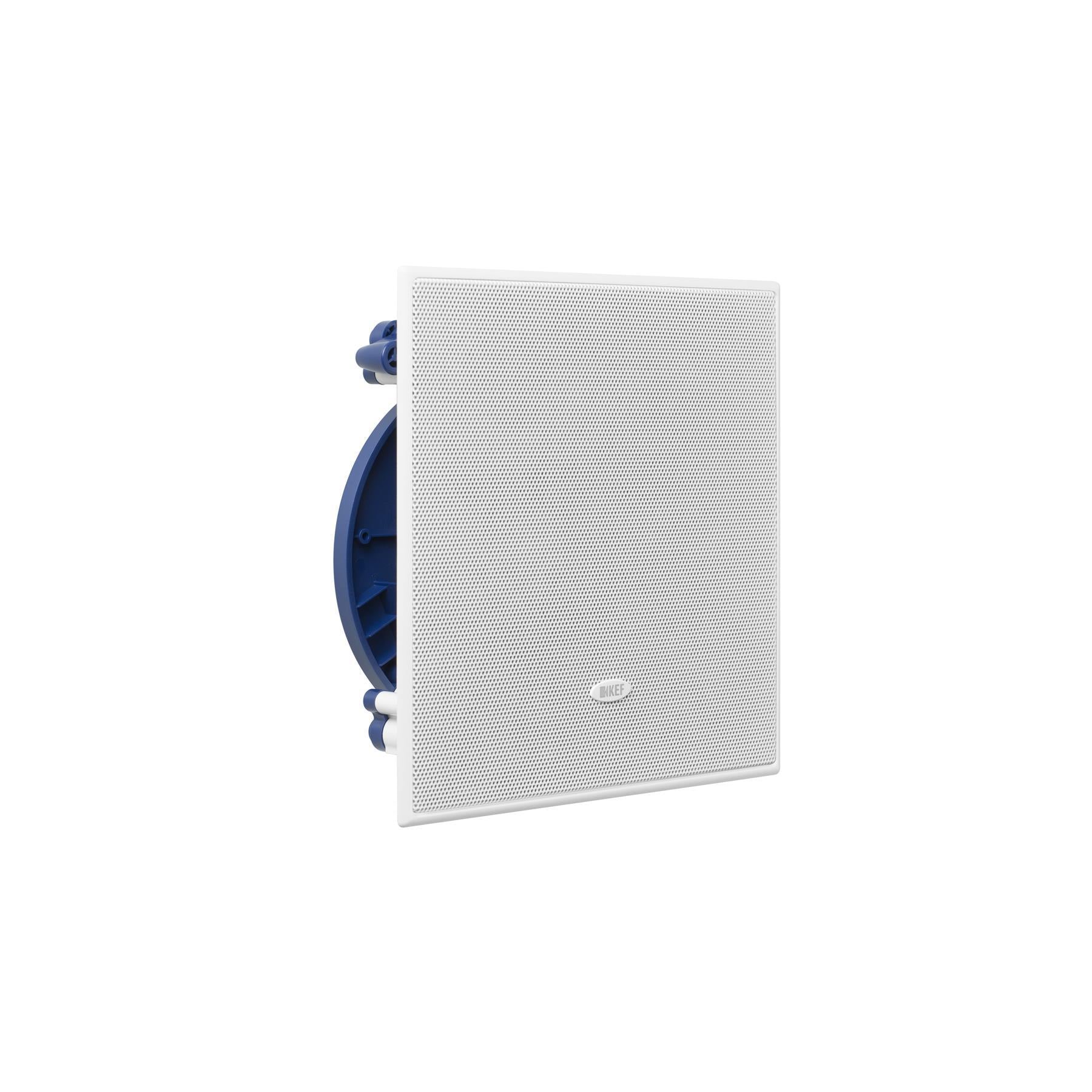

KEF Ci160.2CS Ci-C Series In-Wall Speaker

KEF Ci160.2CS Ci-C Series In-Wall Speaker - Premium Sound Experience for Any Space

The KEF Ci160.2CS, a high-performance in-wall speaker engineered for seamless flush mount installations. Featuring KEF's revolutionary Uni-Q® technology, this speaker delivers immersive sound with its coincident point source design, where the tweeter is strategically placed at the acoustic center of the woofer. This ensures wide dispersion and consistent sound characteristics throughout the room, creating an unparalleled listening experience. Crafted with weather-resistant components and a sleek Ultra-Thin Bezel, the Ci160.2CS seamlessly blends into any indoor or outdoor environment.

KEF Ci160.2CS Key Features:

• Uni-Q® Technology: Revolutionary driver array ensures wide dispersion and consistent sound characteristics, eliminating acoustic lobing issues.
• Tangerine Waveguide: Enhances high-frequency dispersion for a wider listening area, providing 120 degrees of coverage.
• Weather Resistant: UV-protected construction withstands harsh environments, making it ideal for indoor and outdoor applications.
• Ultra-Thin Bezel (UTB): Sleek design with barely visible bezels ensures a premium aesthetic appearance.
• Magnetic Grille: Easily attachable grille can be painted to match any décor, providing both security and ease of installation.
• Covered Crossover Circuit: Protects electrical components while adding structural rigidity to the speaker assembly.
• Universal Cut-Out: Compatible with all KEF 160mm in-ceiling square speakers for flexible installation options.

KEF Ci160.2CS Specifications:

• Nominal Impedance: 8 Ohms
• Sensitivity: 89dB (2.83V/1m)
• Frequency Response: 52Hz-20kHz (+/-6dB) open-backed
• Crossover Response: 2.5kHz
• Drive Units:
  • LF: 160mm (6.5in.) Uni-Q
  • HF: 16mm (0.6in.) Aluminium dome tweeter
• Recommended Amplifier Power: 10-100W
• Product External Dimensions (H x W x D): 223 x 223 x 88.7 mm (8.78 x 8.78 x 3.49 in.)
• Cut-Out Dimensions (H x W): 94 x 194 mm (7.64 x 7.64 in.)
• Mounting Thickness:
  • Ceiling Thickness (Maximum): 30mm (1.19 in.)
  • Ceiling Thickness (Minimum): 3mm (0.12 in.)
• Mounting Depth From Surface: 84.5mm (3.33in.)
• Optional Accessories:
  • Rough In Frame: RIF160S
  • Rear Enclosure: RNC160S
• Net Weight: 1.5kg (3.3lbs)

KEF Ci160.2CS Downloads

KEF Ci160.2CS Manual
KEF Ci160.2CS Specification Sheet
KEF Ci160.2CS Cutout Template
KEF Ci Minimum Cabinet Volume Chart
KEF Architectural Brochure
KEF Architectural Selection And Setup Guide
KEF Architectural Accessory Reference Guide
KEF Architectural Speaker Group Specification Sheet
