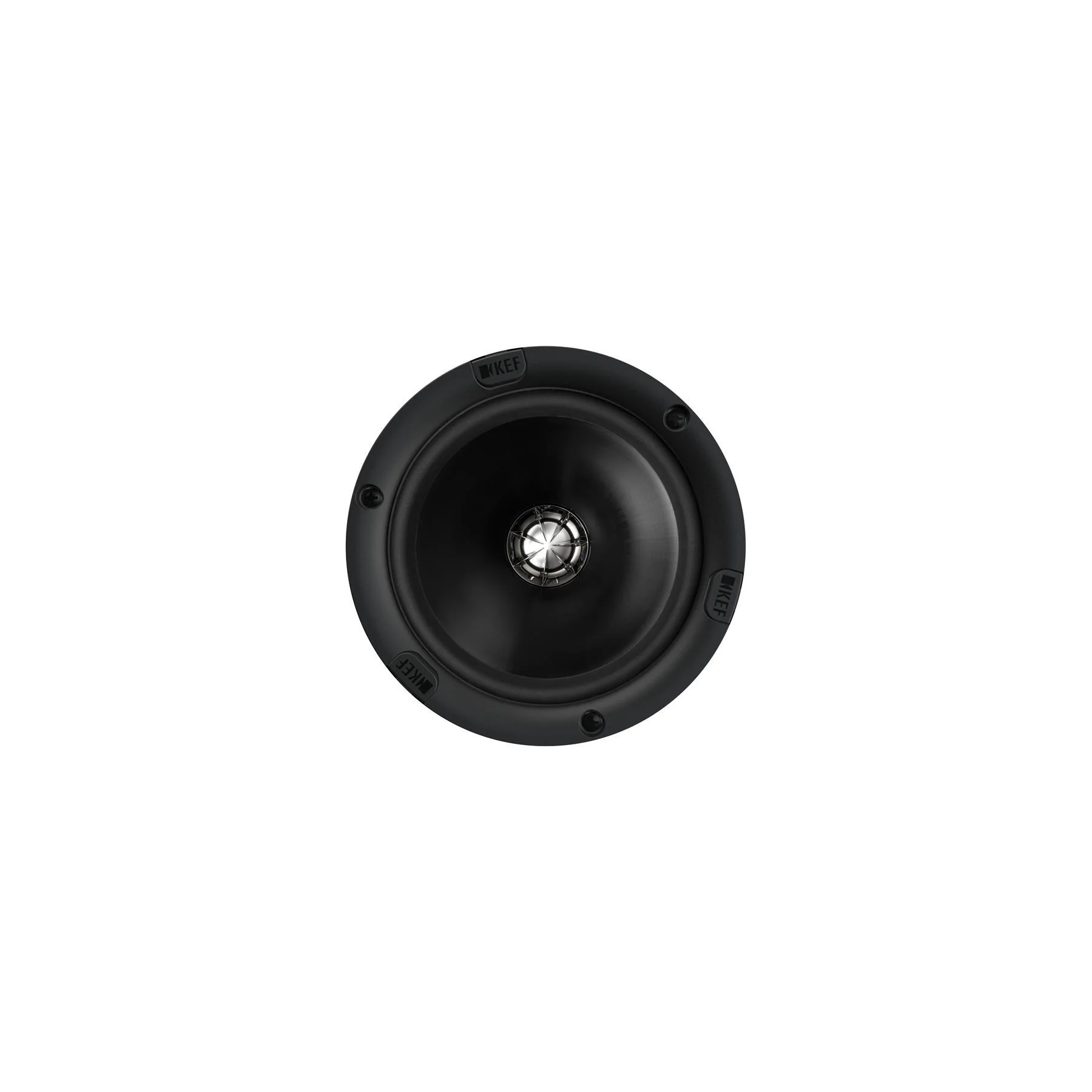

KEF Ci130QRfl Ci-Q Series Flush Mount In-Ceiling Speaker
KEF Ci130QRfl Ci-Q Series Flush Mount In-Ceiling Speaker - High-Quality Sound, Easy Installation
KEF Ci130QRfl from the Ci-Q Series. This flush-mounted architectural speaker combines seamless design with exceptional sound quality, perfect for modern homes and minimalist interiors.
KEF Ci130QRfl Features:
- Flush Mount Architectural Speaker: The Ci130QRfl is designed to sit flush with your wall or ceiling, blending seamlessly with your home decor.
- Uni-Q Array Technology: Enjoy immersive sound from a single point source, enhanced by KEF's signature Uni-Q array and Tangerine Waveguide technology.
- Easy Installation: Engineered for simplicity, the Ci130QRfl can be installed during new construction or retrofitted with ease, ensuring a hassle-free setup process.
KEF Ci130QRfl Specifications:
- Nominal Impedance: 8 Ohms
- Sensitivity: 87dB (2.83V/ 1m)
- Frequency Response (±6DB): 45Hz - 34kHz (Open-Backed)
- Frequency Range (-10DB): 38Hz - 30kHz
- Nominal Coverage (Degrees): 130
- MAX SPL (DB): 103
- Crossover Frequency: 3.8kHz
- Drive Units: LF: 130mm (5.25in.) Uni-Q, HF: 19mm (0.75in.)
- Recommended Amplifier Power: 10-100W
- Recommended High-Pass Filter (HZ): 50Hz
- Product External Dimensions: Diameter Ø: 200.6mm (7.9in), Depth: 104.6mm (4.12in)
- Cut-Out Dimensions: Diameter Ø: 158mm (6.22in)
- Mounting Thickness: Ceiling Thickness (Maximum): 31mm (1.220in), Ceiling Thickness (Minimum): 7mm (0.276in)
- Net Weight: 1.45kg (3.19Ibs)
- Mounting Depth From Surface: 101mm (3.98in)
- Optional Rough In Frame: NA
- Optional Rear Enclosure: NA
- Ideal Rear Volume (L): 15
- Minimum Rear Volume (L): 10
Transform your living space into an audio haven with the KEF Ci130QRfl. Experience immersive sound and effortless installation. Order yours today for a superior home entertainment experience.
KEF Ci130QRfl Downloads
KEF Ci130QRfl Manual
KEF Ci130QRfl Specification Sheet
KEF Ci130QRfl Cutout Template
KEF Ci Minimum Cabinet Volume Chart
KEF Architectural Brochure
KEF Architectural Selection And Setup Guide
KEF Architectural Accessory Reference Guide
KEF Architectural Speaker Group Specification Sheet
