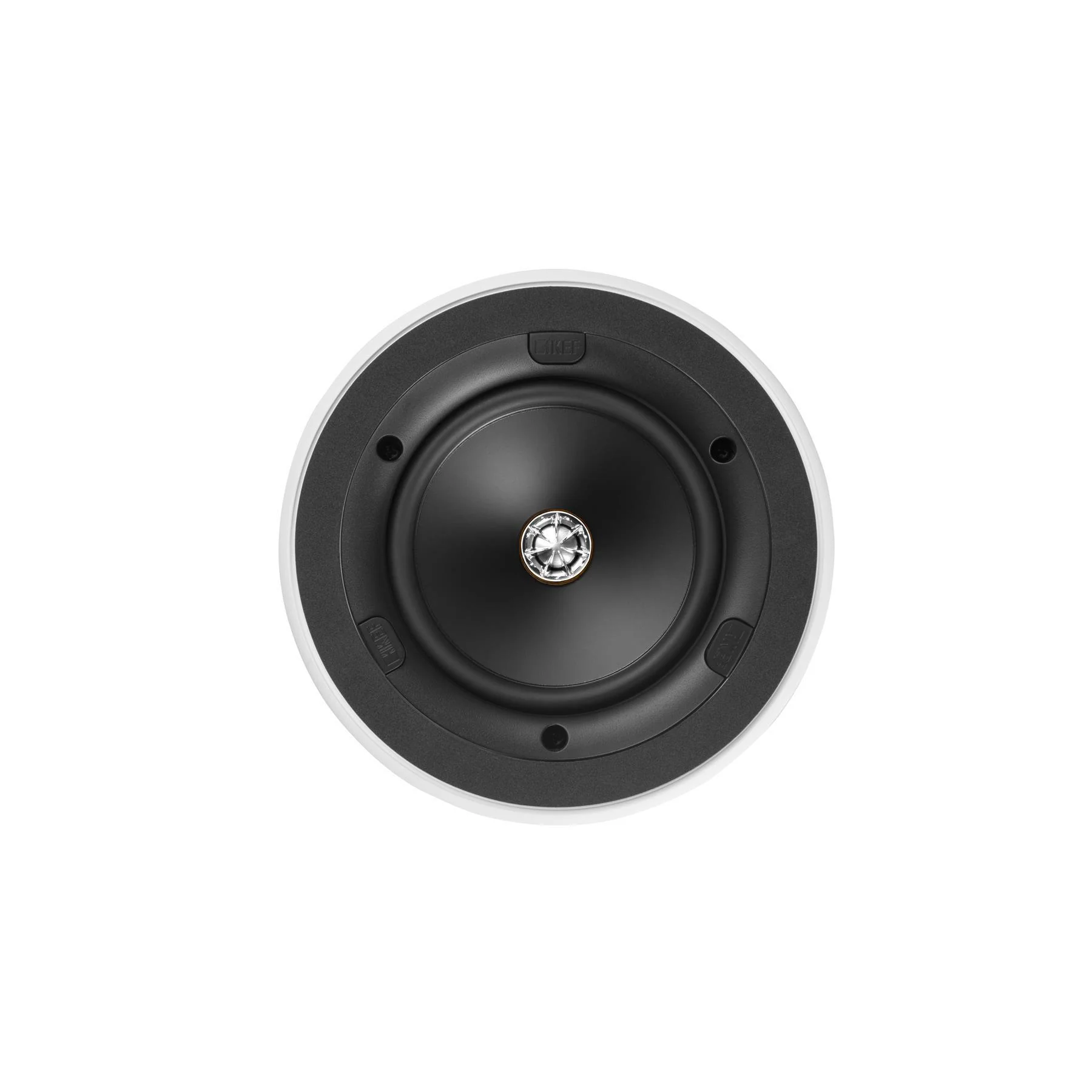

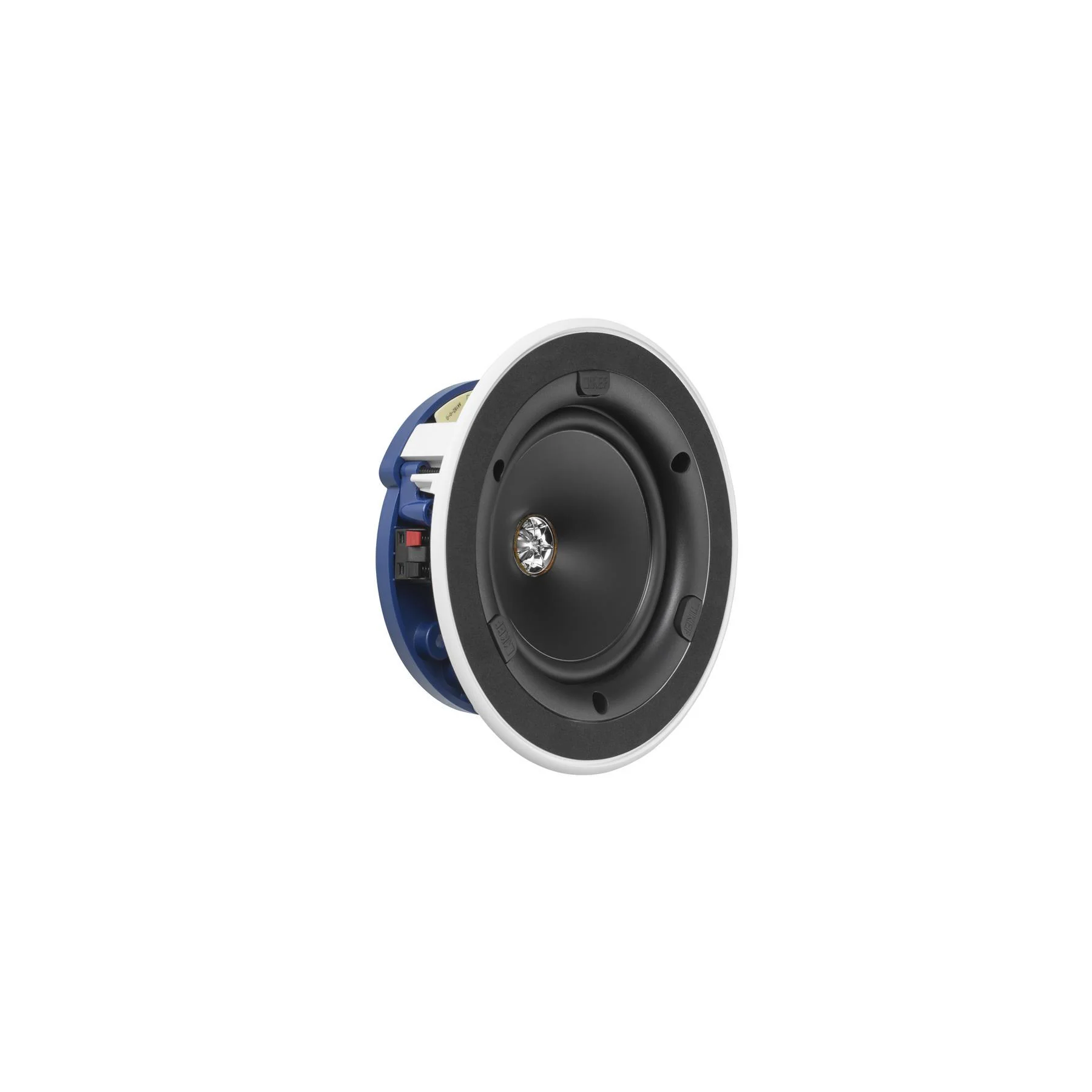

KEF Ci130.2CR Ci-C Series In-Ceiling Speaker

KEF Ci130.2CR Ci-C Series In-Ceiling Speaker

Enhance your home audio experience with the KEF Ci130.2CR Ci-C Series In-Ceiling Speaker, featuring cutting-edge technology and superior sound dispersion. Ideal for flush mount installations, this speaker delivers high-performance audio with seamless integration into any space.

Key Features:

• KEF Uni-Q® Technology: Patented driver array places the tweeter in the acoustic center of the woofer, ensuring wide dispersion and consistent sound quality throughout the room.
• Tangerine Waveguide: Enhances high frequency dispersion for 140 degrees of coverage, delivering smooth and immersive sound.
• Weather Resistant: UV protected and constructed with durable materials, making it suitable for both indoor and outdoor use.
• IP64 Certified: Passed official IEC testing for resistance to splashing water, ensuring reliability in various environments.
• Ultra-Thin Bezel (UTB): Sleek design with barely visible bezels for a seamless aesthetic.
• Magnetic Grille: Securely attaches with a powerful magnetic circuit and can be painted to match any décor.
• Covered Crossover Circuit: Protects electrical components while adding structural rigidity to the speaker assembly.
• Universal Cut-Out: Compatible with all KEF 130mm in-ceiling speakers, simplifying installation and component selection.

Specifications:

• Nominal Impedance: 8 Ohms
• Sensitivity: 87dB (2.83V/1m)
• Frequency Response: 52Hz-20kHz (+/-6dB)
• Crossover Response: 2.5kHz
• Drive Units: LF - 130mm (5.25in.) Uni-Q, HF - 16mm (0.6in.) Aluminium dome tweeter
• Recommended Amplifier Power: 10-80W
• Product External Dimensions: Diameter - 193.4mm (7.61in.), Depth - 82.3mm (3.24in.)
• Cut-Out Dimensions: Diameter - 158mm (6.22in.)
• Mounting Thickness: Ceiling Thickness (Maximum) - 33mm (1.300in.), Ceiling Thickness (Minimum) - 6mm (0.240in.)
• Mounting Depth From Surface: 77.7mm (3.06in.)
• Optional Rough In Frame: RIF130R
• Optional Rear Enclosure: RNC130R
• Net Weight: 1.3kg (2.8lbs)

Upgrade your audio system with the KEF Ci130.2CR Ci-C Series In-Ceiling Speaker, designed to deliver exceptional sound performance and versatility in any setting.
