KEF Ci100QS In-Wall Ci-Q Soundlight Series Speaker
KEF Ci100QS In-Wall Soundlight Series Speaker
Transform your space with the discreet yet powerful KEF Ci100QS In-Wall Soundlight Series Speaker. Designed to seamlessly blend into your walls and ceilings, this speaker delivers premium audio quality without compromising on aesthetics. Elevate your listening experience with the KEF Ci100QS.
KEF Ci100QS Product Overview:
The KEF Ci100QS is a top-tier speaker engineered for in-ceiling and flush mount installations, ideal for spaces where a square-shaped assembly is preferred. Featuring KEF’s exclusive Uni-Q® technology, this speaker ensures a remarkable listening experience by placing the tweeter in the acoustic center of the woofer, delivering wide dispersion and consistent sound characteristics throughout the room.
KEF Ci100QS Key Features:
- KEF Uni-Q® Technology: Wide dispersion with consistent sound characteristics, eliminating acoustic lobing issues common in other designs.
- Tangerine Waveguide: Enhances dispersion for up to 150 degrees of coverage.
- Weather Resistant: Constructed with UV-protected components for durability in various environments.
- Ultra-Thin Bezel (UTB): Thin yet structurally rigid ABS bezel for a premium aesthetic.

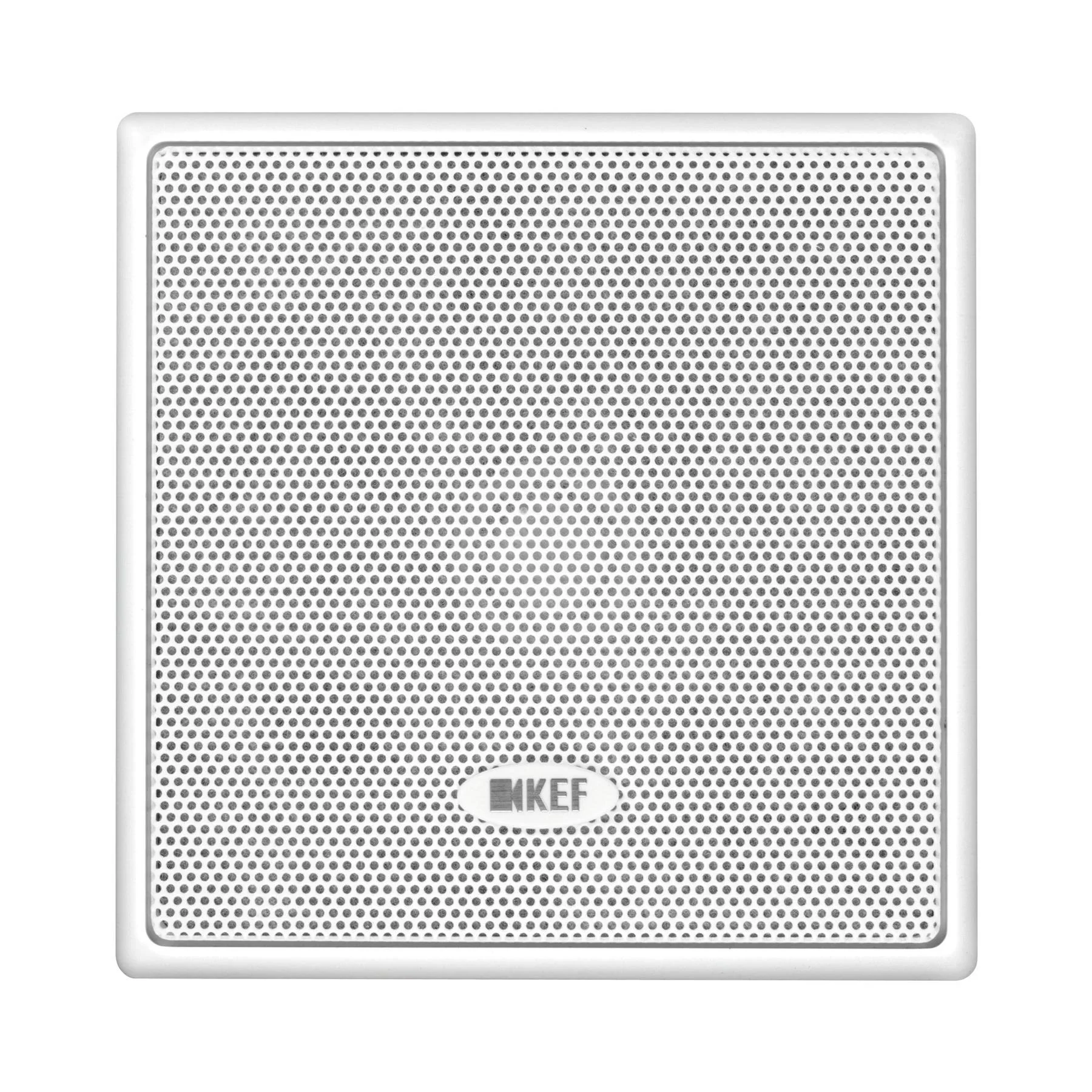

- Magnetic Grille: Easily attachable grille for security and seamless integration with any décor.
- IP64 Certification: Splash-proof design for worry-free installation in different settings.
- Designed for in-ceiling flush mount installations with a square-shaped assembly.

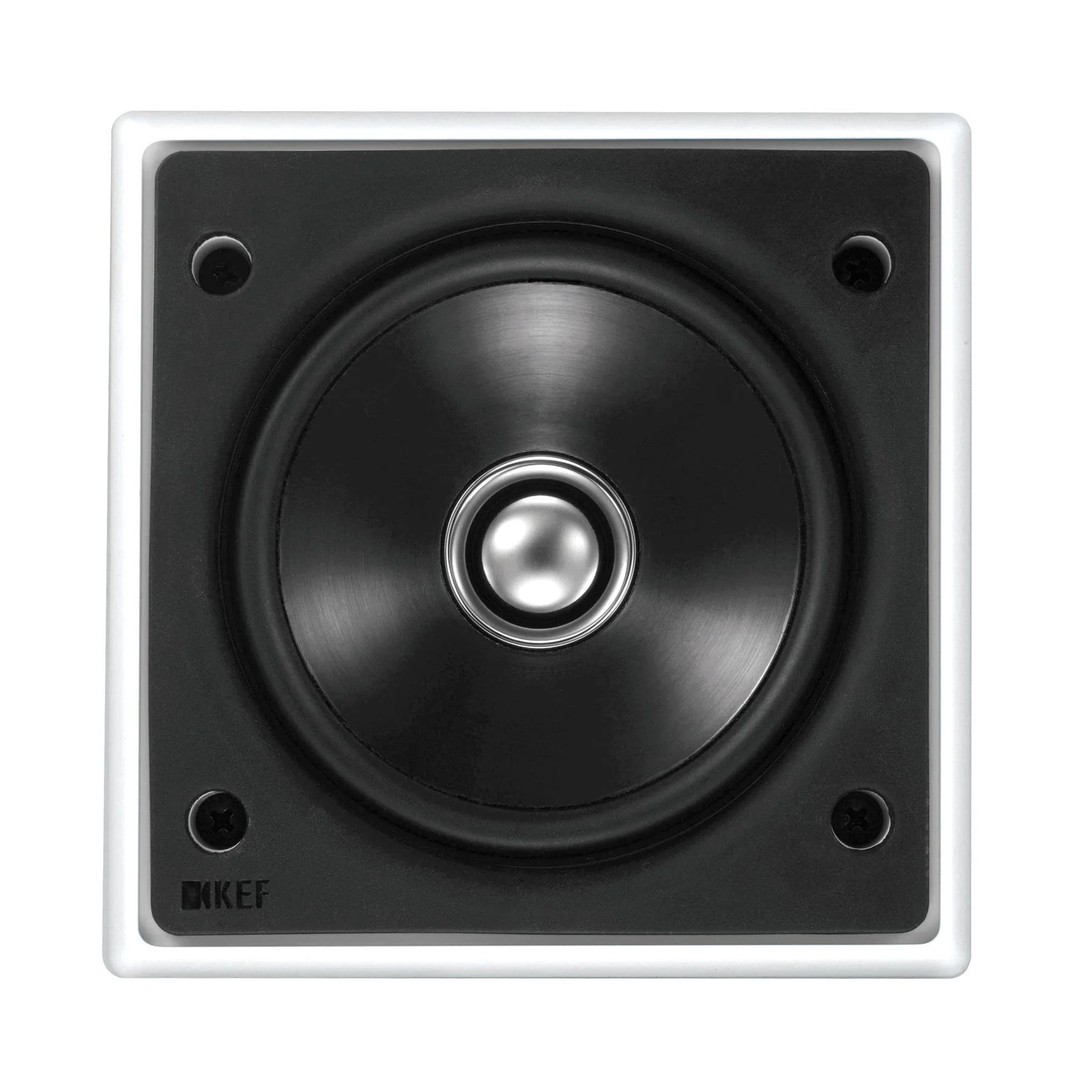

- Coincident point source design with tweeter mounted in the acoustic center of the woofer.
- Features a 100mm low-frequency woofer and a vented 19mm aluminum dome high-frequency tweeter.
- Paintable bezel and grille for customizable integration.
- Open-back design with a frequency response of 80Hz - 27kHz +/- 6 dB.
- Nominal impedance of 8 ohms with a sensitivity of 88 dB SPL at 1 meter on-axis.
- Crossover frequency at 3kHz.
- Complies with safety and performance standards.
Fast and Easy Installation: Experience hassle-free installation with KEF's Ci loudspeaker design, allowing you to enjoy music within minutes of setup.
KEF Ci100QS Specifications:
- Nominal Impedance: 4 Ohms
- Sensitivity: 88dB (2.83V/1m)
- Frequency Response: 80 - 27kHz (±6dB)
- Crossover Frequencies: 3kHz
- Drive Units: LF: 100mm (4in.), HF: 19mm (0.75in.)
- Recommended Amplifier Power: 10 - 50 W
- Product External Dimensions: H x W x D: 127 x 127 x 76 mm (5.0 x 5.0 x 2.99 in.)
- Cut-out Dimensions: H x W: 112 x 112 mm (4.41 x 4.41 in.)
- Mounting Thickness: Ceiling Thickness (Maximum): 24mm (0.95 in.), Ceiling Thickness (Minimum): 6mm (0.24 in.)
- Optional Rough In Frame: RIF100S
- Optional Rear Enclosure: RNC100S
- Mounting Depth From Surface: Without back can: 72mm (2.83in.)
- Net Weight: 0.67kg (1.48lbs.)
KEF Ci100QS Downloads
KEF Ci100QS Manual
KEF Ci100QS Specification Sheet
KEF Ci100QS Cutout Template
KEF Ci Minimum Cabinet Volume Chart
KEF Architectural Brochure
KEF Architectural Selection And Setup Guide
KEF Architectural Accessory Reference Guide
KEF Architectural Speaker Group Specification Sheet
