Kanto R600 PRO In-Wall TV Mount

Kanto R600 PRO Recessed In-Wall TV Mount

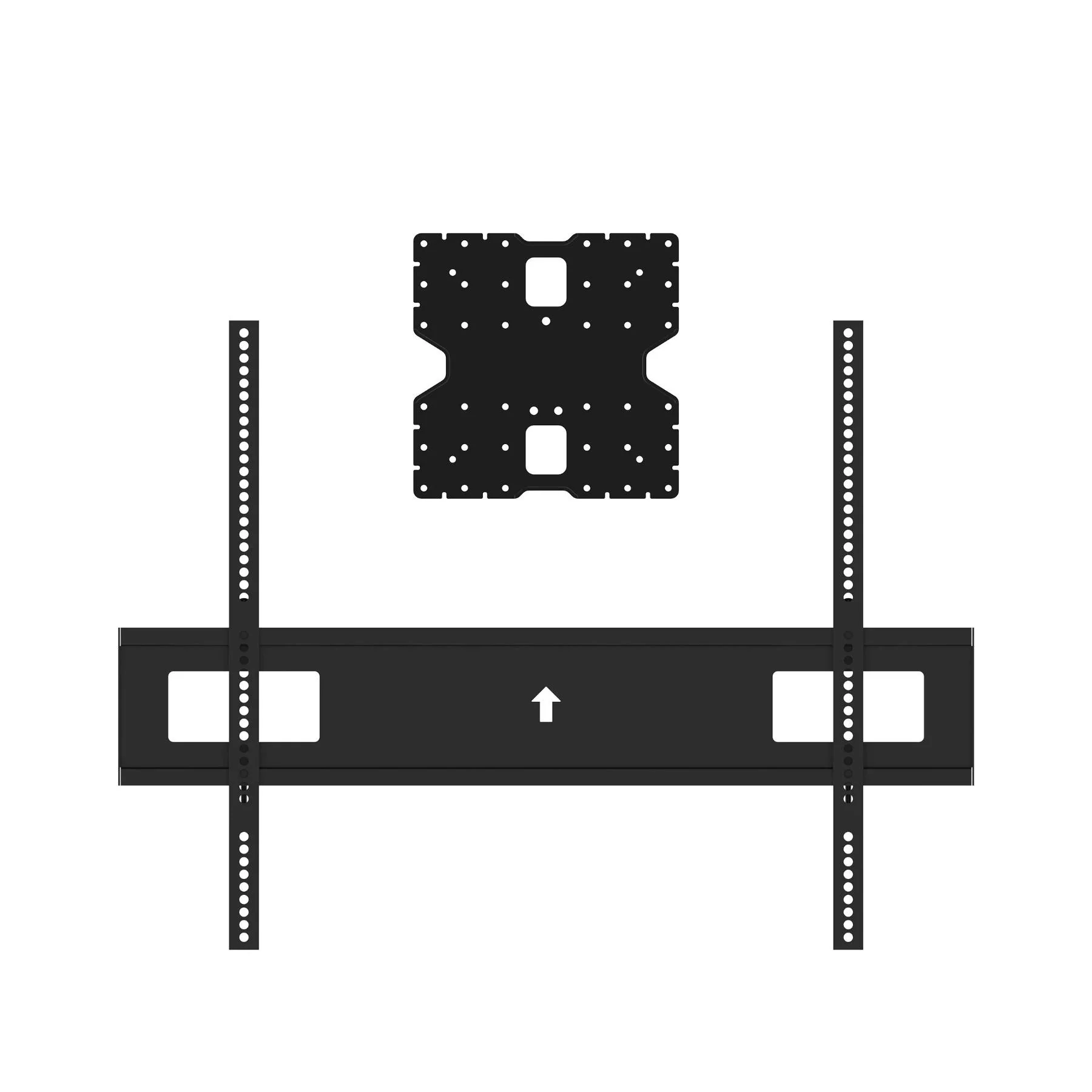

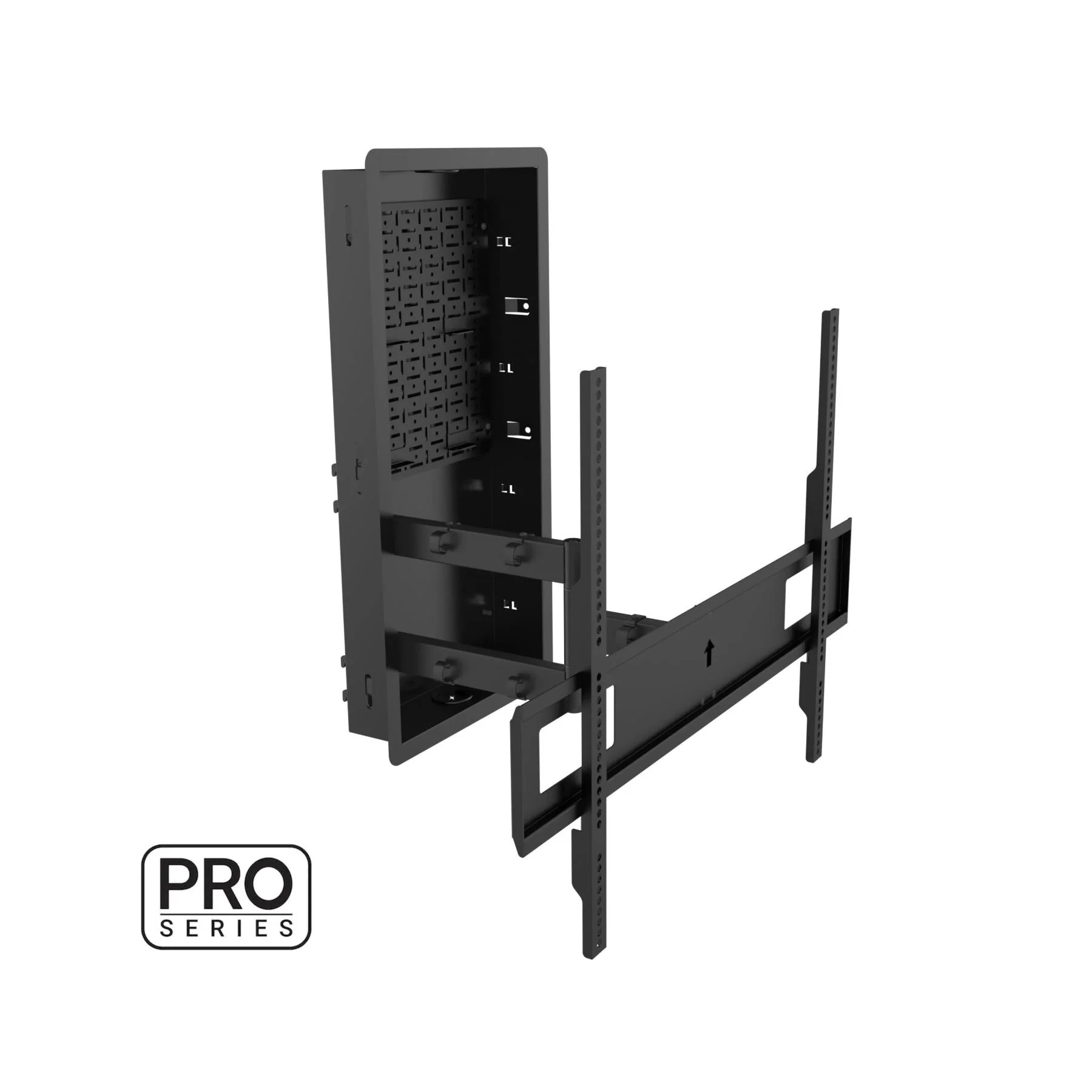

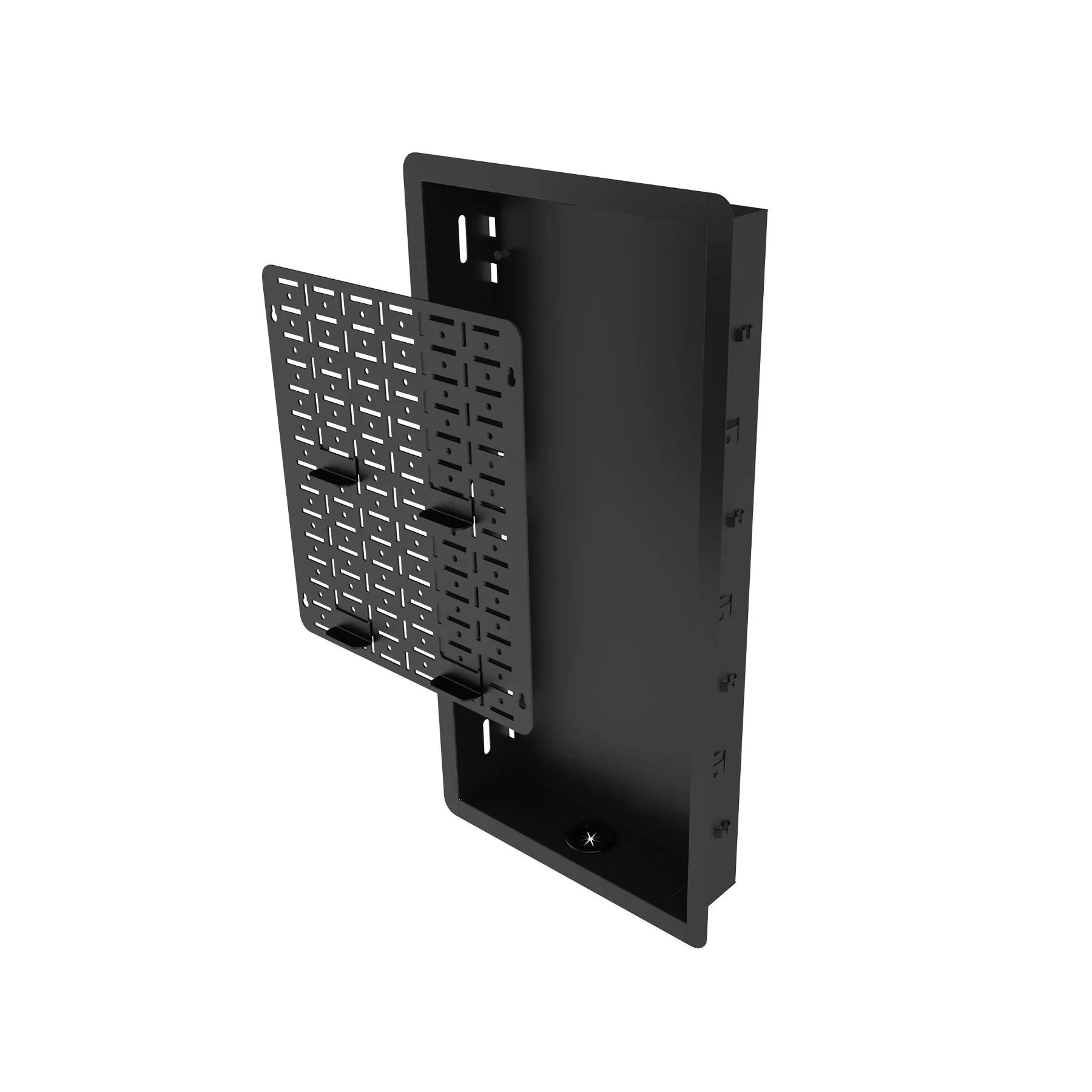

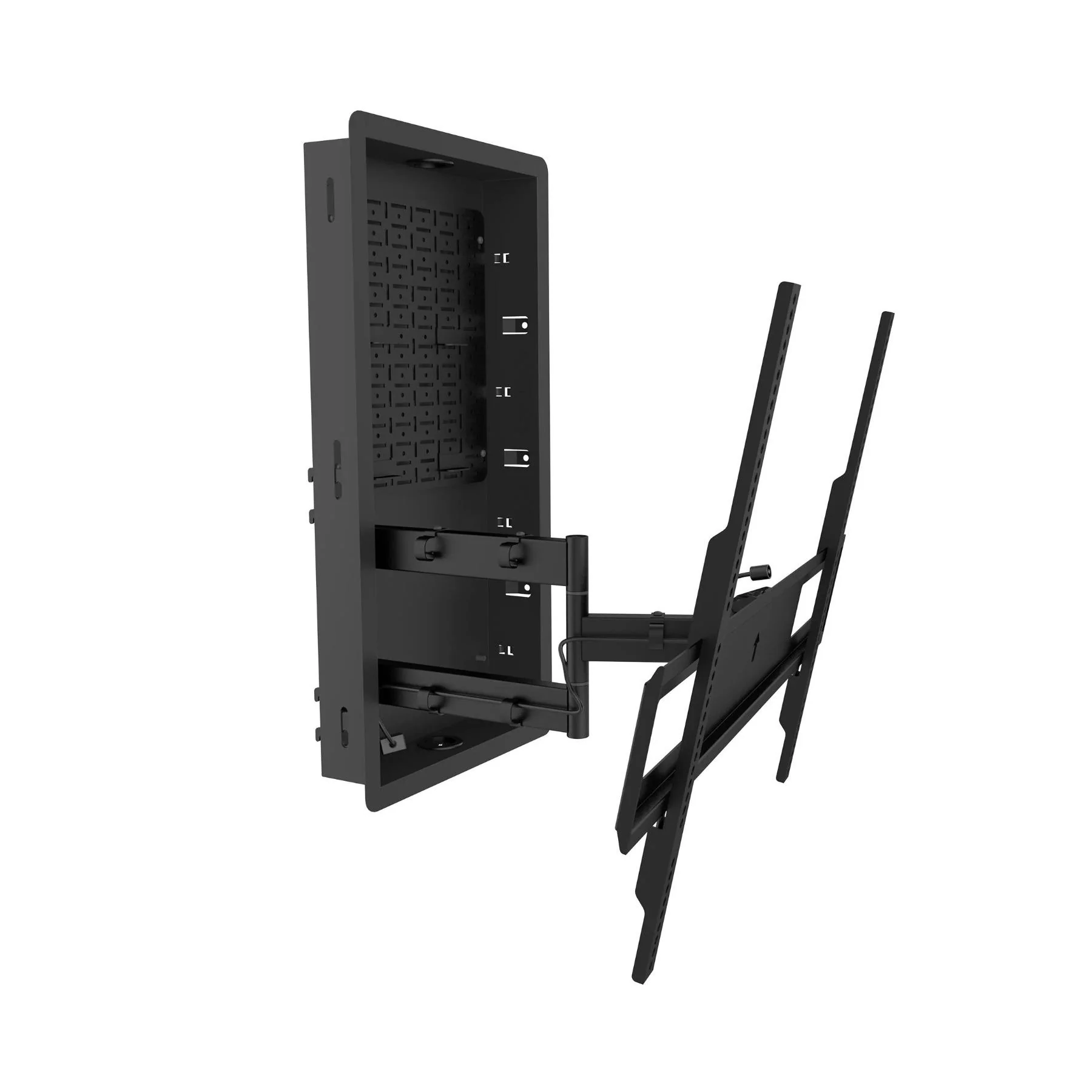

The Kanto R600 PRO Recessed In-Wall TV Mount is a premium, full-motion recessed solution designed to deliver a clean, built-in look—while still giving you the flexibility of tilt, swivel, and extension. Its oversized in-wall box hides bulky components like TV breakout boxes, set-top boxes, and Samsung One Connect-style boxes on the included removable accessory plate, keeping everything concealed behind the screen. For a true designer finish, the R600 includes two TV interfaces: a zero-gap plate that lets smaller VESA TVs sit perfectly flush, plus a large VESA interface for extra-large panels. Contractor-friendly details—like a foldable new-construction template, metal power knockouts, rubber grommets, and built-in cable management clips—make it ideal for pro installs and high-end home theater builds.

What It's Good At:

• Creating a true flush, zero-gap TV look (for smaller VESA patterns)
• Concealing devices and cabling inside a spacious recessed in-wall box
• Supporting large-format TVs (65"–90") and extra-large VESA up to 800×600
• Delivering smooth full-motion positioning with swivel, tilt, and extension
• New construction and retrofit installs with included templates and pro-friendly design
• Keeping installs clean with integrated cable management, grommets, and tie points

Kanto R600 Full Specifications:

• Model: R600
• Series: PRO
• Mount Type: Full Motion, Recessed / In-Wall TV Mount (Recessed Articulating TV Mount)
• Supported TV Size Range: 65" to 90"
• Weight Capacity: 135 lb (61 kg)
• VESA Compatibility: 100×100 to 800×600
• Zero-Gap / Flush Fit: TVs with VESA 300×300 or smaller sit flush against the wall
• Profile for Larger VESA: 1.1" (2.8 cm) from the wall with VESA 400×400 and larger (using large interface)
• Extension Range: Up to 18.7" (47.5 cm) from the wall
• Tilt: +10° to -2°
• Swivel: 90° in either direction (dependent on TV size)
• Horizontal Adjustment: Adjustable horizontal leveling
• Stud Spacing: In-wall box designed for installation between 16" stud spacing
• Cable Management: Integrated cable management; durable metal cable clips; zip-tie mounting points; rubber grommets for routing

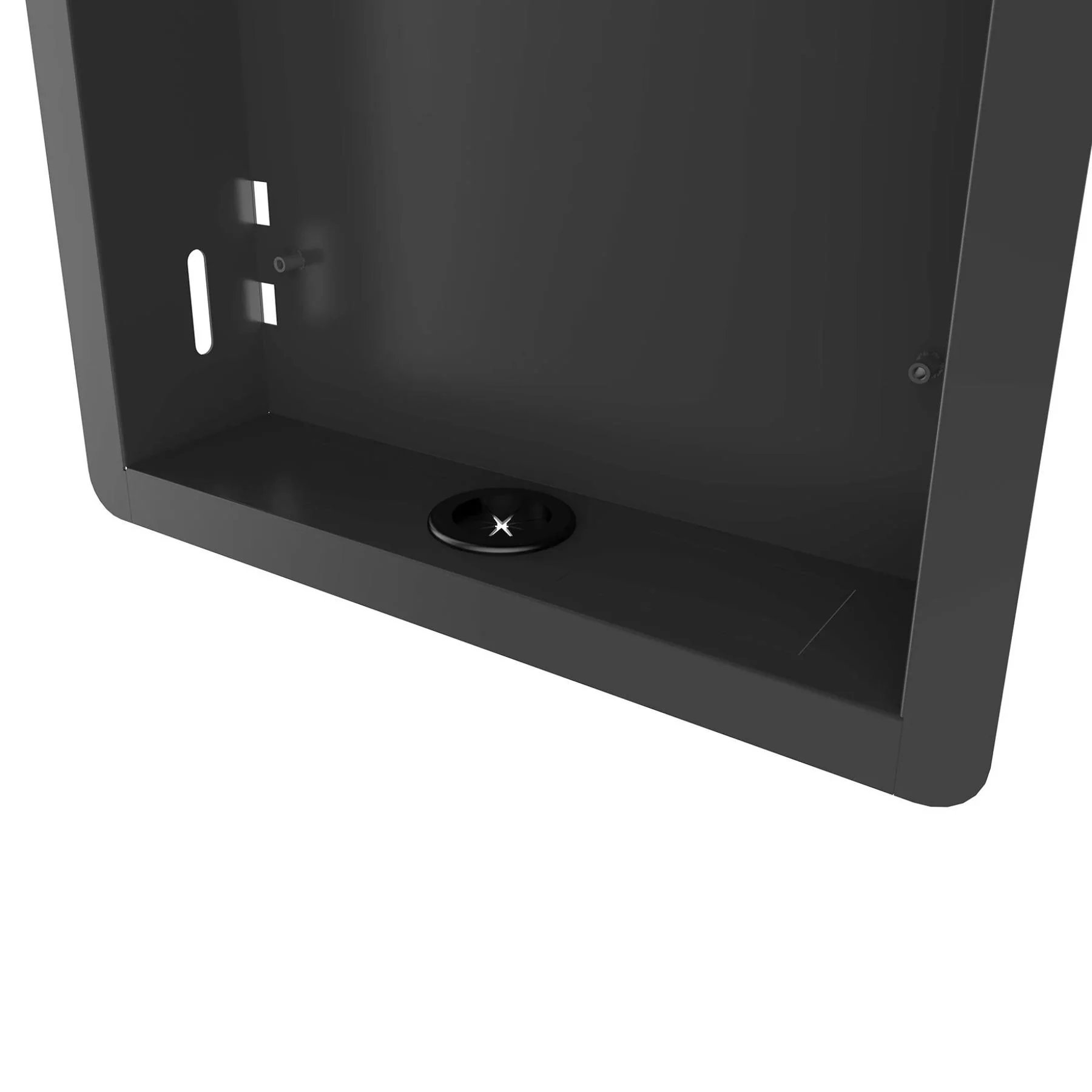

• Power Integration: Metal knockouts for running power into the in-wall box (for in-box outlet installation)
• Construction: Solid steel construction with durable powder-coated finish
• Included Hardware: Manual and all mounting hardware for wood stud installation
• What’s Included:
  • R600 Pro-Series Recessed In-wall TV Mount
  • Drywall Template
  • In-Wall Template
  • Hardware
  • Manual(s)
• Product Weight: 45.2 lb (20.5 kg)
• Shipping Box Weight: 48.5 lb (22 kg)
• Shipping Box Dimensions: 36.8" × 20.7" × 5.7" (93.5 × 52.5 × 14.5 cm)
• Warranty: Ten-year manufacturer’s warranty
• UPC: 800152721668

Kanto R600 Q&A:

Will this mount fit my TV’s VESA pattern?

The R600 supports VESA patterns from 100×100 up to 800×600, covering a wide range of modern large-screen TVs.

What TV sizes and weights does the R600 support?

It’s designed for 65"–90" TVs and supports up to 135 lb (61 kg).

Can I achieve a completely flush, “zero-gap” look?

Yes—TVs with VESA 300×300 or smaller can sit directly against the wall for a true flush finish.

How far can the TV extend, and does it tilt and swivel?

The mount extends up to 18.7", offers +10° to -2° tilt, and provides up to 90° swivel in either direction (depending on TV size).

Can I hide a One Connect-style box or other components behind the TV?

Yes—the oversized recessed in-wall box and removable accessory plate are built to conceal breakout boxes, set-top boxes, and similar devices behind the TV.

Does it support running power into the recessed box?

Yes—metal knockouts are included to help route power into the in-wall box so you can keep equipment powered inside the wall cavity.

What stud spacing is this designed for?

The in-wall box is designed for installation between standard 16" stud spacing.

What comes in the box?

You get the R600 mount, drywall template, in-wall template, hardware, and manual(s) for a complete installation setup.
