Kanto R400 PRO In-Wall TV Mount

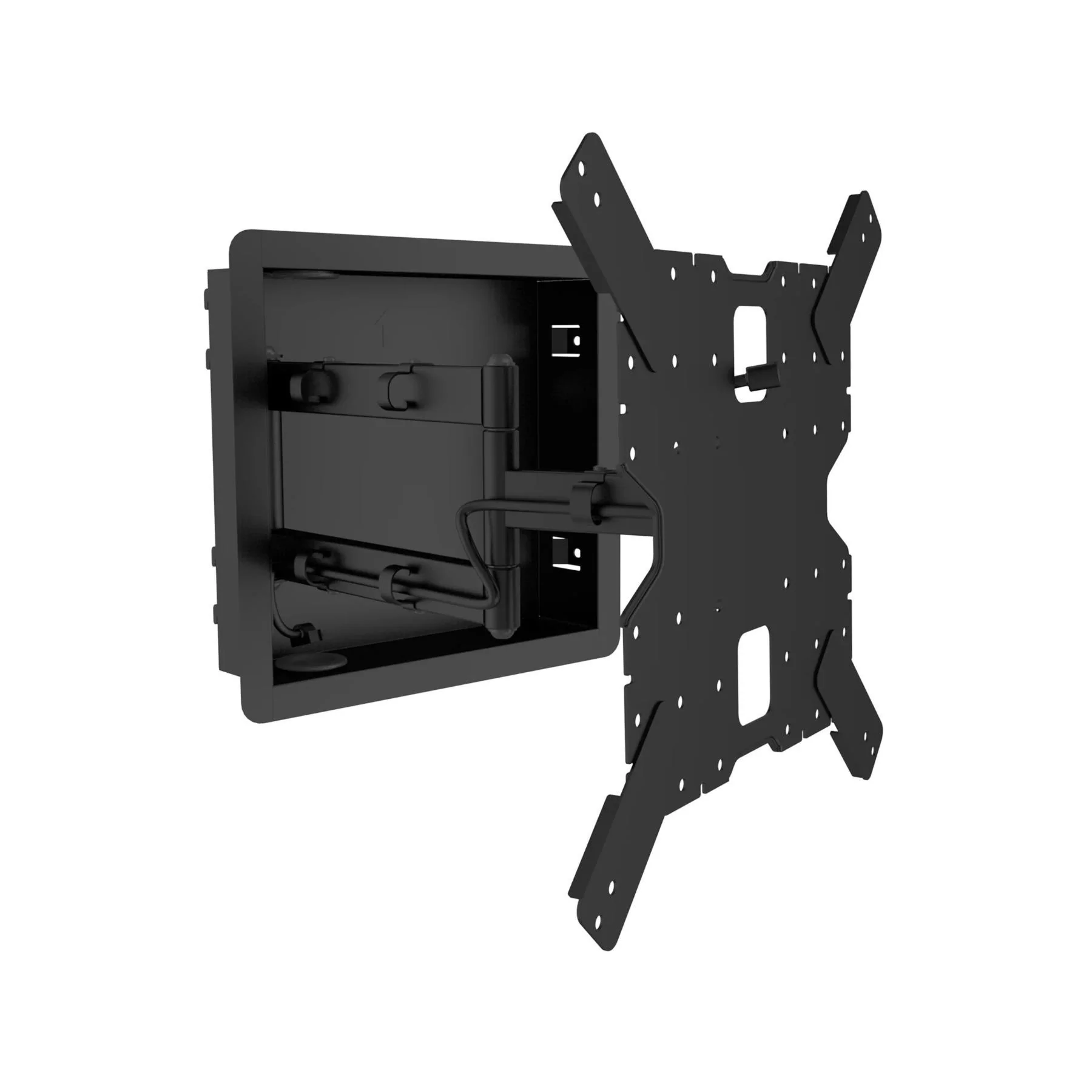

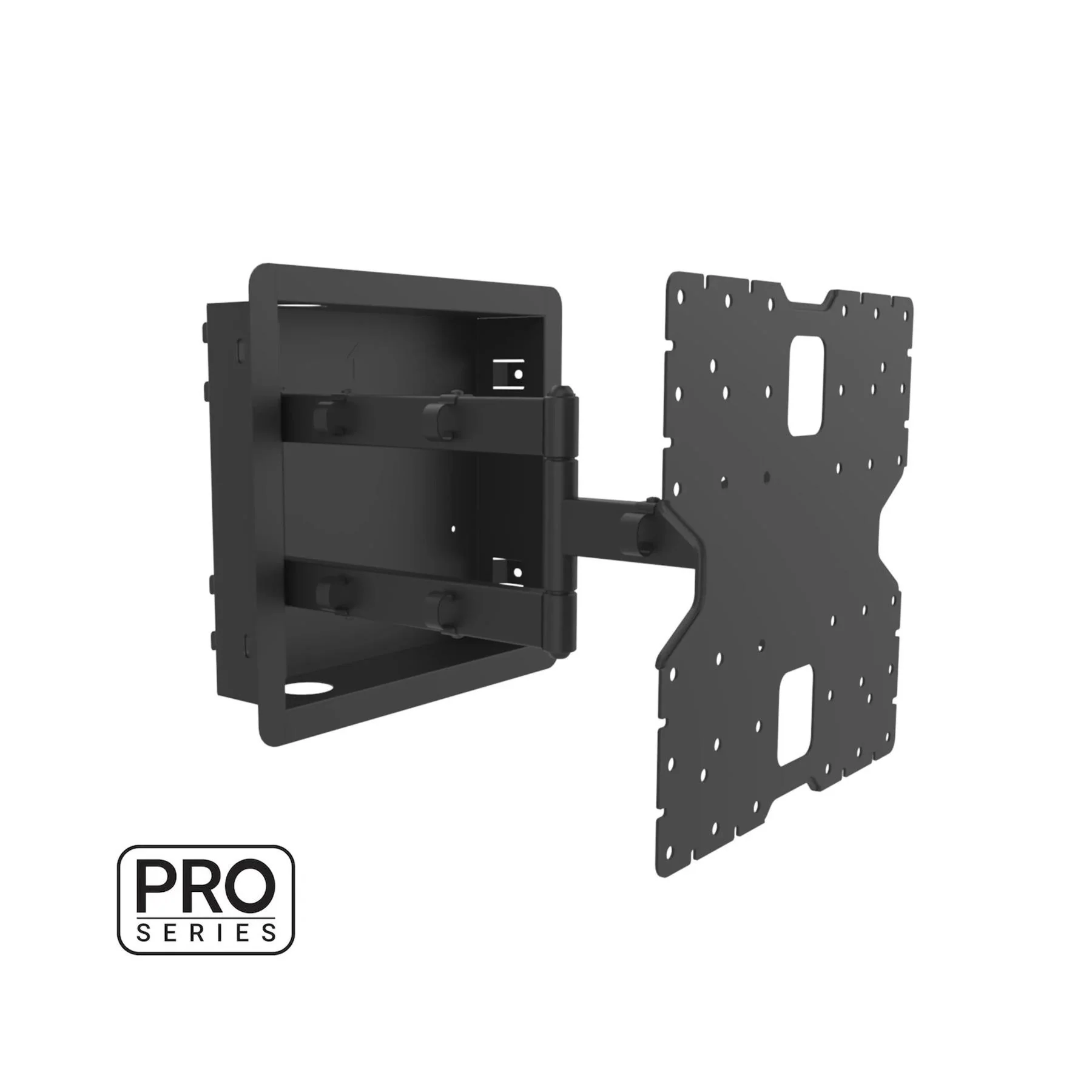

Kanto R400 Pro Recessed In-Wall TV Mount

The Kanto R400 Pro Recessed In-Wall TV Mount is designed to deliver a true “no-gap” look—letting compatible TVs sit perfectly flush against the wall for a clean, modern, picture-frame-style install. Its recessed in-wall box fits between standard 16" wood studs, creating hidden space for a streaming device and tidy cable routing so your setup stays sleek and clutter-free. When you need access, the full-motion arms extend up to 18" and offer wide swivel and tilt control for comfortable viewing and easier connections. With built-in cable management, rubber grommets for clean pass-throughs, and metal knockouts for adding in-wall power, the R400 is a pro-grade solution for premium, wire-free TV installations.

What It's Good At:

• True zero-gap look for ultra-low-profile installs (perfect for OLED and slim TVs)

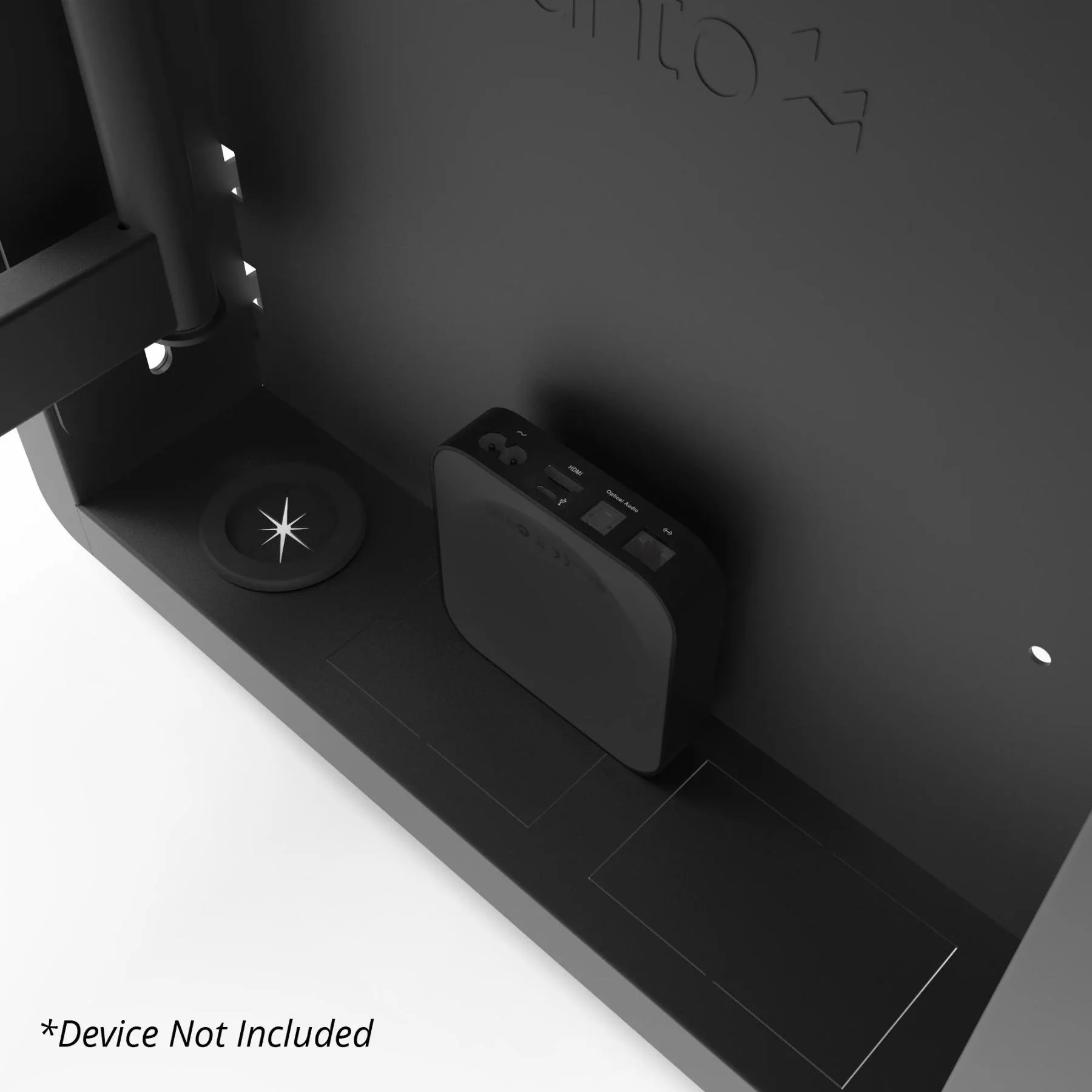

• Hidden in-wall storage for streaming boxes and small AV accessories behind the TV
• Full-motion flexibility with up to 18" extension, wide swivel, and accessible tilt
• Clean, professional cable routing using grommets plus durable cable management clips
• Installer-friendly recessed design built for 16" stud spacing and in-wall planning templates
• Power-ready setup with metal knockouts to add an in-wall outlet inside the recessed box

Kanto R400 Pro Full Specifications:

• Model: R400
• Series: Pro
• Mount Type: Recessed in-wall, full-motion articulating TV mount
• Recommended TV Size: 35" to 65"
• Max Weight Capacity: 80 lb (36 kg)
• VESA Compatibility: 100 × 100 to 400 × 400
• Flush/Wall Profile Performance:
  • True zero-gap (flush) with VESA 300 × 300 or smaller
  • 0.3" (0.8 cm) profile when using 400 × 400 VESA extensions
• Extension Range: Up to 18" (45.7 cm) from the wall
• Swivel: Up to 90° in either direction (dependent on TV size)
• Tilt: +9° to -2° (accessible tilt mechanism)
• Horizontal Leveling: Adjustable
• Stud Requirements: Designed for 16" (40.6 cm) stud spacing (wood studs only)
• Minimum Wall Thickness Required: 3.5" (8.9 cm)
• Cable Management: Integrated cable management + metal cable management clips on articulating arms
• Cable Routing: Rubber grommets for clean cabling through the recessed box
• In-Wall Power Support: Metal knockouts for installing a power outlet inside the box
• Construction: Solid steel construction
• Finish: Durable powder-coated finish
• Recessed Opening / Box Space (Technical Illustration Dimensions): 14.3" (36.2 cm) / 13.3" (33.9 cm) / 3.5" (8.9 cm)
• Product Weight: 23.1 lb (10.5 kg)
• Shipping Box Weight: 25.3 lb (11.5 kg)
• Shipping Box Dimensions: 19.9" × 18.3" × 4.9" (50.5 × 46.5 × 12.5 cm)
• UPC: 800152721651
• Warranty: Ten-year manufacturer’s warranty
• What’s Included:
  • R400 Pro-Series Recessed In-Wall TV Mount
  • Drywall Template
  • In-Wall Template
  • Mounting Hardware (for wood stud installation)
  • Manual(s)

Kanto R400 Pro Q&A:

Will this mount give my TV a true flush, “zero-gap” look?

Yes. TVs using a VESA pattern of 300 × 300 or smaller can sit directly flush against the wall for a true no-gap installation.

What TV sizes and weights does the Kanto R400 support?

The R400 is built for 35" to 65" TVs and supports up to 80 lb (36 kg).

What VESA patterns are compatible with the R400?

It supports 100 × 100 through 400 × 400. For 400 × 400, included extensions are used and the profile becomes 0.3".

How far can I pull the TV out from the wall?

The mount extends up to 18" (45.7 cm), making it easy to access ports, manage cables, or adjust viewing angles.

Does it swivel and tilt for better viewing angles?

Yes. It provides up to 90° swivel (each direction, depending on TV size) and an accessible tilt range of +9° to -2°.

Can I hide cables and streaming devices behind the TV?

Yes. The recessed box is designed to store a streaming box and small AV accessories, with rubber grommets and integrated cable management for a clean setup.

Can I add power inside the recessed box for a cleaner install?

Yes. The recessed box includes metal knockouts so a power outlet can be installed inside the box for a more concealed, professional finish.

What type of wall and studs are required for installation?

The R400 is designed for wood studs only, built for 16" stud spacing, and requires a wall thickness of at least 3.5" (8.9 cm).
