Kanto PT405 Tilt TV Mount

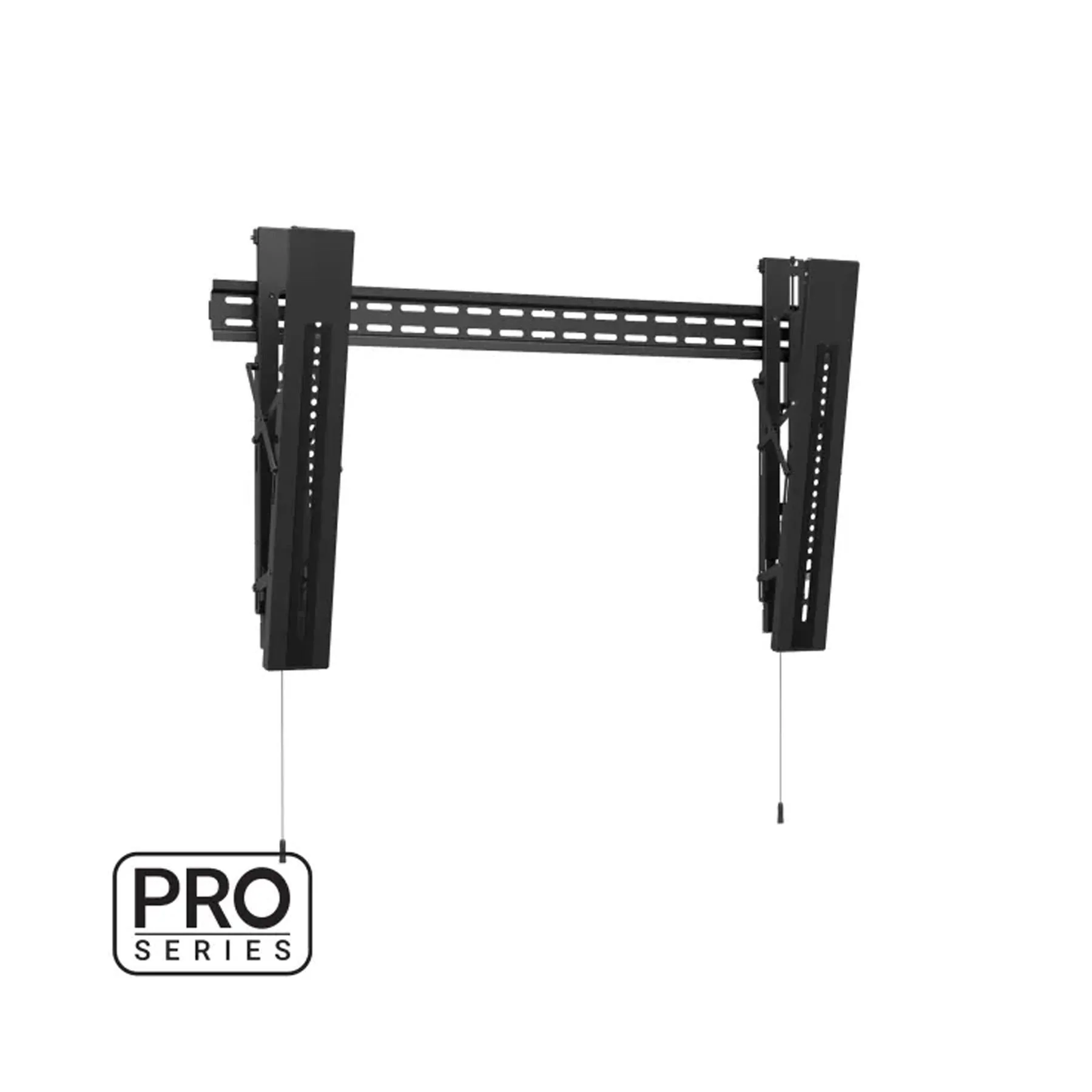

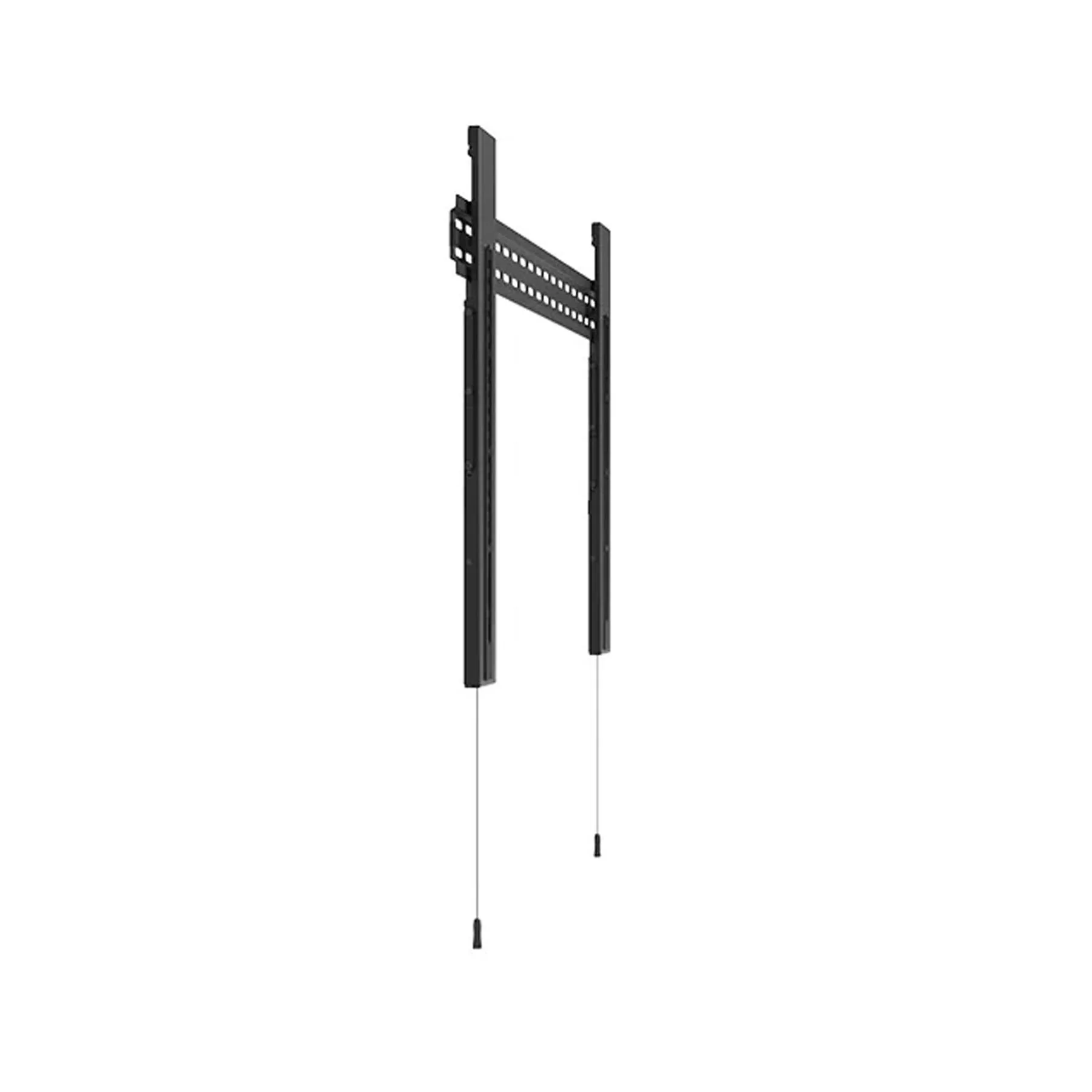

Kanto PT405 Ultra Slim Tilting TV Wall Mount

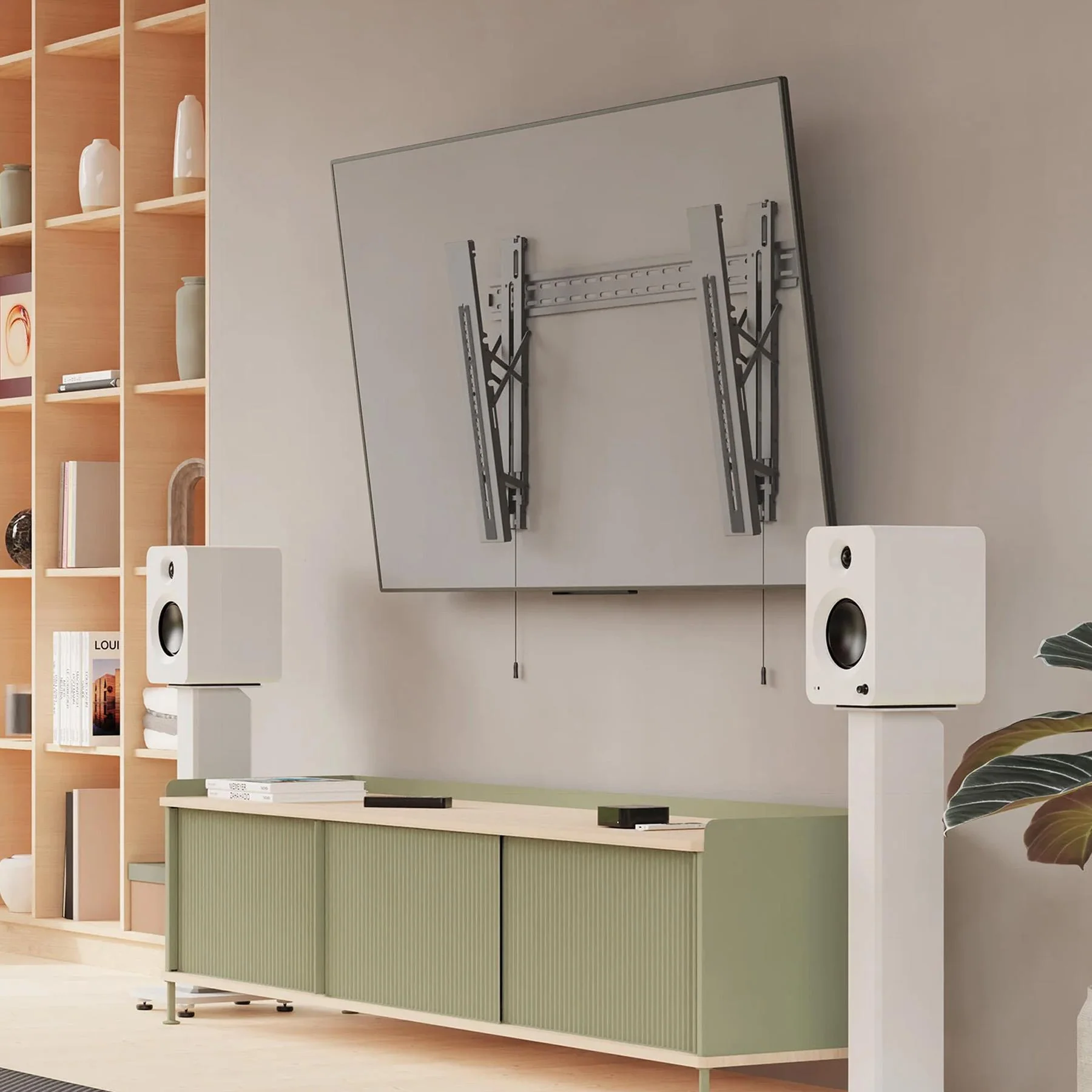

The Kanto PT405 Ultra Slim Tilting TV Wall Mount is designed for clean, high-end TV installations where a low-profile look matters just as much as strength and adjustability. Built for 50-inch to 90-inch TVs, this ultra slim tilting TV wall mount supports up to 125 lb and fits VESA patterns from 100 x 100 to 800 x 600, making it a strong choice for large flat-panel displays. Its 0.7-inch from-the-wall profile creates a sleek, gallery-style appearance, while 10 degrees of forward tilt, 1.6 inches of vertical adjustment, and horizontal shift/leveling help fine-tune placement after installation. An integrated kickstand, quick-release arms, and a wide wall plate for dual 24-inch or triple 16-inch stud spacing make the PT405 practical for both installers and home theater upgrades.

What It's Good At:

• Creating a clean, ultra-low-profile TV installation that looks more like framed wall art than a bulky mount
• Supporting large, heavy TVs with 125 lb capacity and up to 800 x 600 VESA compatibility
• Reducing screen glare with up to 10 degrees of forward tilt
• Making post-install alignment easier with vertical adjustment and horizontal shift/leveling
• Simplifying access to ports and cables with an integrated kickstand and quick-release arms
• Delivering long-term peace of mind with solid steel construction and a 10-year Pro Series warranty

Kanto PT405 Tilting TV Wall Mount Full Specifications:

• Product name: Kanto PT405 Ultra Slim Tilting TV Wall Mount
• Series: PRO Series
• Mount type: Ultra low-profile tilting TV wall mount
• Recommended TV size range: 50 in to 90 in
• Maximum weight capacity: 125 lb (56.7 kg / 57 kg)
• VESA compatibility: 100 x 100 to 800 x 600
• Profile from wall: 0.7 in (1.8 cm)
• Tilt range: +10° viewing angle / 10° forward tilt
• Vertical adjustment: 1.6 in (4.1 cm / 4 cm)
• Horizontal adjustment: Horizontal shift / adjustable horizontal leveling
• Wall plate width: 39.4 in (100 cm)
• Wall plate compatibility: Supports dual 24 in stud spacing or triple 16 in stud spacing
• Stud installation support: Mounts to two or three studs
• Material: Solid steel with durable powder-coated finish
• Product dimensions (W x D x H): 100 x 1.8 x 77.2 cm (39.4 x 0.7 x 30.4 in)
• Product weight: 6.7 kg (14.8 lb)
• Shipping box dimensions (W x D x H): 117.6 x 13.3 x 8.5 cm (46.3 x 5.2 x 3.3 in)
• Shipping box weight: 7.8 kg (17.2 lb)
• UPC: 800152724973
• Warranty: 10-year manufacturer / Pro Series warranty
• Included in the box:
  • PT405 Ultra Slim Tilting TV Wall Mount
  • Installation manual
  • All mounting hardware for wood stud and concrete installation
• Included TV mounting screws:
  • A: M6 x 10 mm (x4)
  • B: M6 x 14 mm (x4)
  • C: M6 x 20 mm (x4)
  • D: M6 x 35 mm (x4)
  • E: M8 x 10 mm (x4)
  • F: M8 x 14 mm (x4)
  • G: M8 x 22 mm (x4)
  • H: M8 x 30 mm (x4)
  • I: M8 x 35 mm (x4)
  • J: M8 x 50 mm (x4)
• Included spacers, washers, and install hardware:
  • K: 2.5 mm spacers (x8)
  • L: 5 mm spacers (x8)
  • M: M6 washers (x4)
  • N: M8 washers (x4)
  • O: M8 x 50 mm lag bolts (x6)
  • P: M8 washers for lag bolts (x6)
  • Q: Concrete anchors (x6)
  • R: M5 x 6 mm screws (x4)
  • S: 3 mm hex key
  • T: 2.5 mm hex key
• Wall compatibility:
  • Wood stud walls
  • Concrete walls
• Not intended for:
  • Steel stud walls
  • Cinder block walls
• Install note: The wall must support more than 5 times the combined weight of the TV and mount
• Required tools shown in the manual: socket set, Phillips screwdriver, pencil, level, measuring tape, drill, stud finder, wood bit, hammer, and masonry bit

Kanto PT405 Tilting TV Wall Mount Q&A:

What TV sizes does the Kanto PT405 support?

The PT405 is designed for 50-inch to 90-inch TVs, making it a strong fit for large living room, media room, and commercial display installations.

How much weight can the PT405 hold?

This mount supports TVs up to 125 lb (56.7 kg / 57 kg).

What VESA patterns are compatible with this mount?

The PT405 supports VESA sizes from 100 x 100 to 800 x 600, giving it broad compatibility with many large flat-panel TVs.

How close does the PT405 sit to the wall?

The mount sits just 0.7 in (1.8 cm) from the wall for an ultra-slim, picture-like profile.

Can the screen angle be adjusted to reduce glare?

Yes. The PT405 offers up to 10 degrees of forward tilt, helping improve viewing comfort and manage screen glare.

Does this mount allow adjustment after the TV is installed?

Yes. It offers 1.6 inches of vertical adjustment plus horizontal shift / leveling to help center and align the display more precisely after mounting.

Does the PT405 make cable access easier?

Yes. Quick-release arms and an integrated kickstand make it easier to reach ports and manage cables without fully removing the TV.

What wall types can it be installed on?

The PT405 includes hardware for wood stud and concrete installation, but it is not intended for steel stud walls or cinder block walls.

Kanto PT405 Tilting TV Wall Mount Downloads:

Kanto PT405 Tilting TV Wall Mount Manual
Kanto PT405 Tilting TV Wall Mount Product Sheet
Kanto PT405 Tilting TV Wall Mount Drawing
