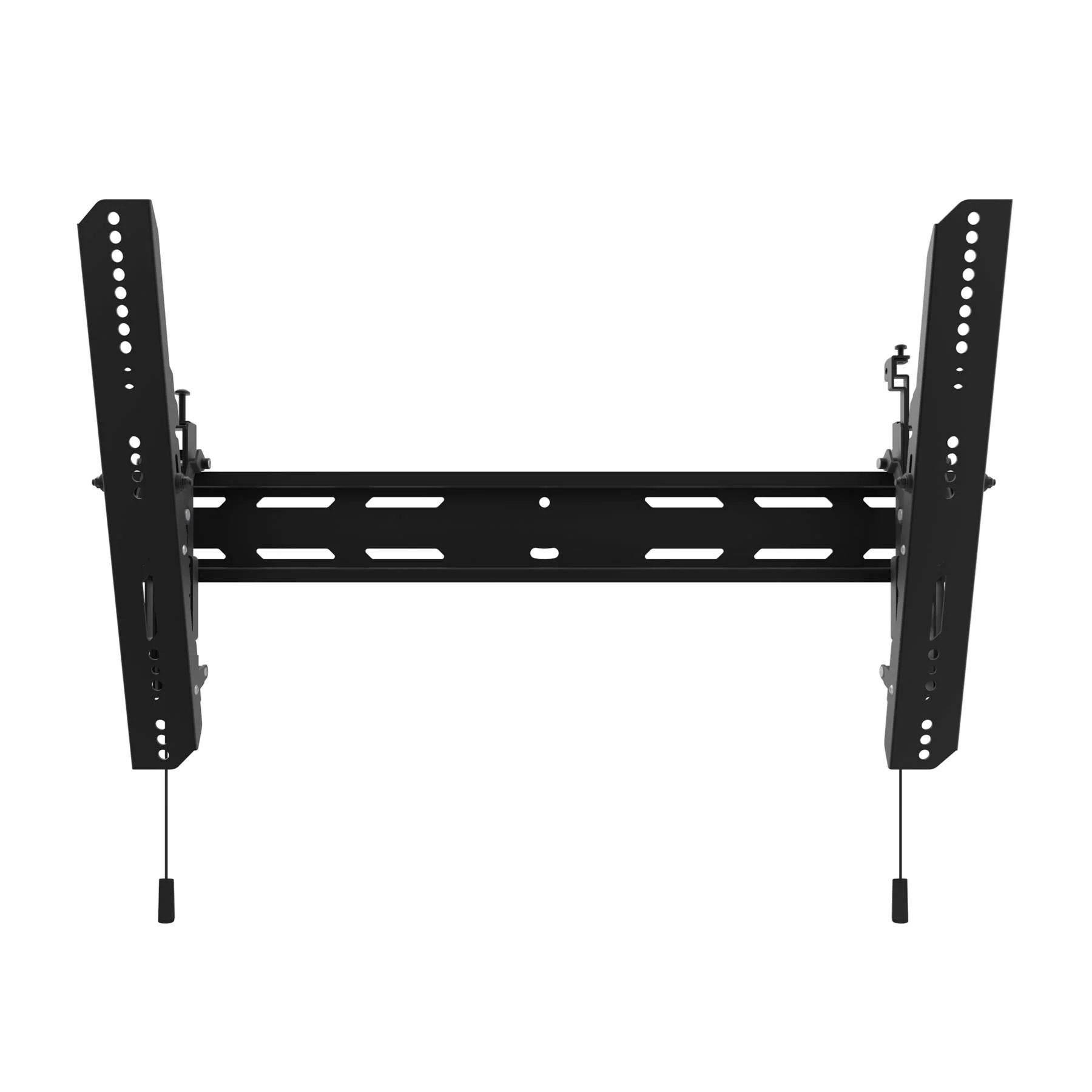

Kanto PT300 Lockable Tilting TV Mount

Kanto PT300 Lockable Tilting TV Mount - Secure Dual‑Stud Tilt Mount

The Kanto PT300 is a dual‑stud tilting wall mount engineered to securely support TVs from 40 to 100 inches. Its pre‑tensioned brackets provide up to 12 degrees of forward tilt, improving viewing angles and reducing glare for better line‑of‑sight. The mount sits just 1.4 inches from the wall, offering a low‑profile appearance while still allowing easy access for cable management.

Designed for flexibility and safety, the PT300 features horizontal leveling screws for post‑install adjustment, lockable arms with Torx screws to deter theft, and quick‑release cords for effortless TV removal. The extra‑wide wall plate accommodates 16‑ and 24‑inch stud spacing and includes hardware for wood and concrete installations. Solid steel construction with a durable powder‑coated finish ensures lasting strength for large displays.

Key Features

• Low‑profile dual‑stud design – Sits 1.4 in (3.5 cm) from the wall with a 27 in (69 cm) plate that spans 16 – 24 in stud spacing

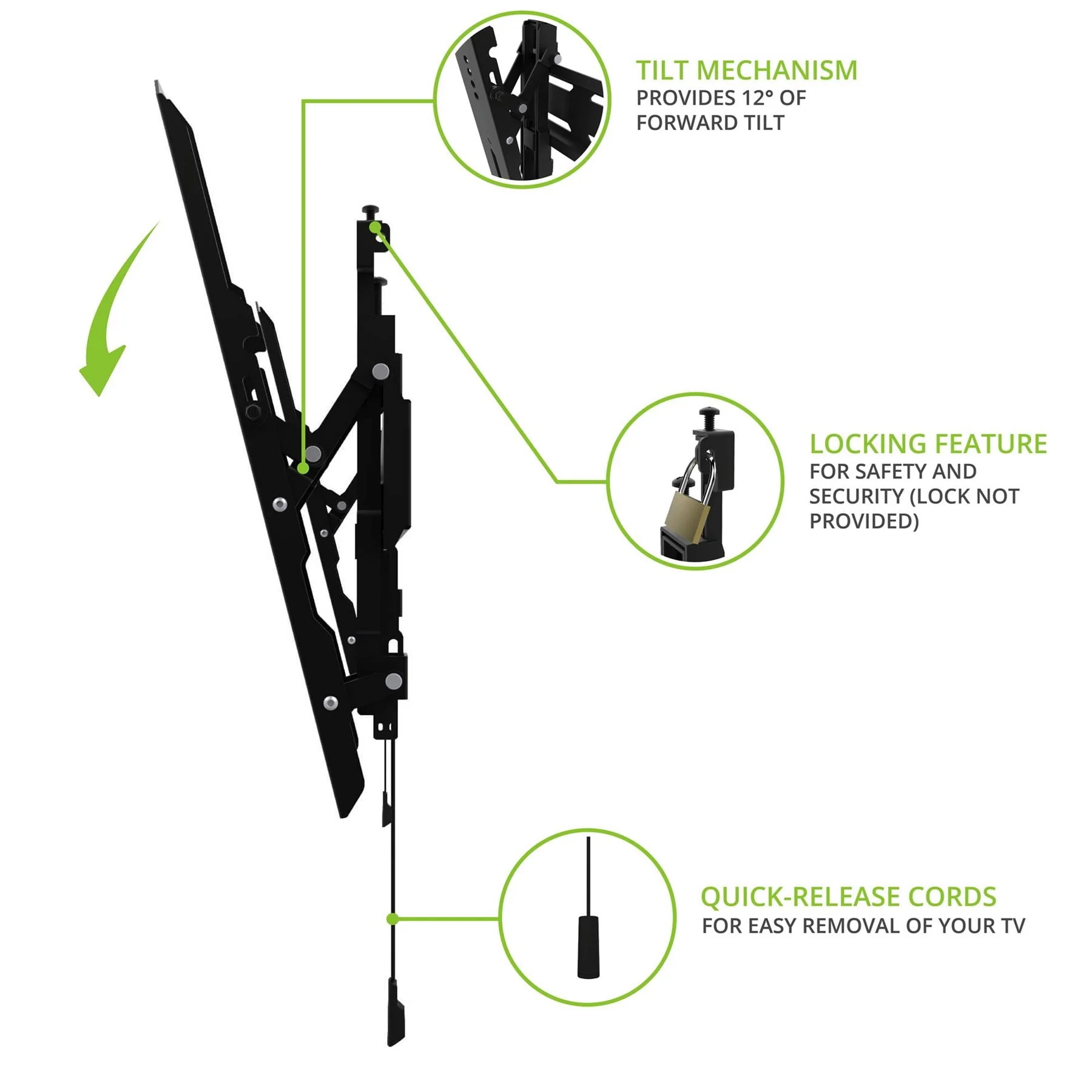

• 12° forward tilt capability – Pre‑tensioned brackets allow up to 12° of tilt to reduce glare and enhance viewing
• High weight capacity – Supports TVs up to 150 lb (68 kg) ranging from 40 to 100 inches with VESA patterns 100×100 – 600×400
• Post‑install leveling & security – Horizontal leveling screws and Torx locking screws keep your TV straight and protected
• Quick‑release cords – Magnetic cords tuck away until needed, providing instant access to detach your TV without tools

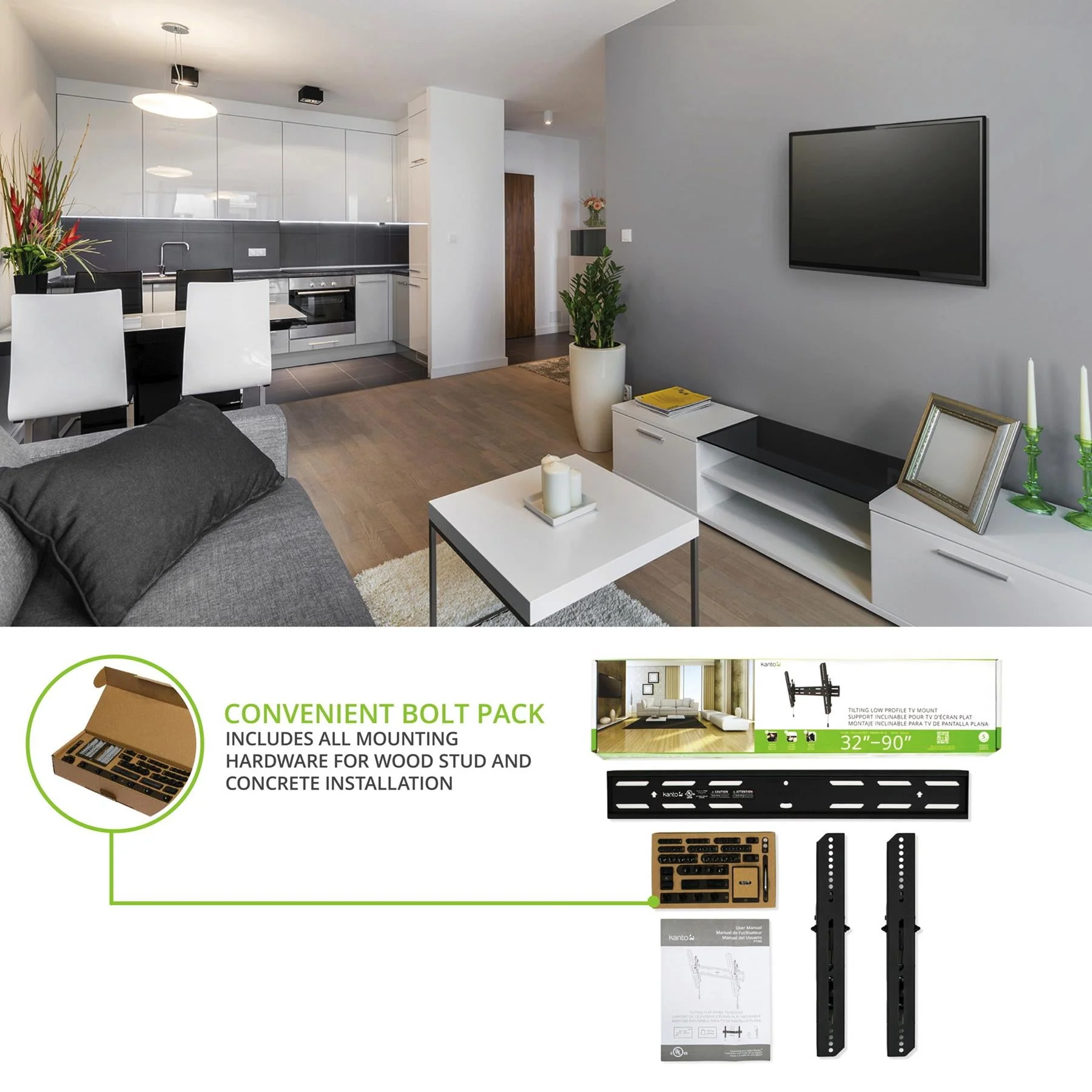

• Complete installation kit – Includes a 6 in extension bit, lag bolts, anchors and spacers for wood or concrete mounting

Specifications

• TV size range – 40 – 100 in (101 – 254 cm); VESA patterns 100×100 to 600×400 mm
• Weight allowance & profile – 150 lb (68 kg) max; mount sits 1.4 in (3.5 cm) from the wall
• Tilt range – Up to +12° forward tilt
• Wall plate width – 27 in (69 cm) dual‑stud plate fits 16 or 24 in studs
• Materials – Solid steel construction with powder‑coated finish; integrated cable management
• Included accessories – Installation manual, hardware for wood & concrete, 6 in extension bit; backed by 5‑year warranty

FAQs

What TV sizes can the PT300 mount accommodate?

It’s designed for 40 to 100 inch TVs and supports VESA patterns from 100×100 to 600×400 mm.

How much weight can it hold?

The PT300 supports displays up to 150 pounds (68 kg).

How far will my TV sit from the wall?

The mount has a low profile and positions your TV just 1.4 inches (3.5 cm) from the wall.

Can I adjust the viewing angle?

Yes. Pre‑tensioned brackets provide up to 12 degrees of forward tilt to reduce glare.

Does it lock my TV?

Torx locking screws secure the arms, and quick‑release cords provide easy removal when needed.

Will it fit my wall studs?

The 27 inch wall plate fits 16 or 24 inch stud spacing and includes all hardware for wood or concrete walls.

Is post‑install leveling possible?

Yes, horizontal leveling screws allow you to fine‑tune the display after installation.

What’s included in the box?

You get the mount, hardware kit with lag bolts and anchors, a 6 inch extension bit, and instructions.

Kanto PT300 Lockable Tilting TV Mount - Secure Dual‑Stud Tilt Mount Downloads:

Kanto PT300 Lockable Tilting TV Mount - Secure Dual‑Stud Tilt Mount - User Manual
Kanto PT300 Lockable Tilting TV Mount - Secure Dual‑Stud Tilt Mount - Product Sheet
