Kanto PMX800 Pro Full Motion TV Mount for Large Screens

Kanto PMX800 Pro Full Motion TV Mount for Large Screens - Extra‑Large Pro Series Mount

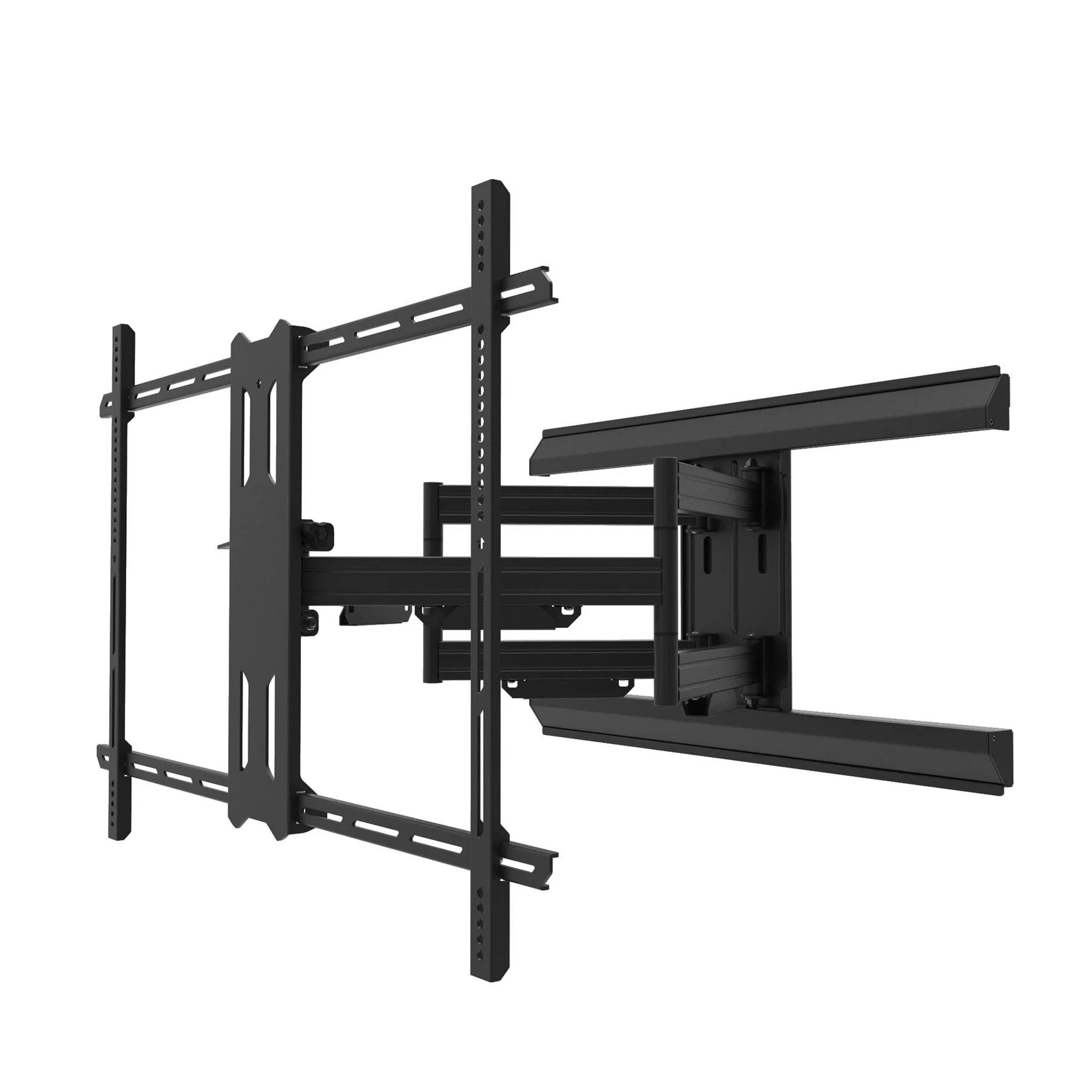

The Kanto PMX800 Pro is a full‑motion TV mount designed for extra‑large panels up to 120 inches. Its heavy‑duty construction supports up to 200 pounds and includes a 900×600 VESA interface to accommodate massive displays and touch screens. The mount offers 22 inches of horizontal offset, enabling you to center your TV even if your studs aren’t aligned.

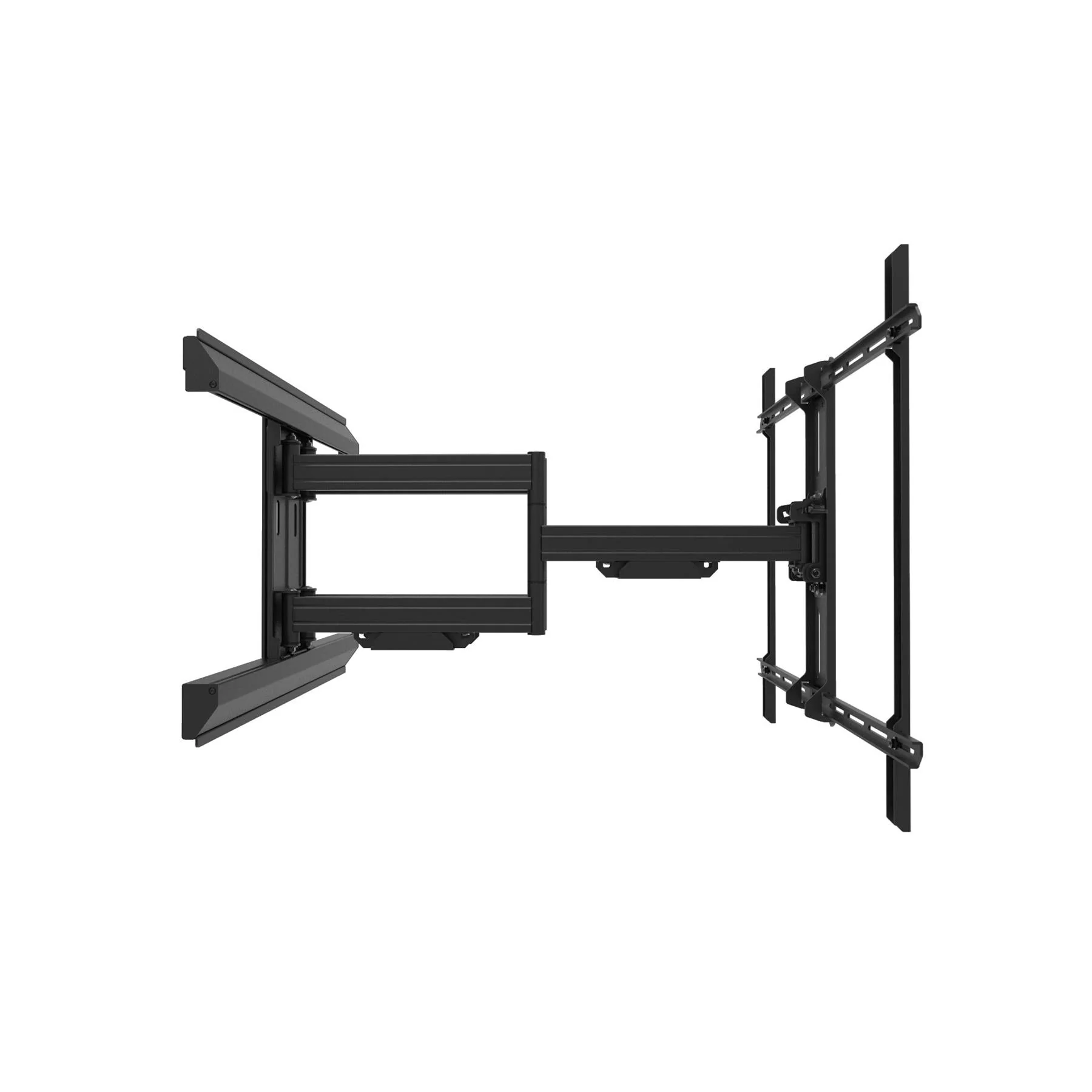

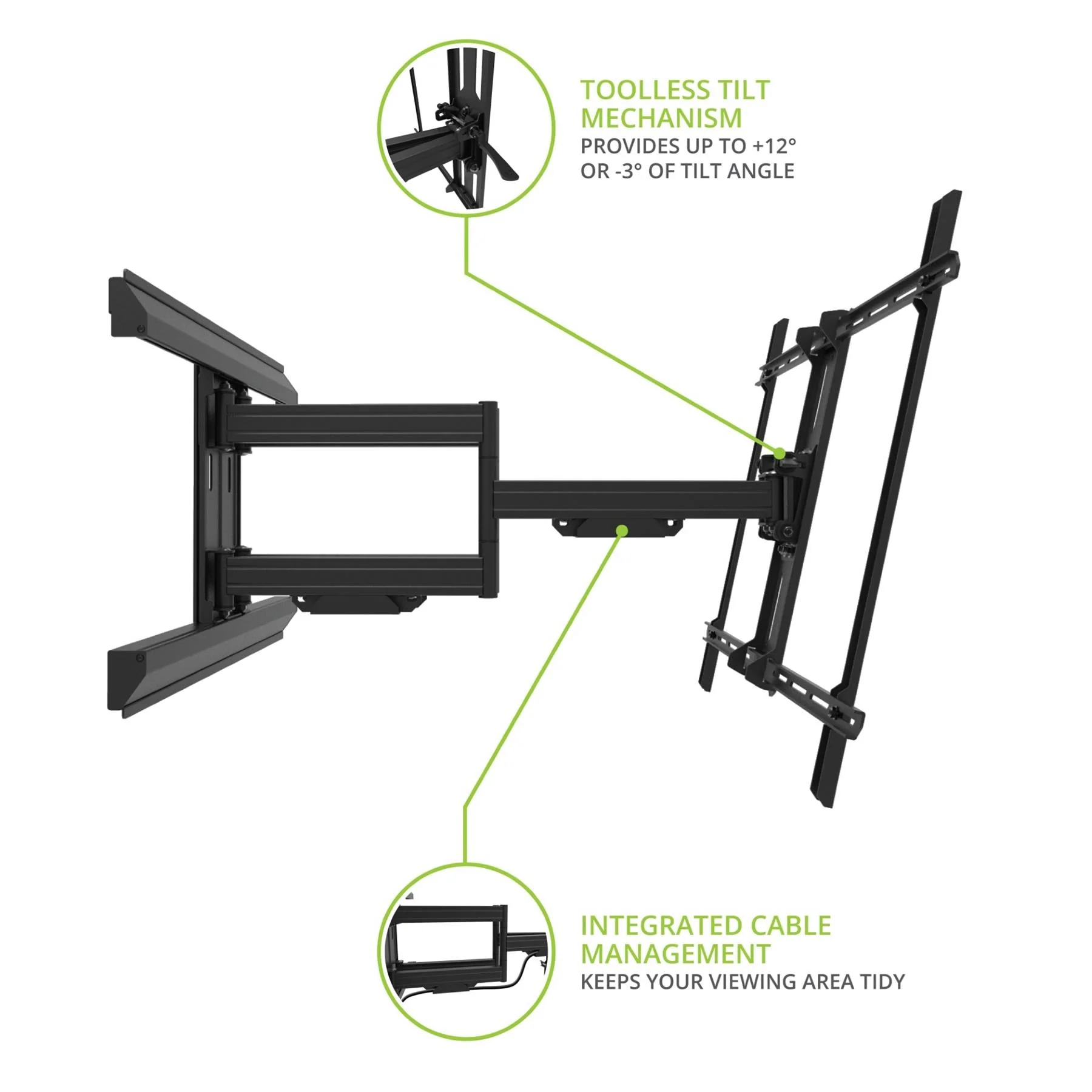

Despite its strength, the PMX800 remains sleek: it sits only 2.6 inches from the wall when retracted and extends out to 31.3 inches when needed. Features include a toolless cam lever tilt mechanism (+12° forward/–3° backward), swivel up to 90° left or right, and adjustable horizontal leveling. Integrated cable management, aluminum wall plate covers, and an all‑metal cable channel create a clean installation. A convenient bolt pack with various bolts, spacers and anchors ensures an easier setup.

Key Features

• Supports extra‑large displays – 200 lb capacity handles screens from 55 to 120 inches; oversized 900×600 VESA interface
• Horizontal offset – Provides 22 inches (55.8 cm) of lateral adjustment to center your TV even when studs are off‑center
• Low profile design – TV sits just 2.6 inches (6.6 cm) from the wall when fully retracted

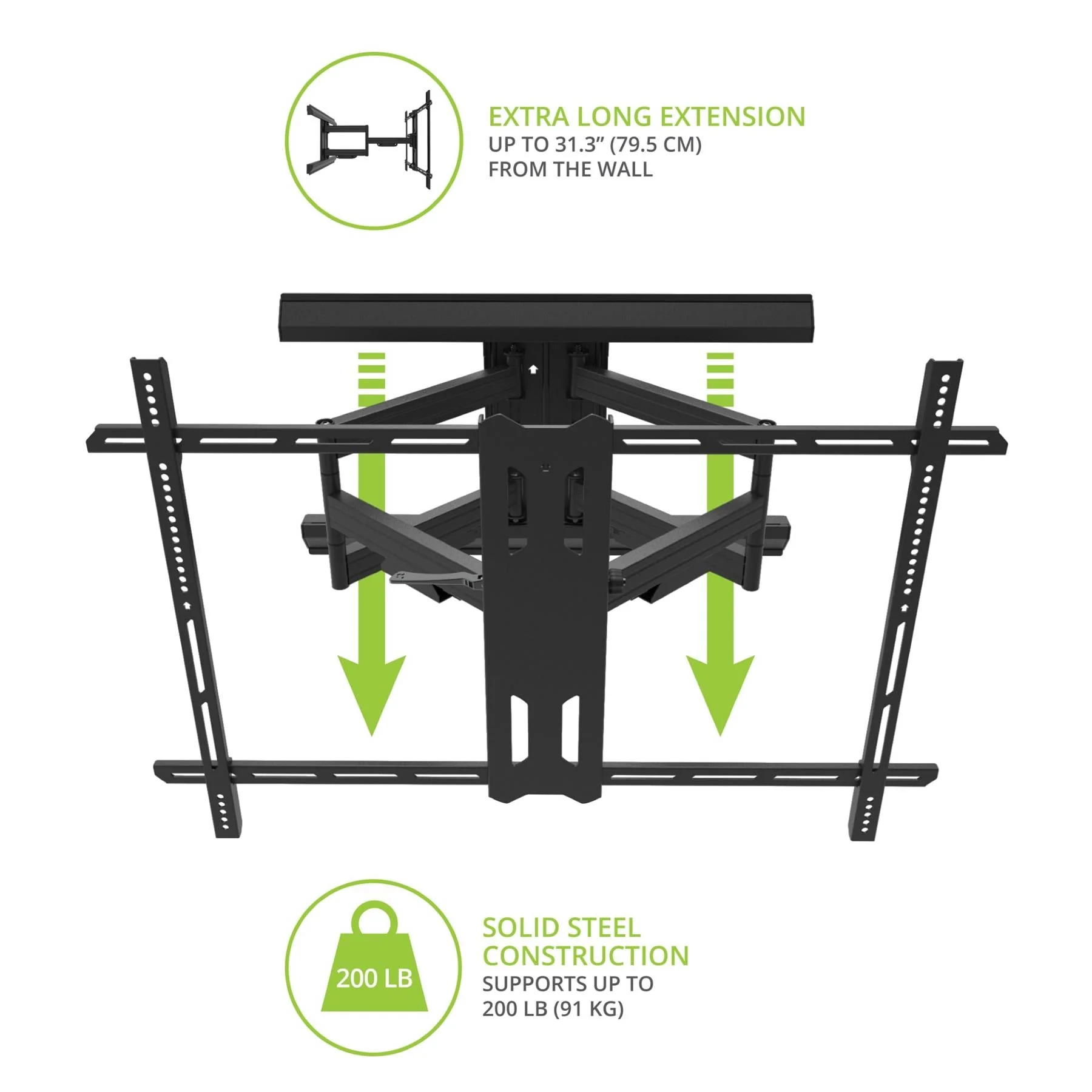

• Impressive extension & motion – Extends 31.3 inches (79.5 cm) and offers swivel up to 90° left or right plus a toolless +12°/–3° tilt

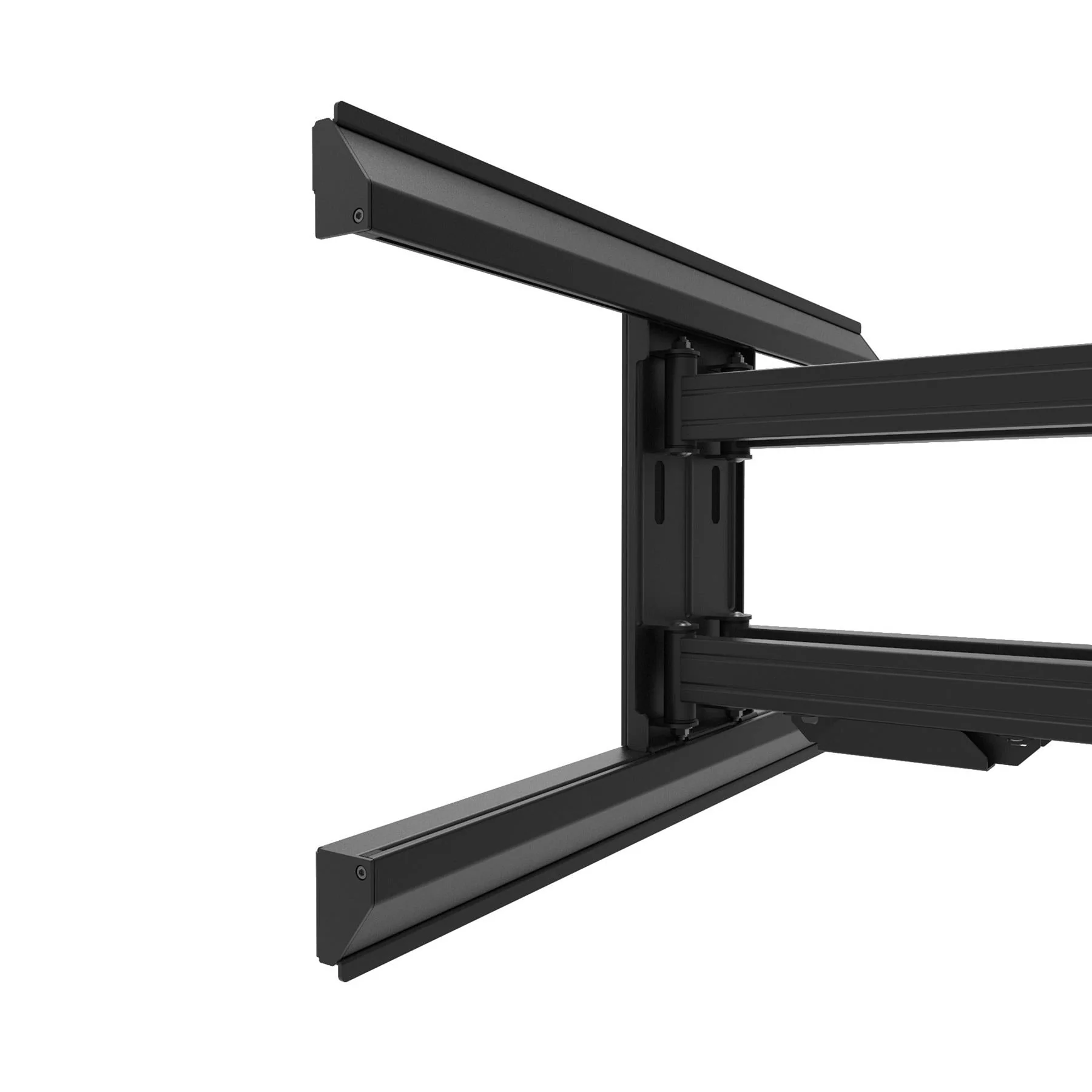

• Premium construction – All‑metal cable management and aluminum wall plate covers for a clean, durable installation
• Complete installation kit – Includes a convenient bolt pack with multiple bolt sizes and spacers plus lag bolts and anchors for wood or concrete

Specifications

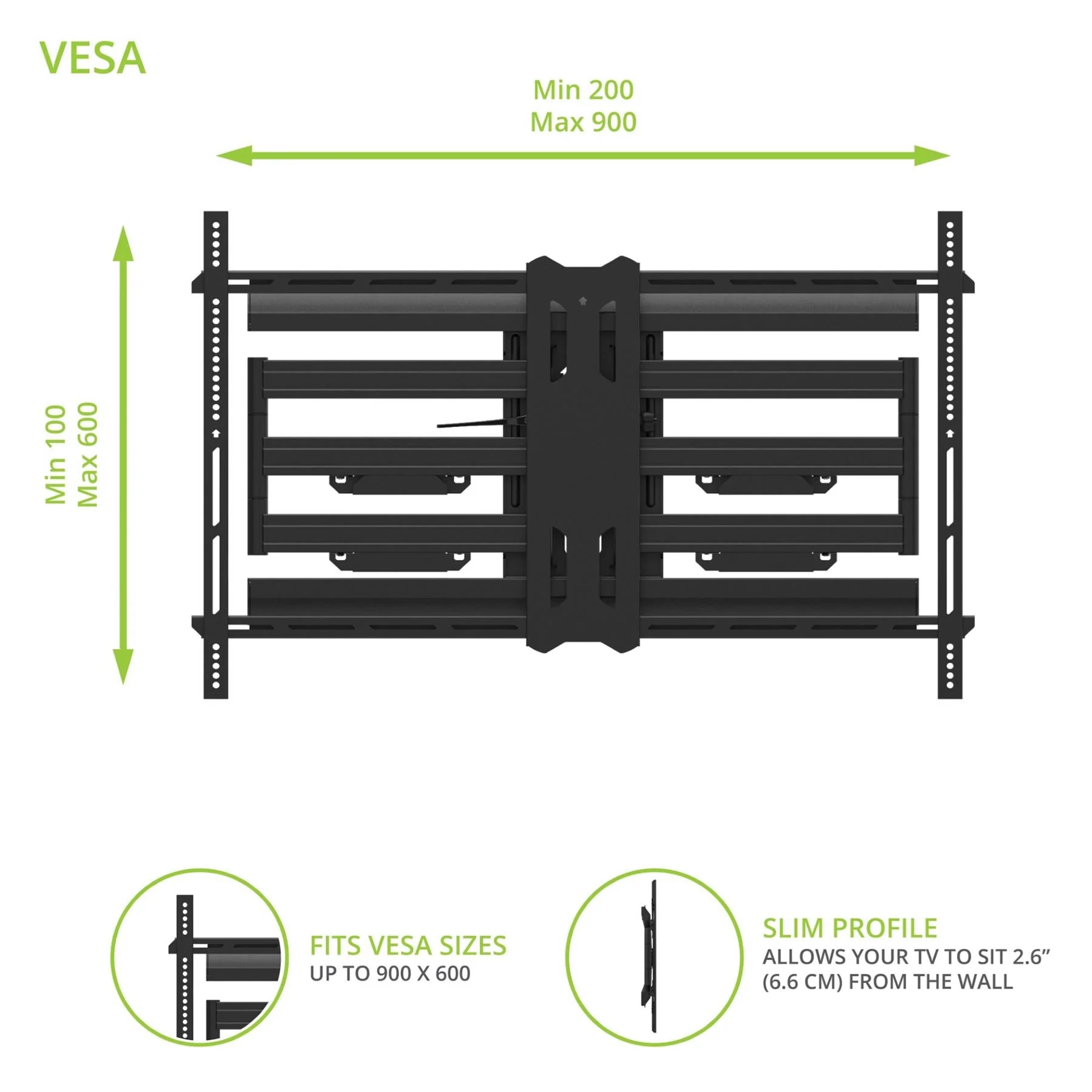

• TV size & VESA range – 55 – 120 in; VESA 200×100 – 900×600 mm
• Weight capacity – Supports 200 lb (90.9 kg)
• Horizontal offset & extension – 22 in (55.8 cm) total offset; extends up to 31.3 in (79.5 cm); profile depth 2.6 in (6.6 cm)
• Tilt & swivel – +12° forward, –3° backward; up to 90° swivel left or right

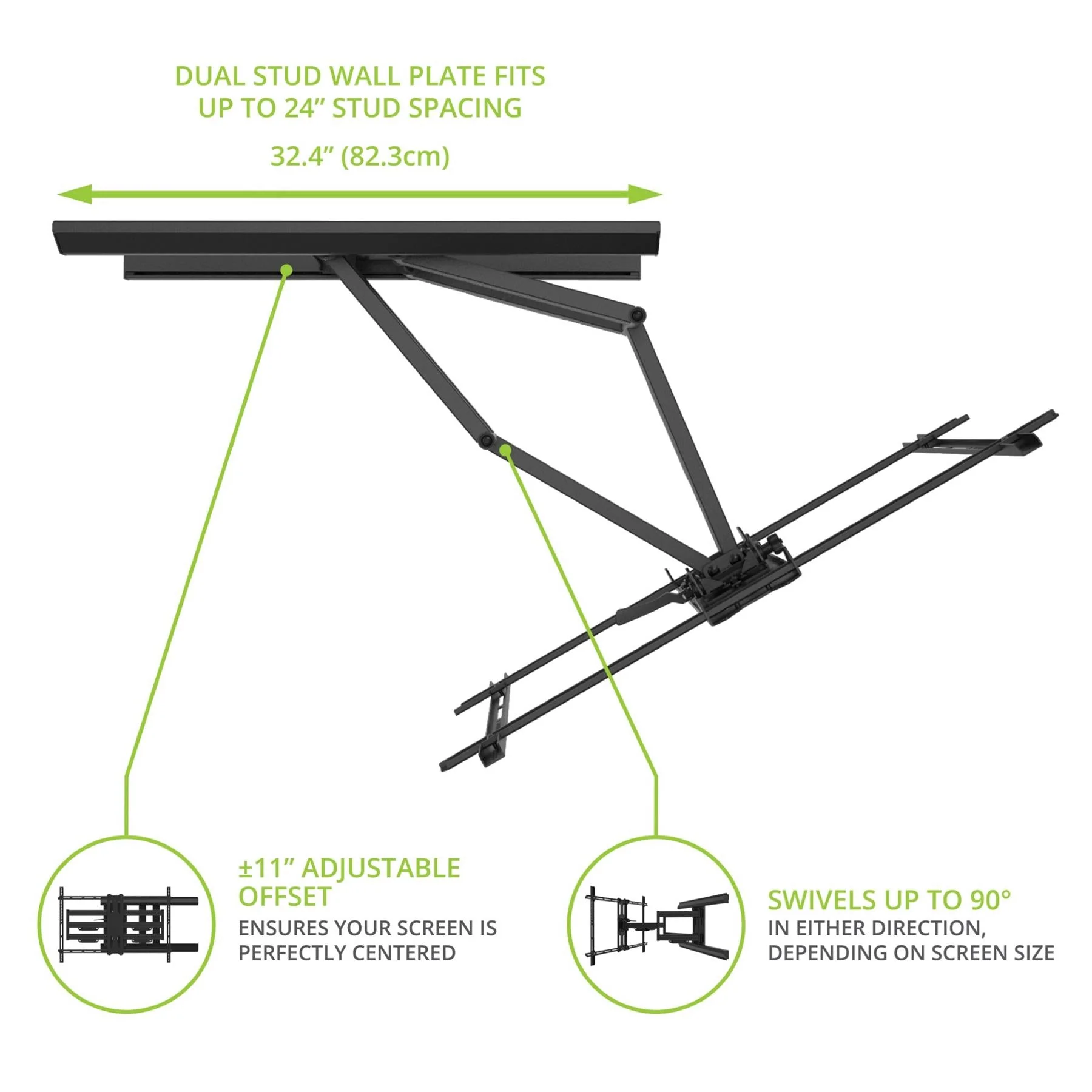

• Wall plate – 32.4 in wide; accommodates dual studs up to 24 in apart; adjustable horizontal leveling; aluminum covers to hide lag bolts
• Weights & dimensions – Product weight 48.3 lb; shipping weight 58.4 lb; shipping dimensions 41.6×21.3×4.9 in; UPC 800152727172

FAQs

What screen sizes can the PMX800 handle?

It supports 55 to 120 inch displays and includes a large 900×600 VESA interface.

How much weight does it support?

Up to 200 pounds (90.9 kg).

What is the horizontal offset?

A total of 22 inches allows you to shift the TV left or right to center it on the wall.

How far does it extend and how close does it sit to the wall?

It extends 31.3 inches and retracts to 2.6 inches.

Can I adjust the tilt without tools?

Yes. A cam lever allows toolless +12°/–3° tilt adjustments.

Does it swivel?

It swivels up to 90° left or right depending on screen size.

Is cable management robust?

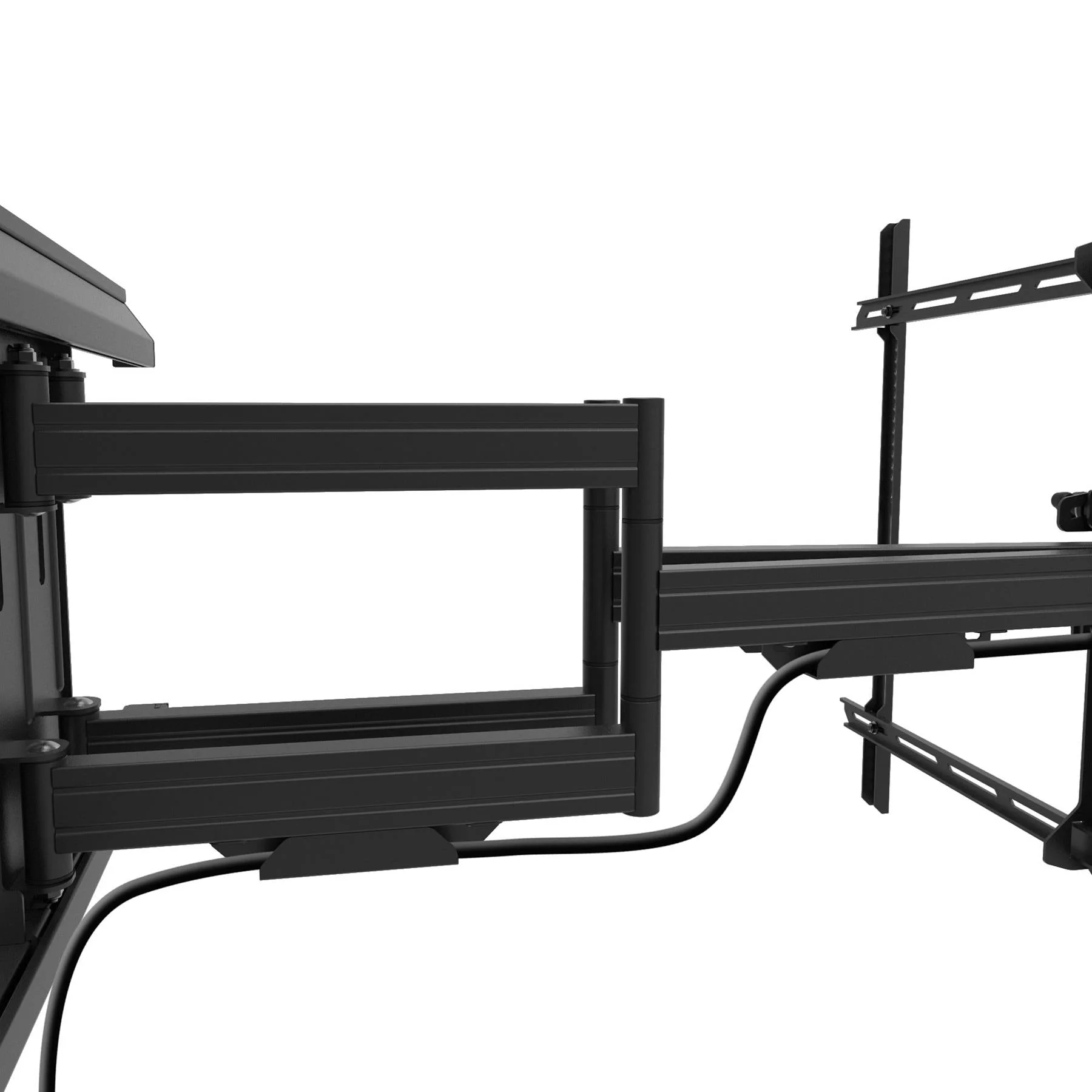

Yes. An all‑metal cable channel and aluminum wall plate covers keep wires and lag bolts hidden.

What hardware comes with it?

The mount includes a bolt pack with various bolt sizes, spacers, lag bolts and concrete anchors for easy installation.

Kanto PMX800 Pro Full Motion TV Mount for Large Screens - Extra‑Large Pro Series Mount Downloads:

Kanto PMX800 Pro Full Motion TV Mount for Large Screens - Extra‑Large Pro Series Mount - User Manual
Kanto PMX800 Pro Full Motion TV Mount for Large Screens - Extra‑Large Pro Series Mount - Product Sheet
