IC Realtime IPFX-D80V-IRW1 - 8MP WDR IR Dome Network Camera - Clearance / Open Box

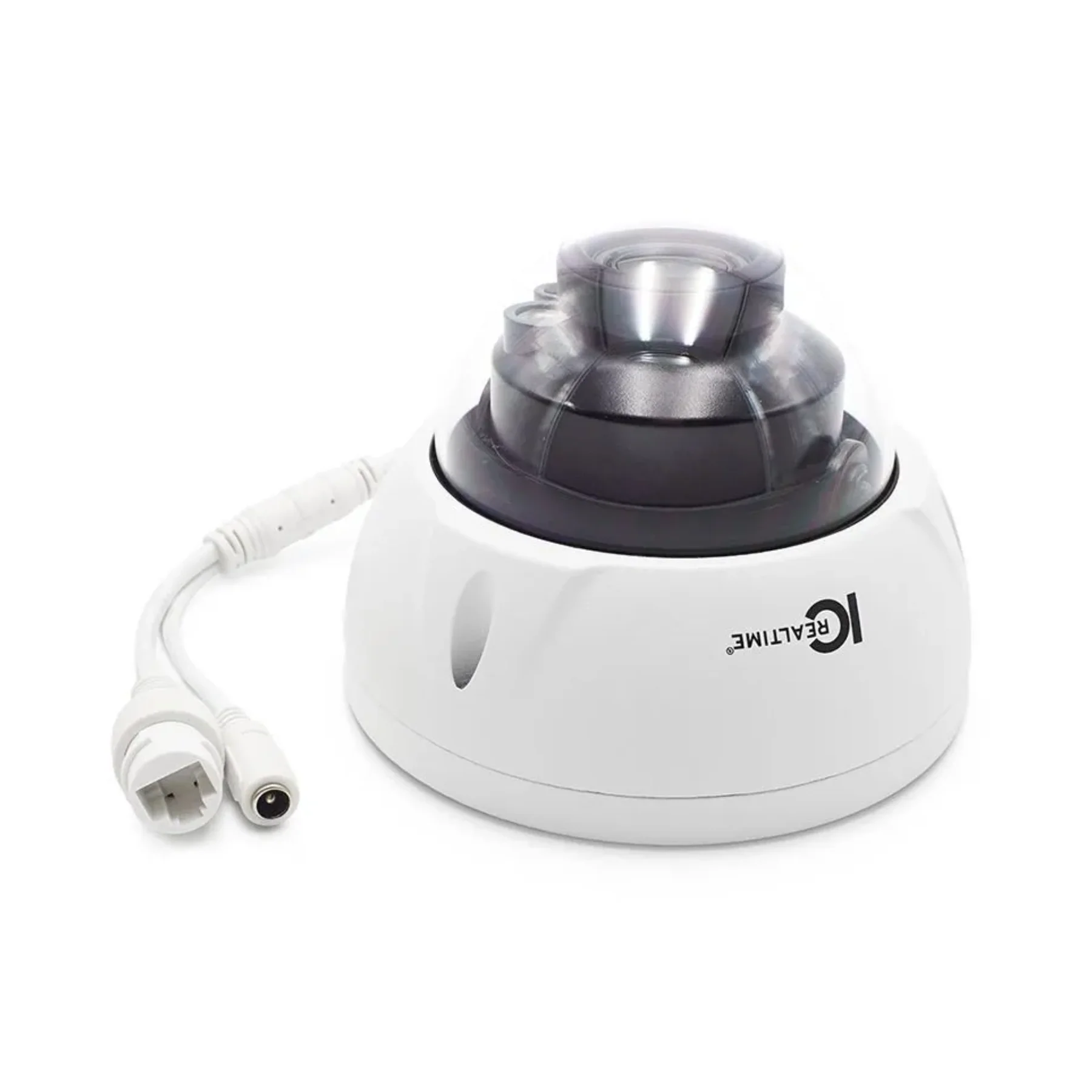

IPFX-D80V-IRW1 - 8MP WDR IR Dome Network Camera
IC Realtime's IPFX-D80V-IRW1 is one of those cameras that prove 4K Ultra High Definition is the perfect use for video security. This FlexSmartAi UHD power zoom dome camera represents the tipping point where Ultra High Definition moves from amusing to amazing, and security video rises from HD excellent to incredibly spectacular.
- 1/2.5” 8 Megapixel progressive scan STARVIS™ CMOS
- H.265 & H.264 triple-stream encoding
- 15fps@4K(3840×2160),25/30fps@3M(2304×1296)
- WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
- Micro SD card slot, up to 128GB
- 2.7mm ~12mm motorized lens
- Max IR LEDs Length 164ft
- IP67, IK10, ePOE Support
ULTRA DEFINITION + POWER ZOOM
A sensor chip like this deserves a great lens, and the D80V delivers big-time with a power zoom varifocal 2.7mm – 13.5mm autofocus lens system that gives a zoom dependent 110°–40° wide field of view. to take it all in. The IPFX-D80V also comes equipped with IC Realtime's industry-leading 120db WDR and 3D Digital Noise Reduction auto exposure and video management systems to keep all the details UHD sharp. Outside or indoors, D80V's darkness dominating 0.05 [email protected] low-light video sensor is supplemented by 160+ feet of auto-activated Smart IRs.
SEE & STREAM SMARTER
FlexSmartAi's deep learning algorithm enables enhanced IVS motion detection, perimeter control, and business intelligence and dependably recognizes human and vehicle intrusions with high accuracy, frame-by-frame analysis. This helps eliminate false alarms, triggering alerts only when The AI detects an actual intrusion and ignores irrelevant pixel-change motion like leaves in the wind for a 90% reduction in false detection alerts.
With 4K pixel density, stream management becomes even more vital, so the D80V utilizes IC Realtime's H.265+ video stream compression. This part of the FlexSmartAi system uses a scene-adaptive video codec that uses adjacent multi-frame references and applies intelligent noise reduction to fill in missing pixels for the complete video picture while simultaneously managing streaming bit rates. This level of frame-by-frame video management and high-speed analysis & compression means storage requirements are reduced by up to 70% compared to standard H.265 and less network load.
AUDIO SUPPORT & SOUND TRIPWIRE
For complete forensic evidence recording & post-incident review capabilities and UHD security gate or entryway live observations, the IPFX-D80V also includes a line-in audio to input an audio source in its output stream. That same audio pickup can enable audio triggering of D80V's IVS detection alerts when defined in its IVS "tripwire" rules and makes for court-admissible forensic video when digital watermarking is enabled.
That audio detection triggering is part of our new FlexSmartAi system that adds built-in brains to D80V's 4K UHD turret dome camera design. This built-in intelligence also makes D80V the perfect camera for our new FlexSmartAi recorders. They will automatically use IPFX-D80V's UHD pixel density and tripwire & intrusion capabilities to max out recorder-based FlexSmartAi detection & recognition capabilities.
VERSATILE, FUTURE PROOF & SECURE
Beyond its audio & UHD video features, IPFX-D80V's physical features include 12VDC power capability in case 7.3w of PoE isn't available and support a 256Gb mSD card for onboard video storage. Of course, the D80V is ONVIF (Profile S/ G/P/T) P2P and CGI compatible and is UL listed.
All IC Realtime cameras & recorders are protected by multiple layers of authorizations & password protections to ensure security on both the device & network levels. Network traffic is always encrypted in both directions and IC Realtime's IP security devices meet or exceed UL CAP certification standards.
Specifications:
Camera
Image Sensor: 1/2.5” 8 Megapixel progressive scan CMOS
Effective Pixels: 3840(H)x2160(V)
RAM/Rom: 512MB/32MB
Scanning System: Progressive
Electronic Shutter Speed: N/A
Minimum Illumination: 0.05Lux/F1.4 (Color,1/3s,30IRE)
0.2Lux/F1.4 (Color,1/30s,30IRE)
0Lux/F1.4(IR on)
S/N Ratio: More than 50dB
Illumination Distance: Distance up to 50m (164ft)
Illumination On/Off Control: Auto/ Manual
Illumination LEDs: 2
IR Wavelength: 850 nm
Camera Illumination Type: IR
Lens
Lens Type: Motorized/ Auto Iris(DC)
Mount Type: Board-in
Focal Length: 2.7mm~12mm
Max. Aperture: F1.4
Angle of View: H:110°~40° , V:58°~23°
Optical Zoom: 4x
Focus Control: Motorized
Close Focus Distance: 0.3m
DORI - Detect: 85m(280ft) - 228m(748ft)
DORI - Observe: 34m(112ft) - 91m(299ft
DORI - Recognize: 17m(56ft) - 46m(151ft)
DORI - Identify: 8.5m(28ft) - 23m(75ft)
Intelligence
IVS: Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions: Face Detection
Video
Compression: H.265+/H.265/H.264+/H.264
Resolution: 4K(3840×2160)/ 6M(3072×2048)/5M(3072x1728)/ 5M(2592×1944)/ 4M(2688×1520)/ 3M(2048x1536)/ 3M(2304×1296)/ 1080P(1920×1080)/1.3M(1280x960)/ 720P(1280×720)/ D1(704×576/704×480)/
VGA(640×480)/ CIF(352×288/352×240)
Frame Rate: Main Stream: 4K(1~15fps)/3M(1~25/30fps)
Sub Stream: D1(1~25/30fps)
Third Stream: 720P(1~25/30fps)
Bit Rate: H.264: 24K ~ 10240Kbps H.265: 14K ~ 9984Kbps
Day/Night: Auto(ICR) / Color / B/W
Backlight Compensation: BLC / HLC / WDR
White Balance: Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control: Auto/Manual
Noise Reduction: 3D DNR
Motion Detection: Off / On (4 Zone, Rectangle)
Region of Interest: Off / On (4 Zone)
Electronic Image Stabilization (EIS): N/A
Smart IR: Support
Digital Zoom: 16x
Flip: 0°/90°/180°/270° (90°/ 270° only supported at 4MP or less)
Mirror: Off / On
Privacy Masking: Off / On (4 Area, Rectangle)
Audio
Compression: G.711a/ G.711Mu/ AAC/ G.726
Network
Ethernet: RJ-45 (10/100Base-T)
Protocol: HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Interoperability: ONVIF, PSIA, CGI, Milestone
Streaming Method: Unicast / Multicast
Max. User Access: 10 Users /20 Users
Edge Storage: NAS
Local PC for instant recording
Mirco SD card 128GB
Web Viewer: IE, Chrome, Firefox, Safari
Management Software: SmartICRSS, ICRSS Pro,
Smart Phone: IOS, Android
Interface
Video Interface: N/A
RS485: N/A
Audio I/O: 1/1 channel In/Out
Alarm I/O: 1 channel In: 5mA 5VDC
1 channel Out: 300mA 12VDC
Memory Slot: Mirco SD card 128GB
Electrical
Power Supply: DC12V, PoE(802.3af)(Class 0)
E-PoE Support
Power Consumption: <8.5W
Environmental
Operating Conditions: -30° C ~ +60° C (-22° F ~ +140° F)
Operating Humidity: Less than 95% RH
Ingress Protection: IP67
Vandal Resistance: IK10
Construction
Casing: Metal
Dimensions: Φ122mm×88.9mm (4.8”×3.5”)
Gross Weight: 0.58kg (1.29lb)
