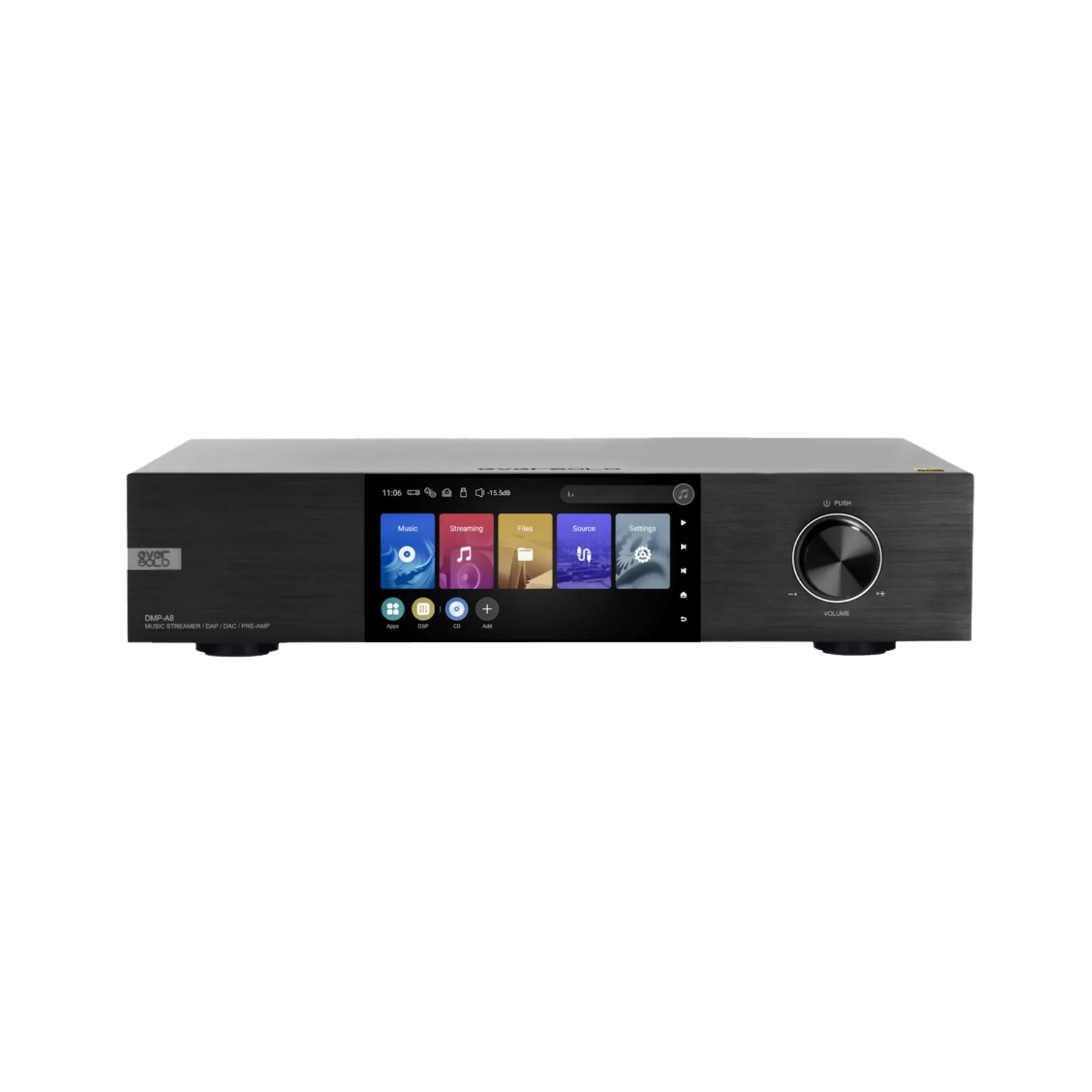

Eversolo DMP-A8 Music Streamer & Hi-Res Streaming DAC - Clearance / Open Box

Eversolo DMP-A8 Music Streamer & Switchable Hi-Res DAC

The DMP-A8 by Eversolo integrates the proprietary EOS (Eversolo Original sampling-rate audio engine), circumventing Android SRC limitations and enabling direct audio passthrough of third-party apps, exemplifying its commitment to versatile and high-fidelity audio experiences such as Apple Music hi-res Direct output.

Boasting support for an extensive array of ultra-high sampling master recording formats, including CD-quality formats (FLAC, WAV, APE), DSD512 (.dsf/.dff/.iso/.dst) stereo, and MQA, the DMP-A8 ensures a comprehensive range of playback and decoding capabilities.

Crafted from aviation-grade aluminum with a CNC machined body, the DMP-A8's brushed panel and frosted anodized finish embody a unique fusion of classic and modern design elements, catering to the preferences of audio enthusiasts.

Featuring a sizable 6" LCD high-definition touchscreen and an exclusive user interface, the DMP-A8 provides an intuitive and seamless interactive experience for system settings, local music library, and third-party apps.

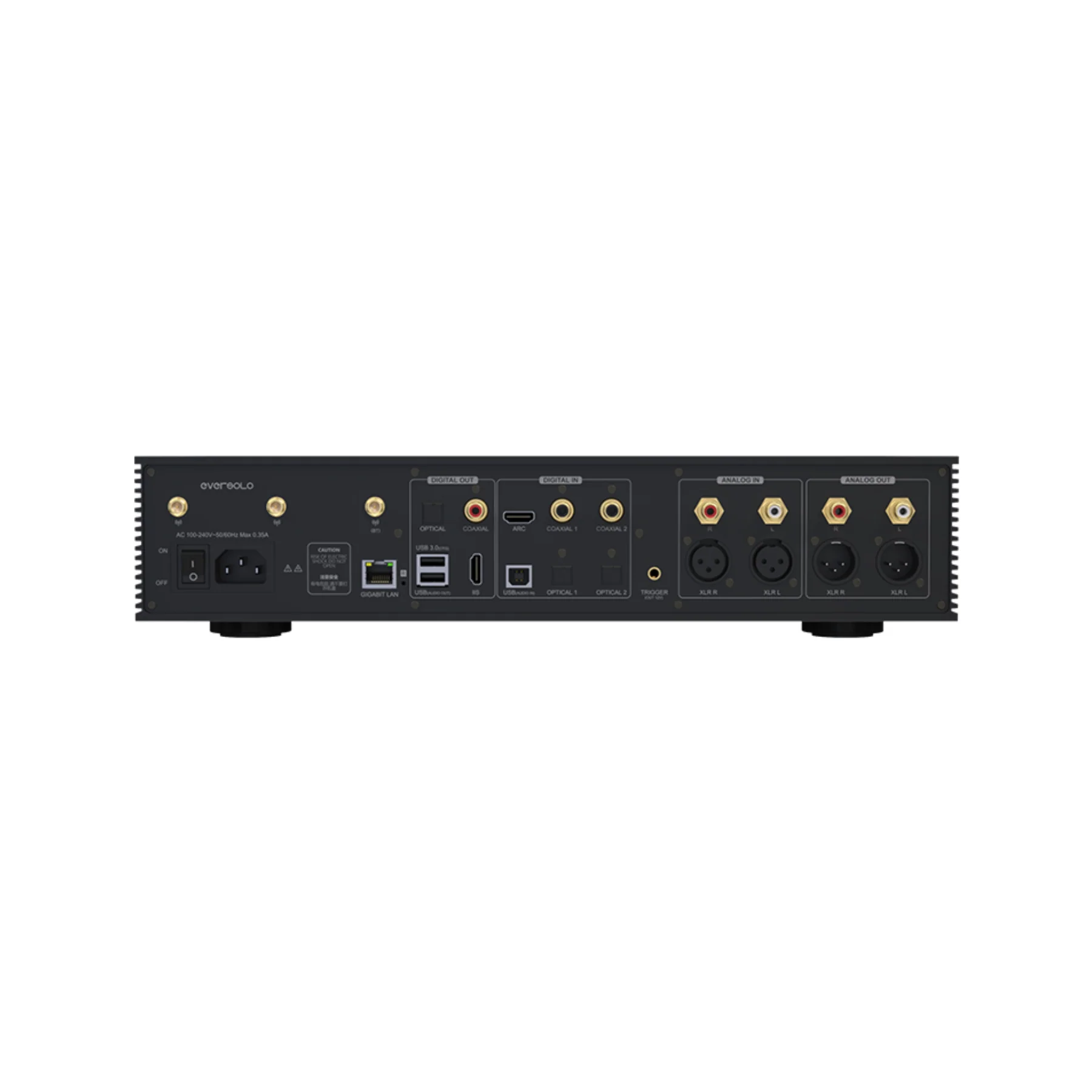

With a plethora of inputs and outputs, the DMP-A8 serves as a digital turntable connecting to high-end DACs through HDMI IIS, USB, optical, and coaxial outputs, supporting analog inputs (XLR and RCA), APTX HD Bluetooth audio input, and facilitating direct pairing with active speakers or power amplifiers through analog preamp outputs RCA and XLR, with Trigger out port for power amplifier system linkage.

Facilitating flexible storage expansion, the DMP-A8 incorporates an M.2 NVMe SSD slot for convenient installation of SSDs up to 4 TB, enhancing speed, reducing noise, and providing stable storage for high-quality local music, with additional support for external storage devices through the USB OTG port.

Eversolo DMP-A8 Music Streamer & Switchable Hi-Res DAC Specifications

• Display: 6" LCD touchscreen
• Internal Memory: 4GB DDR4 + 64GB eMMC
• DAC: AK4191EQ + AK4499EX
• Audio Processor: XMOS XU316
• Op-amp Chip: OPA1612
• Power Supply: High-quality, low-noise linear + digital dual power supply
• SSD Support: M.2 NVME 3.0 2280 protocol, up to 4TB (SSD not included)
• USB-A Port: USB3.0*2
• Ethernet: RJ-45(10/100/1000Mbps)
• WiFi: WiFi 2.4G+5G dual band
• Playback and DAC Decoding: Support up to stereo DSD512, PCM 768KHz 32Bit
• Music Service: Tidal, Qobuz, Highresaudio, Amazon Music, Deezer, Radio Paradise, WebDAV, UPnP
• Streaming: Air Play, DLNA, Tidal Connect, etc.
• Bluetooth Audio Input: Bluetooth BT5.0, support SBC/AAC/aptX/aptX LL/aptX HD/LDAC
• USB-B Audio Input: Supports Windows (10, 11), Android, IOS. Support up to stereo DSD512, PCM 768KHz 32Bit.
• Optical/Coaxial Audio Input: Support up to stereo PCM 192KHz 24Bit, Dop64
• HDMI ARC: Support up to stereo PCM 192KHz 24Bit
• Analog Preamp Audio Input: XLR(Balanced)*1 + RCA(Unbalanced), Maximum Gain +10dB
• USB Audio Output: Support up to stereo DSD512, PCM 768KHz 32Bit
• IIS Output: Support up to stereo DSD512, PCM 768KHz 32Bit
• Optical/Coaxial Audio Output: Support up to stereo PCM 192KHz 24Bit, Dop64
• Analog Audio Output (Preamp): XLR(Balanced) + RCA(Unbalanced)
• XLR Output Audio Characteristics:
  • Output level: 4.2V
  • Frequency response: 20Hz~20KHz(±0. 25dB)
  • Dynamic range: > 128dB
  • SNR: > 128dB
  • THD+N: <0.00009%(-120dB) @No-wt
  • Crosstalk: > -121dB
• RCA Output Audio Characteristics:
  • Output level: 2.1V
  • Frequency response: 20Hz~20KHz (±0. 25dB)
  • Dynamic range: > 125dB
  • SNR: > 125dB
  • THD+N: <0.00010%(-119dB)@A-WT
  • Crosstalk: > -121dB
• Control Method: Mobile App, Touch screen control, IR+Bluetooth remote control
• Power Supply Unit (PSU): AC 110~240V 50/60Hz
• Rated Power: 16W
• Dimensions: W 388mm * L 248mm * H 90mm
