Denon PMA-3000NE 2-channel 160W integrated amplifier with MM/MC phono stage

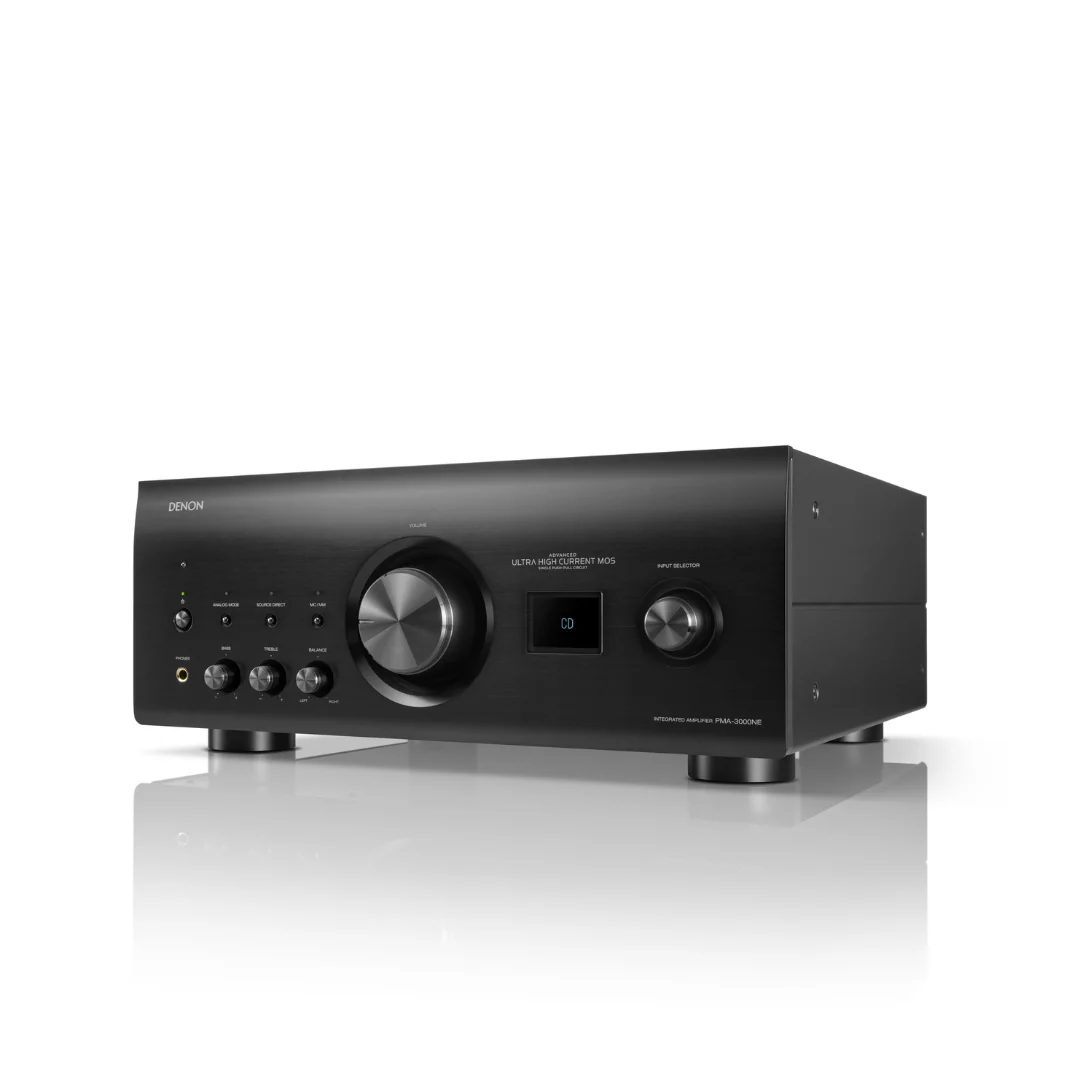

Denon PMA-3000NE Integrated Amplifier
Rediscover the full depth of your music with the Denon PMA-3000NE Integrated Amplifier—engineered for audiophiles who demand precision, power, and purity. Featuring Denon's UHC-MOS single push-pull design and capable of delivering 160W per channel (4 ohms), the PMA-3000NE drives even the most demanding loudspeakers with ease. With Ultra AL32 Processing, a quad ES9018K2M DAC configuration, and a dedicated MM/MC phono stage, it reproduces both digital and analog sources with astonishing clarity and detail. From high-res streaming to cherished vinyl collections, the PMA-3000NE offers true musicality with refined control and timeless craftsmanship.
Specifications
- Rated Output Power: 80W + 80W (8 ohm, 20 Hz–20 kHz, THD 0.07%) / 160W + 160W (4 ohm, 1 kHz, THD 0.7%)
- Total Harmonic Distortion: 0.01% (Rated output: –3 dB), 8 ohm, 1 kHz
- Power Amplifier Circuit: New UHC-MOS Single Push-Pull
- Preamplifier Circuit: Variable Gain Preamplifier (OP AMP)
- Phono Input: MM: 2.5 mV / 47kΩ, MC: 200 μV / 100Ω
- S/N Ratio: PHONO (MM): 89 dB / PHONO (MC): 74 dB / CD: 107 dB
- Digital Processing: Ultra AL32 Processing
- DAC Circuit: 4x ES9018K2M
- USB-B Input (DAC): PCM up to 384 kHz/32-bit, DSD up to 11.2 MHz
- Digital Inputs: Optical x3 (192 kHz/24-bit), Coaxial x1 (192 kHz/24-bit)
- Analog Inputs: 4x RCA (gold plated), 1x Phono MM/MC
- Headphone Output: Yes (auto speaker mute when engaged)
- Speaker Terminals: Gold-plated AVR-A1H type w/ cover
- Remote Control: Yes
- Pure Analog Mode: Yes (front panel button)
- Tone Controls: Bass, Treble, Balance
- Dimensions (W × H × D): 434 × 182 × 443 mm
- Weight: 24.6 kg (54.2 lbs)
- Available Colors: Silver, Black
- Power Consumption: 400W (Standby: 0.2W–0.4W)
What It's Great At
- Driving premium and power-hungry speakers with clarity and authority
- Delivering high-resolution audio playback from digital and analog sources
- Faithfully reproducing vinyl with a dedicated MM/MC phono stage
- Switching to pure analog for interference-free analog audio listening
- Offering detailed control with tone adjustments and source direct mode
- Acting as a high-end DAC for PC or streamer connections via USB-B
- Providing flexible input options for versatile system integration
- Exemplifying Denon's build quality and legacy of sound excellence
Expanded Key Features List
- Powerhouse Performance: 160W per channel (4Ω) delivers headroom and authority across all genres and speaker types.
- Quad DAC Design: Features four ES9018K2M chips for ultra-low distortion and high-precision digital audio decoding.
- Ultra AL32 Processing: Enhances digital signals by reconstructing waveforms to reproduce the original analog audio with high fidelity.
- MM/MC Phono Stage: Supports both moving magnet and moving coil cartridges with ultra-low noise and accurate signal handling.
- Pure Analog Mode: Disables digital circuitry for a completely analog signal path—ideal for vinyl and purist listening setups.
- USB-DAC Input: PCM up to 384kHz/32-bit and DSD up to 11.2MHz ensures compatibility with modern hi-res music formats.
- Asynchronous USB Support: Reduces jitter and enhances performance when connected to a PC or digital transport.
- Flexible Inputs: Optical, coaxial, USB-B, and multiple analog inputs support a wide array of audio sources.
- Tone and Source Direct Control: Adjust bass, treble, and balance—or bypass entirely for clean signal reproduction.
- Precision Engineering: Machined brass RCA terminals and gold-plated speaker connectors for maximum signal purity.
FAQ Section
Q: Can the Denon PMA-3000NE drive large or power-hungry speakers?
A: Yes, with up to 160W per channel at 4 ohms, the PMA-3000NE is built to drive demanding speakers with ease and control.
Q: Is it compatible with high-resolution audio files?
A: Absolutely. It supports FLAC, ALAC, WAV (up to 192kHz/24-bit), and DSD (2.8/5.6/11.2MHz) formats via USB and digital inputs.
Q: Does it include a phono stage for turntables?
A: Yes, it has a high-performance phono input that supports both MM and MC cartridges, making it perfect for vinyl enthusiasts.
Q: What is Pure Analog Mode?
A: Pure Analog Mode disables the digital circuitry for a cleaner analog signal path, ideal when using analog sources like turntables.
Q: Can I use this amplifier as a DAC?
A: Yes, it includes a USB-B DAC input supporting PCM up to 384kHz/32-bit and DSD up to 11.2MHz for high-end digital playback.
Q: Are tone controls available?
A: Yes, the amplifier features bass, treble, and balance adjustments along with a source direct option for bypassing them.
Q: Does it support wireless features or HEOS?
A: No, the PMA-3000NE is a purely wired, audiophile-grade amplifier designed for uncompromised sound performance.
Q: What color options are available?
A: It’s available in Premium Silver and Black finishes to match your system’s aesthetics.
Denon PMA-3000NE Info Sheet
Original: $3,799.00
-65%$3,799.00
$1,329.65More Images
