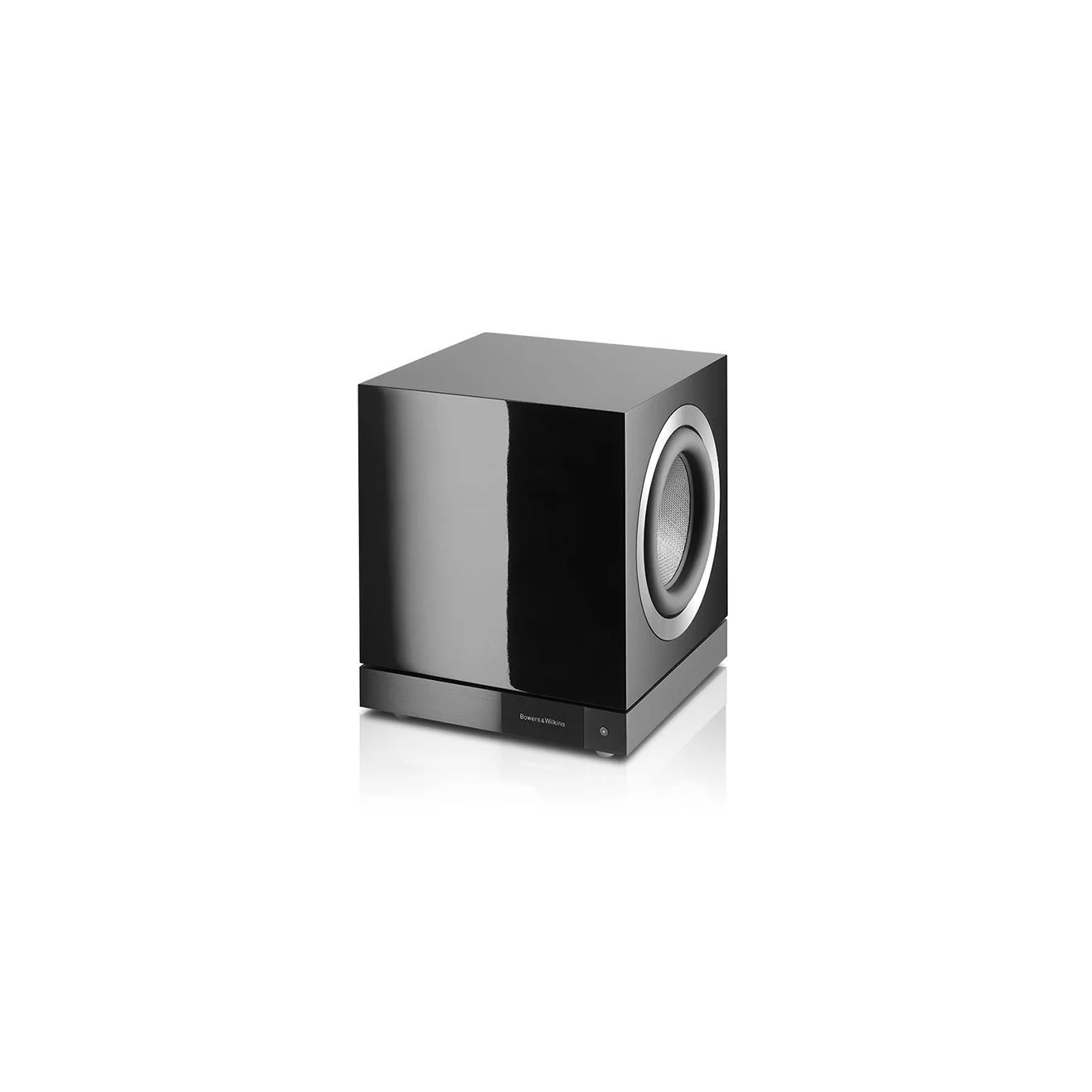

Bowers & Wilkins DB3D - 8" Subwoofer

Bowers & Wilkins DB3D Subwoofer: Deep Bass Without the Footprint

Deliver earth-shaking bass without sacrificing valuable floor space with the Bowers & Wilkins DB3D Subwoofer. This high-performance subwoofer boasts innovative technologies to produce powerful, controlled low frequencies from a remarkably compact cabinet.

Uncompromising Bass Performance

• Twin 8-inch Aerofoil cone drivers for deep, dramatic bass
• 1000-watt Class D Hypex amplifier for clean, undistorted low-end reproduction
• Digital signal processing for unmatched audio accuracy
• Dynamic EQ tailors response to your listening environment

Space-Saving Design for Seamless Integration

• Compact design integrates seamlessly into any home theater or listening room
• Rigid, low-resonance enclosure minimizes unwanted vibrations for clear, precise bass
• Available in two finishes to complement 800 Series Diamond and 700 Series Bowers & Wilkins loudspeakers

Effortless Control with Dedicated App

• Dedicated smartphone app allows for intuitive setup and control of the DB3D subwoofer
• Bluetooth LE connectivity ensures a seamless connection
• App guides you through placement optimization for the best possible performance in your room

Key Features

• 1000-watt Class D Hypex amplifier for powerful, clean bass
• Twin 8-inch Aerofoil cone drivers for deep, controlled low frequencies
• Digital signal processing for precise audio reproduction
• Dynamic EQ tailors response to your listening environment
• Compact, space-saving design
• Rigid, low-resonance enclosure minimizes unwanted vibrations
• App-based setup and Bluetooth LE control for easy configuration

Bowers & Wilkins DB3D Subwoofer Specifications

• Net weight: 25kg
• Dimensions:
  • Height: 360mm (14.1 in)
  • Width: 320mm (12.6 in)
  • Depth: 300mm (11.8 in)

Technical Details:

• Drive units: 2 x 200mm (8 in) Aerofoil™ cone drive units in a balanced configuration
• Frequency response: 10Hz - 350 Hz -3dB (centered on level at 100Hz)
• Technical features:
  • 1000w Class D Hypex amplifier
  • 2 x 200mm (8 in) Aerofoil™ cone drive units in a balanced configuration
  • Digital preamplifier with Dynamic EQ
  • App-based set-up and BT-LE control

Description:

• DB Series Subwoofer
• Frequency range: -6dB at 8.5Hz - 500Hz
• Max power output: 1000W

Inputs:

• 2 x XLR
• 2 x RCA
• 2 x 3.5mm 12V trigger
• RS-232 - 9-pin D connector
