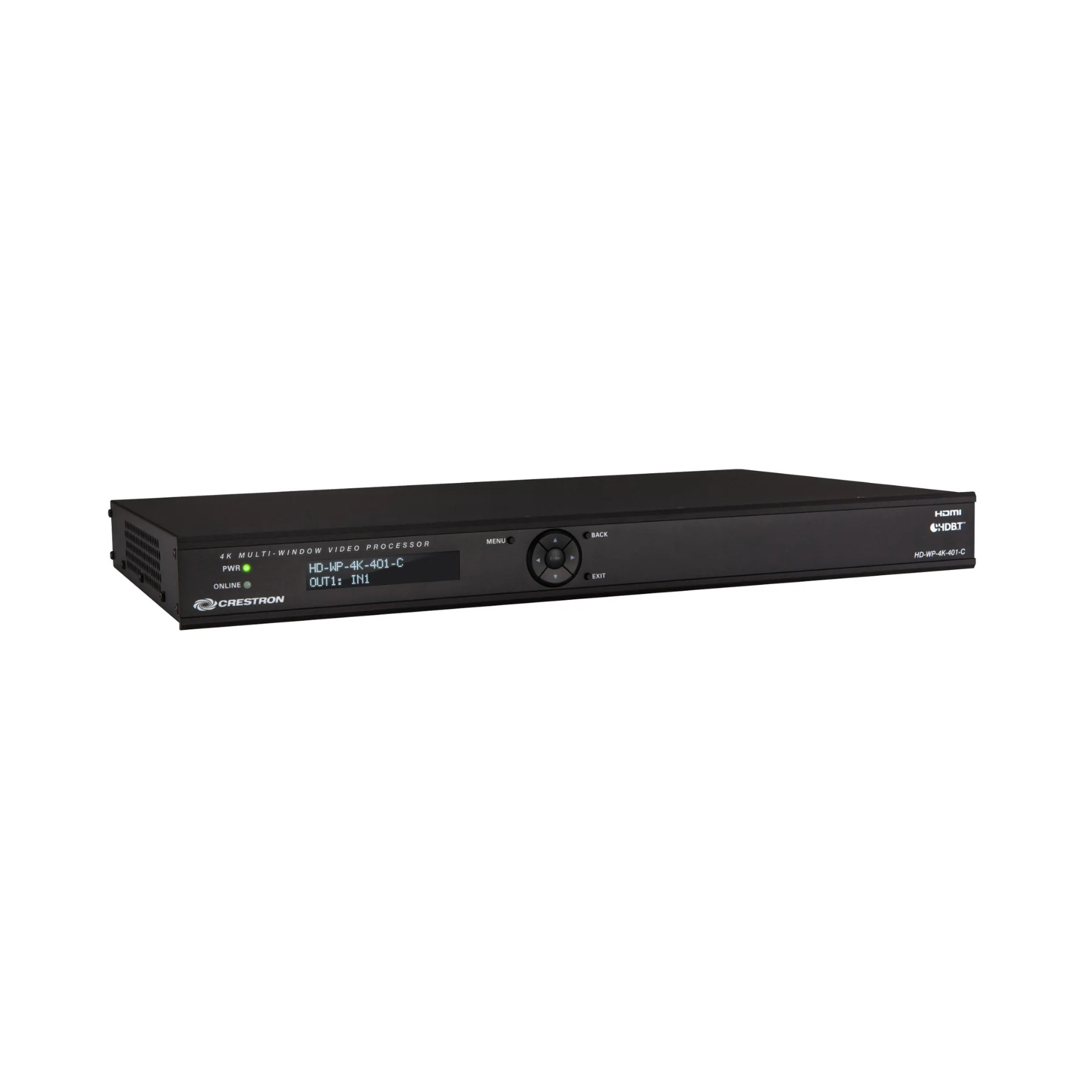

Crestron HD-WP-4K-401-C - 4K Multi-Window Video Processor with HDBaseT & HDMI Outputs - Clearance / Open Box
Crestron HD-WP-4K-401-C - 4K Multi-Window Video Processor with HDBaseT & HDMI Outputs - Clearance / Open Box
HD-WP-4K-401-C - 4K Multi-Window Video Processor with HDBaseT & HDMI Outputs
The HD-WP-4K-401-C enables the display of up to four video sources simultaneously on a single HD, Ultra HD, or 4K display. Parallel HDMIĀ® and HDBaseTĀ® outputs provide flexible connectivity for the display device and other equipment. Input sources up to 4K are supported via four HDMI inputs. Fully automatic operation enables use without a control system, while enhanced operation and custom functionality can be attained through integration with a CrestronĀ® control system.
High-Performance Video Windowing
The HD-WP-4K-401-C is engineered to deliver a professional onscreen experience with crystal clear 4K video quality and smooth transitions. Using Automatic mode, the screen fluidly configures itself based on the number of connected sources. With four sources connected, all four images appear in four equal sized windows that combine to fill the screen. Disconnect or disable one source and the screen reconfigures to display only three windows (two top, one bottom). Connect or select only two sources and they display side by side, while a single source displays full screen.
PIP (Picture-In-Picture) windowing is also supported, allowing one source to be displayed full screen with a second source displayed in an inset PIP window. The size and location of the PIP window can be defined at setup. Additional windowing modes include 3 up, 3 down, 3 small left - large right, and 3 small right - large left. All windowing modes and input assignments can be managed at setup or while in operation using the front panel controls, a web browser, or a control system.
Text and Image Overlay
Each video window can be designated with a custom text label. An additional text field can be positioned at any location on screen to display a static label or a dynamic pop-up message sent from the control system. A custom photo or logo image can also be uploaded to appear at any location on the screen.
Crestron Connect Itā¢ Cable Caddies
Crestron Connect It cable caddies (TT-100 series) provide a cost-effective, simple-to-use presentation solution that works seamlessly with the HD-WP-4K-401-C. Simply add up to four Crestron Connect It cable caddies to provide BYOD connectivity and one-touch control for multiple participants around a conference table. Four USB ports on the HD-WP-4K-401-C provide power and communications for each cable caddy.
HDBaseTĀ® Output
Its HDBaseT output allows the HD-WP-4K-401-C to connect directly to any display device equipped with an HDBaseT input. The HDBaseT connection requires just one CAT type cable and supports wiring distances up to 300 feet (100 meters), easily accommodating all types of room configurations. The HDBaseT and HDMI outputs may be used simultaneously, providing identical signals at each output with the added benefits of longer cable length and the ability to power an HDBaseT PoE+ powered device over the HDBaseT connection.
The HDBaseT output is also compatible with Crestron DigitalMediaā¢ system, allowing for connection to a DM 8G+Ā® receiver, DMĀ® switcher, or DM-DGE-200-C Digital Graphics Engine. Note that the HD-WP-4K-401-C does not provide control of the DM device or any equipment connected to that DM device.
Audio Pass-Through and De-Embedding
When displaying a full screen image of any single input source, that sourceās audio signal is routed to the HDMI and HDBaseT outputs. A balanced analog audio output is also included to allow stereo audio signals to be extracted from the digital output and fed to a separate audio switcher, processor, or amplifier.
Display Control and System Integration
When used without a control system, the HD-WP-4K-401-C provides essential on/off power control of the display device via RS-232 using the onboard COM port, IR using the onboard IR port, or CEC through the HDMI or HDBaseT output. The display device can be configured to turn on automatically when an input source is connected, and then turn off following an adjustable time period after all sources are disconnected.
Adding a Crestron control system enables fully customizable control of the display and other devices connected to the HD-WP-4K-401-C via RS-232, IR, and CEC. CEC is supported through each of the onboard HDMI and HDBaseT ports. Integration with a control system also enables integration with Crestron Fusion Cloud to support centralized control, monitoring, and room scheduling as part of a complete managed enterprise.
Simplified Setup
Easy setup and configuration of the HD-WP-4K-401-C is enabled using the front panel controls or a web browser. Standalone operation is supported for set-and-forget video windowing applications, and for small AV presentation applications with or without the optional Crestron Connect It cable caddies.
Key Features
- Displays up to four video sources on a single HD, Ultra HD, or 4K display
- Nine windowing modes consisting of automatic, full screen, PIP, side by side, quad view, 3 up, 3 down, 3 small left - large right, and 3 small right - large left
- Automatic mode affords plug-and-play operation without a control system
- Professional performance ensures smooth, glitch-free on-screen transitions
- Built-in Crestron Connect Itā¢ collaboration system functionality
- Automated display power control via CEC, IR, or RS-232
- Optional control system integration enables fully customizable control
- HDMI and HDBaseT outputs support versatile system configuration and long wire runs
- Supports input and output resolutions up to 4K/30 (4096x2160@30Hz) or WQXGA (2560x1600@60Hz)
- Supports HDMI, DVI, and Dual-Mode DisplayPort sources
- Includes comprehensive built-in EDID and HDCP configuration tools
- HDCP 2.2 and 1.4 compliant
- Text and image overlay capabilities
- Passes Dolby TrueHD, Dolby AtmosĀ®, DTS-HDĀ®, DTS:X, and uncompressed 7.1 linear PCM audio
- Supports stereo audio de-embedding via a balanced analog audio outputĀ

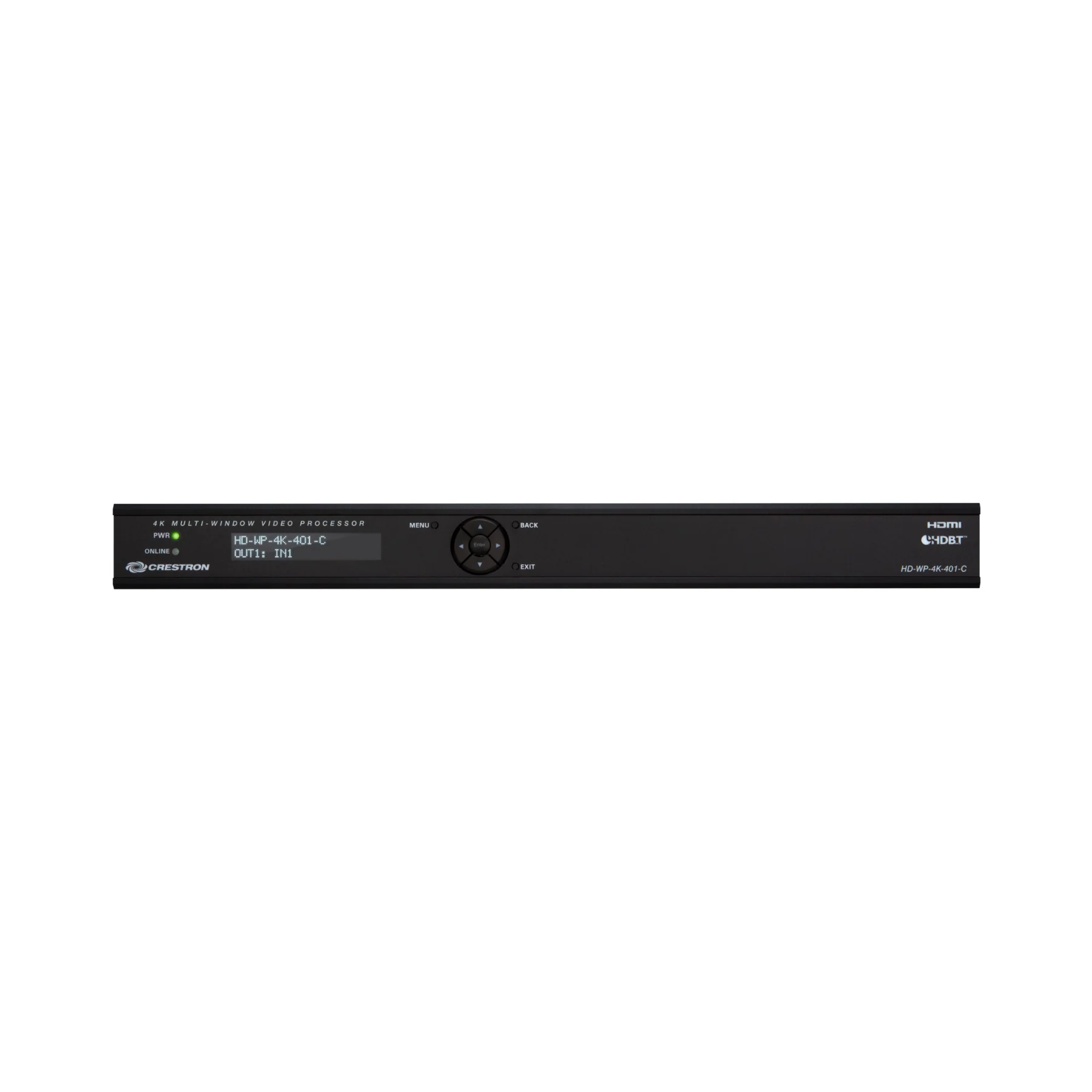

- Simplified setup through the front panel OLED display or a web browser
- High-speed Ethernet LAN connection
- Single-space 19ā rack-mountable
- Universal 100-240V internal power supply
Spec Sheet
Original: $7,799.00
-65%$7,799.00
$2,729.65More Images
