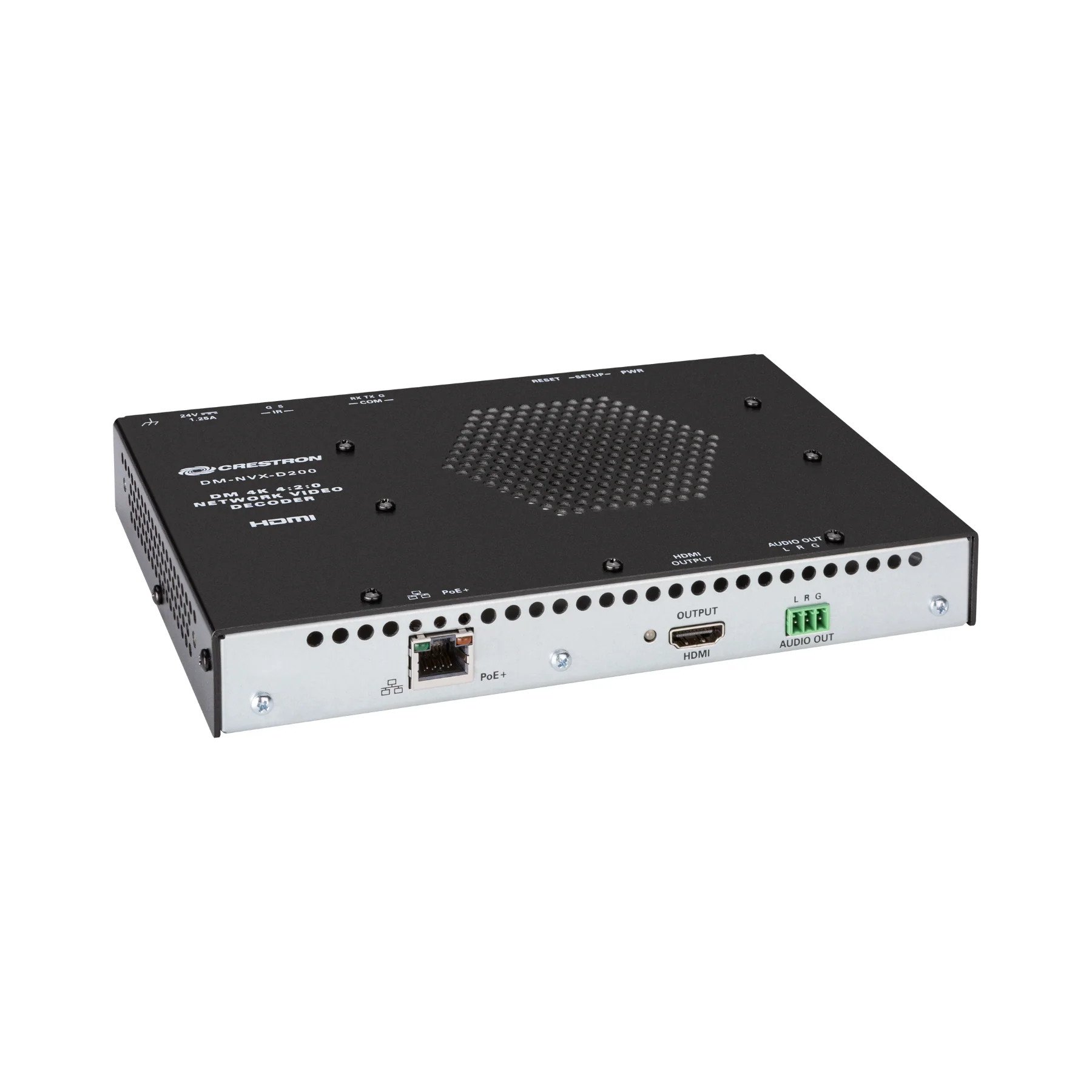

Crestron DM-NVX-D200 4K60 4:2:0 Network AV Decoder with Scaler - Clearance / Open Box
DM-NVX-D200
The DM-NVX-D200 is a compact AV-over-IP decoder designed to receive video with resolutions up to 4K60 4:2:0 over standard Gigabit Ethernet. Featuring secure web‑based control and management, an HDMI® output with 4K60 video scaler, an analog audio output, AES67 transmit and receive capability, and copper Ethernet connectivity with PoE+ support, the DM-NVX-D200 provides a decoder solution that offers price and performance optimization in a DM NVX® network AV installation of any size.
Real-Time 4K60 Video Performance
Engineered for demanding conference room and classroom applications, the DM-NVX-D200 ensures real‑time, full‑motion 4K60 video performance for the presentation of multimedia, videoconferencing, and live camera images. Interactive functions such as gameplay and the use of a mouse are fluid and natural.
A DM NVX system is engineered for stability and ultimate reliability. Line‑synchronized outputs ensure perfect synchronization of content across multiple displays for applications such as digital signage. Variable Multicast TTL (Time To Live) enables traversing multiple network routers for optimal flexibility.
Enterprise-Grade Security
Using advanced security features and protocols such as 802.1X authentication, Active Directory® credential management, AES‑128 content encryption, PKI authentication, TLS, SSH, and HTTPS, a DM NVX system delivers a true enterprise‑grade network AV solution engineered to fulfill demanding IT policies.
Decoder Functionality with 4K60 4:2:0 Scaler
The DM-NVX-D200 provides decoder functionality designed for use with the DM-NVX-E20 or DM-NVX-E10 encoder. The DM-NVX-D200 supports resolutions up to 4K60 4:2:0 including 4K30 4:4:4. The DM-NVX-D200 receives a signal from the DM-NVX-E20 or DM-NVX-E10 and feeds it to a local display device via the HDMI output. The built‑in scaler ensures an optimal image, scaling the encoded source resolution up or down to match the native resolution of the display device.
Video Wall Processing
A video wall composed of up to 64 individual displays can be configured using multiple DM NVX endpoints. Each endpoint provides fully adjustable zoom capability and bezel compensation to accommodate a range of video wall configurations and display types. One DM NVX endpoint is required per display, supporting configurations of up to 8 wide by 8 high.
Analog Audio De-embedding
The analog audio output provides a stereo line‑level signal to feed a local sound system or sound bar. The output volume can be adjusted by using the web interface or a control system.
7.1 Surround Sound Audio
DM NVX technology supports the lossless transport of 7.1 surround sound audio signals, including Dolby® TrueHD, Dolby Atmos®, DTS HD®, DTS:X®, and uncompressed linear PCM.
AES67 Audio Embedding and De-embedding
AES67 support enables the selected audio source to be transmitted as a 2-channel AES67 audio stream while another 2‑channel AES67 audio stream is received from a Crestron DSP or other third-party device. The AES67 audio stream that is received can be combined with the video signal and then output via the HDMI output and analog audio output.
Copper Ethernet Connectivity

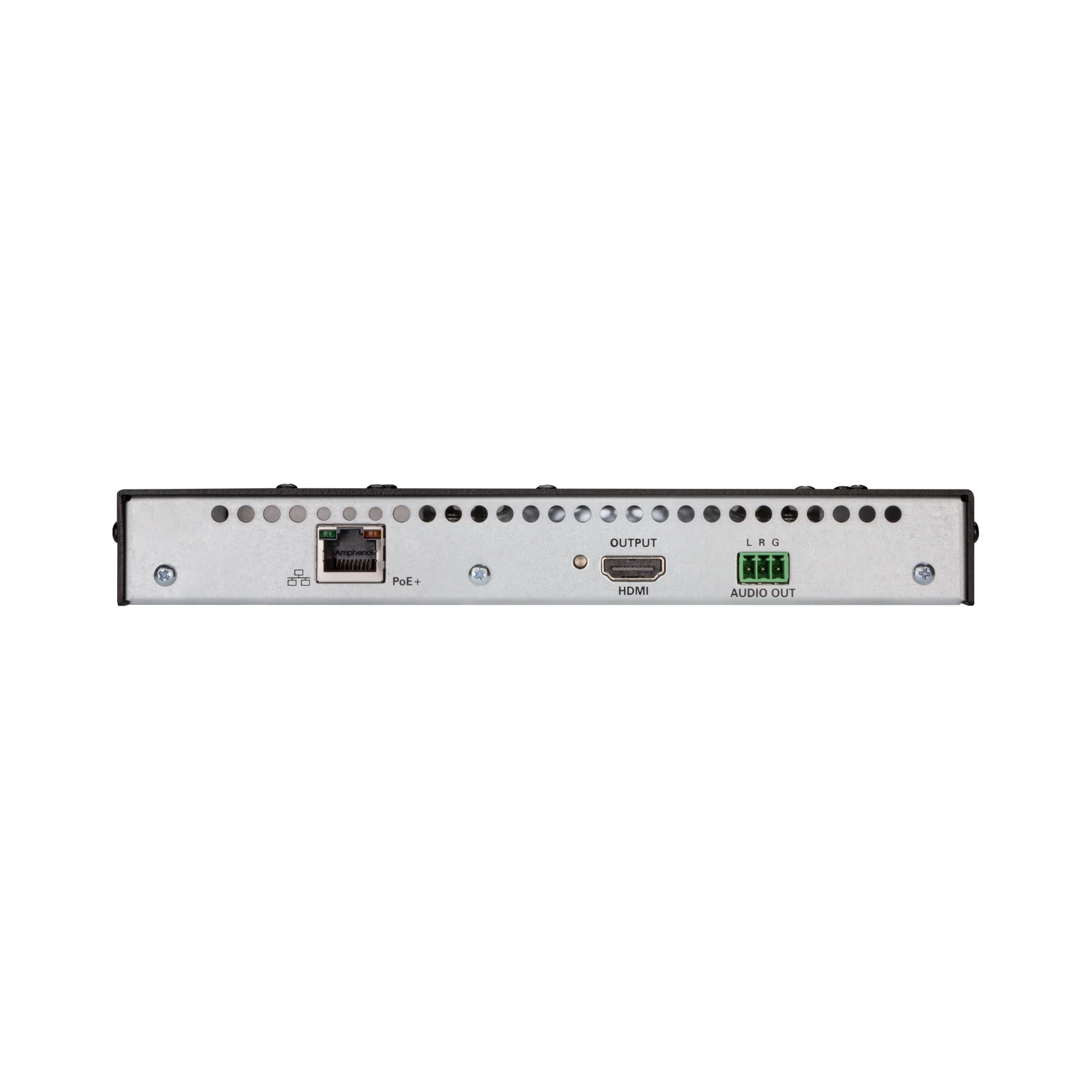

The DM-NVX-D200 includes one RJ-45 1000BASE‑T Ethernet port. The port is PoE+ compliant, enabling the device to be powered via a PoE+ Ethernet switch.
Automatic Point-to-Point Connectivity with the DM-NVX-E20 or DM-NVX-E10
Point-to-point connectivity enables the DM-NVX-D200 to be connected directly to a DM-NVX-E20 or DM-NVX-E10 to stream video and audio. Rather than being connected to an Ethernet switch, the 1000BASE-T Ethernet port of the DM-NVX-D200 is connected directly to the 1000BASE-T port of the encoder. By default, point-to-point mode automatically detects whether a DM-NVX-D200 is connected directly to the encoder or to a 1000BASE-T switch. When a direct connection between the DM-NVX-D200 and the encoder is detected, the devices operate in point-to-point mode without the need for additional configuration. The web interface or a control system can be used to disable point-to-point mode or to enable automatic detection of point-to-point connectivity.
Device Control via RS-232, IR, and CEC

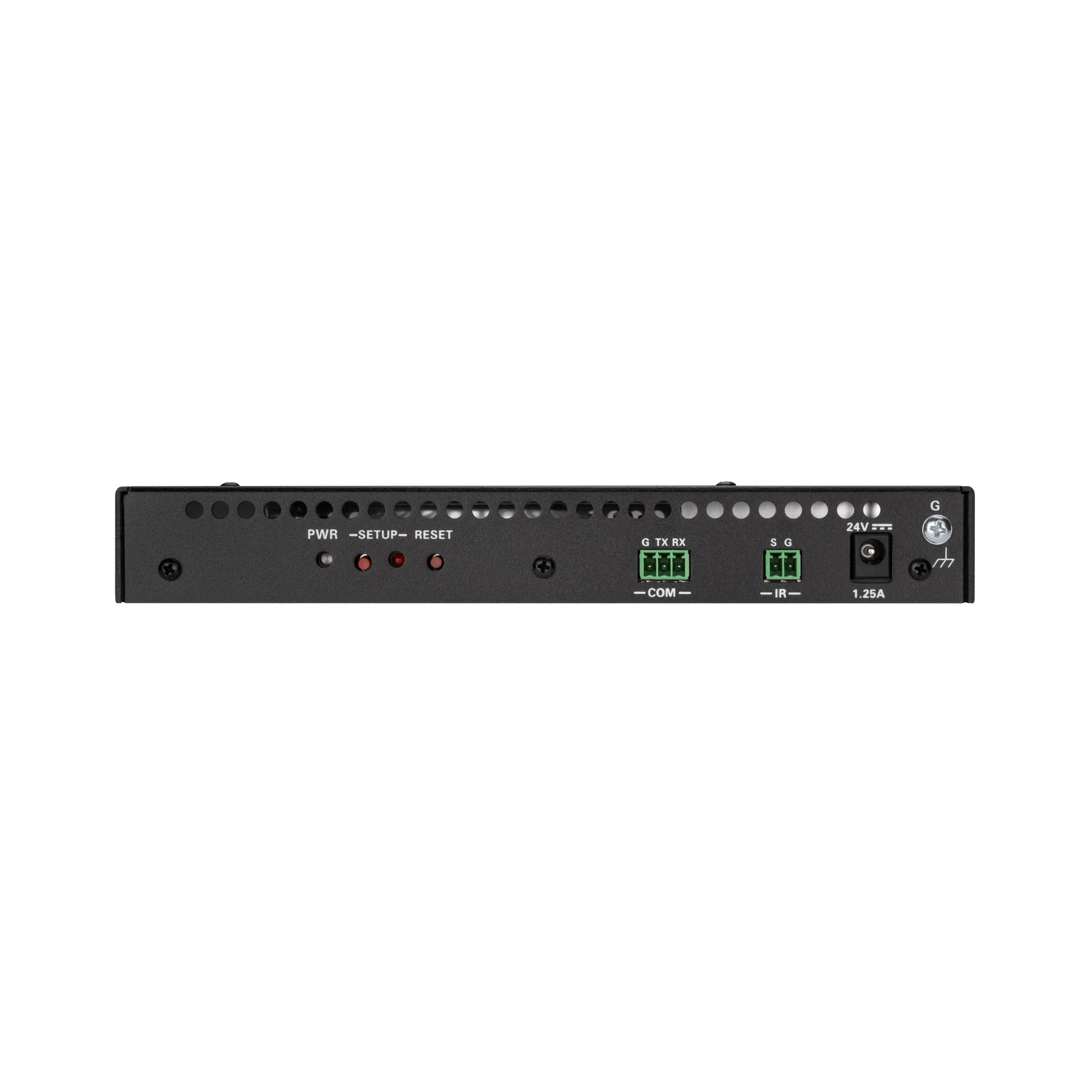

The DM-NVX-D200 includes built‑in COM (RS‑232) and IR ports for control of devices under the management of a control system. Additional control capability is provided by CEC (Consumer Electronics Control) over the HDMI connection. Under the management of a control system, the DM-NVX-D200 can control the display device via CEC, potentially eliminating the need for dedicated serial cables or IR emitters.
The COM port, IR port, and CEC over the HDMI output can also enable the display device to be turned on or off automatically without the use of a control system.
Web-Based Setup
Setup of the DM-NVX-D200 is accomplished by using a web browser. Full control and monitoring of the device is enabled through integration with a control system or with a DM NVX Director® virtual switching appliance.
Key Features
- Support of video resolutions up to 4K60 4:2:0 over standard Gigabit Ethernet, 4K30 4:4:4 included
- Real-time video performance over the network
- Enterprise‑grade security including 802.1X, Active Directory® credential management, TLS, and AES‑128
- HDCP 2.3 compliance
- Decoder functionality designed for use with the DM-NVX-E20 or DM-NVX-E10 and support for other DM NVX® products that can function as encoders
- One HDMI® output with 4K60 4:2:0 video scaler
- Video wall processing
- Analog audio de-embedding
- 7.1 surround sound audio
- AES67 audio embedding or de-embedding
- Copper Ethernet connectivity with PoE+ support
- Automatic point-to-point connectivity with the DM-NVX-E20 or DM-NVX-E10
- Device control via RS-232, IR, and CEC
- Easy setup using built-in web pages
- Compatibility with Crestron® 3-Series® or later control systems
- Streamlined management using DM NVX Director® virtual switching appliances
- .AV Framework™ technology support
- XiO Cloud® service support
- Crestron Home® OS support
- API for full control of the DM-NVX-D200
- Compact, surface-mountable design
- Powered via PoE+ or optional power pack (sold separately)
Spec Sheets
