Crestron CSA-PWS40 Power Pack for CSM-QMTDC Series Motors, 24 VDC, 40 W - Clearance / Open Box

CSA‑PWS40 - Power Pack for Roller Shade or Drapery Track Motor

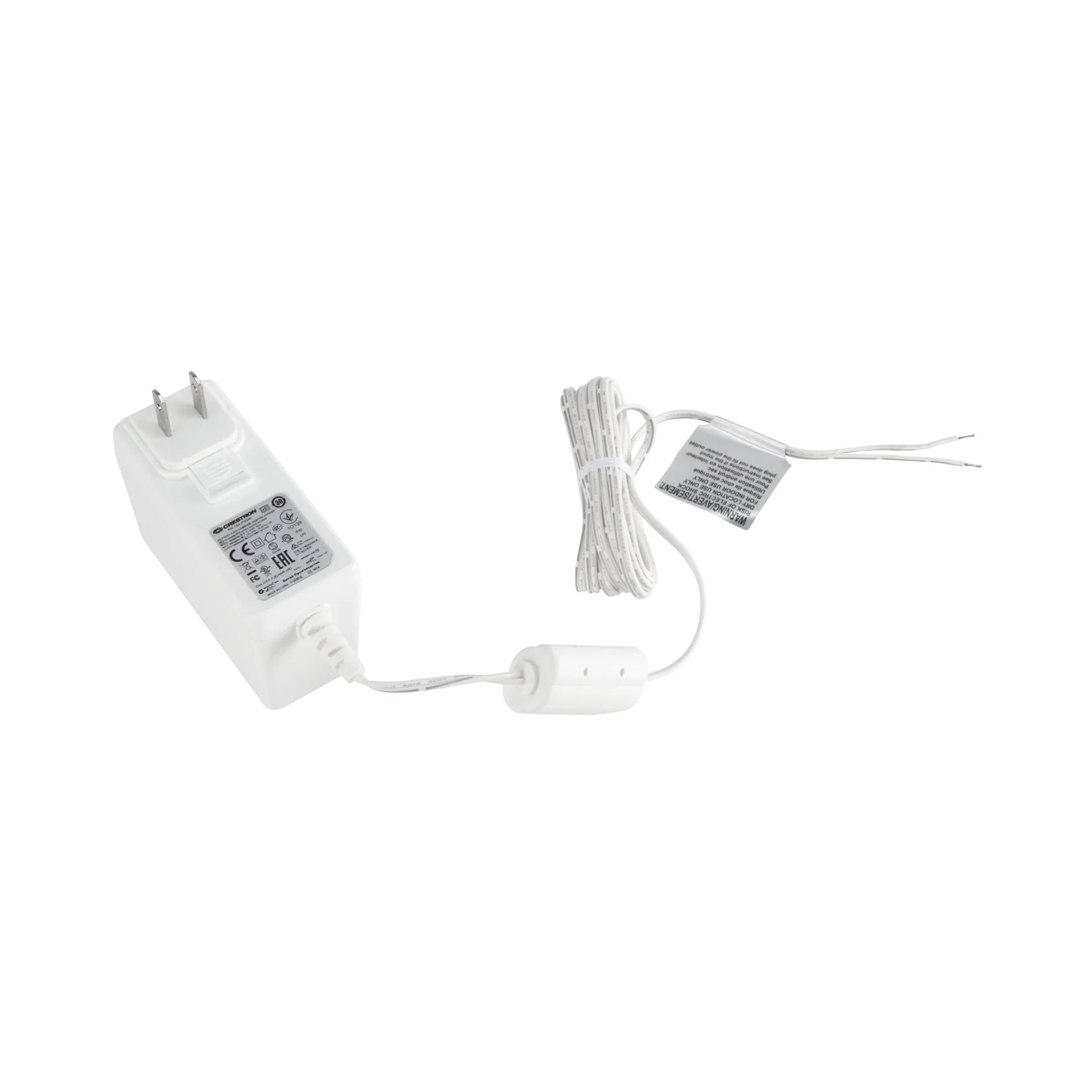

The CSA‑PWS40 is a wall-mounted, 40 W, 24 VDC regulated power pack that provides power for one Crestron CSM‑QMTDC series roller shade or drapery track motor. The CSA‑PWS40 is ideally suited to provide local power for motors that communicate using the infiNET EX network.

• Wall-mount power pack
• 24 VDC, 40 W max output
• Ideal for powering a single infiNET EX® wireless roller shade or drapery track motor
• Compatible with CSM-QMTDC series roller shade and drapery track motors

Specifications

Power Requirements:

• Input: 1 A @ 100–240 VAC, 50/60 Hz
• Output: 24 VDC, 40 W (1.66 A), regulated

Connections

• Line: (1) NEMA 1-15P ungrounded AC power plug, line power input
• Load: (1) 8 ft (2.43 m) attached cable with inline ferrite core and flying leads; Connect only one CSM-QMTDC series roller shade or drapery track motor

Construction

• 94V-0 polycarbonate, white, outlet-mountable

Environmental

• Temperature: 32° to 104° F (0° to 40° C)
• Humidity: 15% to 95% RH (noncondensing)
  For indoor use only

Dimensions

• Height: 2.91 in (74 mm)
• Width: 1.71 in (43 mm)
• Depth: 2.21 in. (53 mm);
               Projects 1.54 in. (39 mm) from the AC outlet

Weight

• 6.4 oz (182 g)

Compliance

• cETLus 60950, cETLus UL1310, UL, SELV, EAC, LPS, 2MOPP, CE, Ukraine UKRSepro, VCCI, RoHS Level VI, FCC, CAN ICES-3, IP52, Double Insulation, WEEE
