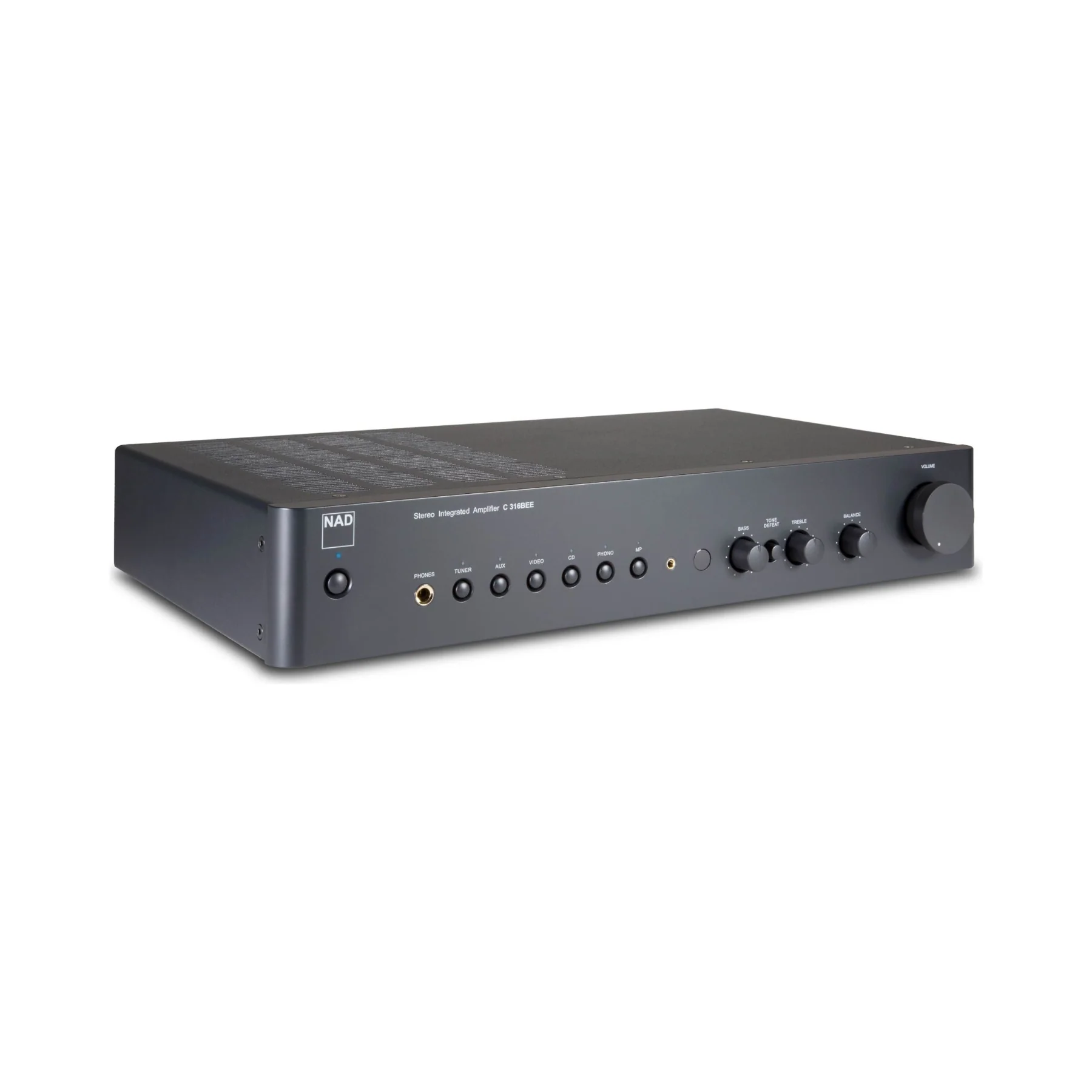

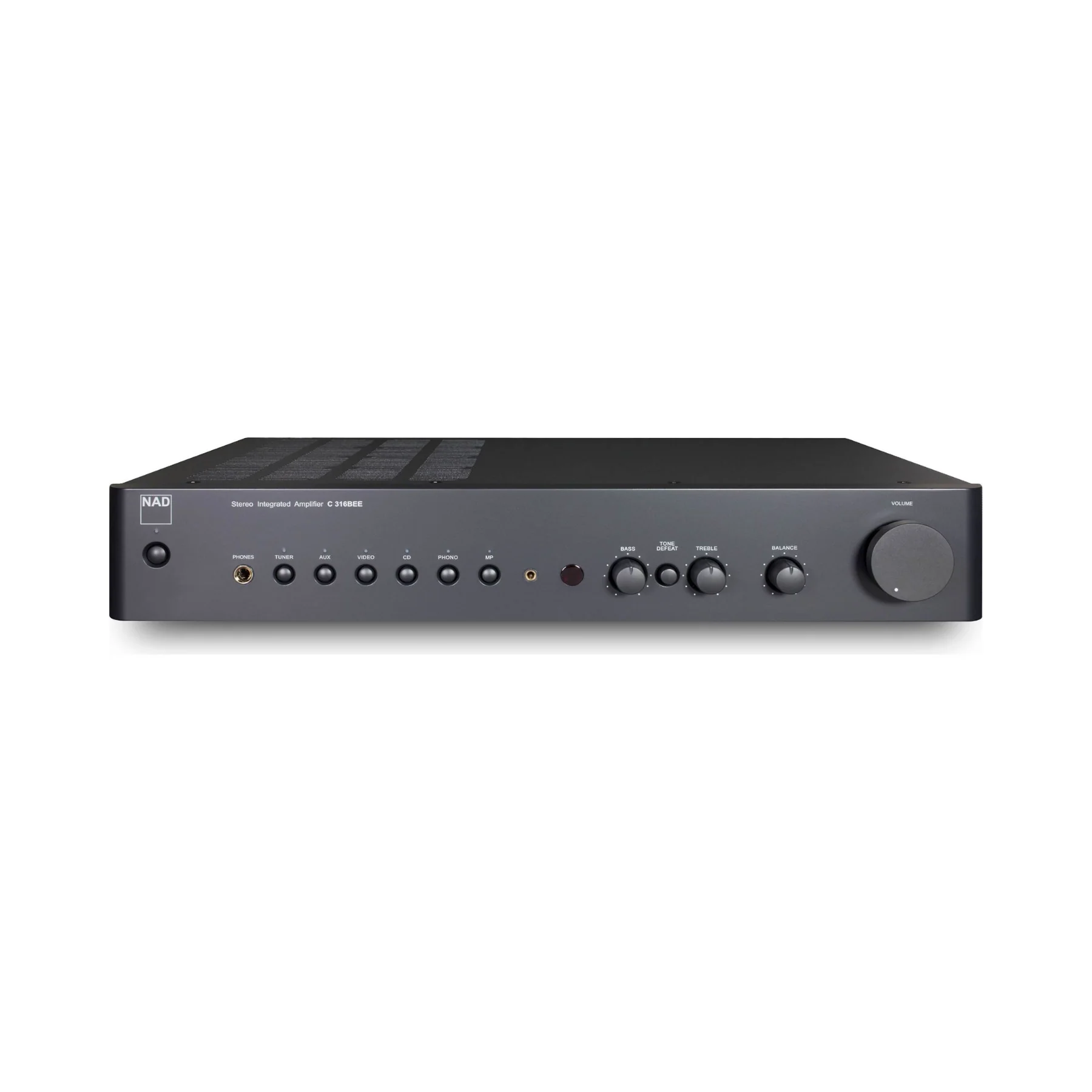

NAD-C 316BEE V2 - Stereo Integrated Amplifier

C 316BEE V2 Stereo Integrated Amplifier

The NAD C 316BEE V2 Stereo Integrated Amplifier is a purpose-built, analogue-focused integrated amp designed to deliver lively musical dynamics, clean detail, and long-term reliability in a simple, affordable hi-fi system. Built around NAD’s proven PowerDrive amplification, it supplies stable current when real-world speakers demand it, keeping the presentation controlled and engaging at both everyday and peak listening levels. For vinyl lovers, the built-in MM phono stage with accurate RIAA equalisation makes it an easy, great-sounding match for turntables—no extra box required. With five line-level analogue inputs, a convenient front-panel input for portable devices, and a dedicated headphone output, the C 316BEE V2 is an ideal hub for a classic stereo setup that puts music first.

The NAD C316BEE is part of ListenUp's NAD Integrated Amplifiers Collection.

What It's Good At:

• Driving real-world speakers confidently with NAD PowerDrive for dynamic, controlled sound
• Delivering warm, detailed vinyl playback via a high-quality MM phono input with accurate RIAA
• Building a simple, flexible stereo system with five line-level analogue inputs plus a front input
• Enjoying private listening with a dedicated headphone output tuned for clarity and low noise
• Fine-tuning your sound with bass/treble controls and a defeatable tone circuit for purist playback
• Offering reliable performance from a toroidal transformer power supply and discrete output devices

NAD C 316BEE V2 Full Specifications:

• Line In / Headphone Out:
  • THD (20 Hz – 20 kHz): <0.03 % in 300 ohms at 2 V out
  • Signal-to-Noise Ratio: >100 dB (A-weighted, 32 ohms, ref. 2V out, unity gain)
  • Frequency response: ±0.3 dB (20 Hz - 20 kHz)
  • Output impedance: 8 ohms
• Line In / Speaker Out:
  • Continuous output power into 8 ohms and 4 ohms: (value not displayed in the accessible specifications text on the provided page)
  • THD (20 Hz – 20 kHz): (not displayed alongside the continuous power line in the accessible specifications text)
  • Signal-to-Noise Ratio: >95 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms); >97 dB (A-weighted, 500 mV input, unity gain in 32 ohms)
  • Clipping power (at 1 kHz 0.1 % THD): >45 W in 8 ohms; >60 W in 4 ohms
  • IHF dynamic power: 8 ohms: 90 W; 4 ohms: 120 W; 2 ohms: 170 W
  • Damping factor: >200 (ref. 8 ohms, 1 kHz)
  • Frequency response: ±0.3 dB (20 Hz - 20 kHz, Tone Defeat ON); Treble: ±5 dB at 10 kHz; Bass: ±8 dB at 100 Hz
  • Channel separation: >70 dB (1 kHz)
  • Maximum input level: 4.3V (1 kHz THD 0.1%)
  • Input sensitivity (for 40 W in 8 ohms): 200 mV
  • Standby power: <0.5 W
• Phono In / Speaker Out:
  • THD (20 Hz – 20 kHz): <0.03 % (1 W to 40 W, 8 ohms and 4 ohms)
  • Signal-to-Noise Ratio: >75 dB with IHF MM cartridge (A-weighted, ref. 5mV input 1 kHz and 1W output in 8 ohms)
  • Frequency response (RIAA deviation): +0.3 dB (20 Hz - 20 kHz, Tone Defeat ON)
  • Maximum input level: 71 mV (1 kHz THD 0.1%)
  • Input sensitivity (for 40 W in 8 ohms): 2.95 mV
• Dimensions and Weight:
  • Gross dimensions (W x H x D): 17 1/8 x 3 9/16 x 11 1/4 inches / 435 x 90 x 285 mm
  • Net weight: 5.5 kg (12.1 lbs)
  • Shipping weight: 6.4 kg (14.1 lbs)
  • Specifications subject to change without notice.

NAD C 316BEE V2 Q&A:

Is the NAD C 316BEE V2 a good amplifier for vinyl turntables?

Yes. It includes a high-quality MM phono input with accurate RIAA equalisation, designed to deliver low noise and strong musical detail from vinyl.

How much power does the C 316BEE V2 deliver?

It’s designed to provide strong real-world performance with PowerDrive, and the page notes 40 watts per channel continuous power with high dynamic headroom, plus IHF dynamic power up to 170 W (2 ohms) for musical peaks.

How many audio sources can I connect?

You can connect multiple sources via five line-level analogue inputs, plus a front-panel input for portable audio devices.

Does it have a headphone jack for private listening?

Yes. The C 316BEE V2 includes a dedicated headphone output with published headphone-out specs for low distortion and high signal-to-noise performance.

Can I adjust bass and treble, or run a purist signal path?

Both. It features bass and treble controls and a defeatable tone circuit, letting you choose either gentle tuning or a more direct path.

Will it handle difficult speaker loads?

That’s a key strength of NAD’s PowerDrive approach—designed to maintain stability and control with real-world loudspeaker demands and dynamic peaks.

Is it energy efficient when not in use?

Yes. Standby power is specified at <0.5 W.

Is the chassis compact enough for smaller setups?

Yes. The unit’s listed gross dimensions are 17 1/8 x 3 9/16 x 11 1/4 in (435 x 90 x 285 mm), making it easy to place on most shelves or media consoles.
