Brane Audio X Portable Smart Speaker

Brane Audio X Portable Bluetooth Wireless Smart Speaker

Brane X is a portable smart speaker built for people who refuse to compromise on bass. It’s the first portable speaker designed with a true subwoofer built in—powered by Brane’s proprietary Repel-Attract Driver (RAD) technology—to deliver deep, room-filling low end down to 27.1 Hz while staying remarkably compact. With an immersive 5-driver array and a custom DSP engine performing over 500 million EQ calculations per second, Brane X produces a wide soundstage with clear vocals and crisp highs that feel bigger than its size suggests.

Designed for real life, Brane X is fully waterproof (IP57) for pool days, rain, and outdoor adventures, and it’s equally at home on a countertop with Amazon Alexa built in (when connected to Wi-Fi). Use the Brane Mobile App to fine-tune bass, dial in EQ, manage settings, and wirelessly group up to eight Brane speakers for stereo, multi-room listening, or party mode. Want a wired setup? The 3.5 mm AUX input and Soundbar Mode let Brane X pull double duty as a compact amp or TV speaker.

What It's Good At:

• Delivering jaw-dropping, true subwoofer-style bass in a portable footprint (down to 27.1 Hz)
• Creating an immersive, wide soundstage with a 5-driver array (stereo midrange separation + clear highs)
• Handling outdoor and on-the-go use with full waterproofing (IP57) and rugged portability
• Smart, flexible listening with Wi-Fi streaming, Bluetooth playback, and Alexa voice control
• Easy personalization with app-based bass/mid/treble EQ and custom tuning for different rooms and genres
• Scaling your system by grouping up to 8 speakers for stereo, multi-room, or party playback

Brane X Full Specifications:

• Category: Smart Speaker (portable)
• Amplifiers: Four class-D digital amplifiers with combined output of over 200 watts

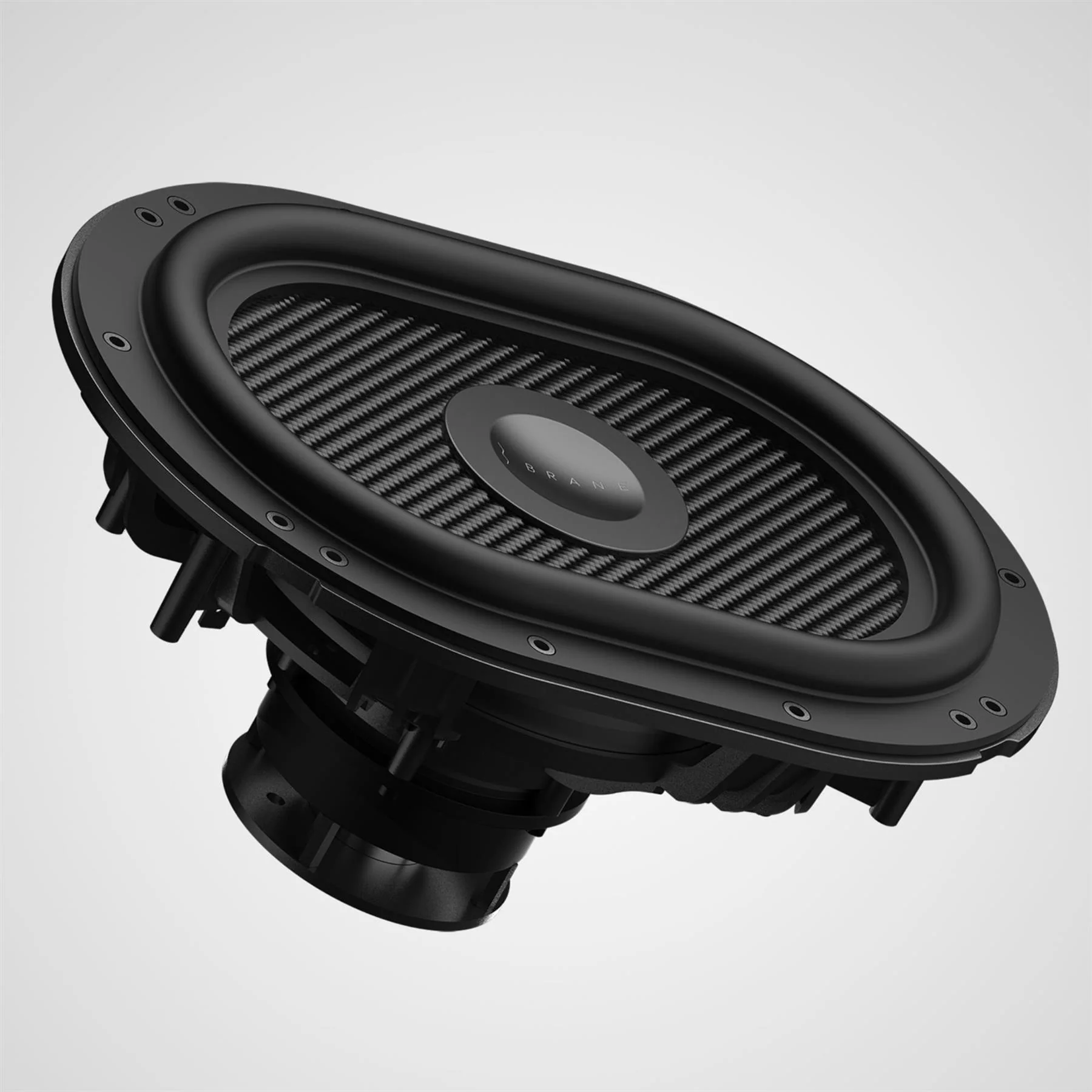

• Subwoofer: One high excursion 6.5" x 9" (165 mm x 229 mm) RAD subwoofer; sub-bass down to 27.1 Hz
• Midrange Drivers: Two 2.5” (64 mm) midrange drivers for distinct stereo separation in the mid frequency band
• Tweeters: Two 0.75” (19 mm) dome tweeters for clear highs and an ultra-wide soundstage
• Microphones: Four waterproof microphones for accurate voice recognition
• Audio EQ: Adjustable bass, midrange and treble via the Brane mobile app
• Pressure EQ: Internal 50 cc/s pump ensures subwoofer excursion symmetry and launches/lands the driver during startup/shutdown

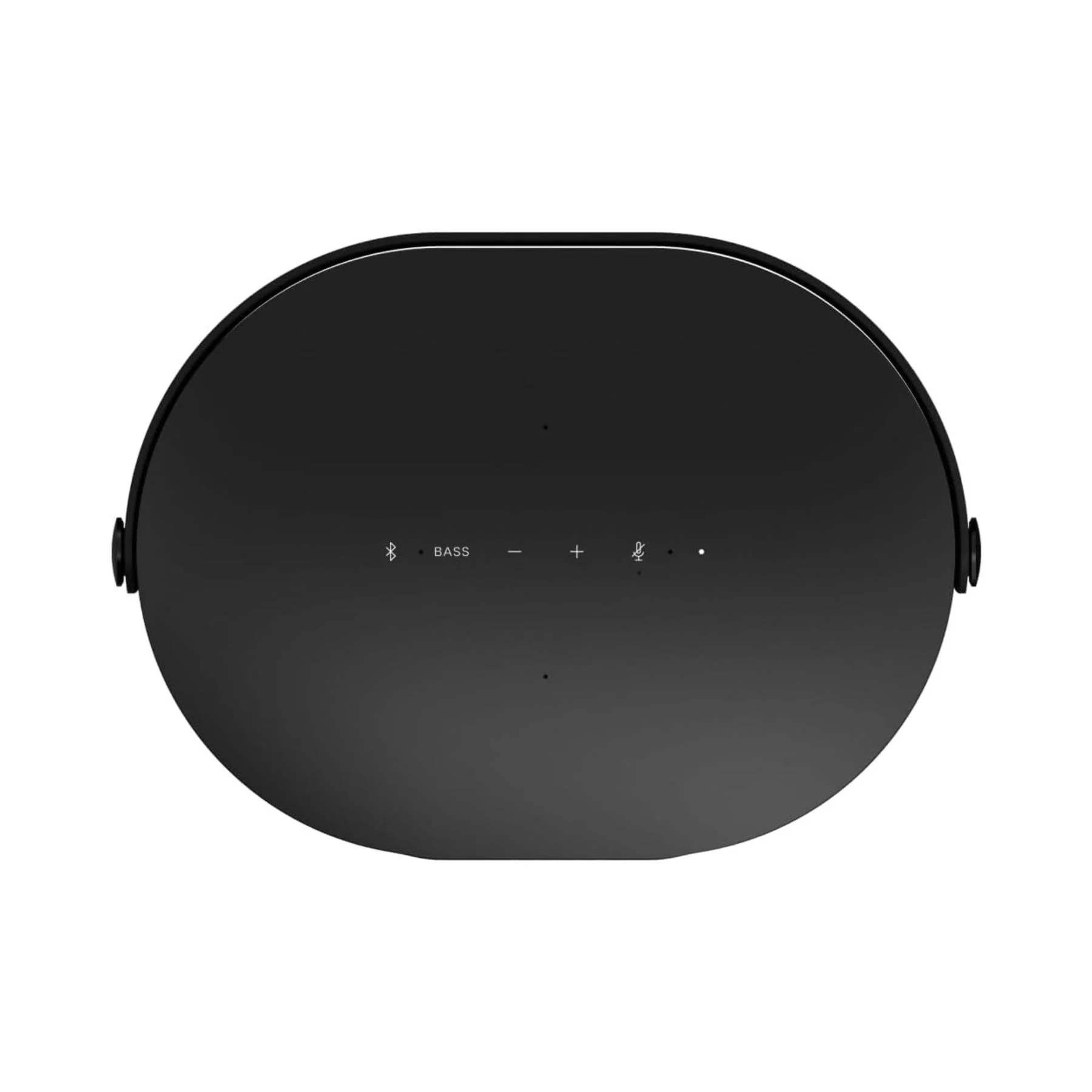

• Controls: Six capacitive touch buttons for Bluetooth, bass, volume, mic, and voice control
• Waterproof Rating: IP57 — fully waterproof; can be submerged in 1 meter of water for up to 30 minutes
• Dimensions: H 6.1” x W 9.3” x D 7” (H 155 mm x W 237 mm x D 177 mm)
• Weight: 7.7 lb (3.5 kg)
• Wi-Fi: Connect to Wi-Fi using any 802.11a/b/g/n/ac router
• Bluetooth: Yes
• Streaming Support: Spotify Connect, Pandora, Prime Music, SiriusXM, iHeartRadio, Deezer, TuneIn
• Voice Assistant: Works with Amazon Alexa when connected to Wi-Fi
• Battery: 72 watt-hour battery provides up to 12 hours of runtime at moderate volume
• Charging: Fully recharges in three hours using the included 15-volt, 6-amp power supply
• AUX Port: 3.5 mm auxiliary port for connecting to compatible turntables and other external devices
• FPGA / DSP: Custom DSP engine built inside a high-density field-programmable gate array enables over 500 million EQ calculations per second
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -13°F to 140°F (-25°C to 60°C)
• What’s Included: Brane X Smart Speaker; Charging Cable + Power Adapter; Quickstart Guide

Brane X Q&A:

How do I pair Brane X with Bluetooth?

Press the Bluetooth button on the speaker to enter pairing mode (the front light will pulse blue). Then select Brane X from your phone’s Bluetooth list; the light turns solid blue when connected.

How do I connect Brane X to Wi-Fi?

Make sure your phone is on the Wi-Fi network you want to use. If the speaker has never been connected, it will pulse white on startup; if not, press and hold the Bluetooth button for 5 seconds to enable the access point. Open the Brane app and follow the prompts to onboard Brane X; the front light turns solid white when connected.

What does IP57 waterproof mean for real-world use?

Brane X is fully waterproof and can be submerged in up to 1 meter of water for up to 30 minutes. It’s designed for poolside, rain, and outdoor listening.

Can I adjust the sound (bass/EQ) to fit my room or music style?

Yes. The Brane Mobile App lets you adjust bass, midrange, and treble, and create a custom EQ curve for different rooms, genres, and preferences.

Can I connect Brane X to a TV or use it like a soundbar?

Yes. Use the 3.5 mm AUX input for a wired connection, and enable Soundbar Mode in the Brane app to minimize delay and help maintain proper lip sync.

How long does the battery last, and how fast does it charge?

The 72 Wh battery provides up to 12 hours of runtime at moderate volume. It fully recharges in about 3 hours with the included 15V/6A power supply.

Can I group multiple Brane speakers together?

Yes. In the Brane app, you can link up to eight speakers into stereo pairs or multi-room/party groups (speakers must be on and connected to the same Wi-Fi network).

Does Brane X support voice control?

Yes. Brane X works with Amazon Alexa when connected to Wi-Fi, using four waterproof microphones for voice recognition.

Brane X Downloads:

Brane Audio X Manual
Brane Audio X Quick Start Guide
