Bowers & Wilkins HTM71 S3 Signature Center Channel Speaker

Bowers & Wilkins HTM71 S3 Signature Center Channel Speaker: Unveiling the Pinnacle of Home Theater Experience

The Bowers & Wilkins HTM71 S3 Signature Center channel speaker is a masterpiece from the renowned 700 Series Signature line. It leverages cutting-edge technologies, meticulously refined by Bowers & Wilkins engineers, to deliver crystal-clear dialogue and a cohesive soundscape for your movies and music.

Key Features of the HTM71 S3 Signature Center Channel Speaker

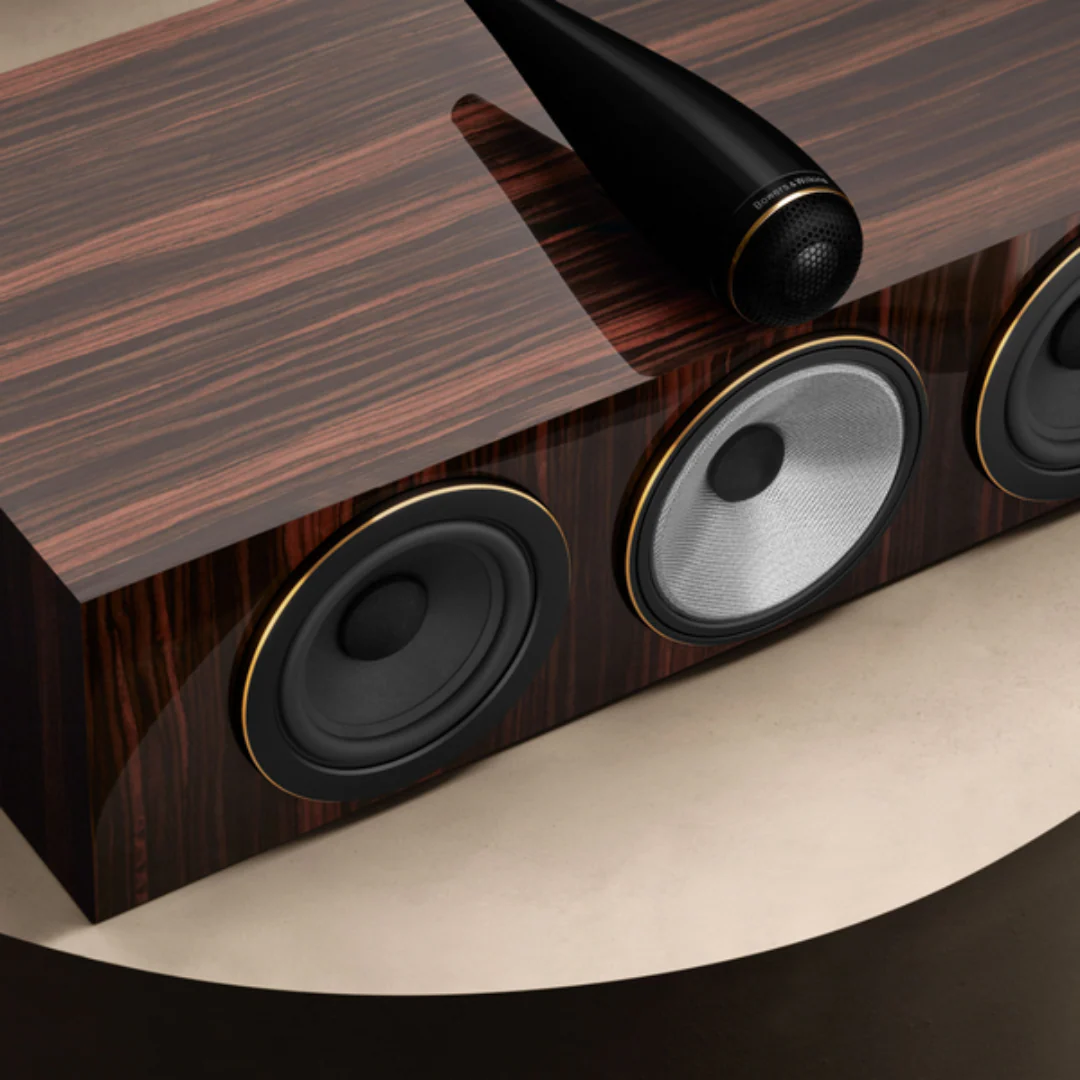

• Solid Body Tweeter-on-Top Housing: This meticulously crafted design, milled from a solid block of aluminum, boasts a more elongated form and extended tube-loading system. This translates to an even more open and expansive soundscape, particularly important for clear dialogue reproduction in movies.
• Upgraded Crossovers: Optimized by Bowers & Wilkins engineers, these crossovers maximize the speaker's potential, delivering a clean and refined sound. This might be achieved through a combination of improved components and revised speaker terminals for seamless integration with your surround sound system.
• Matched Drivers: The HTM71 S3 Signature utilizes drivers that match the speakers in your surround sound setup, ensuring tonal balance and a cohesive acoustic experience across the front soundstage.
• Elegant Finishes: Each HTM71 S3 Signature speaker is available in a selection of luxurious finishes, allowing you to match the aesthetic of your home theater.

The Ideal Center Channel Speaker for Discerning Home Theater Enthusiasts

The Bowers & Wilkins HTM71 S3 Signature Center channel speaker is the ideal choice for discerning home theater enthusiasts who demand the ultimate listening experience. If you seek a high-fidelity center channel speaker that delivers unparalleled dialogue clarity and a cohesive soundscape for your movies and music, look no further than the HTM71 S3 Signature.

Bowers & Wilkins HTM71 S3 Signature Specifications

• Technical Features:
  • Decoupled Carbon Dome tweeter
  • Solid Body Tweeter-on-Top
  • Continuum cone FST midrange
  • Aerofoil Profile bass cones
  • Flowport
• Description: 3-way vented-box system
• Drive Units:
  • 1x 825mm (1 in) Decoupled Carbon Dome high-frequency
  • 1x e130mm (5 in) Continuum cone FST midrange
  • 2x #130mm (5 in) Aerofol Profile bass
• Frequency Range: -6dB 45Hz-33kHz
• Frequency Response: 50Hz-20kHz ±3dB (+/-3dB from reference axis)
• Sensitivity: 89dB (on axis at 2.83Vrms at 1m)

• Harmonic Distortion:
  • 2nd and 3rd harmonics (90dB, 1m on axis)
  • <1% 90Hz-22kHz
  • <0.5% 120Hz-20kHz

• Nominal Impedance: 8Ω (minimum 3.0Ω)
• Recommended Amplifier Power: 30W - 200W into 8Ω on unclipped programme
• Max. Recommended Cable Impedance: 0.1Ω
• Dimensions:
  • Height: 166 mm (6.5 in) cabinet only; 233 mm (9.2 in) including tweeter
  • Width: 628 mm (24.7 in) cabinet only
  • Depth: 318 mm (12.5 in) cabinet only; 356 mm (14.0 in) including grille and terminals
• Net Weight: 19.9 kg (43.9 lbs)
• Finishes:
  • Cabinet: Datuk Gloss, Midnight Blue Metallic
  • Grille: Black
