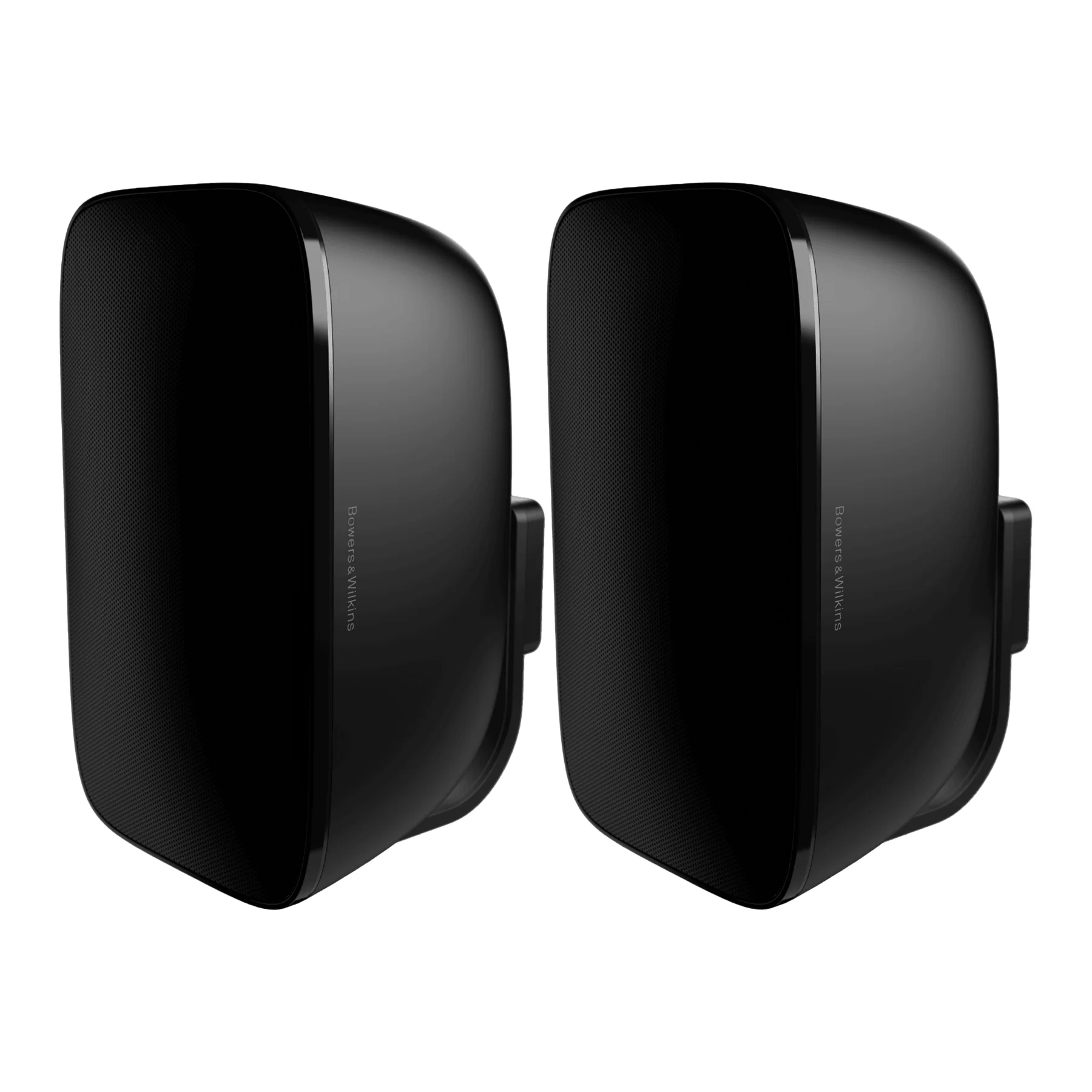

Bowers & Wilkins AM-1 Architectural Monitors Pair
Bowers & Wilkins AM-1 Architectural Monitor
Engineered for premium performance in any setting, the Bowers & Wilkins AM-1 Architectural Monitor delivers the brand’s renowned audio fidelity in a robust, weather-resistant design. Whether installed indoors or outdoors, the AM-1 offers stunning clarity, powerful bass, and reliable durability—making it a go-to choice for audiophiles and design-conscious homeowners alike. Its 2-way speaker system, auxiliary bass radiator, and flexible mounting options ensure exceptional sound directionality and depth, even in open-air environments. With a sleek, low-profile enclosure that blends effortlessly into any decor, the AM-1 is the ultimate fusion of sound, style, and strength.
Specifications
- System: 2-way with Auxiliary Bass Radiator (ABR)
- Tweeter: 1 x 25mm (1in) aluminum dome
- Mid/Bass Driver: 1 x 130mm (5in) glassfiber cone
- Frequency Range: -6dB at 46Hz and 50kHz (wall mounted)
- Frequency Response: 51Hz – 22kHz on reference axis (wall mounted)
- Sensitivity: 86dB (2.83V, 1m)
- Harmonic Distortion: <1% from 200Hz – 20kHz (86dB, 1m)
- Impedance: 8Ω nominal (5.2Ω minimum)
- Recommended Amplifier Power: 20W – 100W into 8Ω
- Dimensions: 310mm H x 180mm W x 210mm D (12 1/4in x 7in x 8 1/4in)
- Net Weight: 4kg (8.8lb)
- Cabinet Material: Glass-filled plastic with rust-proof aluminum grille
- Mounting: Horizontal or vertical with 220° rotation bracket
Expanded Key Features List
- All-Weather Durability: Features a rust-proof aluminum grille and glass-filled plastic cabinet for year-round outdoor use.
- Signature Bowers & Wilkins Sound: Engineered for clarity and detail with a 2-way system and high-quality drivers.
- Auxiliary Bass Radiator (ABR): Provides full-bodied, low-end performance without increasing speaker size.
- Flexible Mounting Options: Install vertically or horizontally with a custom bracket that allows 220° sound rotation.
- Compact, Elegant Design: Discreet and stylish enough for any décor, both indoor and outdoor.
- Effortless Installation: Wall-mountable with a simple bracket system designed for quick and stable setup.
Q&A Section
Q: Can the AM-1 be installed outdoors permanently?
A: Yes, the AM-1 is fully weather-resistant with UV protection, a rust-proof grille, and a durable cabinet—perfect for permanent outdoor installation.
Q: Does the speaker deliver strong bass despite its size?
A: Absolutely. The auxiliary bass radiator enables the AM-1 to produce deep, rich bass while maintaining a compact profile.
Q: Can the speaker be mounted in both horizontal and vertical positions?
A: Yes, it comes with a flexible bracket that supports both orientations and allows 220-degree rotation for precise sound direction.
Q: Is it suitable for indoor use as well?
A: Definitely. While designed for outdoor durability, its elegant design and high-fidelity sound make it ideal for indoor environments too.
Q: What amplifier power is recommended?
A: Bowers & Wilkins recommends an amplifier with 20W to 100W output into 8 ohms for optimal performance.
Q: How is the speaker's sound quality compared to traditional indoor speakers?
A: The AM-1 maintains Bowers & Wilkins’ signature clarity and detail, delivering sound performance that rivals premium indoor speakers.
Q: Is the bracket included with the speaker?
A: Yes, the AM-1 comes with a matching mounting bracket for easy installation and precise positioning.
Q: What material is used for the cabinet?
A: The cabinet is made from glass-filled plastic for strength and weather resistance, topped with a rust-proof aluminum grille for longevity.
