AVPro Edge AC-MX-44 18Gbps 4x4 HDMI Matrix Switch - Clearance / Open Box
18Gbps 4x4 HDMI Matrix Switch
The AC-MX-44 is a 4x4 HDMI matrix switch that supports HDMI 2.0(a/b), HDCP 2.3, up to 4K video resolution, and up to 18Gbps bandwidth. Audio Delay is “On-Board” so integrators can manage lip-sync issues before they become a problem. Video signal management is also possible with built-in scalers. In addition to scalers, this matrix supports complete EDID management, allowing maximum flexibility with today’s broad range of sources and displays. The AC-MX-44 also features the AVPro Edge User Interface (AEUI). We built the AEUI from scratch for our integrators with the technology they requested.

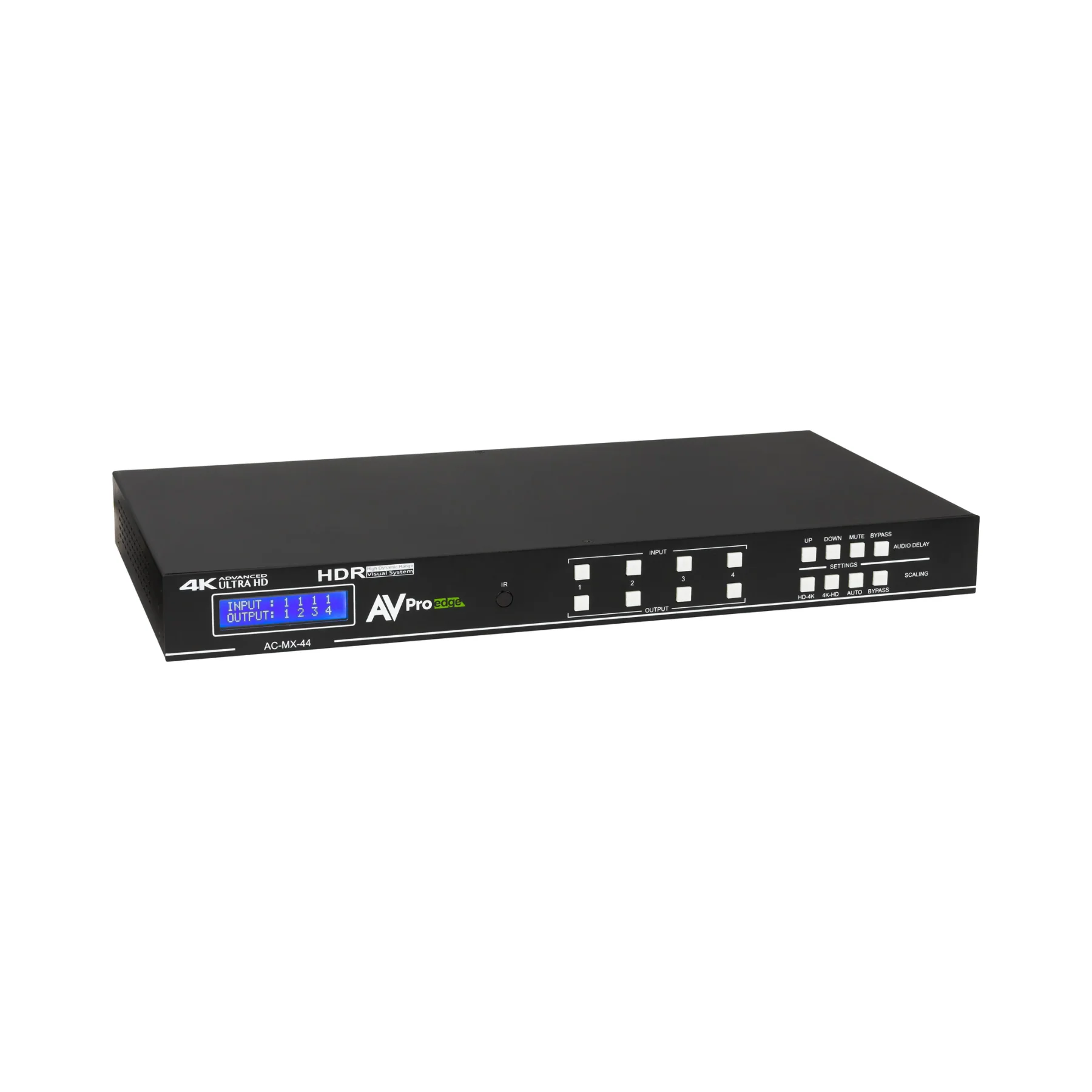

The AVPro Edge user interface (AEUI) allows for easy configuration and sets up the 4K 4x4. This matrix switcher also comes with a screen on the unit that can tell you the IP address for connecting directly to your control system. From built-in scaling to complete EDID control and configuring, you can customize every aspect of this device to work perfectly for your system.
Key Features:
- Dolby Vision, HDR10+ and HLG Support
- HDCP 2.3 (and all earlier versions supported)
- 4K > 1080p Down Scalers on each output
- Advanced EDID Management
- IR, RS-232 and LAN Control Options
- Digital Toslink Out (7CH PCM, DD, DTS)
- Balanced Analog Out (2CH PCM)
- Audio Delay for Digital & Analog Out
- HDBaseT Compatibility mode for mixed systems
- Driver Support For Crestron, C4, RTI, ELAN and more
- Extracted Audio Now Has 3 Operating Modes. Bound to Input, Bound to Output, or Independent Matrix
- Built in Test Pattern on Each Output to Verify Infrastructure
SPECIFICATIONS:
Video:
Video Resolutions: Up to 4k 60HZ 4:4:4
VESA Resolutions: Up to DCI 4k (4096x2160)
HDR Formats/Resolutions: 420, 422, 444 (10 and 12 Deep Color) HDR10, HDR10+, Dolby Vision, HLG
Color Space: YUV (Component), RGB
(CSC: Rec. 601, Rec. 709, BT2020, DCI, P3 D6500)
Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0 Supported
Deep Color: Up to 16 bit (1080), up to 12 BIT (4k)
Scalers (HDMI) Per OUTPUT Optional: 4k to 1080P Down-Scaling (Resolutions Only, Framerate Stays the same),
and 4:4:4 to 4:2:0 (See manual for more info)
Audio:
Audio Formats Supported HDMI: PCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digtal, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos
Audio Formats Supported Extracted (TOSLINK): PCM 2.0 Ch, LPCM 6 CH, LPCM 7 CH,Dolby Digital, Dolby Digital Plus
Audio Formats Supported Extracted (2CH Port): PCM 2 CH
Audio Extraction Location: Bind to INPUT, Bind to OUTPUT, or Matrix (Independent)
Audio Delay (Per OUTPUT, Extracted): Up To 630ms
Distance:
HDMI IN/OUT (4K60 4:4:4): Up to 50 Feet (Using Bullet Train HDMI)
HDMI IN/OUT (W/ AOC Cable) (4k60 4:4:4): Up to 130 Feet (Using Bullet Train AOC)
Other:
Bandwidth: 18 GBPS
HDCP: HDCP 2.3 and Earlier
Control:
Ports: LAN, RS232, IR
Drivers: C4, RTI, ELAN, CRESTRON, URC (For More Information - See Drivers Page on AVProEdge.com/Drivers
LAN Web OS: YES

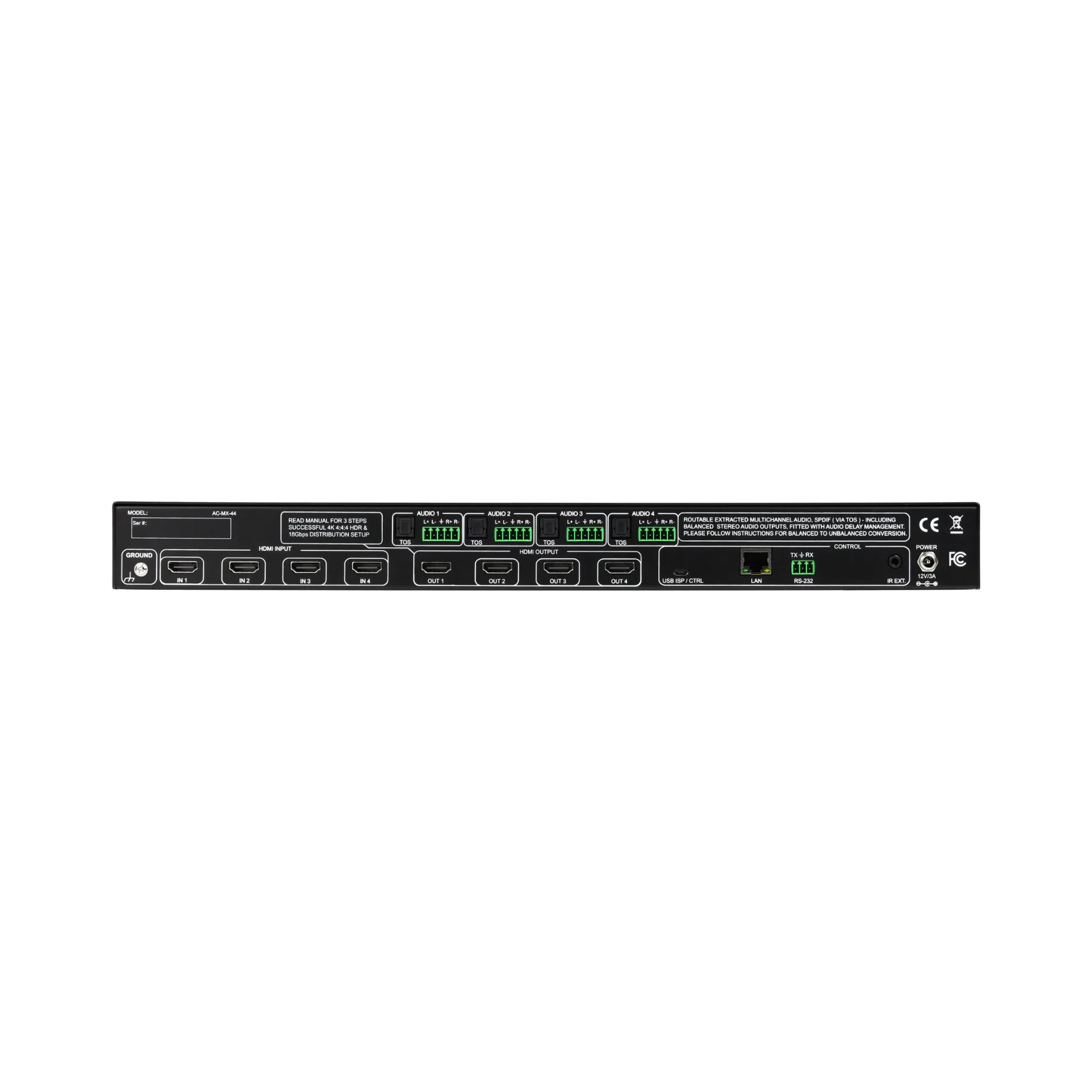

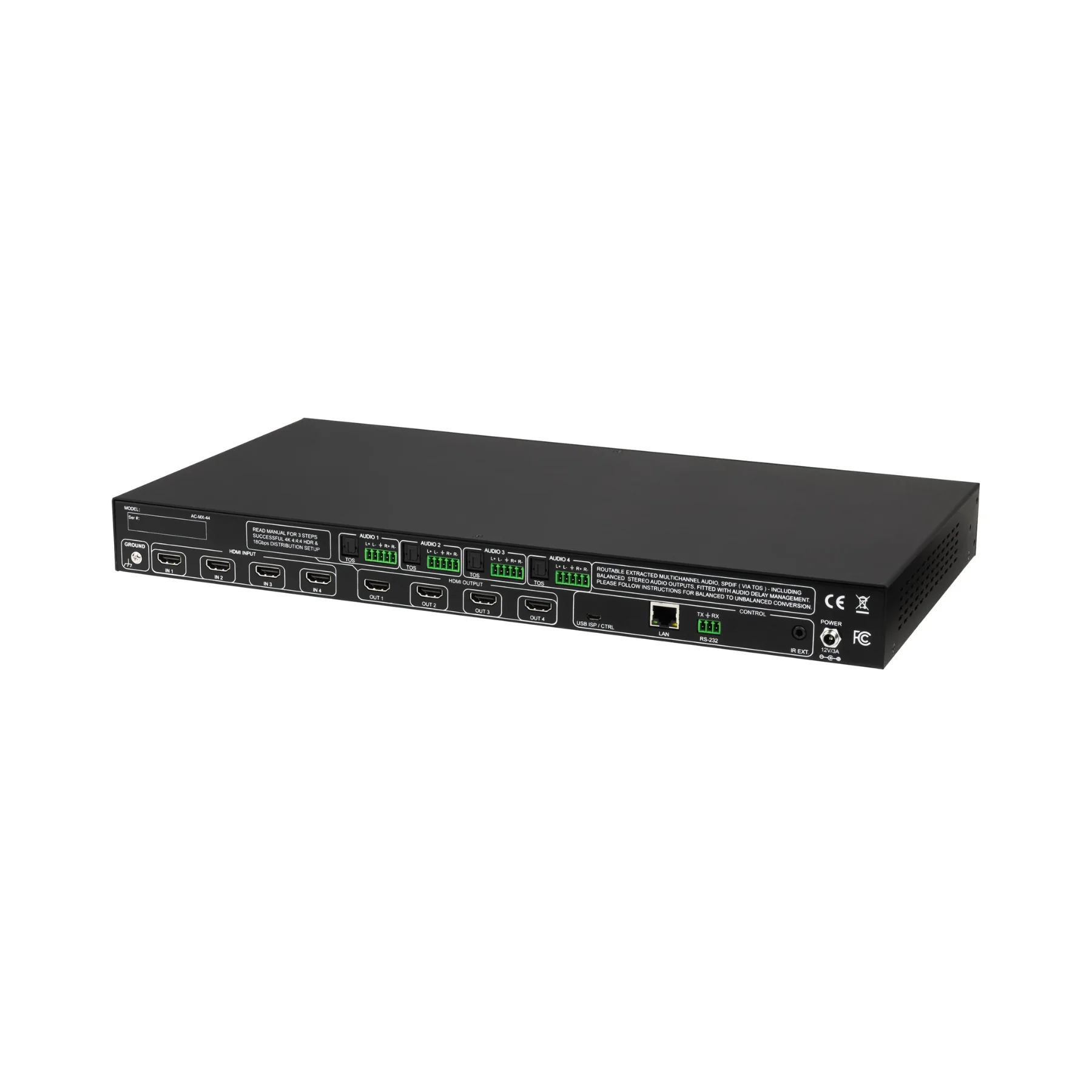

Ports:
HDMI: Type A
LAN: RJ45 w/ Web Interface/ Control
Audio (Extracted Digital): Toslink
Audio (Extracted Analog): 5 PIN Terminal Block (Balanced)
IR Extension: RX 3.5MM Stereo (3 Conductor)
RS232: 3 Pin Terminal Block
Environmental:
Operating Temprature: 23 to 125°F (-5 to 51°C)
Storage Temperature: -4 to 140°F (-20 to 60°C)
Humidity Range: 5-90% RH (No Condensation)

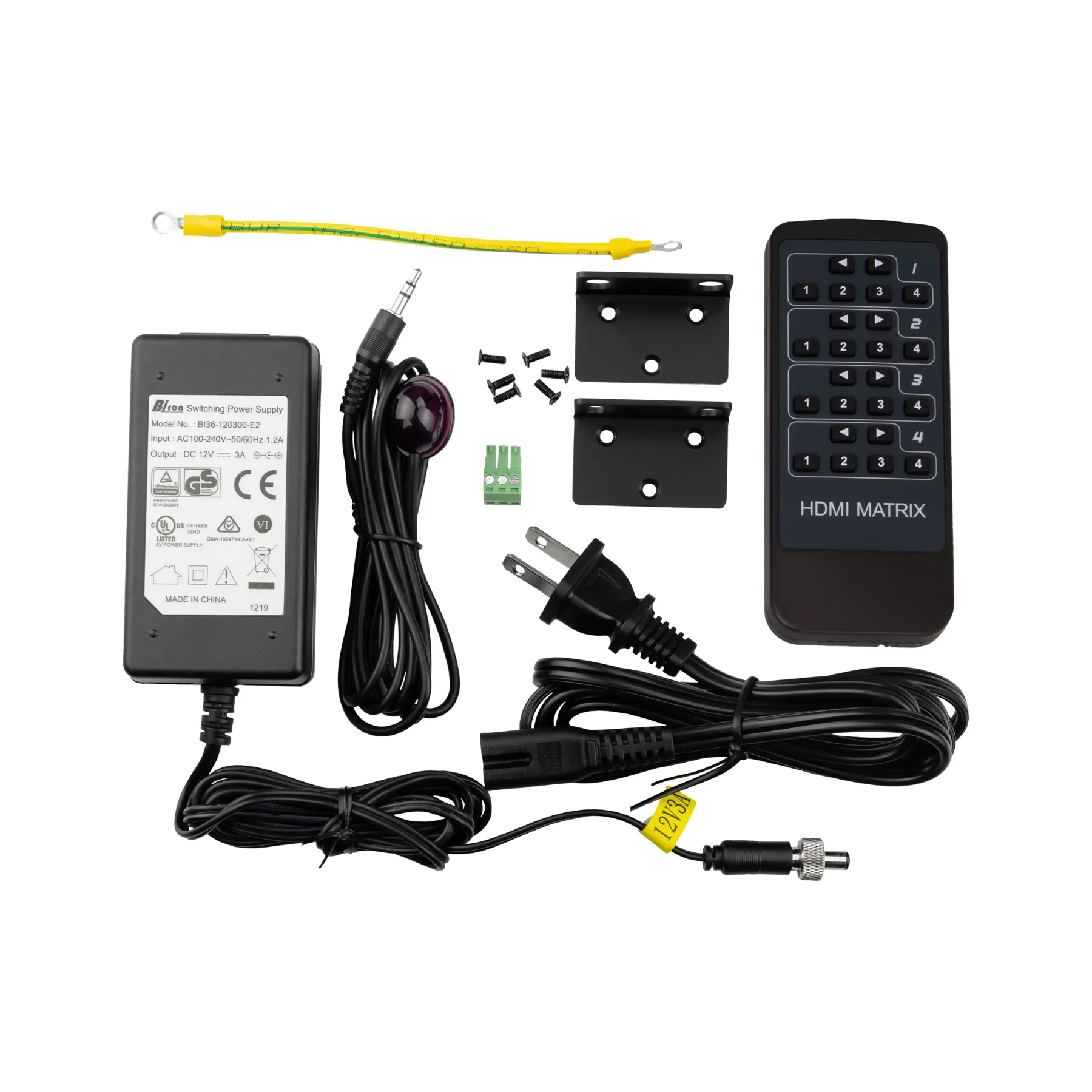

Power:
Power Consumption (Total): 38 Watts Max
Power Supply - Matrix: Input: AC 100-240V ~ 50/60Hz
Output: DC 12V 4A
Dimensions:
Dimensions (Unit Only - Height/Depth/Width): mm: 44.45 x 225.43 x 438.15 / inch: 1.75 x 8.875 x 17.25
Dimensions (Packaged Height/Depth/Width): mm: 88.9 x 336.55 x 495.3 / inch: 3.5 x 13.25 x 19.5
Rack Units: 1 Unit
Weight (Unit): 6.2 lbs (2.81 Kg)
Weight (Packaged): 8.32 lbs (3.78 Kg)
