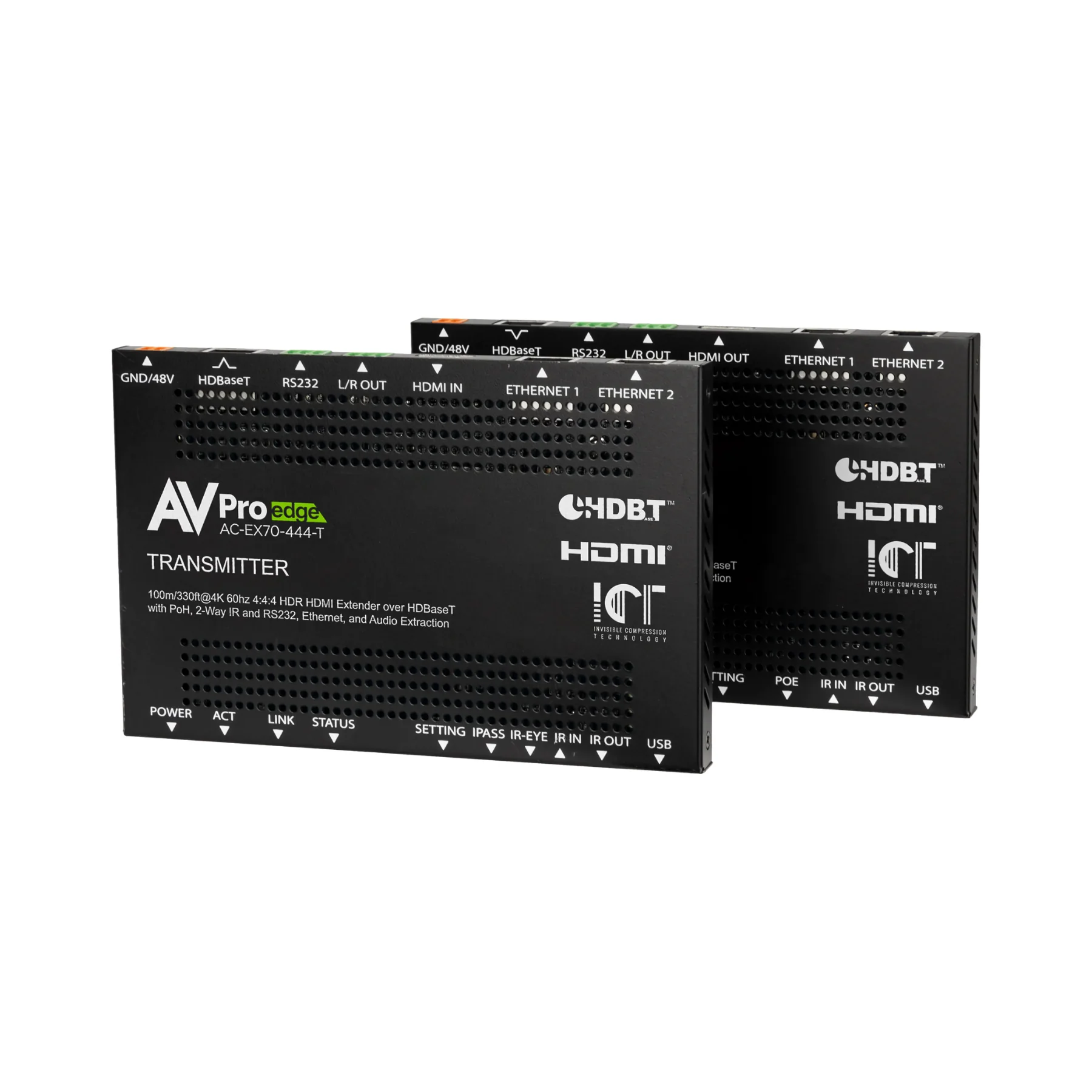

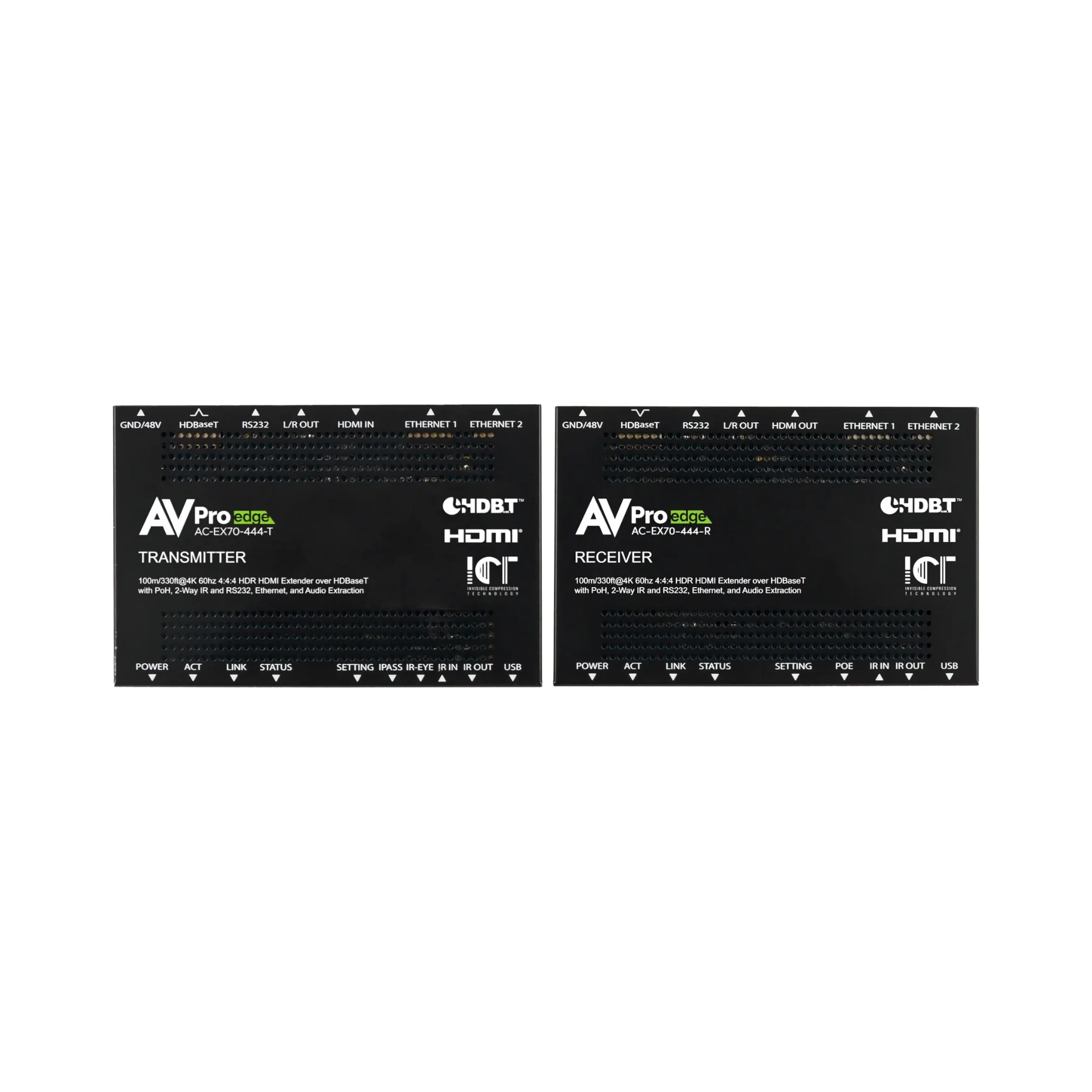

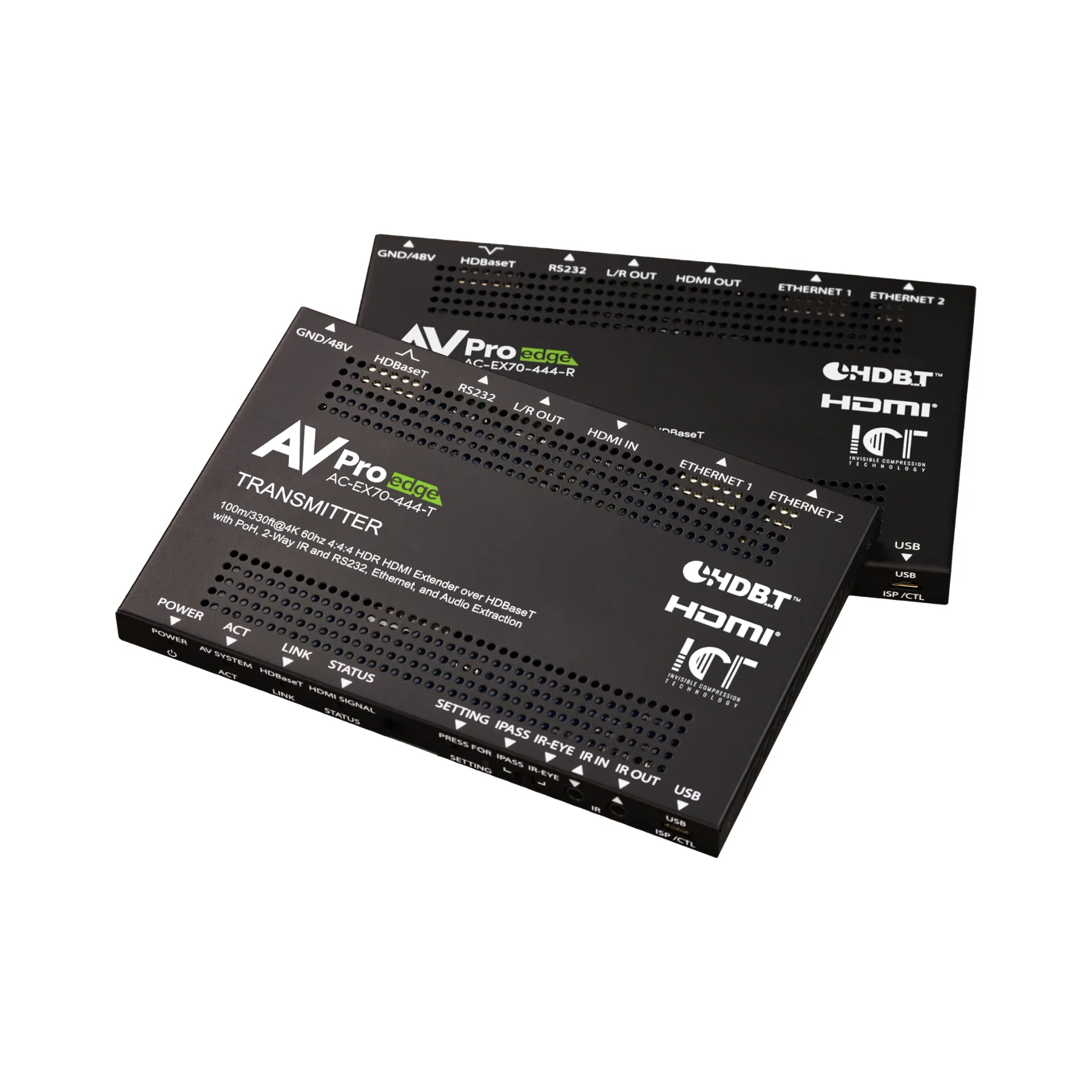

AVPro Edge AC-EX70-444-KIT - 70M 18Gbps HDBaseT Extender Kit - Clearance / Open Box
70M 18Gbps HDBaseT Extender Kit
The AC-EX70-444-KIT was one of the first HDMI-over-HDBaseT extension kits on the market to transmit 4K/60fps 4:4:4 video signals. HDR10, plus dynamic metadata formats such as Dolby Vision, HDR10+, and Hybrid Log Gamma, are transported over Cat6A copper cabling at 18Gbps, as image fidelity remains damage-free from source to display. Employing AVPro Edgeās proprietary Invisible Compression Technology algorithm, ICT, 4K/60fps signals containing high dynamic range video enhancements, with high-bitrate audio codecs, remain unaltered and artifact-free from the transport process.
It is not unusual for other products in the marketplace to use algorithms designed for use by applications accustomed to significantly lower data amounts. As a consequence, combined with category cable use, image information must be forfeited to achieve sending the signal to the display. What is typically discarded is color information supporting smooth transitions between colors with very close hues. This results in harsh delineation points, called ābandingā, which are readily detectable by even casual viewers. Additional artifacts, not present in the source, are introduced, such as color shifts and motion alterations, which disturb the artistic intent of the content.
The AC-EX70-444-KIT is augmented by resourceful features such as EDID management, resolution downscaling, bidirectional IR and RS-232 signal control, onboard test pattern generation, dual 10/100 ethernet ports for LAN extension, and Left/Right audio extraction from PCM 2-channel input signals.
Features:
Specifications:
Video:
Video Resolutions: Up to 4K 60Hz 4:4:4
HDR Formats/Resolutions: 420, 422, 444 (10 AND 12 DEEP COLOR) HDR10, HDR10+, DOLBY VISION, HLG
Color Space: YUV (Component), RGB
Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā (CSC: Rec. 601, Rec. 709, BT2020, DCI, P3 D6500)
Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0 Supported
Deep Color: Up to 16 bit (1080), Up to 12 bit (4K)
Down Scaling: 4k to 1080p
Audio:
Audio Formats Supported HDMI: PCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos
Audio Formats Supported Extracted (2CH Port): PCM 2 CH
Distance:
HDBaseT (CAT) Distance (4K): 100 Meters / 330 Feet (Cat 6a)
HDMI In/Out (4k60 4:4:4): Up to 50 feet (Using Bullet Train HDMI)
HDMI In/Out (W/ AOC Cable) (4k60 4:4:4): Up to 130 feet (Using Bullet Train AOC)
Other:
Bandwidth: 18 Gbps (Uses ICT above 10.2 Gbps signals)
HDCP: HDCP 2.3 and Earlier

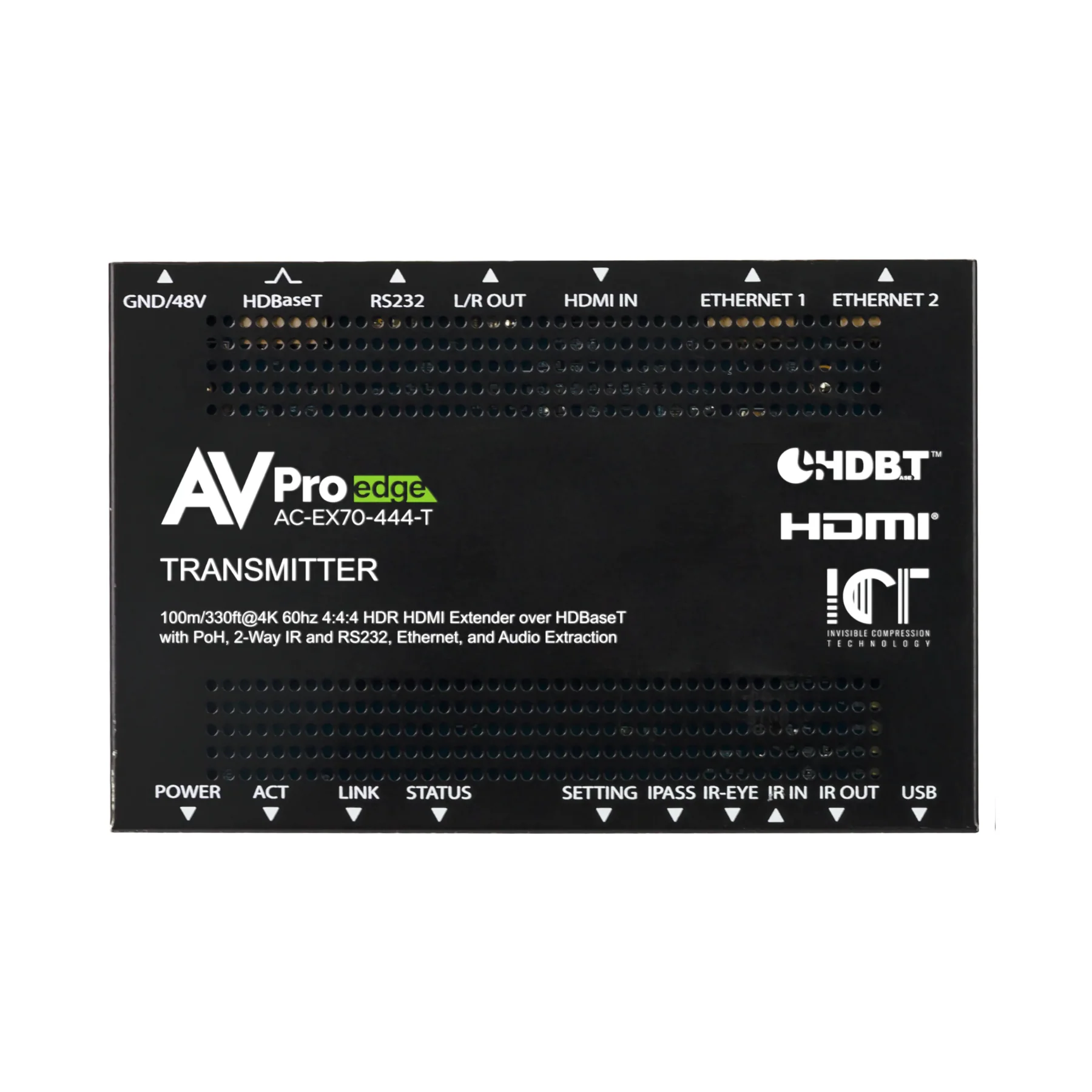

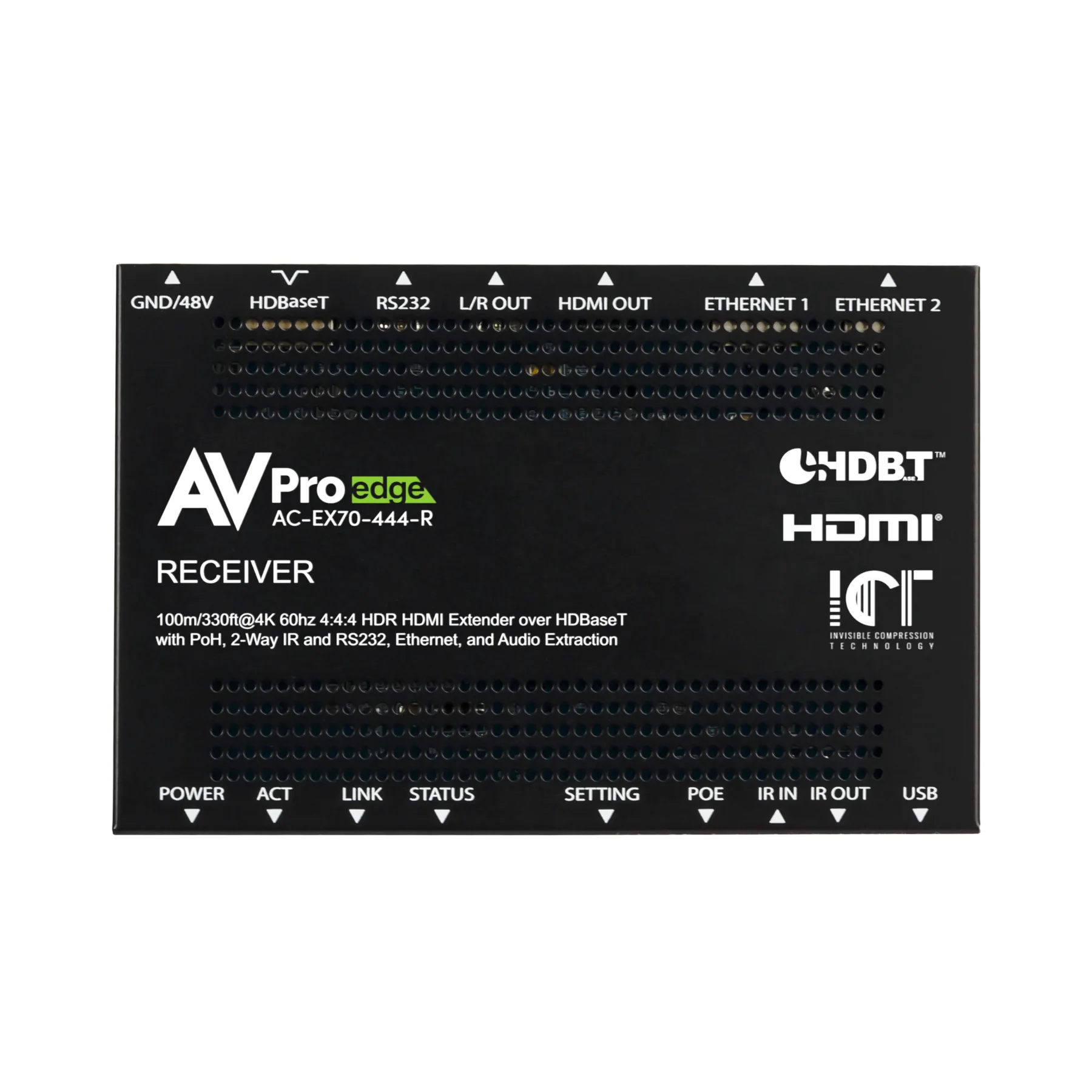

Ports:
HDMI (TX & RX): Type A
HDBaseT: RJ45 w/ PoH for HDBaseT Receivers
Audio (Extracted Analog) (TX & RX): 5 PIN Terminal Block (Balanced)
IR TX (TX & RX): 3.5MM Mono (2 Conductor)
IR RX (TX & RX): 3.5mm Stereo (3 Conductor)
RS232 (TX & RX): 3 Pin Terminal Block Each
Power (TX & RX): 2 Pin Terminal Block Each
Ethernet (TX & RX): 2x RJ45 Connections Each (10/100)
Firmware (TX & RX): USB C
Environmental:
Operating Temperature: 23 to 125Ā°F (-5 to 51Ā°C)
Storage Temperature: -4 to 140Ā°F (-20 to 60Ā°C)
Humidity Range: 5-90% RH (No Condensation)
Power:
Power Consumption (Total): 12 Watts Max
Power Supply Input: AC 100-240V ~ 50/60Hz Output: DC 48V 0.5A
Dimensions:
Dimensions (Unit Only Length/Width/Height): mm: 103 x 157 x 12 / inch: 4.04 x 6.18 x 0.47
Dimensions (Packaged Length/Width/Height) (Kit): mm: 165 x 203 x 91 / inch: 6.5 x 8 x 3.6
Weight (Unit): 0.4 lbs (0.13 kg)
Weight (Packaged): 2 lbs (0.90 kg)
