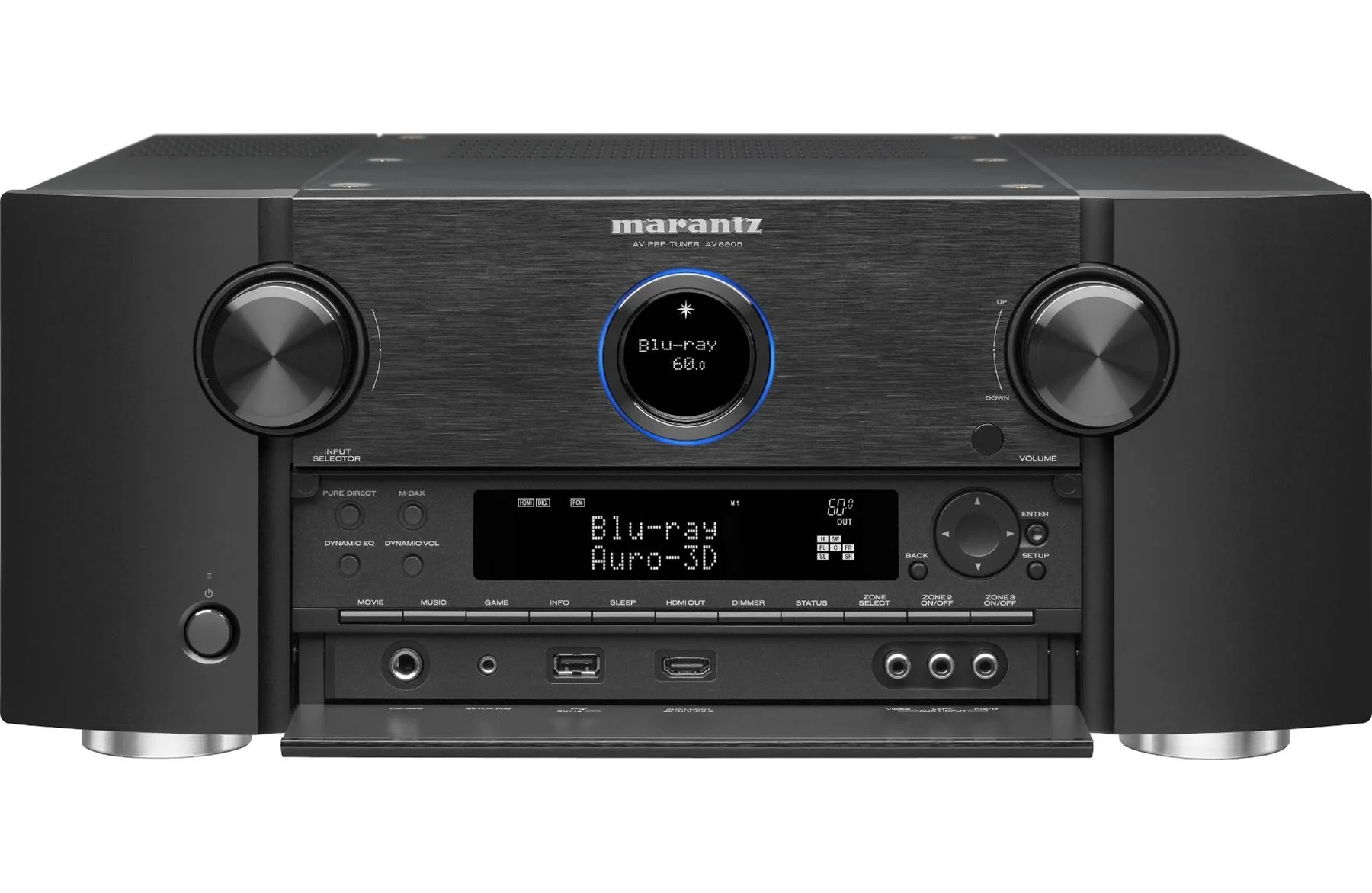

Marantz AV8805A - 13.2 Channel 8K UHD AV Surround Pre-Amplifier

A Masterpiece Of Audio Architecture

The Marantz AV8805A pre-amplifier sets the standard for audiophile home cinema with 13.2 channel processing and full 8K pass-through capabilities.

Created with passion and extraordinary attention to detail, the versatile Marantz AV8805A pre-amplifier redefines the audiophile home cinema and music listening experience with 13.2 channel processing capability, 8K pass-through, and support for the latest in surround sound audio formats, such as Dolby Atmos, DTS:X, DTS:X Pro, IMAX Enhanced, and Auro-3D. Marantz’ proprietary technologies enhance any audio playback for the most demanding of listeners. Stream music throughout your home with HEOS Built-in for a whole home audio experience from your favorite streaming services. With the new Marantz AV8805A, you get incredible fidelity and unparalleled audio precision.

Advanced 13.2 channel Pre-amplifier

The Marantz AV8805A processor/pre-amplifier was built for the most advanced home theater enthusiast. With 13.2 channel processing, 15.2 channel XLR and RCA outputs, and flexible amplifier stages, enjoy your movies with a system you deserve.

Masterfully Engineered

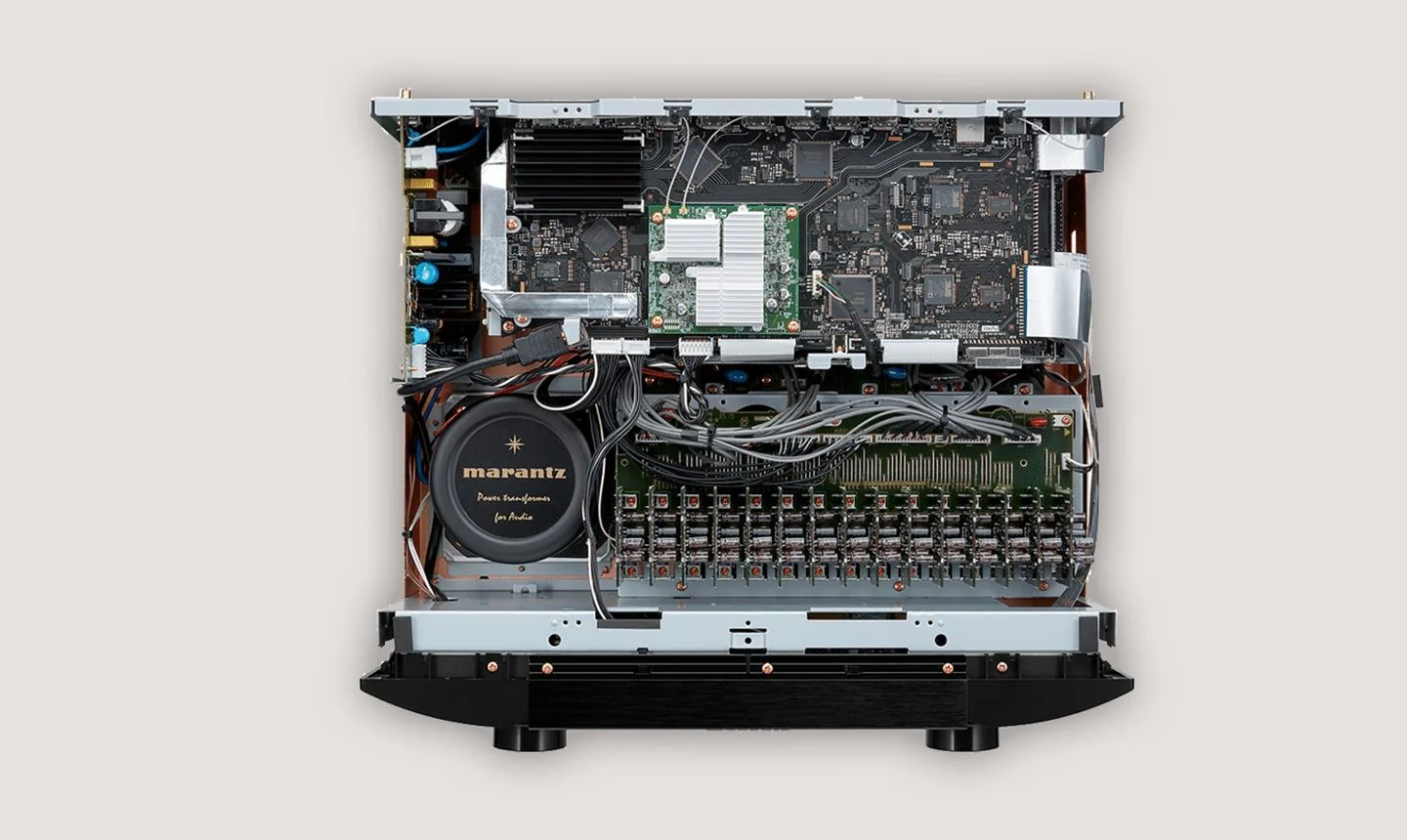

The AV8805A is made for home cinema enthusiasts who want everything, versatility, flexibility, and musicality. Extensively tuned by world-renowned sound acousticians at the most state-of-the-art facilities, its high-resolution preamplifier uses in total 15 single Marantz HDAM boards for reference-setting audio performance.

Advanced 8K HDMI connectivity with eARC support

Enjoy exquisite video performance thanks to the latest HDMI technologies. The Marantz AV8805A includes 8 HDMI inputs and 3 outputs for all your favorite sources. One dedicated 8K input supports 8K/60Hz or 4K/120Hz pass-through capability, while Dolby Vision, HLG, HDR10+, 21:9 video, 3D, BT.2020 pass-through and HDCP 2.3 copy protection standard is supported on all HDMI inputs.

Full 3D Audio Support

Immerse yourself in multi-dimensional audio with the latest surround formats, including Dolby Atmos, Dolby Atmos Height Virtualization Technology, DTS:X, DTS Virtual:X, DTS:X Pro, IMAX Enhanced, and Auro-3D. Movie and TV sound moves around you in space, emulating the finest movie theaters and the real world.

The Next Chapter In Movie Entertainment

The new AV8805A offers the highest-quality, crystal-clear viewing experience. Enjoy your movies with 8K/60Hz pass-through or upscaling, as well the latest in HDMI technology like Dynamic HDR and Quick Media Switching (QMS), which is used in movies to eliminate video delay.

Marantz HDAM & Current Feedback Topology

The AV8805A features exclusive Marantz Hyper Dynamic Amplifier Module (HDAM) technology that provide ultra-fast slew rate, true wideband performance, and maximum dynamic range for optimum sound quality.

Maximum Flexibility

From high-resolution stereo to 13.2 channel surround sound, experience pure Marantz audio through any configuration you need.

Tuned For Pure Enjoyment

No matter how you listen or what you watch, the AV8805A is extensively tuned to deliver the most enjoyable music and movie experiences you can imagine.

Marantz AV8805 Specifications

Multichannel Surround:

• IMAX Enhanced: Yes
• DTS HD Master / DTS:X: Yes / Yes
• DTS Neo:X / DTS Neural:X: No / Yes
• DTS Virtual:X: Yes
• Dolby TrueHD / Dolby Atmos: Yes / Yes (9.1.4 or 7.1.6)
• Dolby ProLogic Ilz / Dolby Surround: No / Yes
• Auro 3D: Yes
• Audyssey DSX: No
• Multichannel Stereo: Yes
• Max Number of Processing (Preamp) Channels: 13.2

Sound Enhancements:

• Copper Plated Chassis: Yes
• Power Transformer: Toroidal / EI: Yes / No
• Current Feedback Topology: Yes
• Hyper Dynamic Amplifier Modules (HDAM): Yes
• Pure Direct: Yes
• Gold plated RCA terminals: Yes
• Clock Jitter Reducer: Yes
• Audyssey: MultEQ XT32 with LFC/Sub
• Audyssey Dynamic EQ / Dynamic Volume: Yes / Yes
• Audyssey LFC: Yes
• Compressed Audio Enhancer: MDAX2: Yes

Network:

• HEOS Multi-room and Streaming: Yes
• Network Audio Sharing: Yes
• Lossy formats MP3 / WMA / AAC: Yes / Yes / Yes
• Lossless formats FLAC / ALAC / WAV: Yes / Yes / Yes
• Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24: Yes / Yes / Yes
• DSD Audio Streaming: up to DSD5.6
• FLAC HD 192/24: Yes
• WAV 192/24: Yes
• ALAC 192/24: Yes
• Gapless Playback: Yes (FLAC, WAV, ALAC, DSD)
• AirPlay Audio Streaming: Yes
• AirPlay 2 Audio Streaming: Yes
• Internet radio: Yes (TuneIn)
• Spotify Connect / Deezer / Tidal / Napster / Pandora / Amazon Music / Soundcloud: Yes / Yes / Yes / Yes / Yes / Yes / Yes
• Compatible with Remote APP for Smart Phones: Marantz 2016 AVR Remote
• Compatible with Remote APP for Tablets: Android / iOS / Amazon Kindle
• Ethernet Ports: Yes
• Wi-Fi: Yes
• Bluetooth: Yes

HDMI:

• HDMI Inputs: Back / Front: 7 / 2
• HDCP2.2 Support: Yes
• HDMI Outputs: Main / Zone: 2 / 1
• Video Conversion Analog -> HDMI: Yes
• Analog to HDMI Scaling: 480i/576i up to 4K 60/50
• HDMI to HDMI Scaling: up to 4K 60/50
• GUI Overlay on HDMI: Yes
• HDMI: 3D / 4K / CEC / ARC: Yes / Yes / Yes / Yes / No
• Enhanced ARC: Yes
• HLG / Dolby Vision: Yes / Yes
• 3D Signal Pass-Through: Yes
• 4K Signal Pass-Through / Scaling / GUI Overlay: Yes / Yes / Yes
• HDMI Pass-Through in Standby Mode: Yes
• Picture Adjust / Noise Reduction: Yes / Yes
• CEC: Yes
• DSD Audio Capability: Yes
• Audio Return Channel: Yes
• Auto LipSync: Yes

Multi-Room / CI:

• HEOS Multi-Room Integrated: Yes
• HEOS Link Compatibility: IR/ IP: Yes / Yes
• Multi-Room Zones: 3
• Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog: Yes (2ch) / Yes (2ch) / Yes / Yes
• Zone Audio Output: Speaker / Preout: No / Yes
• Zone HDMI Output from HDMI Source: Yes
• IP Control / RS232 Control / Web Control / App Control: Yes / Yes / Yes / Yes
• IR Flasher In: Yes
• Marantz Remote Bus: Yes
• DC Trigger Output: 2
• HDMI Diagnostics: Yes

Others:

• Auto Speaker Setup by Microphone: Audyssey MultEQ XT32
• FL Display: 2 lines + port hole
• Graphic User Interface - GUI: Advanced
• ISF Certification: Yes
• GUI Languages: 3
• Setup Assistant: Yes
• Smart Select: Yes
• Firmware Update by Network / USB: Yes / Yes
• Variable Cross Over: Yes
• Optimized Bass Redirection: Yes
• Bass Sync: Yes
• ECO Mode: Yes
• Auto Power off: Yes
• Sleep / Timer: Yes

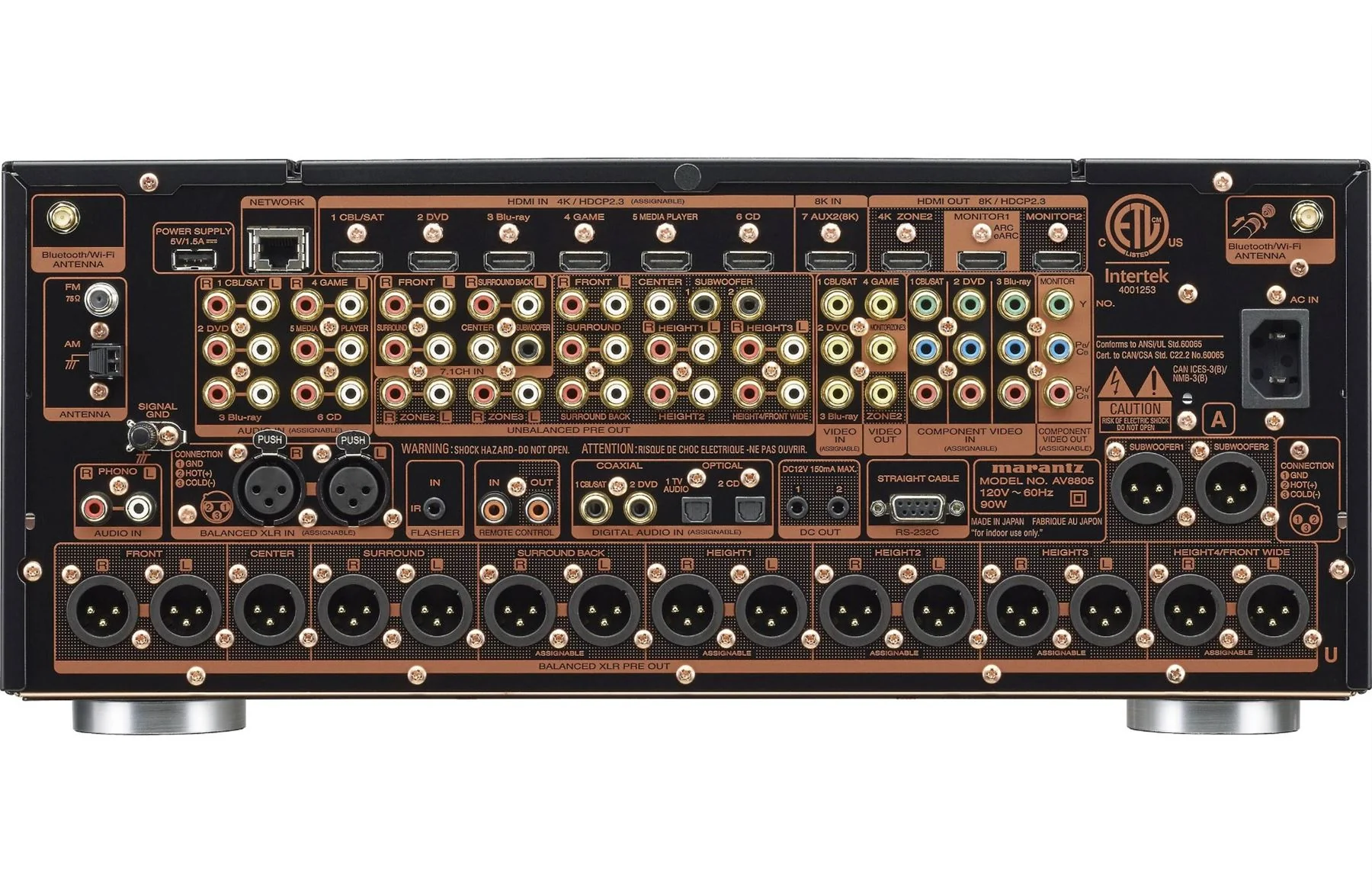

Inputs/Outputs:

• Composite In / Out: 4+1 / 2
• Component In / Out: 3 / 1
• HDMI In / Out: 7+1 / 3
• Multi-Room Video Out: Video / HDMI: Yes / Yes
• Analog In / Out: 7+1 / No
• Phono (MM) In: Yes
• Digital In: Optical / Coaxial: 2 / 2
• Multi-Room Out: Analog / Digital: 2 / No
• Multichannel Pre Out: Yes (15.2 RCA & 15.2 XLR)
• Subwoofer Out: 2 (independent)
• 7.1 Multichannel Input: Yes
• Speaker A / B: assignable pre out
• Bi-Amp Drive: assignable pre out
• Multi-Room Speaker Terminal: pre out
• Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB: Yes / Yes / No / Yes / Yes
• USB Audio / Made for iPod / Made for iPhone: Yes / AirPlay / AirPlay
• AM/FM Tuner: Yes

General:

• Metal Front Panel: Yes
• System Remote Control: RC039SR
• Pre-Programmed / Learnable / LCD Display: Yes / Yes / Yes
• Power Consumption in W: 90
• Standby Consumption in W: 0.2
• CEC Standby Consumption in W: Yes
• Maximum Dimensions (W x D x H) in inches: 17.3 x 16.1 x 7.3
• Weight in lbs.: 30.2
