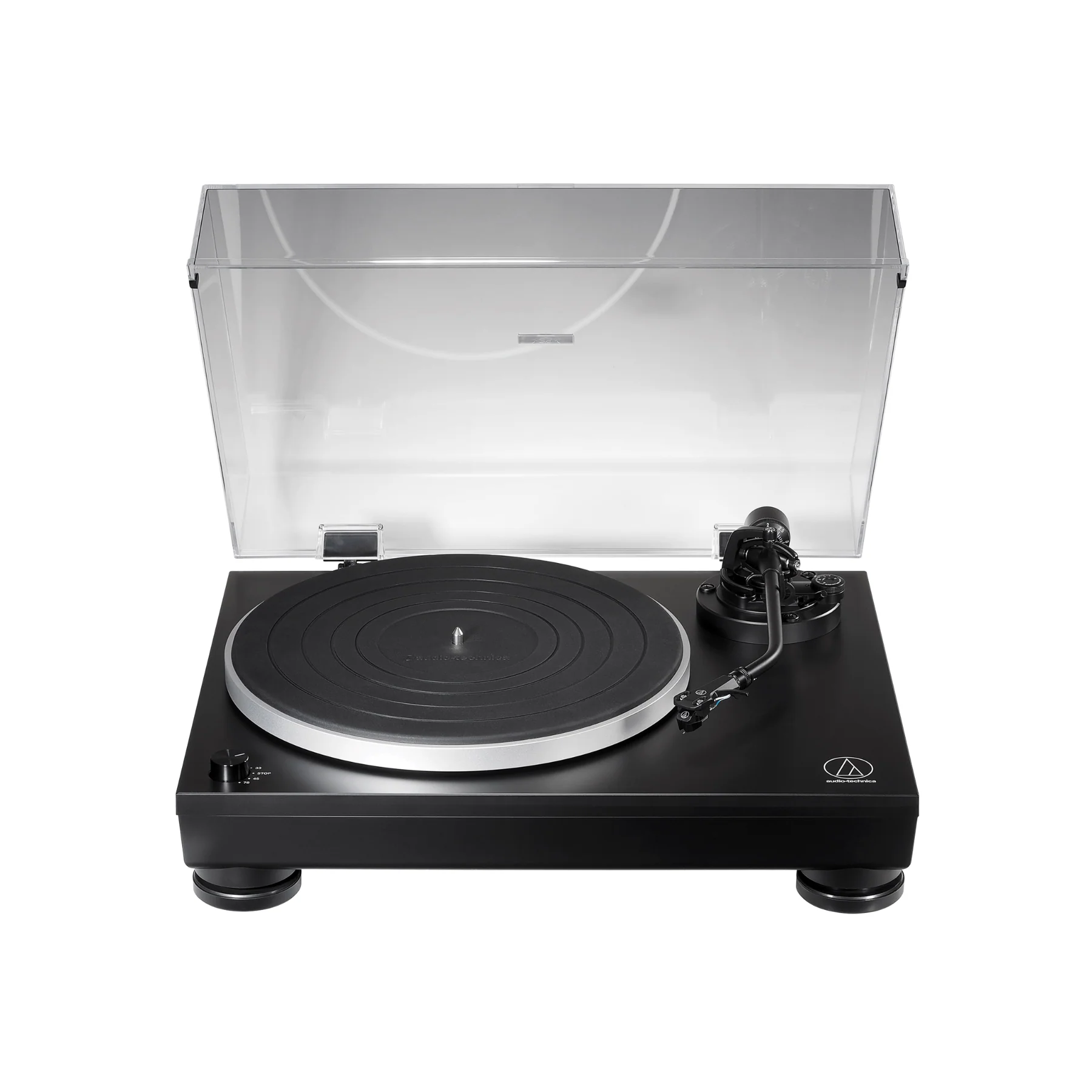

Audio Technica LP5X Direct Drive Manual Turntable

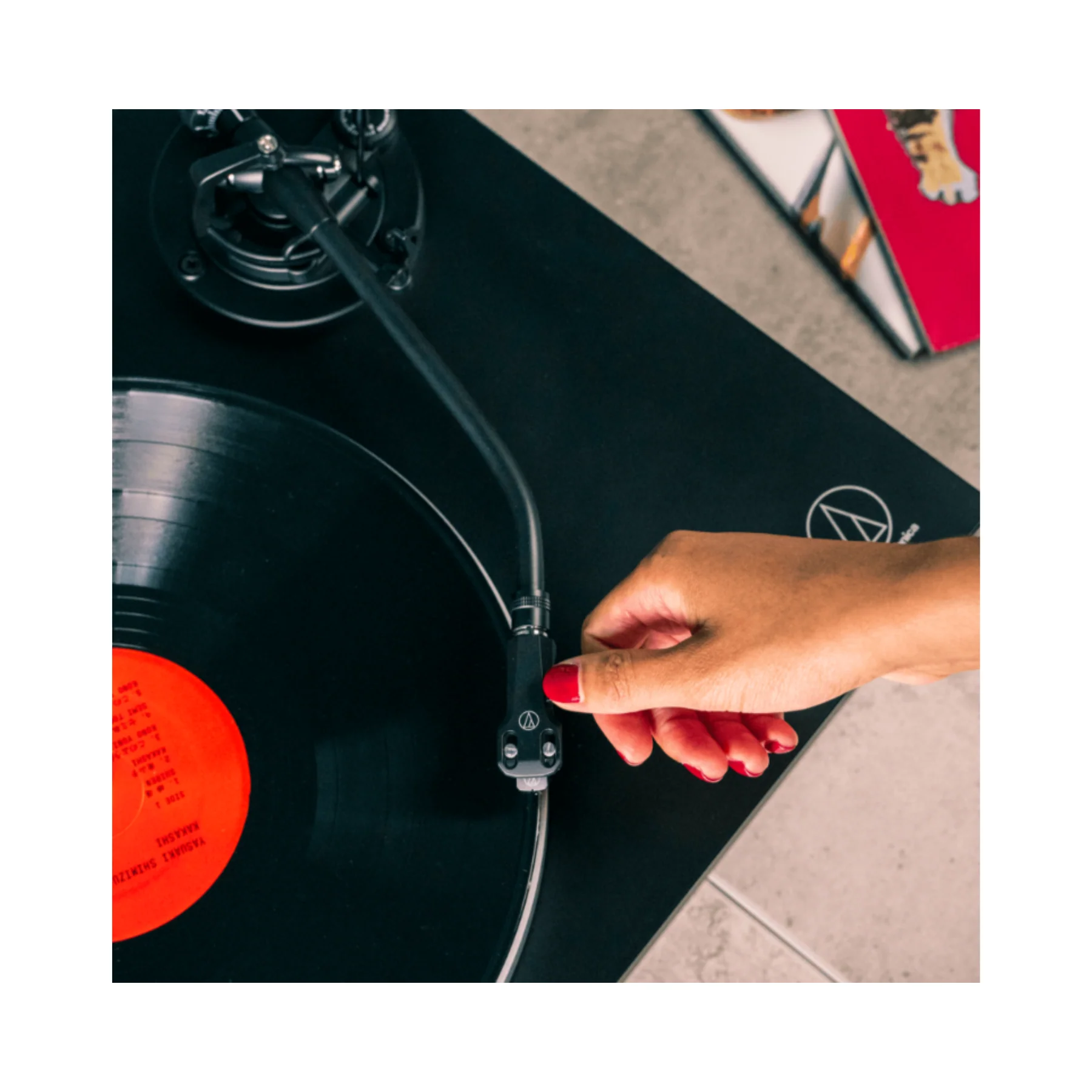

The LP5X retains the J-shaped tonearm, a design inspired by the classic Audio-Technica models of the 1960s and ’70s, and features a metallic gimbal suspension system and precision bearings to mitigate tracking errors. The tonearm also includes an adjustable counterweight and anti-skate control and comes fitted with a lightweight (9.3g) AT-HS6 headshell and the black AT-VM95E Dual Moving Magnet stereo cartridge.

Constructed of anti-vibration damping materials with heavy-mass metal chassis inserts, the AT-LP5X turntable has been designed to limit low-frequency acoustical feedback. Its precision-machined, die-cast aluminum platter is powered by a direct-drive, low-noise motor, ensuring stable, on-axis rotation at 33-1/3, 45 and 78 RPM. A 5 mm thick rubber-damping mat, which isolates from low frequency feedback while providing a highly stable surface for all LP formats, tops the platter.

The AT-LP5x features a built-in switchable MM/MC phono/line preamp that enables it to connect directly to a computer, home stereo, powered speakers and other components that have no dedicated turntable input. The selection of MM/MC cartridges allow for an easy upgrade to a moving coil with additional equipment. The turntable is also equipped with a USB output for direct connection to a computer.

Audio Technica AT-LP5X Fully Manual Turntable Specs

• Type: 3-speed, fully manual operation
• Motor: DC motor
• Drive Method: Direct Drive
• Speeds: 33-1/3 RPM, 45 RPM, 78 RPM
• Turntable Platter: Die-cast aluminum
• Starting Torque: > 1.0 kgf.cm
• Braking System: Electronic brake
• Wow and Flutter: < 0.2% WRMS (33 RPM) at 3 kHz
• Signal-to-Noise Ratio: > 50 dB
• Output Level:
  • PHONO: 4.0 mV nominal at 1 kHz, 5 cm/sec
  • LINE: 250 mV nominal at 1 kHz, 5 cm/sec
• Phono Pre-Amp Gain:
  • MM: 36 dB nominal, RIAA equalized
  • MC: 56 dB nominal, RIAA equalized
• USB Function: A/D: - 16 bit 44.1 kHz or 48 kHz USB selectable; Computer interface: USB 2.0 compliant Windows 7 or above, MAC OS X or above
• Power Supply Requirements: 100-240V AC, 50/60 Hz
• Dimensions: 450.0 mm (17.72") × 352.0 mm (13.86") × 157.0 mm (6.18") (W × D × H)
• Weight: 7.3 kg (16.1 lbs.)
• Accessories Included:
  • AT-VM95E Dual Moving Magnet stereo cartridge (black) with replaceable stylus
  • AT-HS6 lightweight headshell
  • AC adapter
  • Dual RCA (male) to dual RCA (male) stereo cable
  • 45 RPM adapter
  • USB cable
  • Dust cover with hinges, Rubber mat, Platter, Counterweight, Headshell (AT-HS6) with VM stereo cartridge (AT-VM95E), Dust cover hinges, USB cable (1.9 m (6.2')), RCA audio cable (approx. 1.0 m (3.3')), AC adapter (approx. 1.5 m (4.9') (AD-SE1220KZ)
• Tonearm Type: Static balanced J-shaped tonearm
• Effective Arm Length: 247 mm
• Overhang: 17 mm
• Tracking Error Angle: Less than 3°
• Applicable Cartridge Weight: 15 to 20 g (including headshell)
