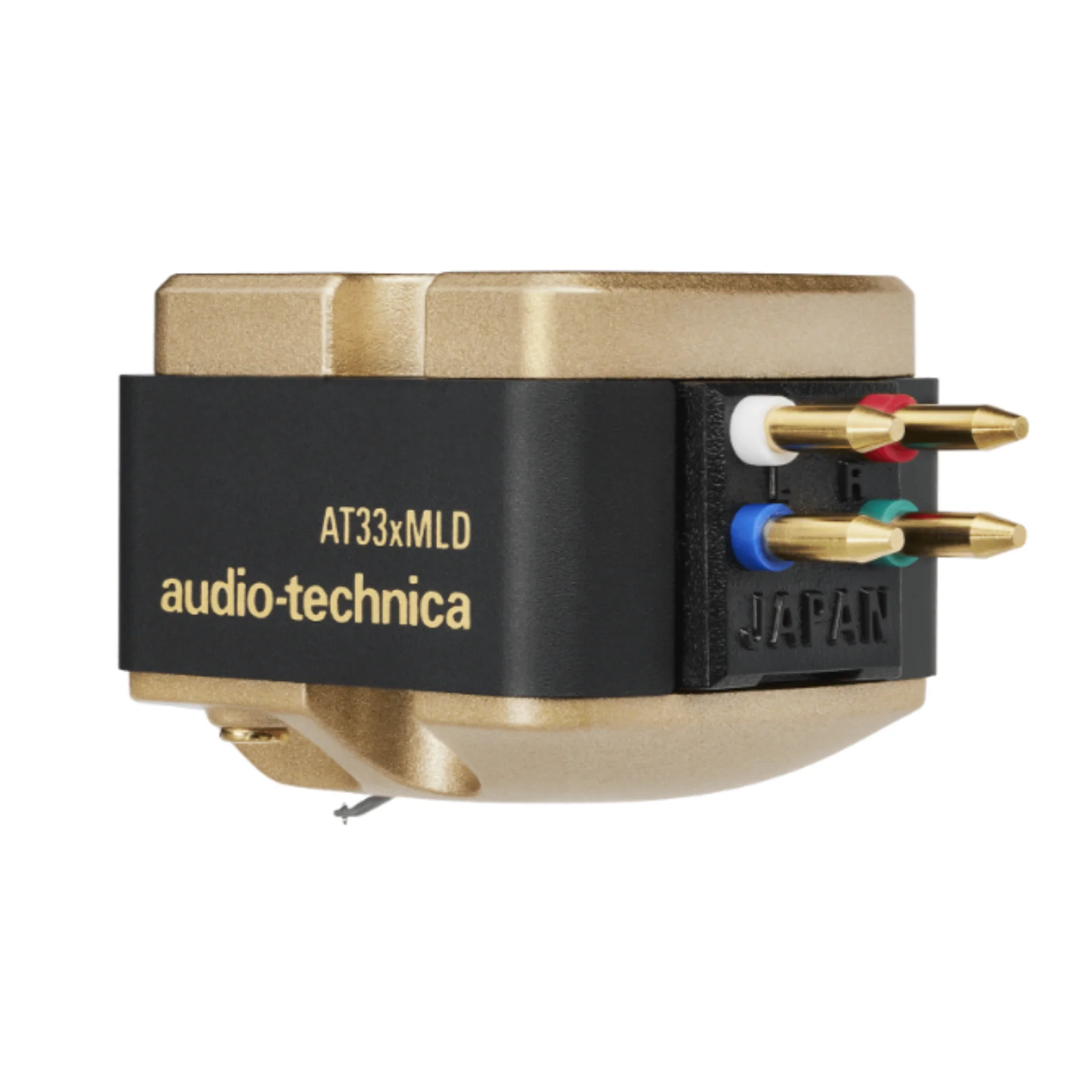

Audio Technica AT33xMLD Dual Moving Coil Stereo Cartridge

Audio-Technica AT33xMLD Dual Moving Coil Stereo Cartridge

The Audio-Technica AT33xMLD is a premium dual moving coil stereo cartridge designed for audiophiles who demand rich, lifelike sound. As the latest evolution in the renowned AT33 Series, this model introduces a newly engineered suspension system, a resonance-reducing tri-material body, and a nude microlinear stylus mounted on a duralumin tapered cantilever. These improvements result in a warm, full-bodied sonic profile, ideal for rock and jazz vinyl, especially from the analog-rich eras of the '50s through the '70s. Built with precision in Japan, the AT33xMLD offers exceptional channel separation and tracking performance, delivering every subtle detail with outstanding clarity and depth.

Specifications

• Type: Dual Moving Coil Stereo Cartridge
• Stylus: Nude Microlinear
• Cantilever: Duralumin tapered pipe
• Coil Wire: PCOCC (Pure Copper by Ohno Continuous Casting)
• Suspension System: Newly developed with piano wire for better tracking and reduced dynamic compliance
• Cartridge Body: Constructed of die-cast zinc, aluminum, and high-rigidity polymer
• Frequency Response: 15–50,000 Hz
• Channel Separation: 30 dB (1 kHz)
• Output Voltage: 0.4 mV (1 kHz, 5 cm/sec)
• Impedance: 10 ohms
• Recommended Load Impedance: 100 ohms
• Tracking Force: 1.8 to 2.2 g (2.0 g standard)
• Mounting: Threaded mounting holes for easy installation
• Weight: 6.9 g
• Country of Manufacture: Japan

Expanded Key Features List

• Dual Moving Coil Design: Ensures accurate stereo separation and high-fidelity reproduction of all musical nuances.
• Nude Microlinear Stylus: Provides superior groove contact for extended frequency response and minimal wear on vinyl.
• Duralumin Tapered Cantilever: Enhances transient response and sonic clarity across the frequency spectrum.
• New Suspension System with Piano Wire: Improves tracking precision and delivers a fuller, more expressive sound in mid to low ranges.
• Tri-Material Cartridge Body: Combines die-cast zinc, aluminum, and high-rigidity polymer to reduce resonance and distortion.
• Made in Japan: Hand-assembled with precision engineering for long-lasting performance and world-class craftsmanship.

Q&A Section

Q: What type of stylus does the AT33xMLD use?
A: It uses a nude microlinear stylus mounted on a duralumin tapered pipe for precise, high-frequency tracking and minimal vinyl wear.

Q: Is this cartridge good for older records?
A: Yes, the AT33xMLD is particularly well-suited for jazz and rock records from the '50s to '70s due to its warm and detailed sound signature.

Q: Does the cartridge require special mounting hardware?
A: No, it features threaded mounting holes for easy and secure installation on most tonearms.

Q: How does the piano wire suspension improve performance?
A: It enhances tracking accuracy and slightly lowers dynamic compliance, contributing to more substantial audio reproduction, especially in the mid-low frequencies.

Q: What is the output level of the AT33xMLD?
A: The output is 0.4 mV at 1 kHz and 5 cm/sec, typical for low-output moving coil cartridges.

Q: Can this cartridge be used with any phono preamp?
A: It’s best paired with a phono preamp that supports low-output MC cartridges, ideally with a load impedance around 100 ohms.

Q: What materials are used in the cartridge body?
A: The body is made of die-cast zinc, aluminum, and high-rigidity polymer to effectively reduce resonance and enhance sound clarity.

Q: Is this cartridge made in Japan?
A: Yes, the AT33xMLD is meticulously crafted in Japan, ensuring premium build quality and audio performance.
