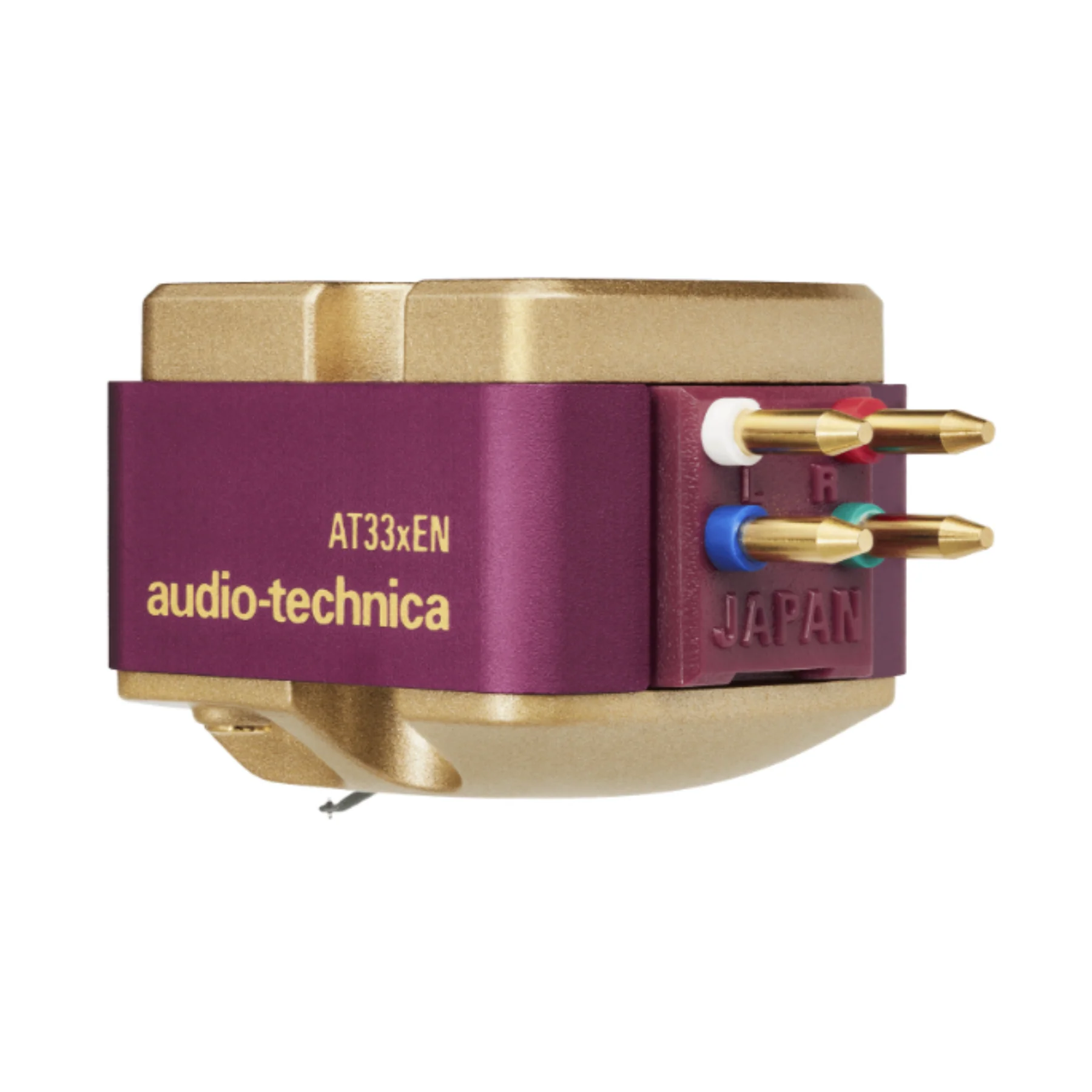

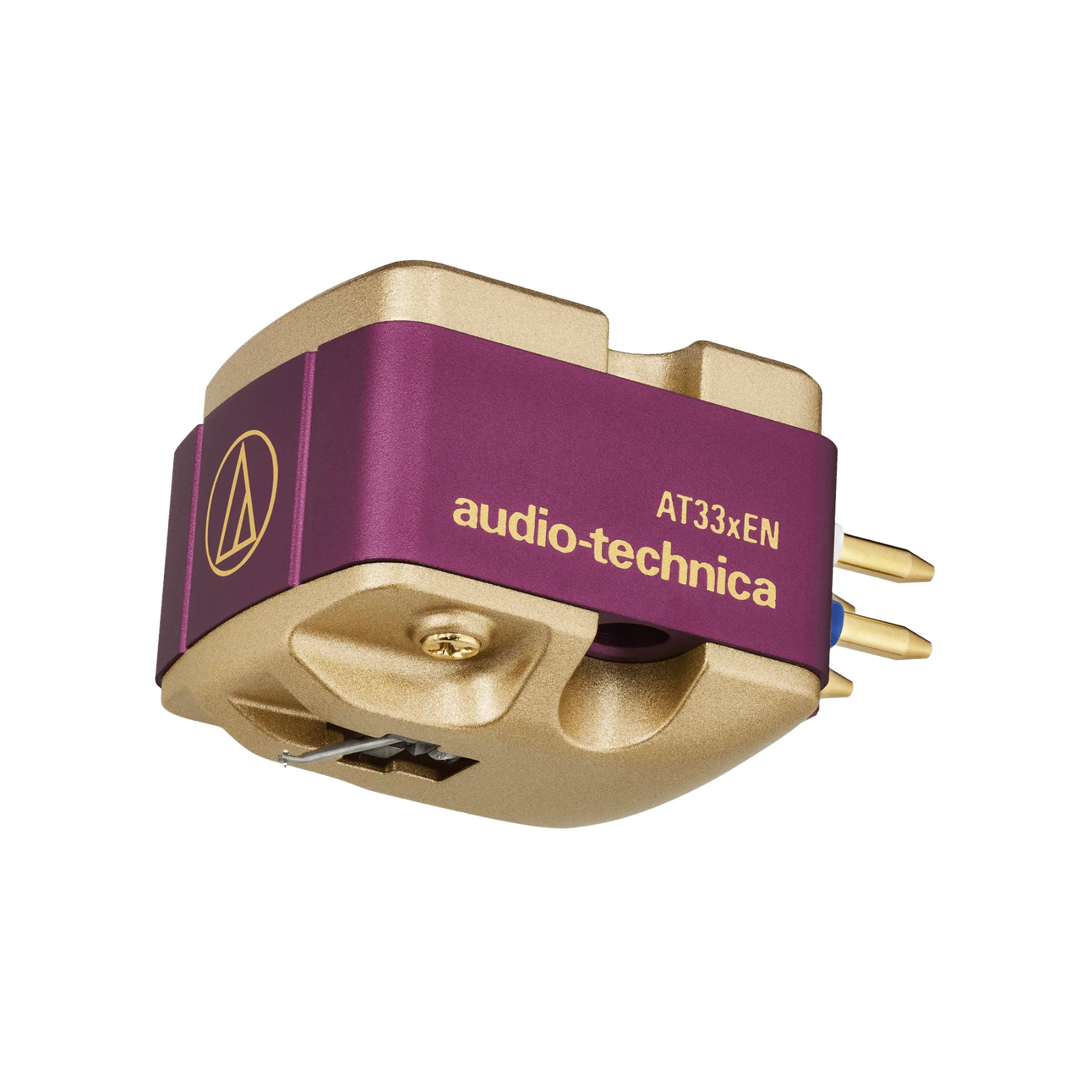

Audio Technica AT33xEN Dual Moving Coil Stereo Cartridge

Audio-Technica AT33xEN Dual Moving Coil Stereo Cartridge

Rediscover your vinyl collection with the Audio-Technica AT33xEN, the all-around performer in the newly reengineered AT33x Series. Designed for audiophiles who want warm, full-bodied sound with refined detail, the AT33xEN features a nude elliptical stylus and rigid tapered duralumin pipe cantilever for excellent groove tracking and high-frequency control. Its advanced dual moving coil design ensures clear stereo separation, while a precision piano-wire suspension system enhances tracking accuracy and depth in the mid-to-low frequency range. Crafted in Japan with a three-material body that disperses resonance, the AT33xEN delivers an immersive analog listening experience at an exceptional value.

Specifications

• Type: Dual Moving Coil (MC)
• Stylus Shape: Nude Elliptical (0.3 × 0.7 mil)
• Cantilever: Hard duralumin tapered pipe
• Frequency Response: 20 – 45,000 Hz
• Channel Separation: 27 dB (1 kHz)
• Tracking Force: 1.8 – 2.2 g (2.0 g standard)
• Vertical Tracking Angle: 19°
• Recommended Load Impedance: ≥ 100 ohms (with head amp)
• Coil Impedance: 12 ohms (1 kHz)
• DC Resistance: 12 ohms
• Coil Inductance: 26 μH (1 kHz)
• Output Voltage: 0.42 mV (1 kHz, 5 cm/sec.)
• Output Balance: 1.0 dB (1 kHz)
• Static Compliance: 19 × 10⁻⁶ cm/dyne
• Dynamic Compliance: 6 × 10⁻⁶ cm/dyne (100 Hz)
• Threaded Mount: M2.6 × 2
• Dimensions: 16.0 mm × 16.6 mm × 26.1 mm (H × W × D)
• Weight: 10.1 g (0.36 oz)

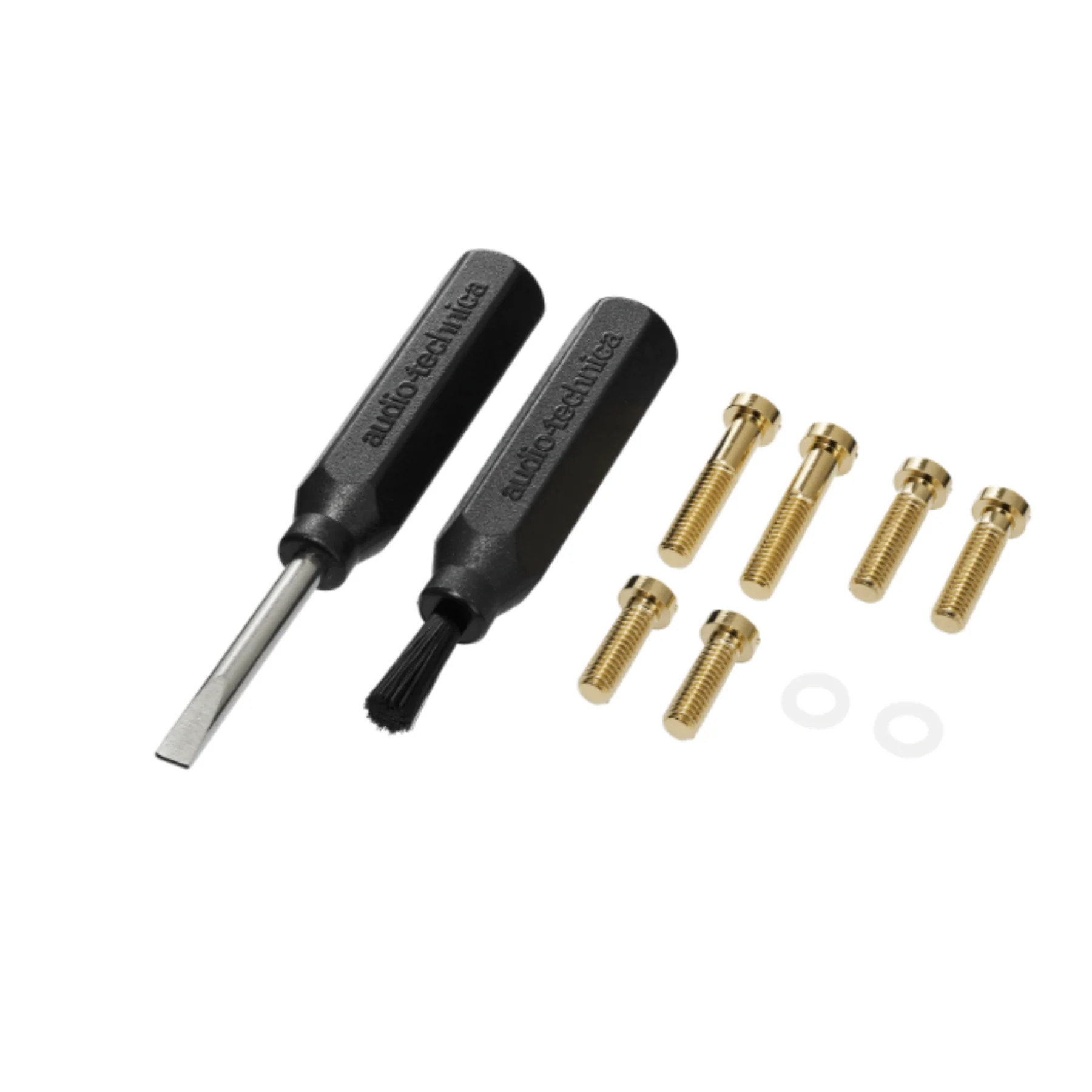

• Included Accessories: Non-magnetic screwdriver, brush, 2 washers, 6 cartridge mounting screws (3 sizes), stylus protector
• Made In: Japan

Expanded Key Features List

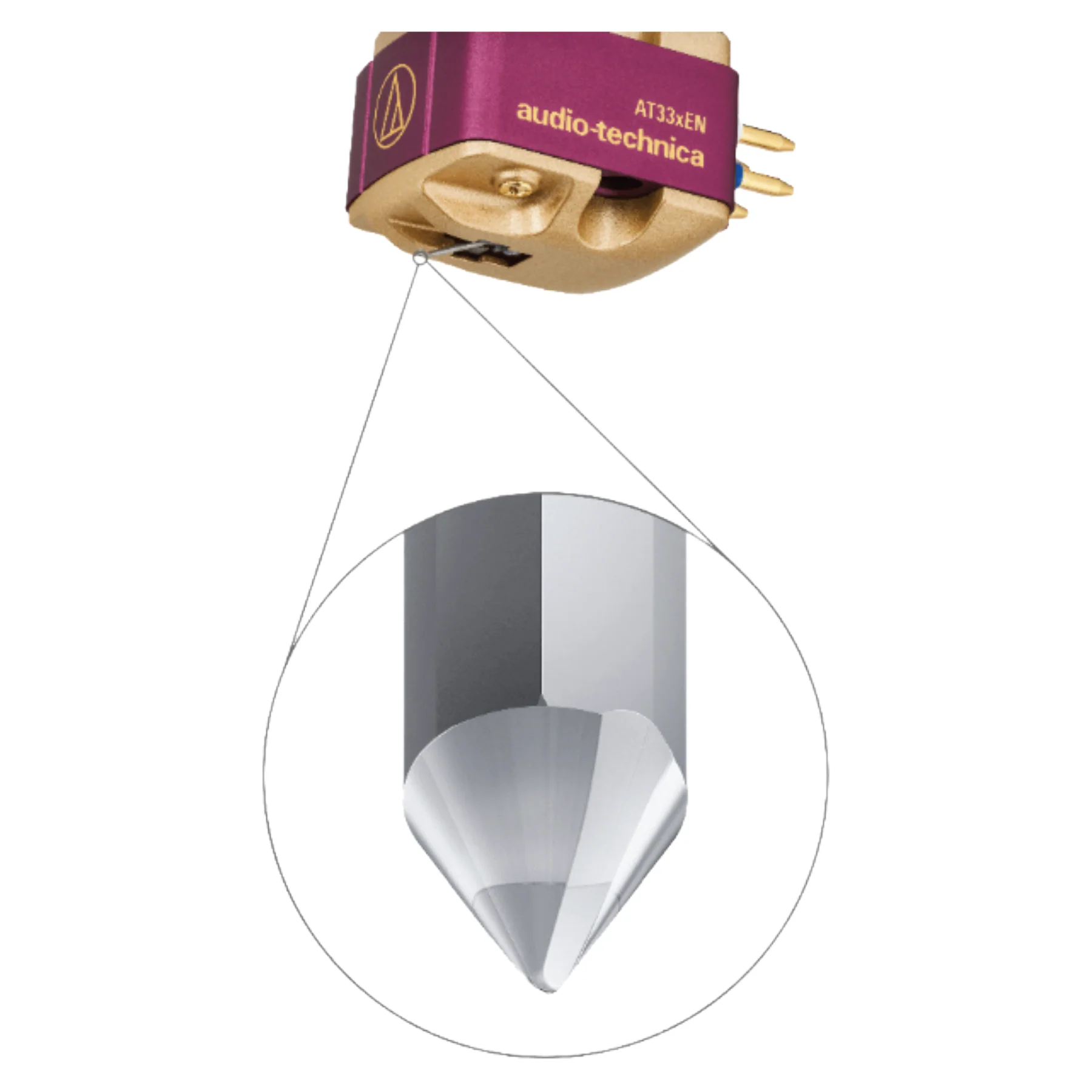

• Nude Elliptical Stylus: Tracks with high precision and enhances playback clarity, especially in high frequencies.
• Duralumin Tapered Cantilever: Lightweight and rigid for accurate stylus movement and responsive audio detail.

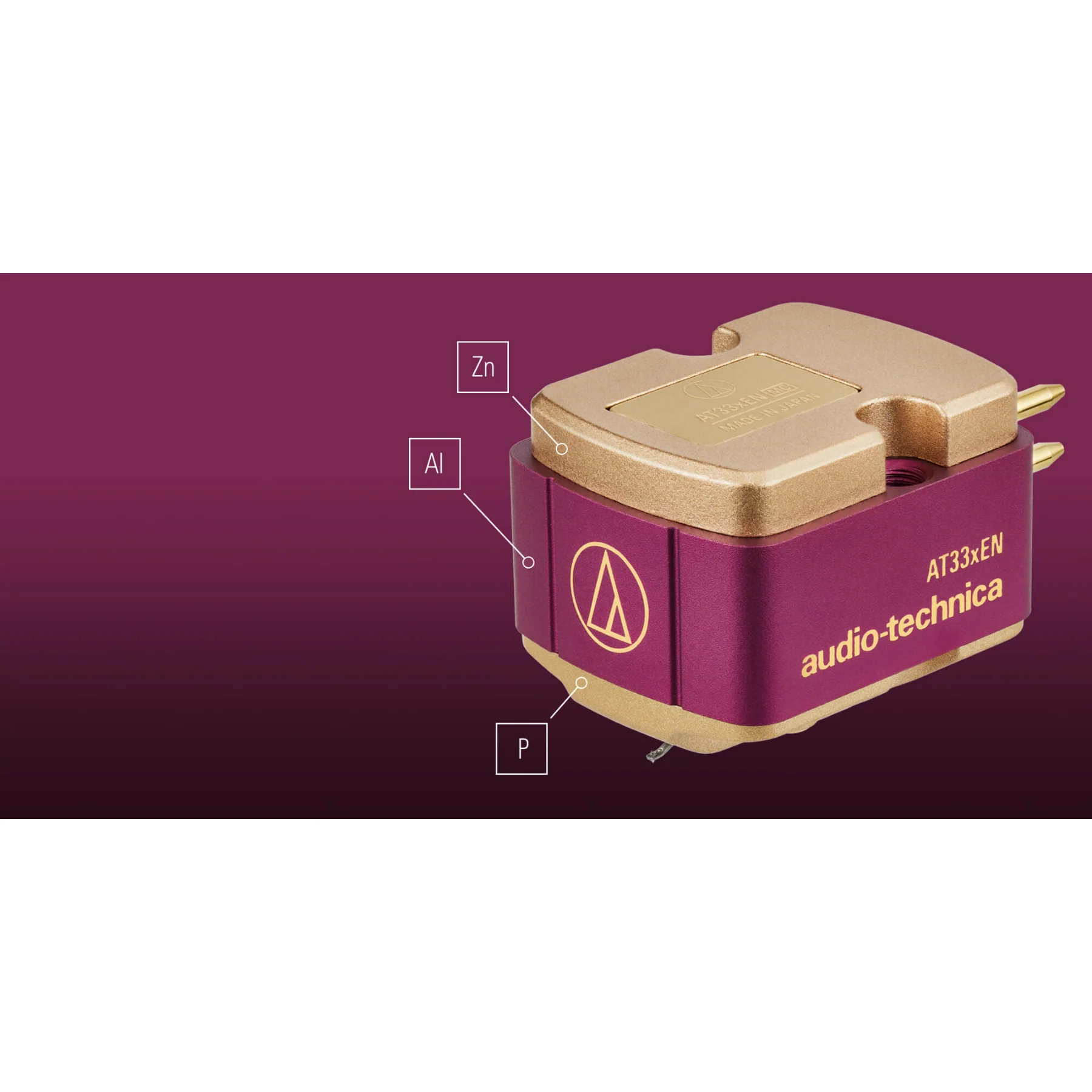

• Three-Material Cartridge Body: Combines zinc, aluminum, and polymer to minimize unwanted resonance and coloration.
• Independent Dual PCOCC Coils: Ensures clear stereo separation and clean signal transmission from groove to output.
• Advanced Suspension System: Piano-wire design reduces compliance for improved tracking and fuller low-end response.
• Threaded Mounting Holes: Makes tonearm installation faster and more secure without the need for nuts.

Q&A Section

Q: What kind of stylus does the AT33xEN use?
A: It features a nude elliptical stylus (0.3 × 0.7 mil) for excellent tracking and detailed audio playback.

Q: Is the cartridge easy to install?
A: Yes, the AT33xEN has threaded mounting holes, so no nuts are required—just screw it directly into the headshell.

Q: How does the sound compare to the AT33xMLB?
A: While the AT33xMLB offers a microlinear stylus for even more resolution, the AT33xEN provides a smoother sound with great all-around performance at a lower price.

Q: What type of preamp do I need?
A: This is a low-output moving coil cartridge (0.42 mV), so it requires an MC-compatible phono preamp or a step-up transformer.

Q: What tonearm is best suited for this cartridge?
A: It pairs well with medium to high-mass tonearms due to its dynamic compliance and suspension system.

Q: Is the cartridge body resonant?
A: No, the AT33xEN uses a multi-material body with zinc, aluminum, and polymer to reduce resonance and deliver clean audio.

Q: Where is it manufactured?
A: The AT33xEN is manufactured in Japan with precision engineering and premium materials.

Q: Can I use it with older records?
A: Yes, it works beautifully with both vintage and modern records, offering warmth and clarity across the spectrum.
