Audio Technica AT-VTAZ1 Azimuth + VTA Alignment Tool

Audio-Technica AT-VTAZ1 Azimuth + VTA Alignment Tool

Achieve precise tonearm height and cartridge alignment with the Audio-Technica AT-VTAZ1 Azimuth + VTA Alignment Tool—an essential accessory for audiophiles aiming for optimal tracking and playback geometry. This tool is designed to help you accurately set the vertical tracking angle (VTA) and azimuth of your phono cartridge, improving stereo imaging, channel balance, and overall sound quality. Whether you frequently swap between records of varying thicknesses or cartridges of different sizes, the AT-VTAZ1 ensures that your stylus sits correctly in the groove and maintains even wear. Fine-tune your setup and protect your vinyl investment with this simple yet powerful alignment solution.

Specifications

• Product Type: Cartridge and Tonearm Alignment Tool
• Function: Assists with precise VTA (Vertical Tracking Angle) and Azimuth alignment
• Compatibility: Suitable for most turntables and tonearms with adjustable height or azimuth

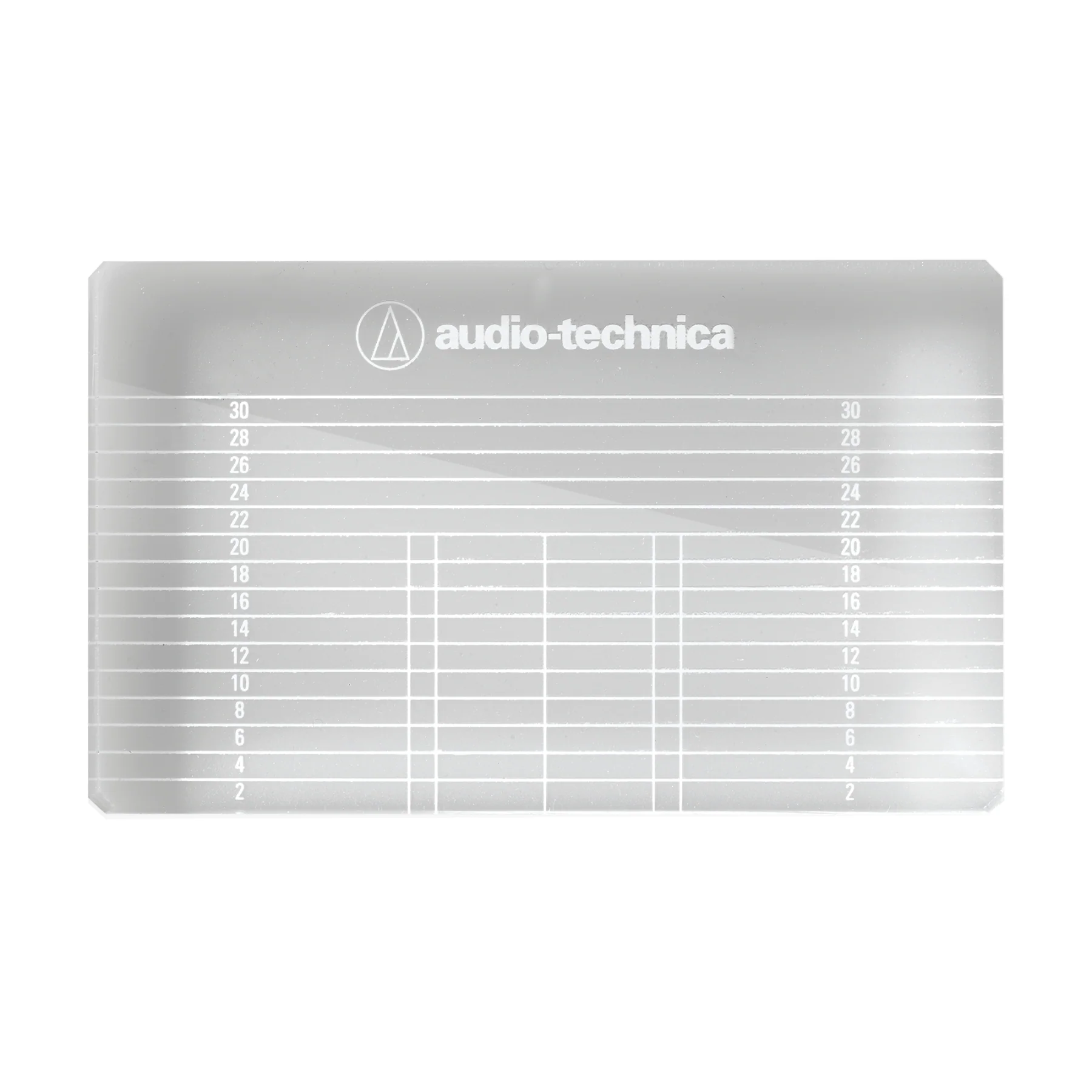

• Material: Durable, high-visibility acrylic with etched grid for accurate visual reference
• Size: Compact and easy to store in audio toolkits
• Application: Ideal for use when switching between different vinyl thicknesses or cartridges

Expanded Key Features List

• VTA Adjustment Support: Helps you align vertical tracking angle for clean playback and minimal stylus wear.
• Accurate Azimuth Setup: Ensures your stylus sits symmetrically in the groove for balanced stereo imaging.
• High-Visibility Acrylic Grid: Etched reference lines make setup quick, clear, and repeatable.
• Compatible with Multiple Turntables: Works with tonearms that feature VTA or azimuth adjustment.
• Essential for Record Thickness Variation: Fine-tune height when switching between standard and 180g vinyl.
• Compact and User-Friendly: Lightweight, durable design fits in any audio maintenance kit.

Q&A Section

Q: What is VTA and why does it matter?
A: VTA (Vertical Tracking Angle) is the angle between the stylus and the record surface. Proper VTA alignment ensures accurate tracking, balanced sound, and prevents uneven stylus wear.

Q: How does this tool help with azimuth alignment?
A: It provides a visual reference so you can align the stylus vertically in the groove, ensuring balanced stereo output and reduced distortion.

Q: Is this tool compatible with all turntables?
A: It works with most turntables that allow tonearm height or azimuth adjustments. Check your model for these capabilities.

Q: Can this help with 180-gram vinyl setup?
A: Yes, it helps adjust tonearm height to accommodate thicker records, which can slightly alter tracking geometry.

Q: Is it difficult to use?
A: Not at all—just place it near the cartridge and visually align the stylus using the etched grid as a guide.

Q: Will this improve my sound quality?
A: Proper alignment significantly improves stereo imaging, clarity, and reduces groove wear, leading to better overall sound.

Q: What is it made of?
A: It’s made of high-quality, clear acrylic with etched lines for precise, easy-to-read measurements.

Q: Do I need to use it every time I change a record?
A: No, but it's useful whenever you switch to a different thickness of vinyl or install a new cartridge.
