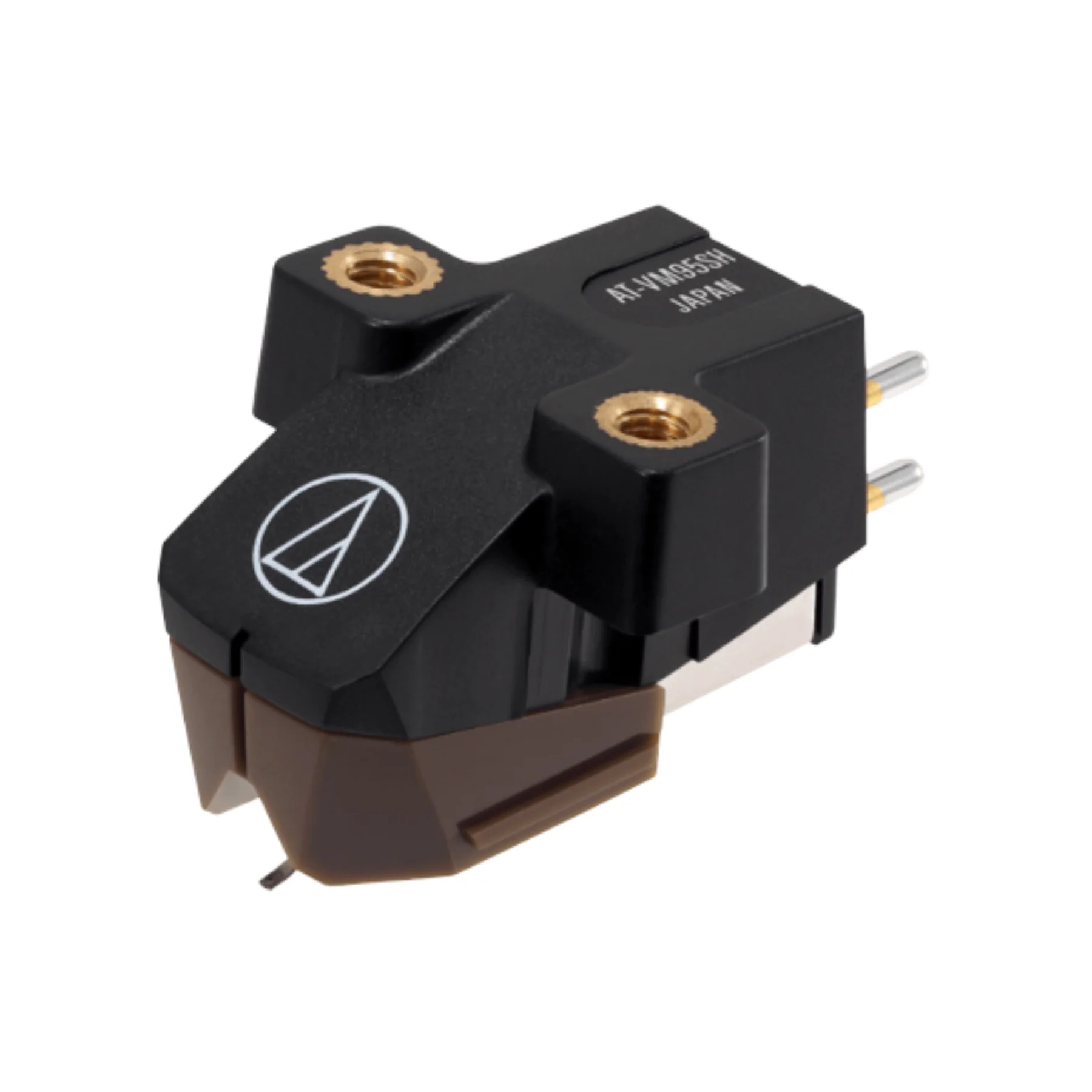

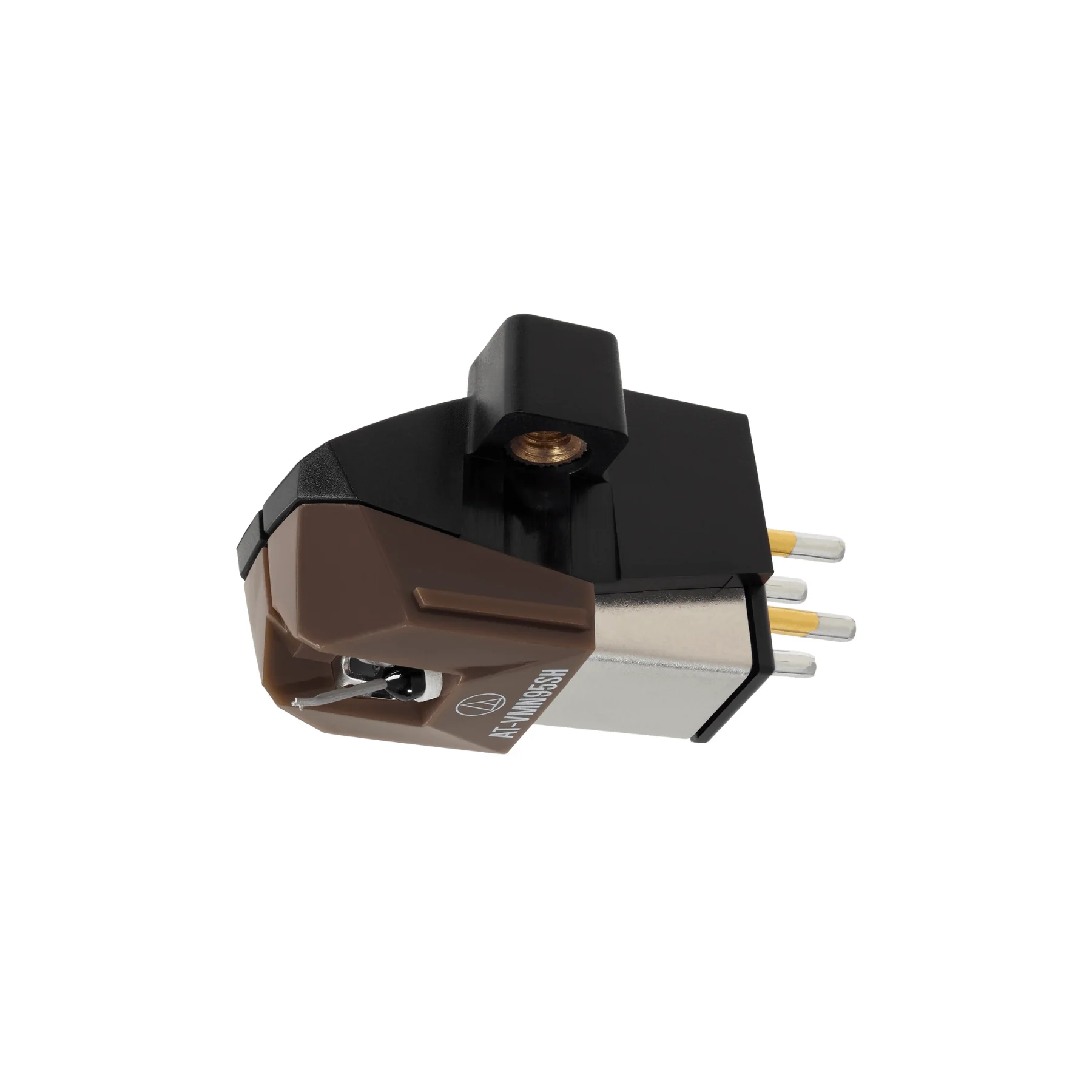

Audio Technica AT-VM95SH Dual Moving Magnet Cartridge
Audio Technica AT-VM95SH Dual Moving Magnet Cartridge
Introducing the Audio-Technica VM95 Series cartridge, featuring a 2.7 x 0.26 mil Shibata stylus designed to perfectly complement your half-inch mount turntables. With a strong emphasis on exceptional audio quality, this cartridge excels in delivering remarkable channel separation and minimal distortion, resulting in a truly outstanding tonal experience.
What sets this cartridge apart is its construction - a robust and low-resonance housing equipped with threaded inserts, making installation a breeze with just two screws, eliminating the need for nuts. Additionally, the entire VM95 Series shares the same body, allowing you to easily switch stylus options. In fact, there are six interchangeable AT-VMN95 replacement styli available, ensuring you can fine-tune your turntable to match your Hi-Fi audio preferences effortlessly.
- VM95 Series dual magnet cartridge with 2.7 x 0.26 mil Shibata stylus
- Aluminum cantilever
- Durable low-resonance polymer housing
- Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts required
- Compatible with any AT-VMN95 replacement stylus
Audio Technica AT-VM95SH Specifications:
Cartridge:
- Frequency Response: 20-25,000 Hz
- Channel Separation: 23 (dB at 1 kHz)
- Vertical Tracking Angle: 23°
- Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
- Stylus Construction: Nude square shank
- Recommended Load Impedance: 47,000 ohms
- Coil Impedance: 3.3 k ohms (1 kHz)
- DC Resistance: 485 ohms
- Coil Inductance: 550 mH (1 kHz)
- Output Voltage: 3.5 mV (1 kHz, 5 cm/sec.)
- Output Channel Balance: 1.5 dB (1 kHz)
- Stylus Shape: 2.7 x 0.26 mil Shibata
- Cantilever: Aluminum pipe
- Static Compliance: 20 x 10^–6 cm / dyne
- Dynamic Compliance: 10 x 10^–6 cm / dyne (100 Hz)
- Mounting: Half-inch
- Cartridge Weight: 6.1g
- Dimensions: 17.2 mm (0.68") H × 18.9 mm (0.74") W × 28.3 mm (1.20") D
- Accessories Included: Two 11 mm installation screws, two 8 mm installation screws, two washers, nonmagnetic screwdriver
- Model: AT-VM95SH
- Mounting Feature: Half-inch mount
- Recommended Load Capacitance: 100 to 200 pF
Replacement Stylus:
- Model: AT-VMN95SH
- Stylus Size: 2.7 x 0.26mil
- Type: VM Stereo Dual Magnet
- Weight: 6.1 g (0.22 oz)
- Wire Used for Coil: T.P. Copper
