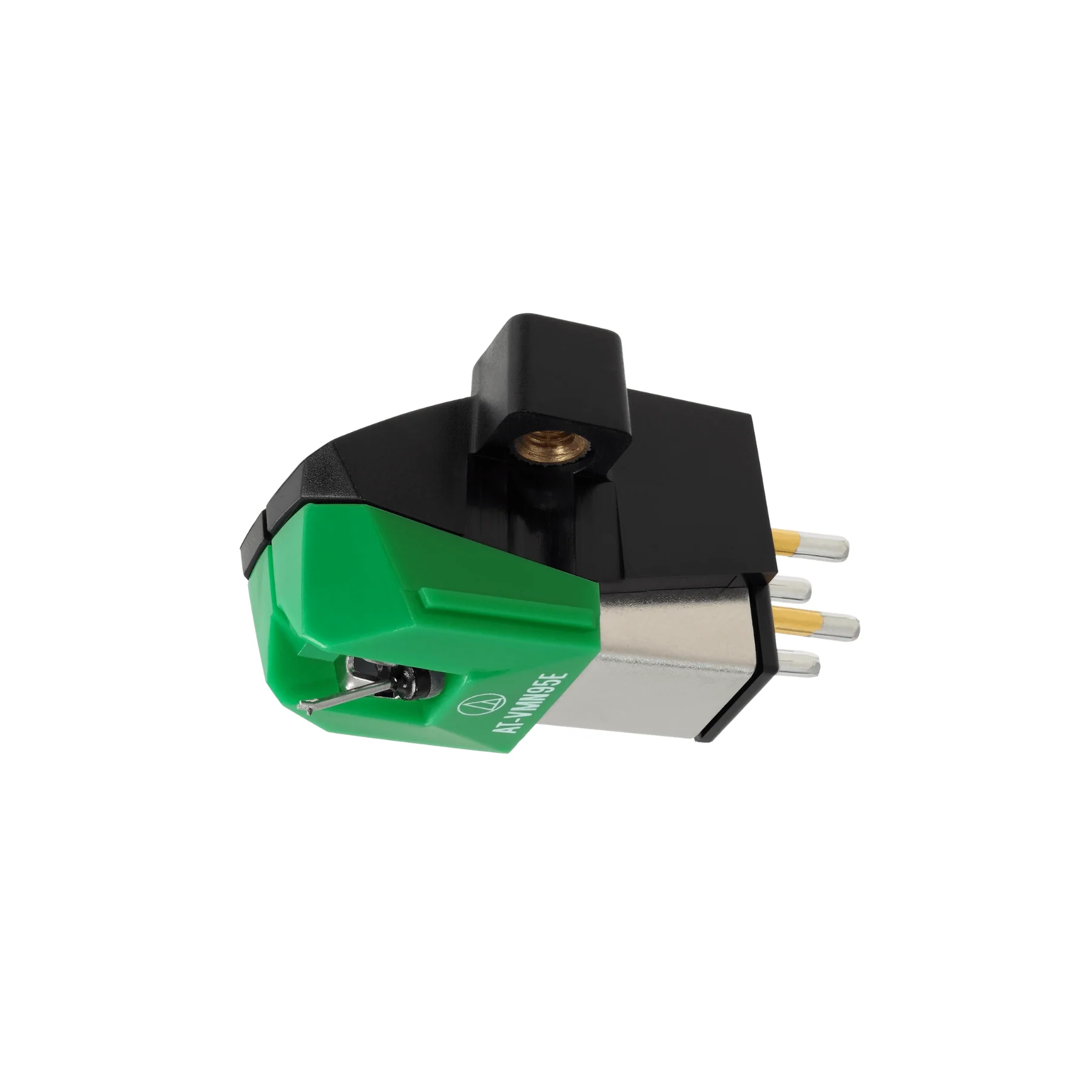

Audio Technica AT-VM95E Dual Moving Magnet Cartridge

Introducing the Audio-Technica AT-VM95E

Part of the renowned VM95 Series, featuring a dual magnet cartridge with a precision 0.3 x 0.7 mil elliptical stylus mounted on a robust aluminum cantilever. With specially wound coils that boost the output voltage to an impressive 4.0 mV, this cartridge ensures exceptional channel separation and minimal distortion, guaranteeing an exceptional listening experience. Its durable, low-resonance polymer housing incorporates threaded inserts, simplifying the mounting process to just two screws, eliminating the need for nuts. Additionally, the AT-VM95E is compatible with any AT-VMN95 replacement stylus, offering flexibility and ease of maintenance.

Cartridge Specifications:

• Frequency Response: 20-22,000 Hz
• Channel Separation: 20 dB at 1 kHz
• Vertical Tracking Angle: 23°
• Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
• Recommended Load Impedance: 47,000 ohms
• Coil Impedance: 3.3 k ohms (1 kHz)
• DC Resistance: 485 ohms
• Coil Inductance: 550 mH (1 kHz)
• Output Voltage: 4.0 mV (1 kHz, 5 cm/sec.)
• Output Channel Balance: 2.0 dB (1 kHz)

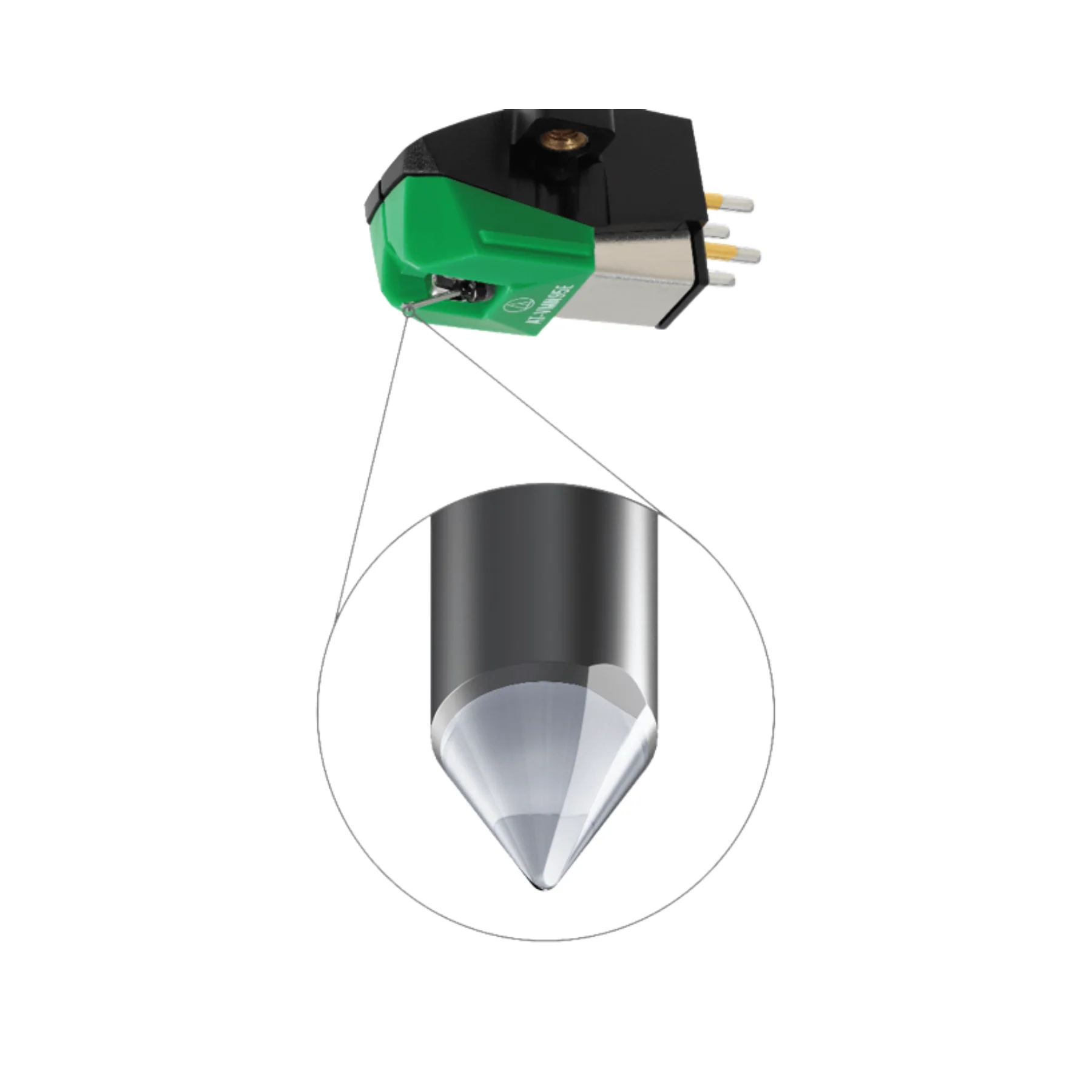

• Stylus Shape: 0.3 x 0.7 mil elliptical
• Cantilever: Aluminum pipe
• Static Compliance: 17 x 10 – 6 cm / dyne
• Dynamic Compliance: 7 x 10 – 6 cm / dyne (100 Hz)
• Mounting: Half-inch
• Cartridge Weight: 6.1g
• Dimensions: 17.2 mm (0.68") H × 18.9 mm (0.74") W × 28.3 mm (1.20") D

Stylus Specifications:

• Model: AT-VM95E
• Mounting Feature: Half-inch mount
• Recommended Load Capacitance: 100 to 200 pF
• Replacement Stylus: AT-VMN95E
• Stylus Size: 0.3 x 0.7 mil
• Type: VM Stereo Dual Magnet
• Weight: 6.1 g (0.22 oz)
• Wire Used for Coil: T.P. Copper

Accessories Included:

• Two 11 mm installation screws
• Two 8 mm installation screws
• Two washers
