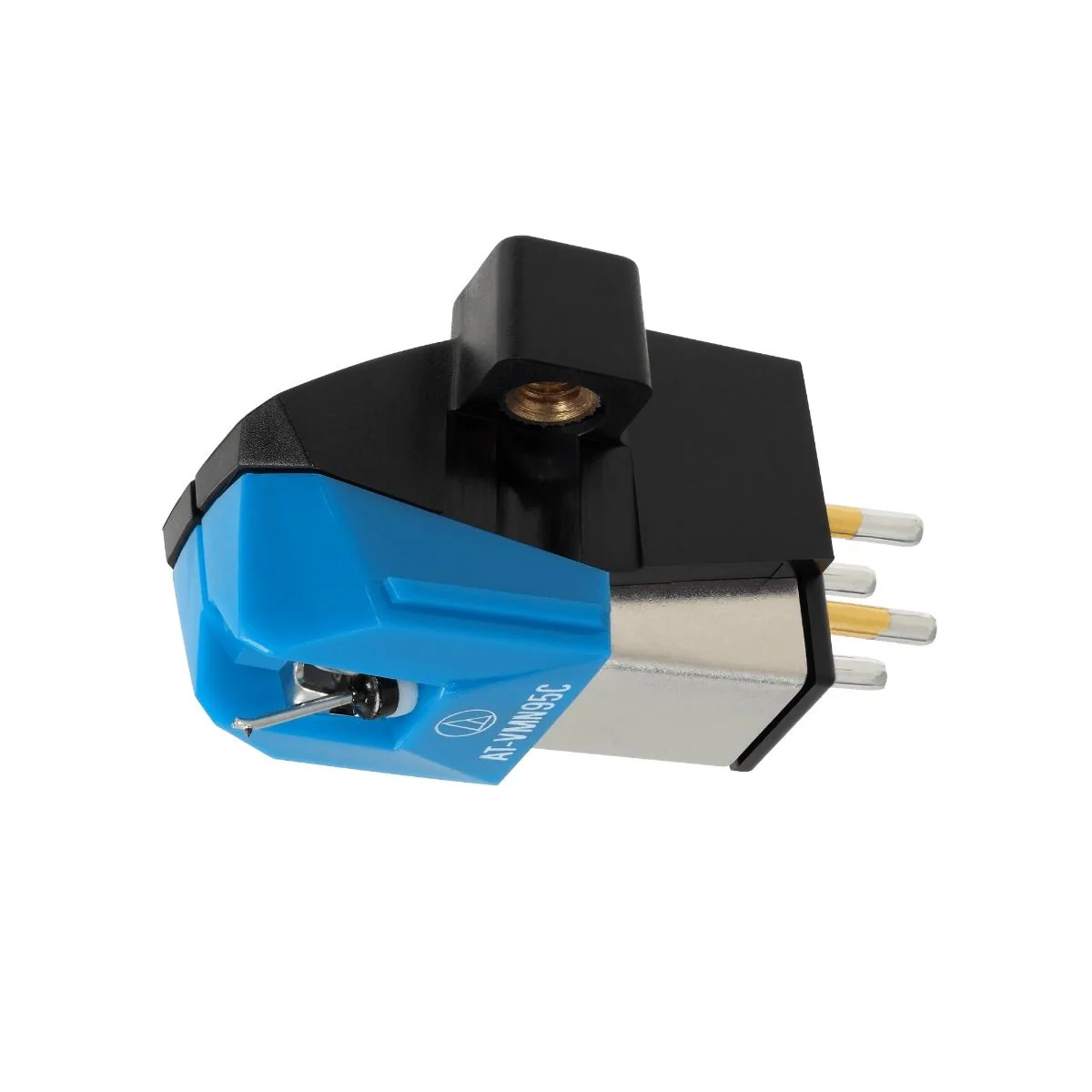

Audio Technica AT-VM95C Dual Moving Magnet Cartridge

Audio Technica AT-VM95C Dual Moving Magnet Cartridge

Meet the Audio-Technica VM95 Series cartridge, featuring a 0.6 mil conical stylus designed to seamlessly fit half-inch mount turntables. With a unique coil design, this cartridge delivers a robust output level of 4.0 mV, ensuring a powerful audio experience. Experience exceptional tonal quality through excellent channel separation and low distortion. The cartridge's durable, low-resonance housing incorporates threaded inserts, simplifying the mounting process to the headshell with just two screws – no nuts required. Adding to the convenience, all VM95 Series cartridges share the same body, allowing for easy stylus replacement with any of the six interchangeable AT-VMN95 replacement styli. Upgrade your turntable experience with precision and versatility.

Audio Technica AT-VM95C Dual Moving Magnet Cartridge Specs

• Frequency Response: 20-20,000 Hz
• Channel Separation: 18 dB at 1 kHz
• Vertical Tracking Angle: 23°
• Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
• Stylus Construction: Bonded round shank
• Recommended Load Impedance: 47,000 ohms
• Coil Impedance: 3.3 k ohms (1 kHz)
• DC Resistance: 485 ohms
• Coil Inductance: 550 mH (1 kHz)
• Output Voltage: 4.0 mV (1 kHz, 5 cm/sec.)
• Output Channel Balance: 2.5 dB (1 kHz)
• Stylus Shape: 0.6 mil conical
• Cantilever: Aluminum pipe
• Static Compliance: 17 x 10 – 6 cm/dyne
• Dynamic Compliance: 6.5 x 10 – 6 cm/dyne (100 Hz)
• Mounting: Half-inch
• Cartridge Weight: 6.1g
• Dimensions: 17.2 mm (0.68") H × 18.9 mm (0.74") W × 28.3 mm (1.20") D
• Accessories Included: Two 11 mm installation screws, two 8 mm installation screws, two washers
• Model: AT-VM95C
• Mounting Feature: Half-inch mount
• Recommended Load Capacitance: 100 to 200 pF
• Replacement Stylus: AT-VMN95C
• Stylus Size: 0.6 mil
• Type: VM Stereo Dual Magnet
• Weight: 6.1 g (0.22 oz)
• Wire Used for Coil: T.P. Copper
