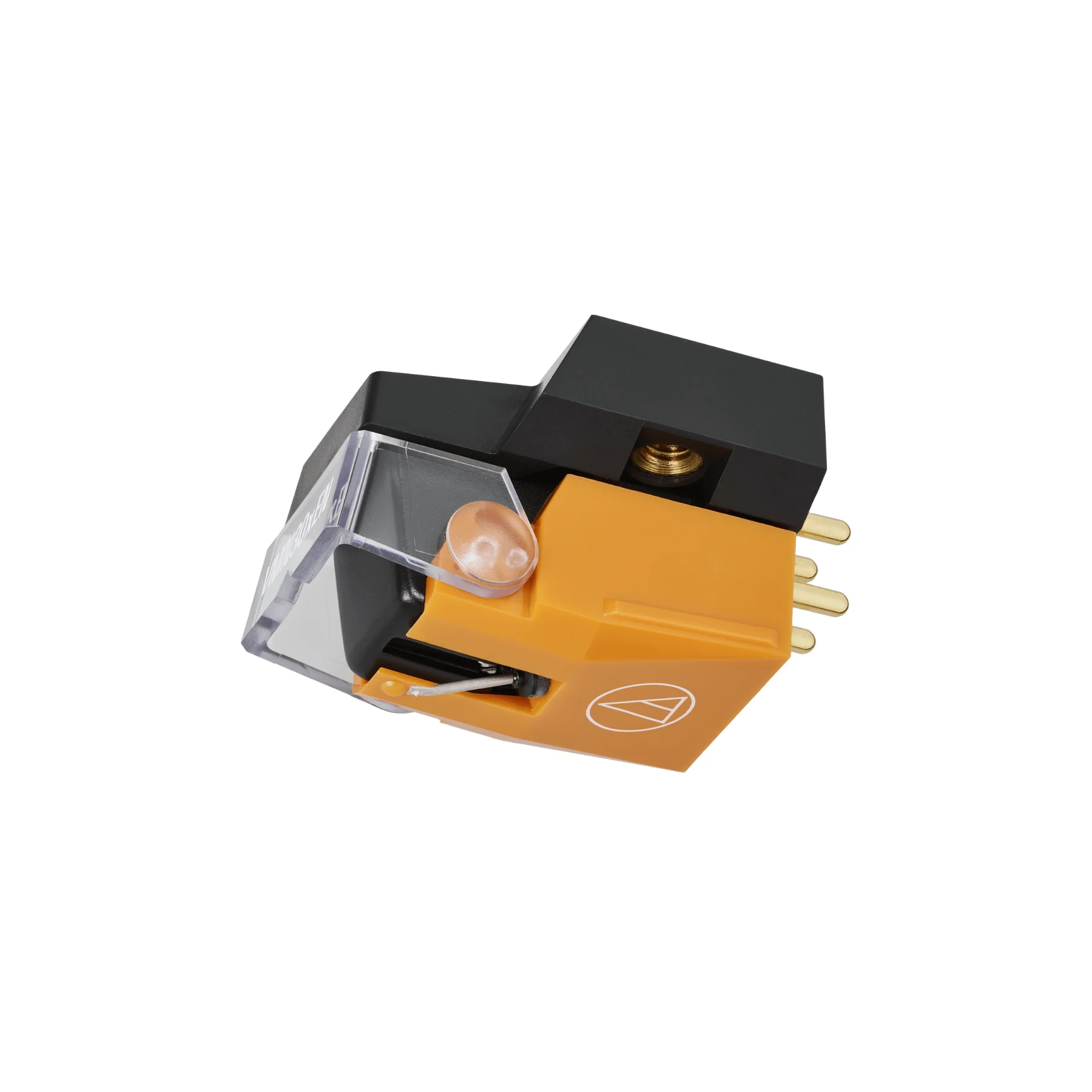

Audio Technica AT-VM530xEN Moving Magnet Cartridge

Audio Technica AT-VM530xEN Moving Magnet Cartridge

Elevate your vinyl listening experience with the AT-VM530xEN, a precision-engineered dual moving magnet cartridge designed to deliver lifelike audio with remarkable clarity. Featuring a lightweight 0.3 x 0.7 mil elliptical nude stylus, PCUHD copper coils, and paratoroidal coil construction, this cartridge offers an expansive stereo soundstage with exceptional channel separation and transient response. Its aluminum cantilever and low-resonance polymer housing ensure reduced distortion and improved groove tracking. The AT-VM530xEN also boasts threaded inserts for simple installation and a redesigned V-cut stylus protector, making it an ideal upgrade for audiophiles and vinyl enthusiasts alike.

Specifications

• Model: AT-VM530xEN
• Type: Dual Moving Magnet (VM)

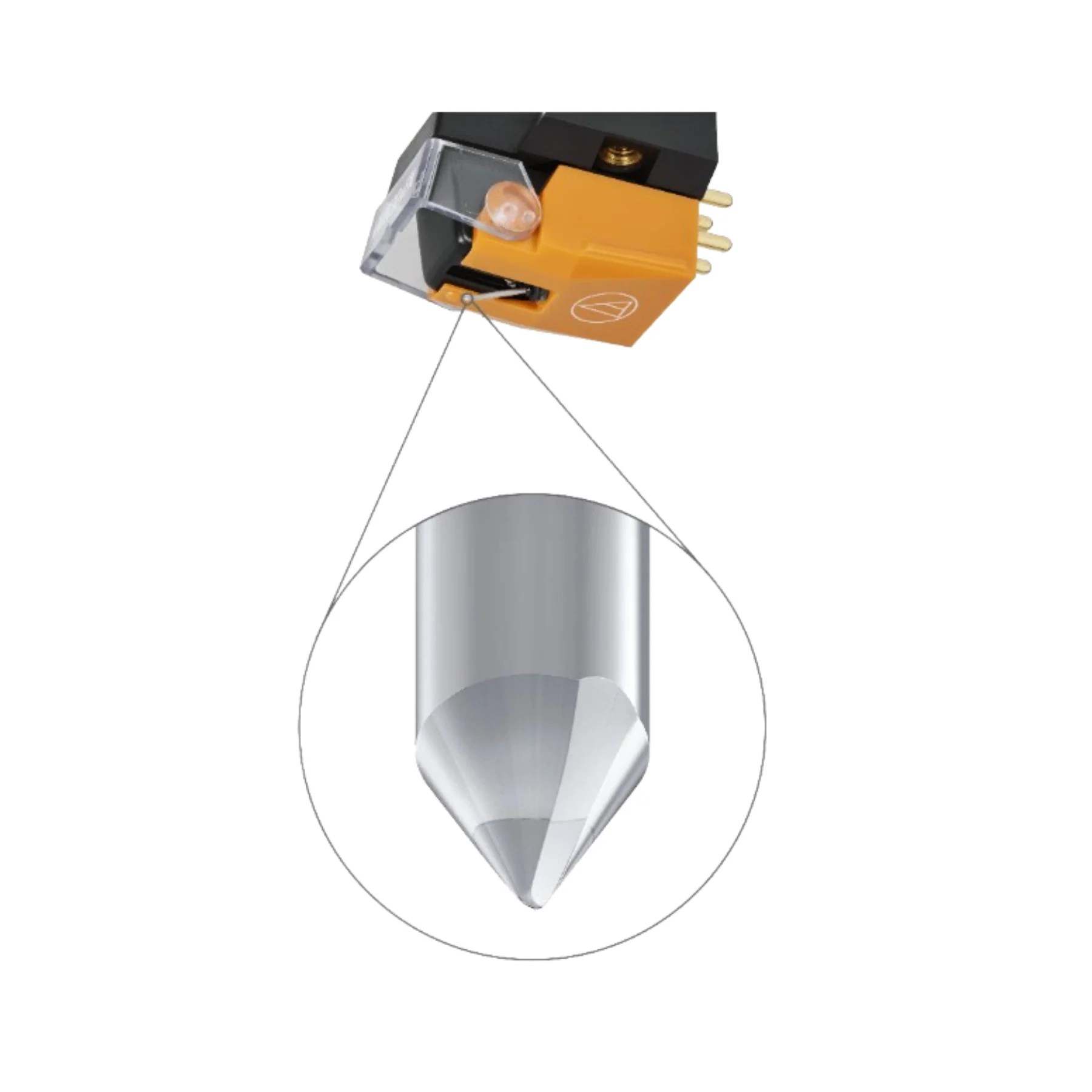

• Stylus Type: 0.3 x 0.7 mil elliptical nude stylus
• Cantilever: Aluminum pipe
• Body Material: Low-resonance polymer
• Frequency Response: 20 – 25,000 Hz
• Channel Separation: 25 dB (1 kHz)
• Vertical Tracking Angle: 20°
• Tracking Force: 1.8 – 2.2 g (2.0 g recommended)
• Output Voltage: 3.2 mV (1 kHz, 5 cm/sec.)
• Coil Impedance: 3.2 kΩ (1 kHz)
• DC Resistance: 750 ohms
• Coil Inductance: 480 mH (1 kHz)
• Output Balance: 1.5 dB (1 kHz)
• Static Compliance: 23 × 10⁻⁶ cm/dyne
• Dynamic Compliance: 7 × 10⁻⁶ cm/dyne (100 Hz)
• Recommended Load Impedance: 47 kΩ
• Recommended Load Capacitance: 150 – 250 pF
• Mount Type: Standard 1/2" mount with M2.6 threaded inserts
• Weight: 7.2 g (0.25 oz)
• Dimensions: 28.0 x 18.3 x 17.6 mm (H x W x D)
• Included Accessories: Installation screws (10 mm, 8 mm, 5 mm) x2 each, 2 washers
• Replacement Stylus: AT-VMN30xEN (sold separately)

Key Features List

• Elliptical Nude Stylus: The low-mass stylus tip provides superior tracking accuracy and reduced distortion across the frequency spectrum.
• PCUHD Copper Coils: Pure copper ultra-high drawability wires increase conductivity and audio purity for a more vibrant, nuanced sound.
• Efficient Generator Design: Dual stacked coils in paratoroidal configuration minimize crosstalk and deliver clean, well-separated stereo imaging.
• Easy Installation: Built-in threaded inserts eliminate the need for nuts, simplifying mounting, especially on integrated tonearms.
• Stylus Protector with V-Cut: A small V-shaped guide on the protector helps you align the stylus for precise cueing on records.
• Styli Compatibility: Upgrade or experiment with various VMx styli (except mono) for different sonic characteristics or replacement needs.

Q&A Section

Q: What turntables is the AT-VM530xEN compatible with?
A: It fits any turntable with a standard 1/2" cartridge mount.

Q: What is special about the nude elliptical stylus?
A: It’s lighter and more precise than bonded tips, resulting in better tracking and less distortion.

Q: Can I replace the stylus?
A: Yes, it's compatible with most VMx series styli (excluding mono models), including the AT-VMN30xEN.

Q: How does the PCUHD copper improve sound?
A: It enhances signal conductivity and clarity, providing a cleaner, more accurate audio response.

Q: What tools do I need to install it?
A: Just a screwdriver—thanks to the threaded inserts, no mounting nuts are required.

Q: Is this cartridge good for all music genres?
A: Absolutely. Its dynamic range and detailed reproduction suit everything from classical to rock and jazz.

Q: What is the recommended tracking force?
A: Use 2.0 grams for optimal performance, though it can operate within 1.8 – 2.2 grams.

Q: How does it compare to bonded stylus cartridges?
A: The nude stylus is lighter and more sensitive, resulting in less groove wear and higher fidelity playback.
