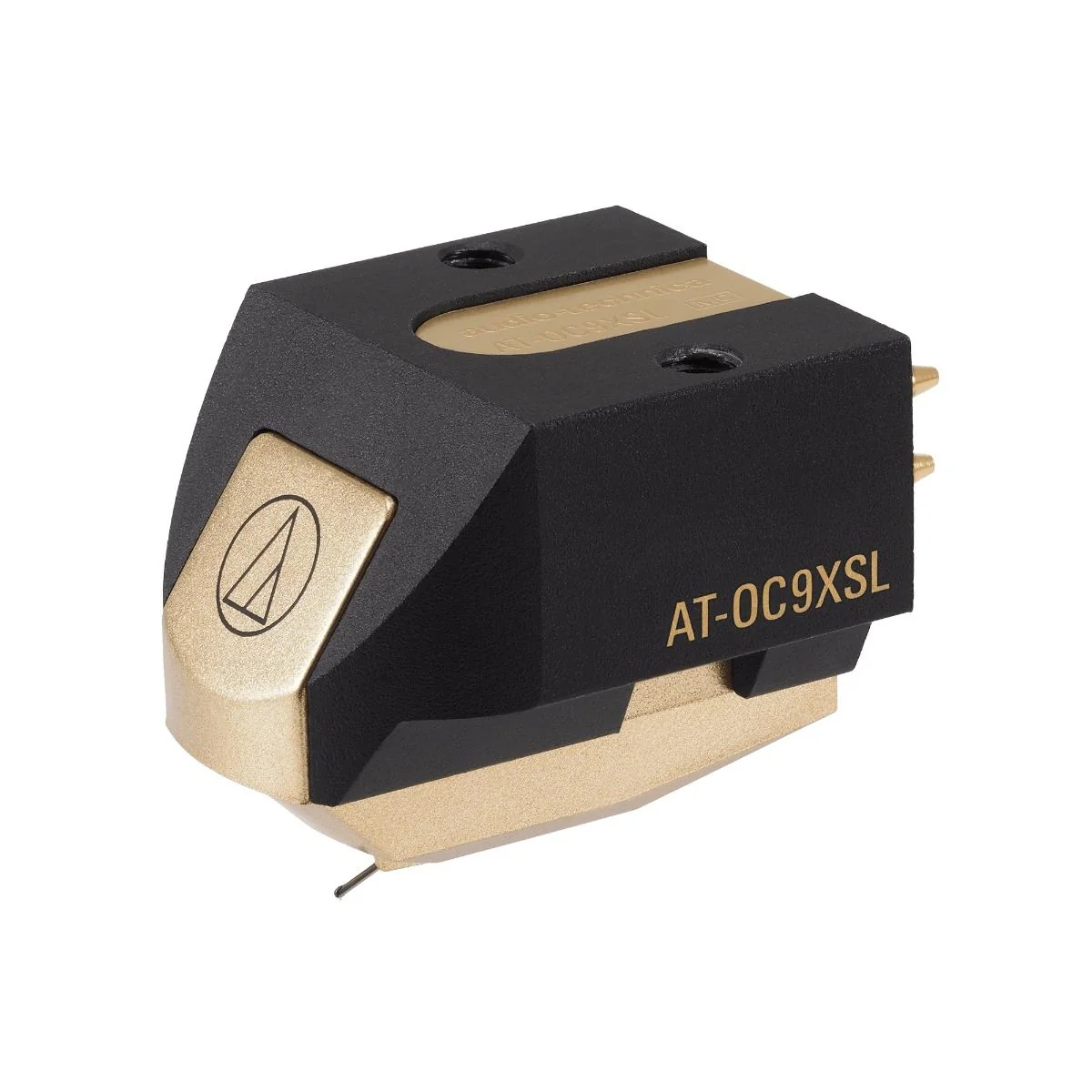

Audio Technica AT-OC9XSL Dual Moving Coil Cartridge
Audio Technica AT-OC9XSL Dual Moving Coil Cartridge
Introducing the AT-OC9XSL Dual Moving Coil cartridge by Audio-Technica, featuring a specialized line contact stylus for exceptional channel separation. Crafted with Pure Copper by Ohno Continuous Casting (PCOCC) coils arranged in a reverse V-shaped formation, this design minimizes pressure on the stylus, reducing distortion and ensuring pure audio transmission.
The cartridge's audio quality is elevated through a rigid aluminum body, effectively minimizing resonance. Additionally, a neodymium magnet and premium permendur yoke significantly enhance magnetic energy. The nude special line contact stylus, mounted on a boron cantilever, meticulously tracks the record groove with unparalleled accuracy. The result is a rich, full-range audio experience with high transient response.
For added convenience, the cartridge body comes pre-threaded, allowing easy mounting to a headshell or integral tonearm with just two screws, eliminating the need for nuts.
Audio Technica AT-OC9XSL Dual Moving Coil Cartridge Features
- Dual Moving Coil design ensures independent coils for both left and right channels, delivering outstanding channel separation.
- Coils aligned in a reverse V-shaped formation reduce stylus pressure, minimizing distortion.
- Pre-threaded cartridge body for easy mounting onto the headshell or integral tonearm with just two screws – no nuts required.

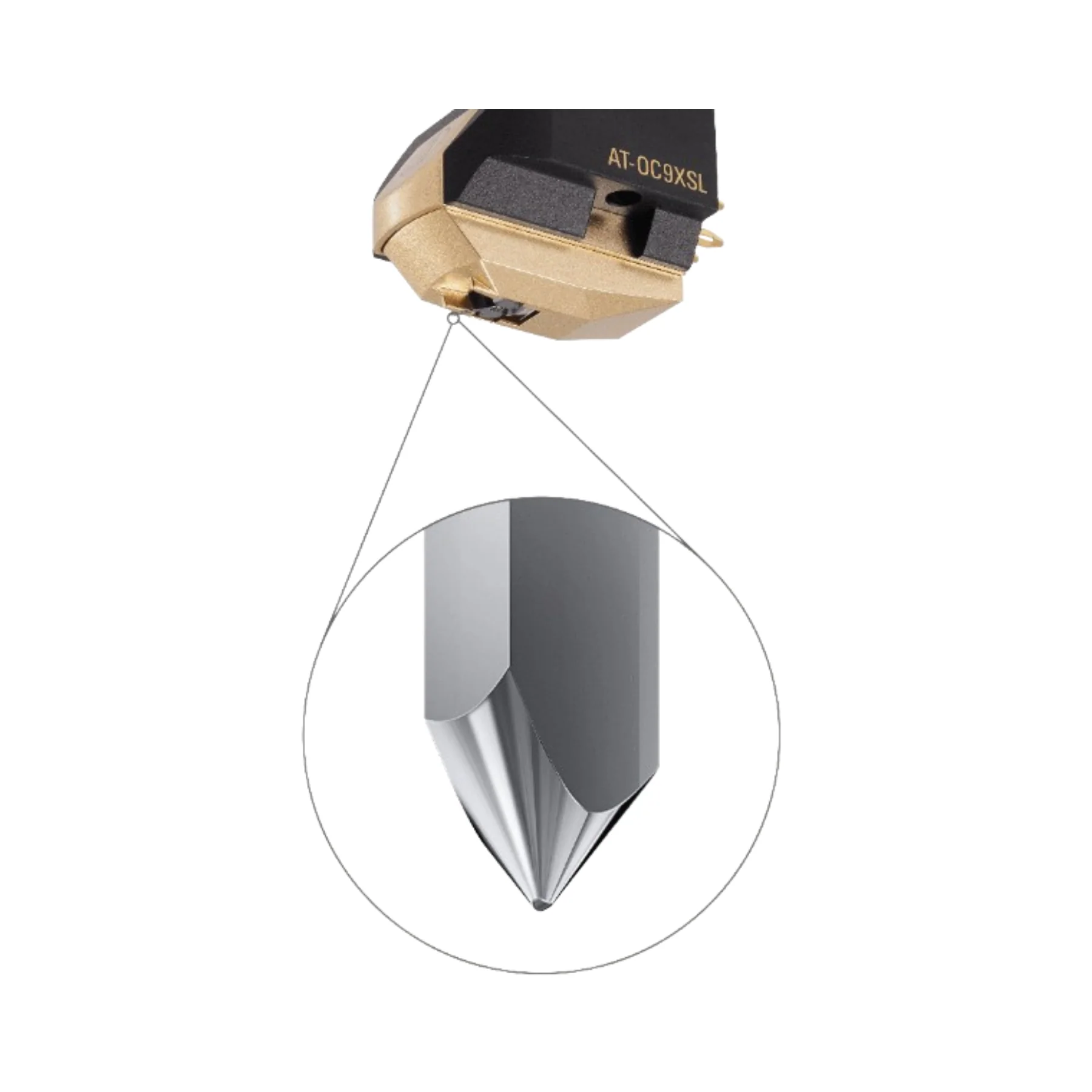

- Features a nude Special Line Contact stylus and boron cantilever, providing accurate tracking and high transient response.
- Neodymium magnet and permendur yoke significantly increase magnetic energy.
- Rigid aluminum body minimizes unwanted vibration, reducing resonance and enhancing audio reproduction.
- Pure Copper by Ohno Continuous Casting process (PCOCC) used for coils, ensuring pure signal transfer.
Audio Technica AT-OC9XSL Dual Moving Coil Cartridge Specifications
- Frequency Response: 20-50,000 Hz
- Channel Separation: 28 dB (1 kHz)
- Vertical Tracking Angle: 20°
- Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
- Stylus Construction: Nude rectangular shank
- Recommended Load Impedance: Min. 100 ohms (when head amplifier is connected)
- Coil Impedance: 12 ohms (1 kHz)
- DC Resistance: 12 ohms
- Coil Inductance: 25 mH (1 kHz)
- Output Voltage: 0.4 mV (at 1 kHz, 5 cm/sec)
- Output Channel Balance: 0.5 dB (1 kHz)
- Stylus Shape: Special Line Contact
- Cantilever: 0.28 mm diameter nude boron
- Static Compliance: 22 x 10-6 cm/dyne
- Dynamic Compliance: 18 x 10-6 cm/dyne (100 Hz)
- Mounting: Half-inch
- Cartridge Weight: 7.6 g
- Dimensions: 17.3 mm (0.68") H × 16.8 mm (0.66") W × 25.7 mm (1.01") D

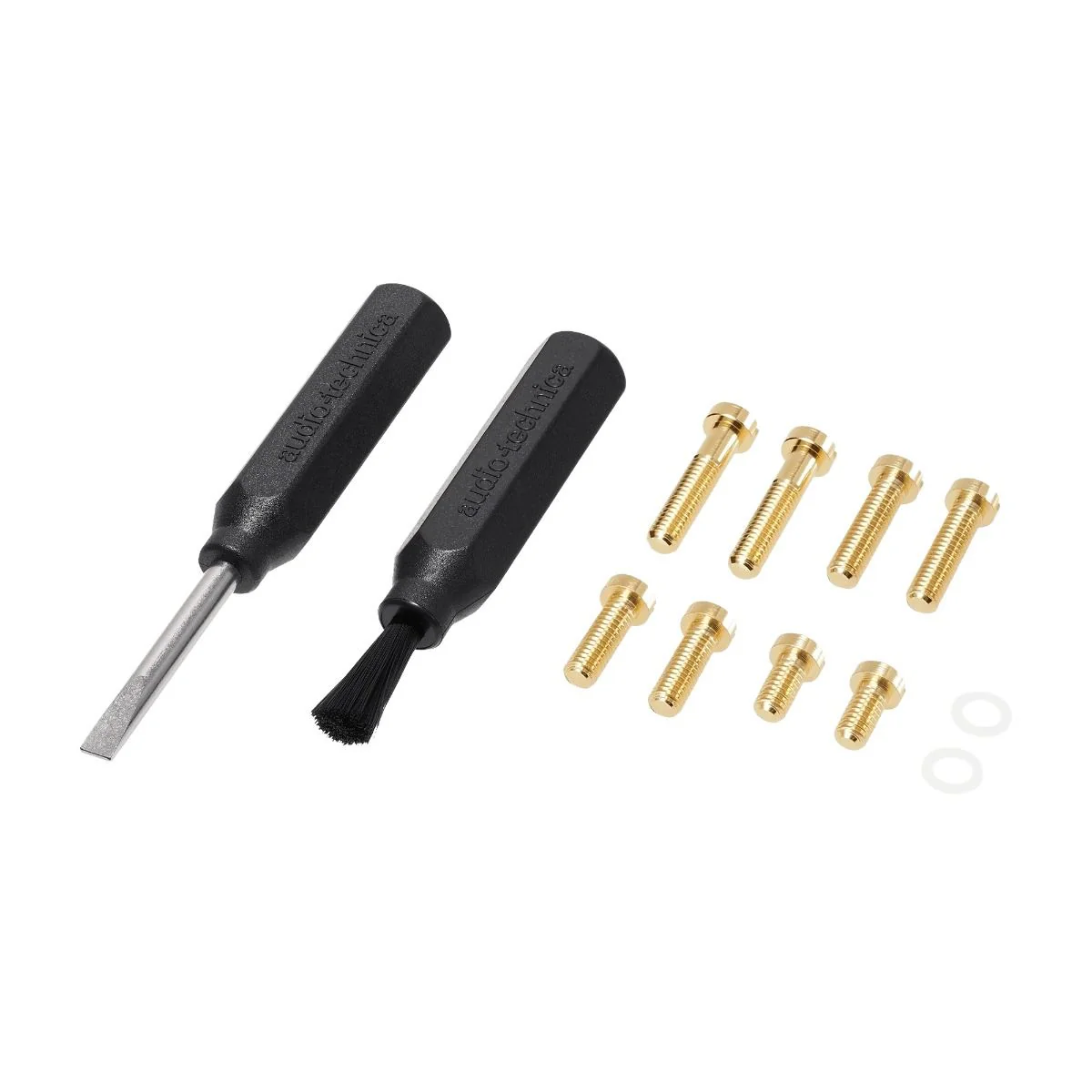

- Accessories Included: Non-magnetic screwdriver; 2 washers; cartridge installation screws (5 mm × 2, 8 mm × 2, 10 mm x 2, 12 mm x 2); plastic protector; brush
- Body Material: Aluminum
- Model: AT-OC9XSL
- Mounting Feature: Half-inch mount
- Stylus Curvature Radius: 1.5 x 0.28 mil
- Stylus Size: Nude rectangular shank
- Terminal Pins: Brass
- Type: Dual Moving Coil
- Weight: 7.6 g (0.3 oz)
- Wire Used for Coil: PCOCC
- Notes: Mounting Feature: Threaded body Note: moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable.
User Manual
