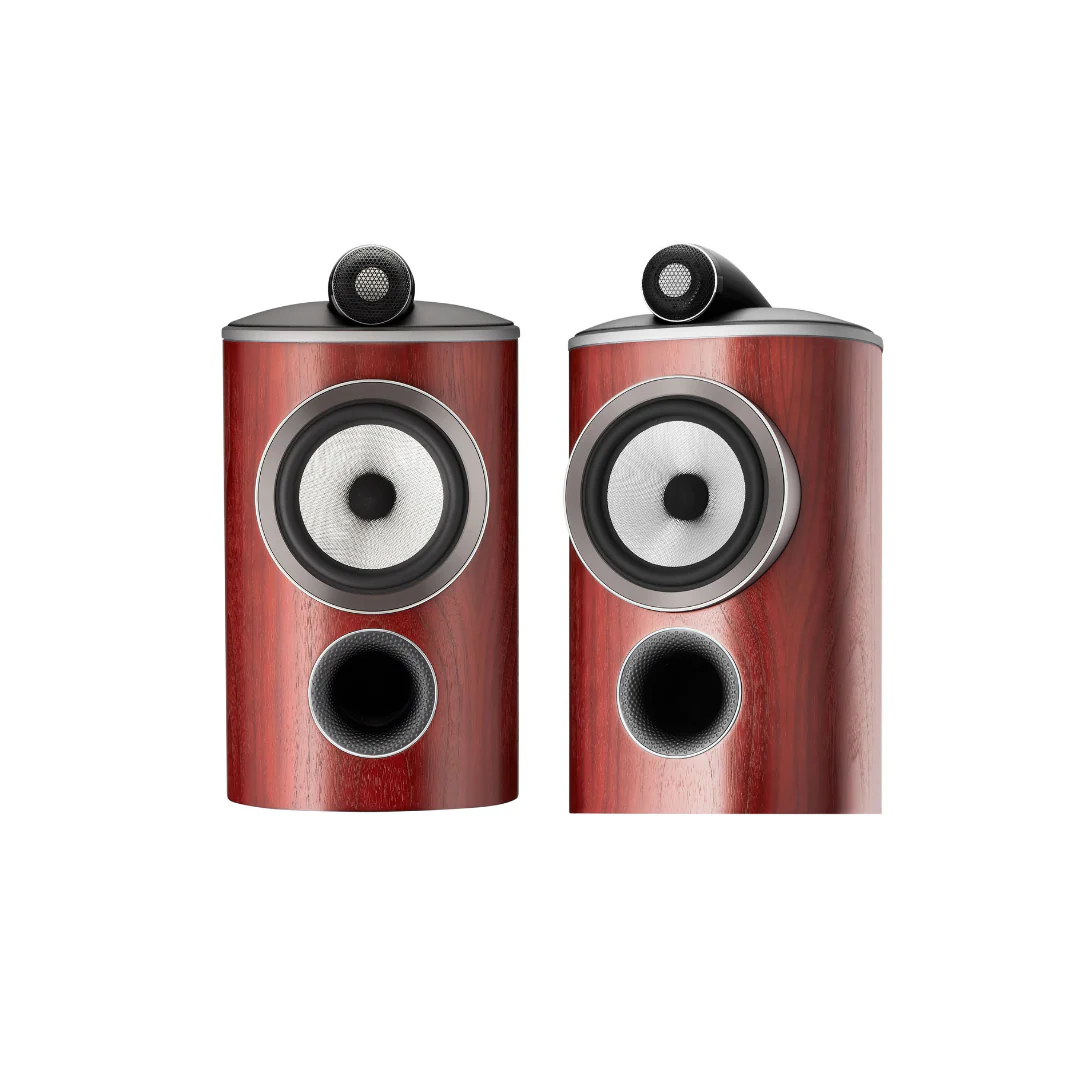

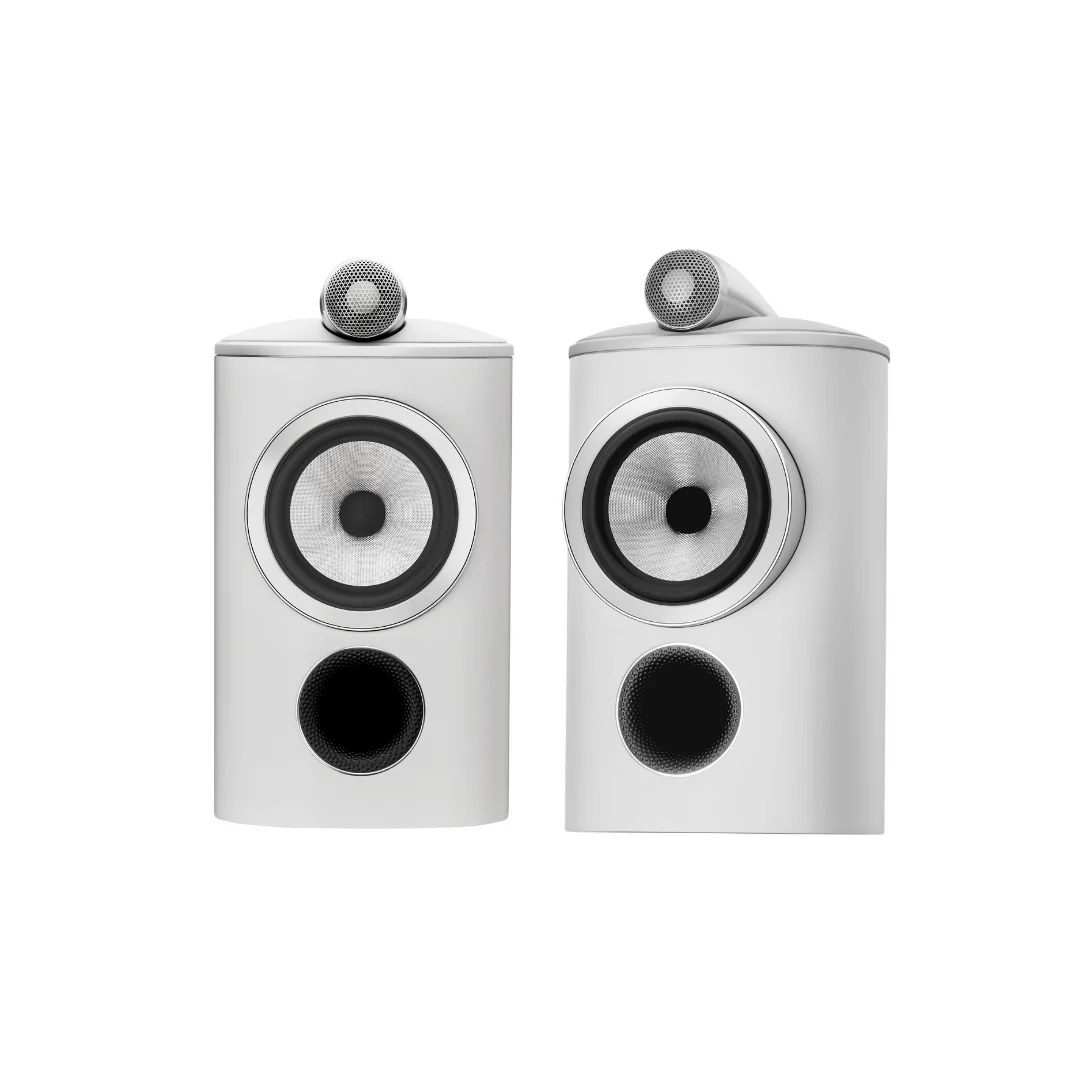

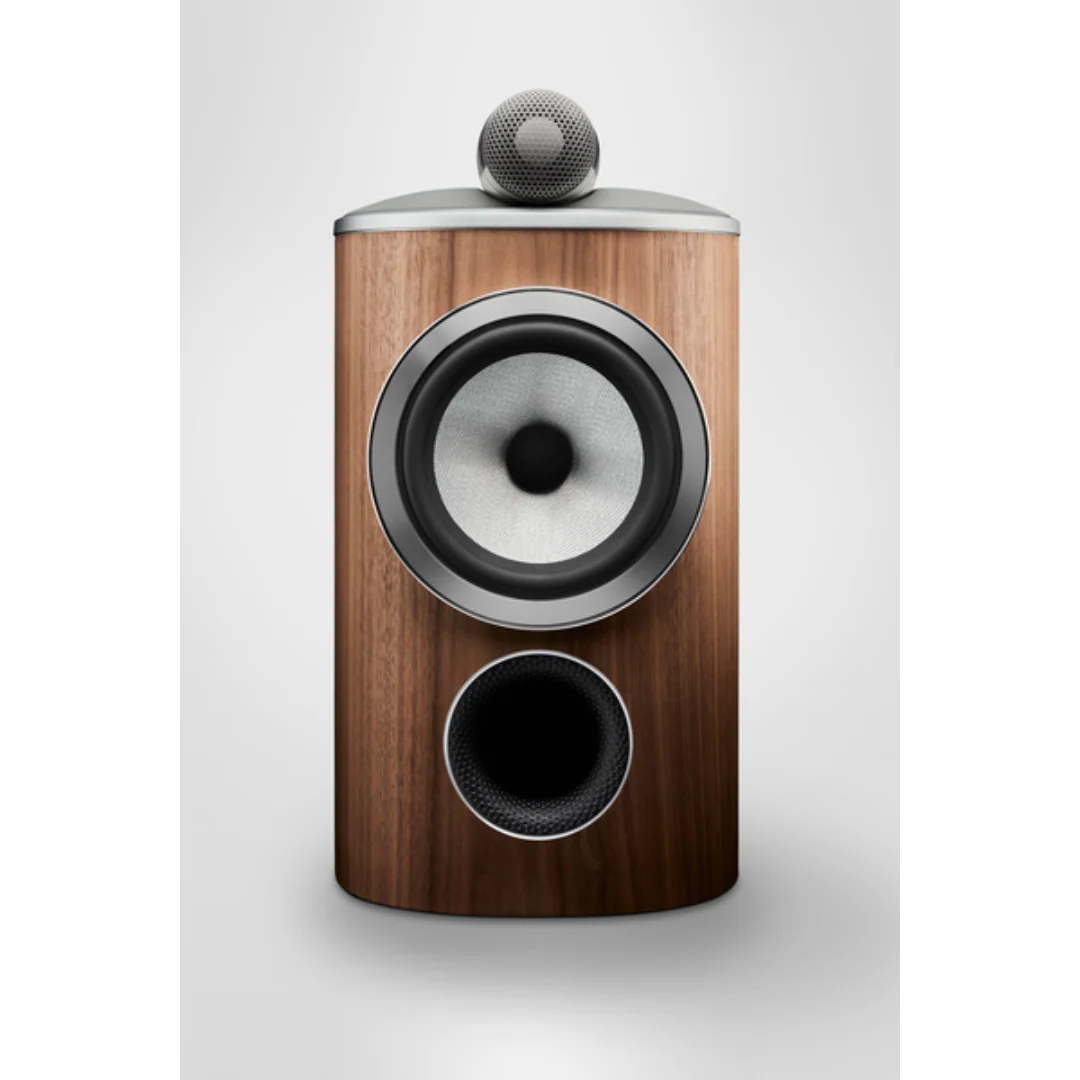

Bowers & Wilkins 805 D4 Stand-mount Speaker Pair

Bowers & Wilkins 805 D4 Standmount Loudspeakers: Experience Excellence, Evolved

The Bowers & Wilkins 805 D4 standmount loudspeaker represents the culmination of Bowers & Wilkins' expertise in crafting high-fidelity audio experiences. Each generation of the 800 Series Diamond marks a significant advancement, and the 805 D4 is no exception. Despite being the most compact model in the series, it integrates an array of cutting-edge technologies to deliver exceptional sound quality.

Unmatched Sonic Performance

• Solid Body Tweeter-on-Top™: This innovation creates an incredibly free and open soundscape, particularly in the high frequencies. The meticulously decoupled housing, milled from a solid block of aluminum, minimizes resonance for pristine audio.
• Matrix™: This bracing system utilizes interlocking panels to reinforce the cabinet walls internally in all directions. This significantly reduces resonance and fosters a more realistic soundstage.
• Diamond Dome Tweeter: The exceptional stiffness-to-lightness ratio of diamond makes it the ideal tweeter material. B&W's diamond domes deliver unparalleled acoustic detail, unmatched naturalism, and a spacious sound character.
• Continuum™ cone: This innovative cone avoids the abrupt performance shifts that can plague conventional drive units. The result is a more open, neutral performance that reproduces voices and instruments with remarkable precision and transparency.

Advanced Engineering for Uncompromised Audio

• Aluminum Top-Plate: Every 800 Series Diamond speaker boasts a significantly upgraded cabinet design, featuring a completely new aluminum top section for enhanced rigidity. This design also provides a perfect platform for the luxurious black leather or light gray leather cabinet detailing by Connolly.
• Rear-Mounted Crossover: The 800 Series Diamond line now features rear-mounted crossovers, housed on sturdy aluminum spines. This isolates sensitive capacitors from air pressure variations within the enclosure and functions as a highly effective heatsink for optimal performance during use.
• Reverse Wrap Cabinet: Instead of a conventional flat-fronted speaker with a curved back, Bowers & Wilkins utilizes a single, continuous curve cabinet design secured by a solid aluminum spine. This minimizes junctions for a more rigid and inert structure. The curved front minimizes baffle diffraction around the drive units, resulting in improved sound dispersion and reduced cabinet reflection.

The Bowers & Wilkins 805 D4 standmount loudspeakers are the embodiment of cutting-edge technology and acoustic mastery. They are a perfect choice for discerning audiophiles seeking an unparalleled listening experience.

Bowers & Wilkins 805 D4 Specifications

Net Weight:

• 15.55 kg (34.3 lb)

Dimensions:

• Height: 440mm (17.3 in)
• Width: 240mm (9.4 in)
• Depth: 373mm (14.7 in)

Technical Details:

• Technical Features:

  • Diamond tweeter
  • Solid body Tweeter-on-Top
  • Continuum™ cone bass/mid
  • Matrix™
  • Anti-Resonance plug
  • Flowport

• Description:

  • 2-way vented-box system

• Drive Units:

  • 1x ø25mm (1in) Diamond dome high-frequency
  • 1x ø165mm (6.5in) Continuum cone bass midrange

• Frequency Range:

  • 34Hz to 35kHz

• Frequency Response:

  • 42Hz to 28kHz (+/-3dB from reference axis)

• Sensitivity:

  • 88dB (on axis at 2.83Vrms at 1m)

• Harmonic Distortion:

  • 2nd and 3rd harmonics (90dB, 1m on axis)
    • <1% 90Hz – 20kHz
    • <0.3% 120Hz – 20kHz

• Nominal Impedance:

  • 8Ω (minimum 4.6Ω)

• Recommended Amplifier Power:

  • 50W – 120W into 8Ω on unclipped programme

• Max Recommended Cable Impedance:

  • 0.1Ω
• Stands (Not Included):

• • FS-805D4
