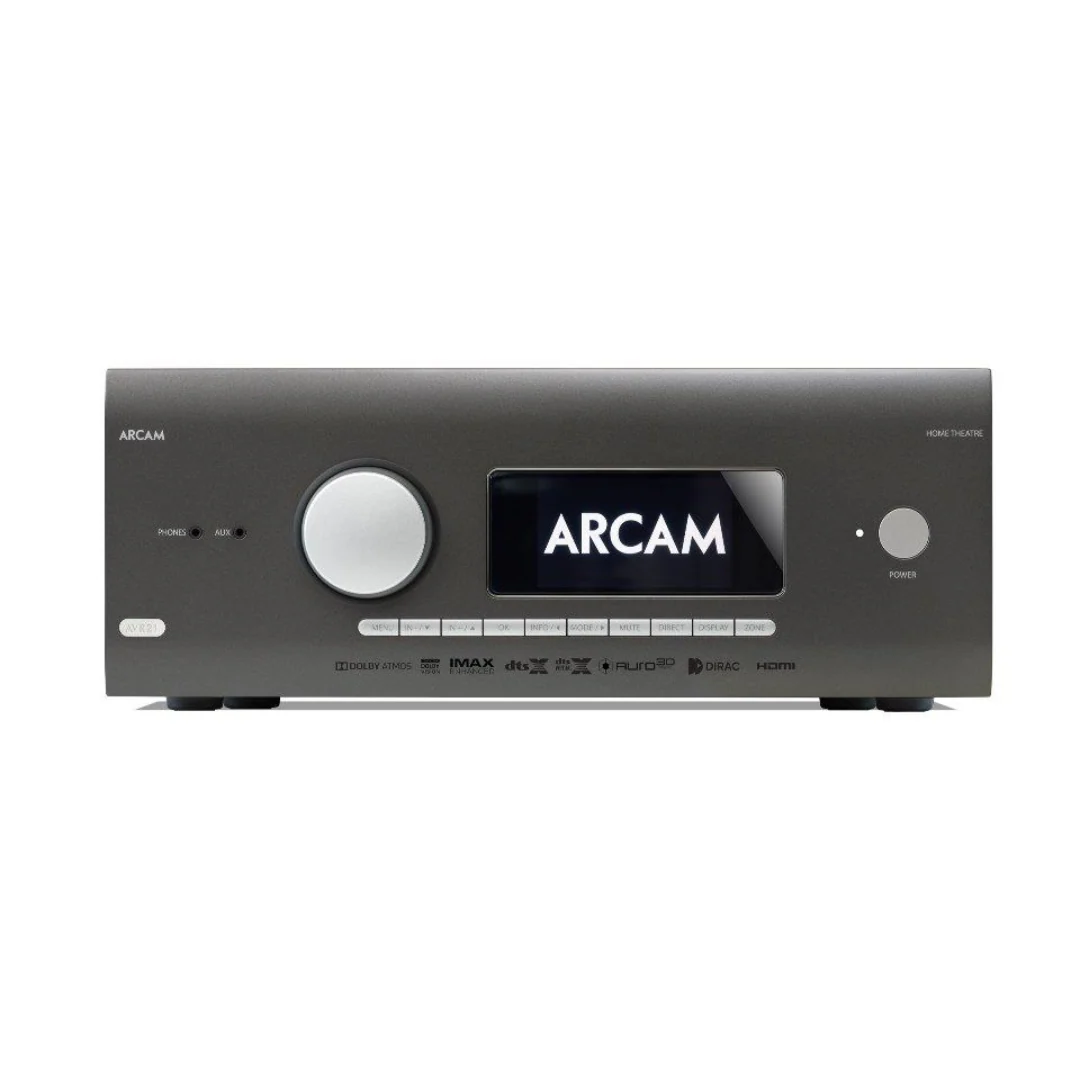

Arcam AVR21 Receiver 7-channel Class AB home Cinema Hub

Meet the Arcam AVR21 Receiver - a 7-channel Class AB home cinema hub that marries audiophile finesse with blockbuster dynamics. With native 16-channel decoding for Dolby Atmos, DTS:X, and Auro-3D, dual ESS 9026PRO DACs, and HDMI 2.1 on every input (supporting 8K/60 and 4K/120), it’s built for today’s best movies and next-gen consoles. Dirac Live Full Bandwidth room correction is included for precise imaging and tight, powerful bass; add Dirac Live Bass Control for multi-sub systems. Streaming is seamless with AirPlay 2, Chromecast built-in, Bluetooth aptX HD, Spotify Connect, Tidal Connect, UPnP, and Roon Ready support. Thoughtful touches - eARC, three HDMI outputs (incl. Zone 2), and installer-friendly control - make the AVR21 the sweet spot in Arcam’s lineup.

Arcam AVR21 Q&A:

Does the AVR21 support 8K and 4K/120 for gaming?: Yes. All HDMI inputs are HDMI 2.1 with HDCP 2.3, supporting 8K/60 and 4K/120 with eARC.
How many channels can I power and decode?: The AVR21 powers 7 channels onboard and decodes up to 16 channels; add external amps for layouts like 7.1.4 or 9.1.6.
What room correction is included?: Dirac Live Full Bandwidth is included; Dirac Live Bass Control is an optional paid add-on.
Which HDR formats are supported?: Dolby Vision, HDR10+, HDR10, and HLG pass through.
What streaming options are built in?: AirPlay 2, Chromecast built-in, Bluetooth aptX HD, Spotify Connect, Tidal Connect, UPnP (MusicLife), and Roon Ready.
What are the rated power specs?: 2 ch driven (20Hz–20kHz, <0.02% THD): 110W/175W (8Ω/4Ω); 7 ch driven (1kHz, 0.2% THD): 90W/110W (8Ω/4Ω).
What’s in the box?: Remote (2 × AAA), mains lead, DAB/FM aerial, 3 Wi-Fi/Bluetooth antennas, calibration mic, USB cable, Quick Start Guide.
Any tips for stable HDMI/ARC?: Keep firmware current, use certified Ultra High Speed HDMI cables, set a fixed output resolution, and disable CEC per source if needed.
Why do some owners mention warmth or HDMI/CEC quirks?: Class-AB designs run warm - ensure proper ventilation. For CEC/eARC, follow a known power-up order and use certified Ultra High Speed HDMI cables.
How do I expand to 7.2.4?: Use the AVR21’s RCA pre-outs to send sound to surround backs and height channels with external amps.
How does the Arcam AVR21 compare to other Arcam AVR Receivers?: Find our Arcam AVR Receiver Comparison Table here.

Arcam AVR21 Full Specifications:

Amplification: 7 channels of Class AB power
Surround decoding: Native 16-channel decoding for Dolby Atmos, DTS:X, and Auro-3D
DACs: Dual ESS 9026PRO with reference regulators
Room correction: Dirac Live Full Bandwidth included; Dirac Live Bass Control optional (license)
HDMI: 7 inputs / 3 outputs (including Zone 2), eARC, HDMI 2.1 with HDCP 2.3
Video formats: 8K@60, 4K@120; Dolby Vision, HDR10+, HDR10 and HLG passthrough
Streaming & control: Chromecast built-in, Apple AirPlay 2, Bluetooth aptX HD, Spotify Connect, Tidal Connect, UPnP (MusicLife), Roon Ready; Wi-Fi/Ethernet; RS232; IR
MQA: Supported
Power output (8Ω/4Ω): 2ch 20Hz–20kHz <0.02% THD: 110W/175W; 2ch 1kHz 0.2% THD: 125W/190W; 7ch 1kHz 0.2% THD: 90W/110W; residual noise & hum (A-wtd): <0.15mV
Stereo line inputs: Max 4.5V rms; sensitivity 1V/2V/4V; 47kΩ; S/N (A-wtd, ref 100W) 100dB (normal) / 110dB (stereo direct); 20Hz–20kHz ±0.2dB
Preamplifier outputs: 1V RMS nominal (max 5V RMS); 560Ω; THD+N (20Hz–20kHz): −100dB
Headphone output: Max 5V rms into 32Ω; output impedance <100Ω
Power & dimensions: 110–120V or 220–240V, 50–60Hz; max 1.5kW (≈5200 BTU/h); idle 100W (≈350 BTU/h); standby <0.5W; 433 × 425 × 171 mm (W×D×H)
Weight: 16.6 kg (net); 19.9 kg (packed)
Included accessories: Mains lead; remote (2 × AAA); Quick Start Guide; DAB/FM aerial; 3 × Wi-Fi/Bluetooth antennas; calibration microphone; USB cable
EAN (GTIN-13): 6925281994487
